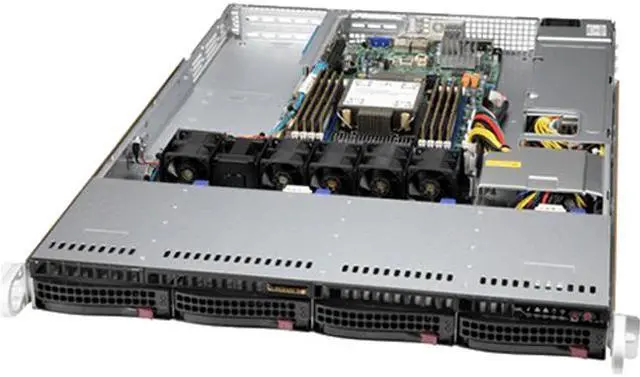

SUPERMICRO SYS-510P-WT 1U Rackmount Server Barebone LGA 4189

Be the first to review this product...
  • LGA 4189
  • Intel Xeon
  • 8 x 288Pin Memory Slots
+
+
Specs
Reviews
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-510P-WT

General
Brand SUPERMICRO
Series SuperServer
Model SYS-510P-WT
Form Factor 1U Rackmount
CPU Supported
CPU Type Intel Xeon
CPU Socket LGA 4189
Installed CPU No CPU Installed
Memory Supported
Memory Slots 8 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported UP to 2TB: 8 x 256 GB DRAM
UP to 3TB: 4 x 256 GB DRAM and 4 x 512 GB PMem
ECC Supported Yes
Storage Supported
Serial ATA 10 x SATA 600
SATA RAID RAID 0/1/5/10
Graphics
GPU/VPU ASPEED AST2600 BMC
Expansion Slots
PCI Express Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x16 LP
1 x PCI-E 3.0 x 4 and SATA, M-key, 2280, 22110
Communications
First LAN Intel X550
Second LAN Intel X550
Max. LAN Speed 10 Gigabit
Expansion Bays
Hot-Swap Bays 4 x 3.5" NVMe/SATA drive bays (4 x 3.5" NVMe hybrid)
Panel Ports
Front USB 1 x USB 3.2 Gen 1
COM 2 COM Port(s) (1 header; 1 rear)
VGA 1
Rear USB 2 x USB 3.2 Gen 1
2 x USB 2.0
RJ45 1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports
Dimensions & Weight
Dimensions 1.70" x 17.20" x 25.60"
Weight 22.00 lbs.
Additional Information
First Listed on Newegg January 03, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.

Manufacturer Contact Info

LOADING...

The SUPERMICRO SuperServer SYS-510P-WT is a 1U LGA 4189 server barebone for data-center, cloud, and virtualization deployments that need a configurable Intel Xeon platform, dual 10GbE networking, and four hot-swap 3.5-inch NVMe/SATA bays; CPU and memory are not included.

Recommended For

  • Data-center and enterprise teams fitting virtualization or cloud workloads into limited rack space, with a single-socket Xeon platform and 1U chassis.
  • Infrastructure teams deploying rack servers that need built-in dual 10GbE and PCIe slots for networking, storage, or other add-in cards.
  • Server builders configuring a single-socket system for memory-intensive workloads that benefit from ECC DDR4 and up to 2TB of supported memory.
  • Rack operators who need a compact server with four front-access hot-swap bays for SATA or supported NVMe storage.

Spec Summary

AttributeValue
Best ForRackmount server deployments requiring an Intel Xeon platform, configurable memory and NVMe/SATA drive bays
Platform And ProcessorIntel Xeon platform with an LGA 4189 socket; no CPU installed
Memory ConfigurationEight 288-pin memory slots; no memory installed; ECC supported; supports up to 2TB with 8 x 256 GB DRAM or up to 3TB with 4 x 256 GB DRAM and 4 x 512 GB PMem
Storage And Drive BaysFour 3.5-inch hot-swap hybrid NVMe/SATA bays and 10 SATA 600 ports; supports RAID 0, 1, 5, and 10
Expansion SlotsTwo PCIe 4.0 x16 FHFL slots, one PCIe 4.0 x16 LP slot, and one PCIe 3.0 x4 M-key slot supporting 2280 and 22110 devices with SATA
Wired NetworkingTwo Intel X550 LAN controllers with 10-Gigabit speed and two RJ45 10GBase-T LAN ports
System ManagementASPEED AST2600 BMC with a dedicated RJ45 IPMI LAN port
Rear And Front I/OFront: one USB 3.2 Gen 1 port. Rear: two USB 3.2 Gen 1 ports, two USB 2.0 ports, one VGA port, and two COM ports (one header and one rear)
Chassis And Dimensions1U rackmount chassis measuring 1.70 x 17.20 x 25.60 inches; weighs 22.00 lb
Model IdentifiersSUPERMICRO SuperServer SYS-510P-WT
