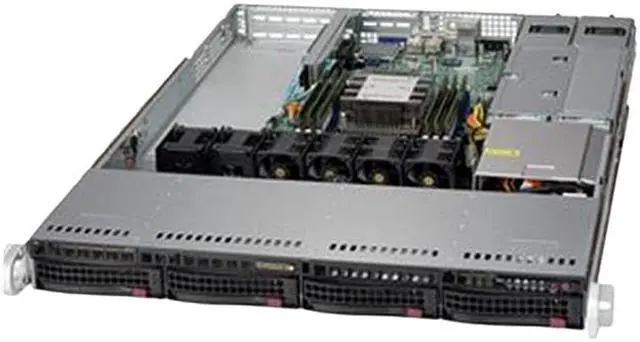

SUPERMICRO SuperServer SYS-510P-WTR 1U Rackmount Server Barebone, For Customized Please Contact with Newegg B2B

For Customized Please Contact with Newegg B2B
Key Applications
- Virtualization
- Cloud Computing
- Enterprise Server
- Data Center Optimized
Key Features
Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 270W TDP.
8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
Intel Ethernet Controller X550 2x 10GbE RJ45
4x hot-swap 3.5" Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
Redundant Platinum 500W Power Supply

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-510P-WTR

Memory Supported
Memory Slots	8 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	UP to 2TB: 8 x 256 GB DRAM UP to 3TB: 4 x 256 GB DRAM and 4 x 512 GB PMem
ECC Supported	Yes

Storage Supported
Serial ATA	10 x SATA 600
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	ASPEED AST2600 BMC

Expansion Slots
PCI Express	Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 LP 1 x PCI-E 3.0 x4 and SATA. M-key, 2280, 22110

Expansion Bays
Hot-Swap Bays	4 x 3.5" NVMe/SATA drive bays (4 x 3.5" NVMe hybrid)

Panel Ports
Front USB	1 x USB 3.2 Gen 1
COM	2 COM Port(s) (1 header; 1 rear)
VGA	1
Rear USB	2 x USB 3.2 Gen 1 2 x USB 2.0
RJ45	1 RJ45 Dedicated IPMI LAN port 2 RJ45 1GbE LAN ports

Dimensions & Weight
Dimensions	1.70" x 17.20" x 25.6"
Weight	24.00 lbs.

Additional Information
First Listed on Newegg	July 13, 2021
