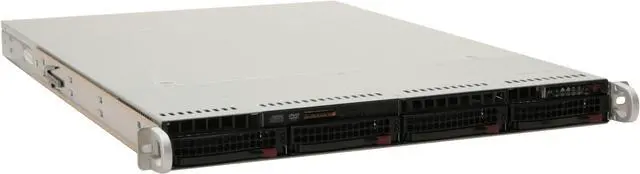

SUPERMICRO SYS-6015C-NTB 1U Rackmount Server Barebone Dual LGA 771 Intel 5100 DDRII 667/533
- Dual LGA 771
- Dual Intel Xeon
- 6 x 240Pin Memory Slots
- 560W AC power supply w/ PFC (20-pin)
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-6015C-NTB
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-6015C-NTB |
| Form Factor | 1U Rackmount |
| CPU Type | Dual Intel Xeon |
|---|---|
| CPU Socket | Dual LGA 771 |
| FSB | 1333/1066 MHz |
| North Bridge | Intel 5100 |
|---|---|
| South Bridge | ICH9R |
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | 48GB |
| Memory Type Supported | DDRII 667/533 |
| ECC Supported | Yes |
| Registered | Yes |
| ATA | 1x ATA 33/66/100 |
|---|---|
| Serial ATA | 6 x SATA 300 |
| SATA RAID | RAID 0, 1, 5, 10 support (Windows only) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | ATI ES1000 |
|---|---|
| Video Memory | 32MB |
| PCI Express | 1 (x16) PCI-e slots 1 (x8) PCI-e slot |
|---|
| First LAN | Intel 82575EB |
|---|---|
| Second LAN | Intel 82575EB |
| Max. LAN Speed | 1 Gigabit |
| Slim Bays | 1 |
|---|---|
| Hot-Swap Bays | 4 x 3.5" SATA |
| COM | 1 |
|---|---|
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 560W AC power supply w/ PFC (20-pin) |
|---|
| Features | CPU: Supports up to Dual Intel 64-bit Xeon processor(s) of the same type below: Quad-Core Intel Xeon Processor 5400/5300 sequence (Harpertown/Clovertown processor) up to 3.16 GHz. Dual-Core Intel Xeon Processor 5200/5100 sequence (Wolfdale/Woodcrest processor) up to 3.40 GHz. SAS/SATA HDD Backplane (SAS support requires optional SAS controller) System Cooling: 4 x Cooling Fans 1 x Air Shroud |
|---|
| Dimensions | 25.6" x 17.2" x 1.7" |
|---|---|
| Weight | 46 lbs. (Gross) |
| First Listed on Newegg | May 19, 2008 |
|---|
