SUPERMICRO SYS-6015P-TRB 1U Rackmount Barebone Server Dual LGA 771 Intel 5000P DDRII 667/533
- Dual LGA 771
- Dual Intel Xeon
- 8 x 240Pin Memory Slots
- 700W Redundant High-efficiency Power Supply
Overview
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now

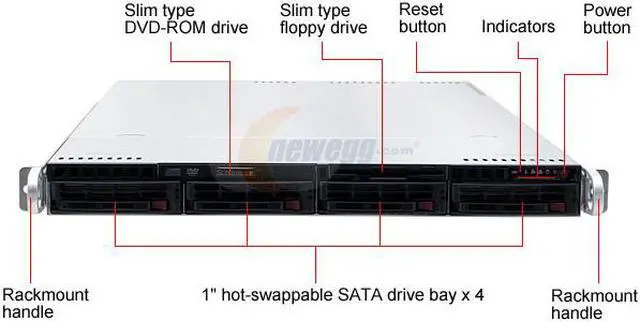

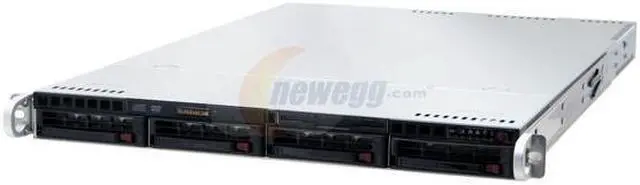

Supermicro's SYS-6015P-TRB 1U barebone server is a big bang in a small package. The front panel has four hot swap drive bays, a slim DVD–ROM drive and a bay for a slim floppy drive. On the back there is one regular height and one compact expansion bay. Redundant 700W AC power supply provide redundant power to the server.

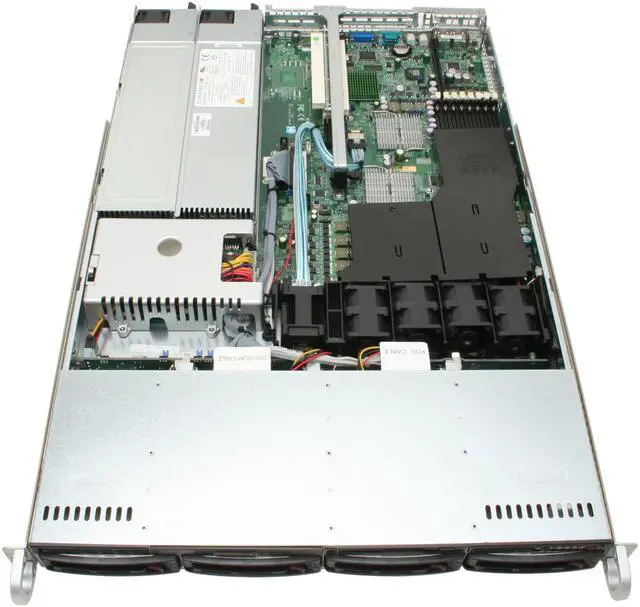

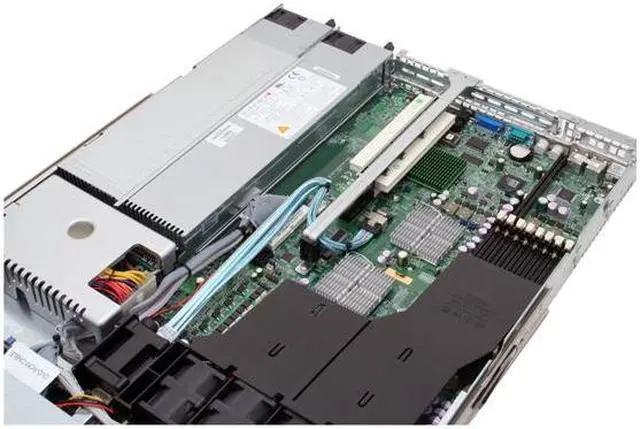

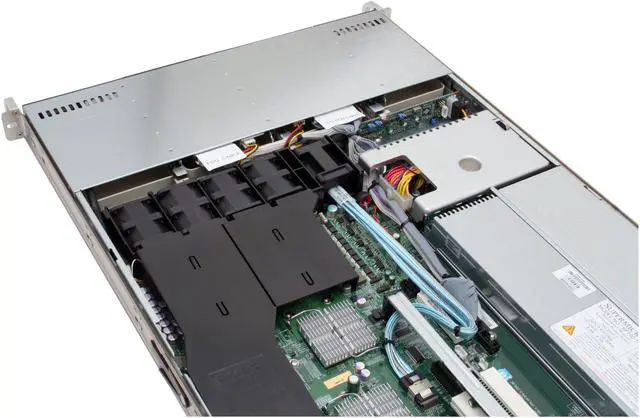

The Super X7DBP-i motherboard supports two dual or quad core Xeon processors. Eight 240 pin DIMM sockets can handle up to 32GB of 667 / 533MHz DDR2 ECC FB-DIMM memory. The on-board SATA/SAS 3Gb/s controller supports RAID levels 0, 1, 5 and 10.

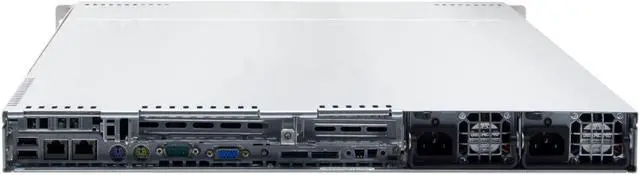

ATI's ES1000 controller with 16 MB of video memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, one RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
Supermicro's SYS-6015P-TRB 1U barebone server is a big bang in a small package. The front panel has four hot swap drive bays, a slim DVD–ROM drive and a bay for a slim floppy drive. On the back there is one regular height and one compact expansion bay. Redundant 700W AC power supply provide redundant power to the server.
The Super X7DBP-i motherboard supports two dual or quad core Xeon processors. Eight 240 pin DIMM sockets can handle up to 32GB of 667 / 533MHz DDR2 ECC FB-DIMM memory. The on-board SATA/SAS 3Gb/s controller supports RAID levels 0, 1, 5 and 10.
ATI's ES1000 controller with 16 MB of video memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, one RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
The Super X7DBP-i motherboard supports two dual or quad core Xeon processors. Eight 240 pin DIMM sockets can handle up to 32GB of 667 / 533MHz DDR2 ECC FB-DIMM memory. The on-board SATA/SAS 3Gb/s controller supports RAID levels 0, 1, 5 and 10.
ATI's ES1000 controller with 16 MB of video memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, one RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
Dual Intel 64-bit Xeon SupportDual onboard 771-pin LGA Sockets support two Intel 64-bit Xeon Processors including the Quad-Core Intel Xeon Processor 5300 sequence up to 2.66 GHz and Dual-Core Intel Xeon Processor 5100/5000 sequence up to 3.73GHz.
Integrated ATI ES1000 Graphics CoreThe integrated ATI ES1000 graphics core supports flexible memory options and DVO ports for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
FB-DIMM DDR2 Memory SupportEight DIMM sockets support FB-DIMM DDR2 667 and 533 SDRAM in capacities of up to 32GB.
PCI Express and PCI-X Expansion SlotsA left universal slot compatible with PCI Express x8 and 64-bit PCI-X 100MHz cards and a right universal slot supporting PCI Express x8 and 64-bit PCI-X 133MHz cards provide outstanding expandability and manageability.
Hot-swappable SATA Drive BaysThe SUPERMICRO SYS-6015P-TRB features four hot-swappable SATA drive bays with enclosure management for easy installation and replacement.
700W Highly-Efficient Redundant Power SupplyThe 700W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.
Dual Intel 64-bit Xeon SupportDual onboard 771-pin LGA Sockets support two Intel 64-bit Xeon Processors including the Quad-Core Intel Xeon Processor 5300 sequence up to 2.66 GHz and Dual-Core Intel Xeon Processor 5100/5000 sequence up to 3.73GHz.
Integrated ATI ES1000 Graphics CoreThe integrated ATI ES1000 graphics core supports flexible memory options and DVO ports for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
FB-DIMM DDR2 Memory SupportEight DIMM sockets support FB-DIMM DDR2 667 and 533 SDRAM in capacities of up to 32GB.
PCI Express and PCI-X Expansion SlotsA left universal slot compatible with PCI Express x8 and 64-bit PCI-X 100MHz cards and a right universal slot supporting PCI Express x8 and 64-bit PCI-X 133MHz cards provide outstanding expandability and manageability.
Hot-swappable SATA Drive BaysThe SUPERMICRO SYS-6015P-TRB features four hot-swappable SATA drive bays with enclosure management for easy installation and replacement.
700W Highly-Efficient Redundant Power SupplyThe 700W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.Warranty & Returns
