SUPERMICRO SYS-6015T-INFB 1U Rackmount Barebone Server (Two systems) Dual LGA 771 Intel 5000P DDRII 667/533
- Dual LGA 771
- Dual Intel Xeon
- 8 x 240Pin Memory Slots
- 980W AC-DC power supply w/ PFC
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-6015T-INFB
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-6015T-INFB |
| Form Factor | 1U Rackmount |
| CPU Type | Dual Intel Xeon |
|---|---|
| CPU Socket | Dual LGA 771 |
| FSB | 1333/1066 MHz |
| North Bridge | Intel 5000P |
|---|---|
| South Bridge | Intel ESB2 |
| Memory Slots | 8 x 240Pin |
|---|---|
| Max Memory Supported | 32GB |
| Memory Type Supported | DDRII 667/533 |
| ECC Supported | Yes |
| Registered | FB-DIMM |
| Serial ATA | 4 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | ATI ES1000 |
|---|---|
| Video Memory | 16MB |
| PCI Express | 1x PCI Express x8 |
|---|
| First LAN | Intel 82563EB |
|---|---|
| Second LAN | Intel 82563EB |
| Max. LAN Speed | 1 Gigabit |

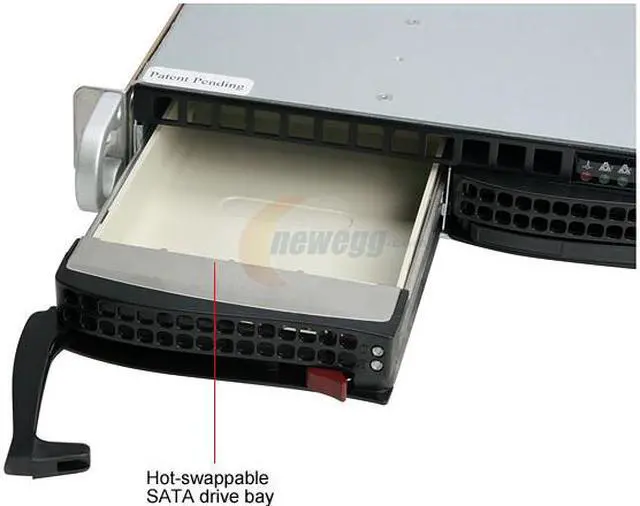

| 3.5" Bays | 2 |
|---|

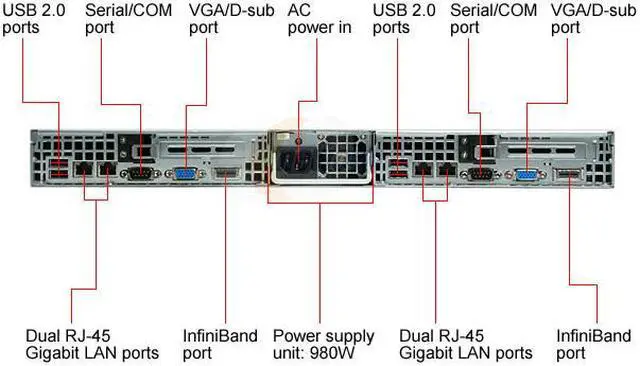

| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 980W AC-DC power supply w/ PFC |
|---|

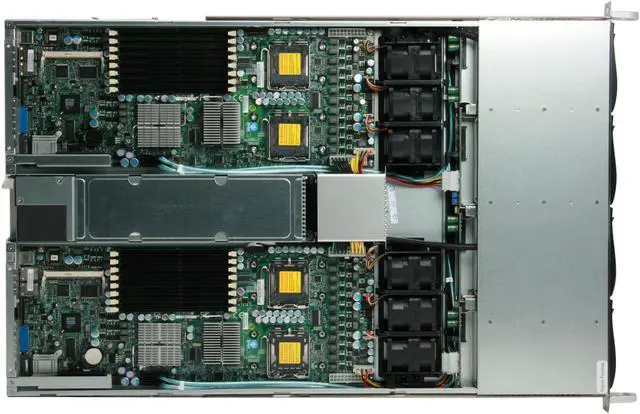

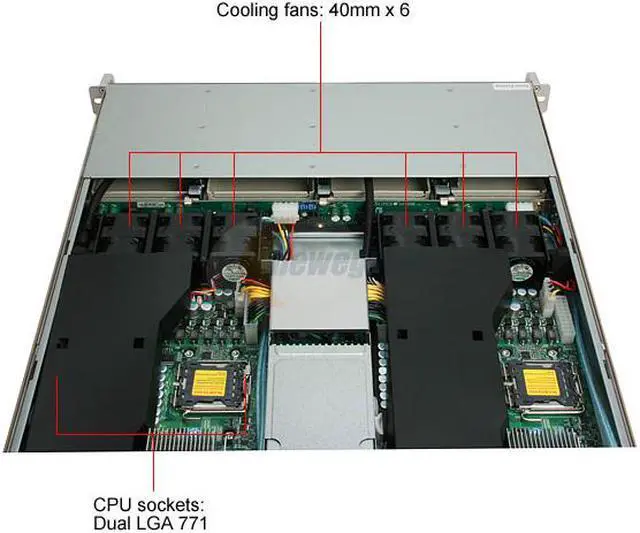

| Features | Black System Cooling : 6x Cooling Fans Two systems (nodes) in a 1U form factor. Each node supports the following: 1. Dual-processor Quad & Dual Core Intel 64-bit Xeon Support, 667 / 1066 / 1333MHz FSB 2. Up to 32GB DDR2 667 & 533 SDRAM Fully Buffered DIMM (FB-DIMM) 3. 1 (x8) PCI-Express 4. Intel (ESB2/Gilgal) 82563EB Dual-port Gigabit Ethernet Controller 5. 2x Hot-swap SATA Drive Bays 6. Infiniband MT25204 20Gbps Controller 7. 900/980W High-efficiency Power Supply Input / Output (per Node) : Serial ATA Four Serial ATA ports LAN 2x RJ45 LAN ports USB 2x USB rear ports 2x USB internal headers Total 4 USB 2.0 Compliant VGA 1x VGA Port Serial Port 1 Fast UART 16550 serial port |
|---|
| Dimensions | 1.7" x 17.2" x 27.8" |
|---|---|
| Weight | 40.0 lbs. |
| First Listed on Newegg | November 23, 2007 |
|---|
