SUPERMICRO SYS-6015W-NTB 1U Rackmount Barebone Server (Black) Dual LGA 771 Intel 5400 DDRII 800/667/533

(1) Write a Review
  • Dual LGA 771
  • Dual Intel Xeon
  • 8 x 240Pin Memory Slots
  • 560W AC power supply w/ PFC (20-pin)
Overview
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

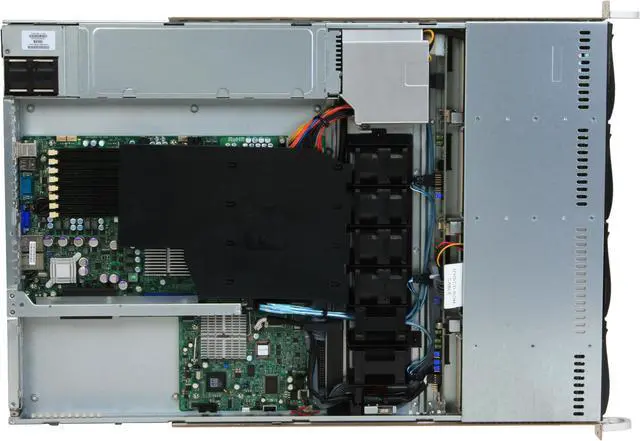

Supermicro packs a lot of power into a small package with the SYS-6015C-NTB-1U server barebone system. It is based on the new Super X7DCU motherboard and will accept up to 2 Intel Xeon processors with 2 or 4 cores each. To support all the processing power you can install up to 48GB of fully buffered ECC memory.

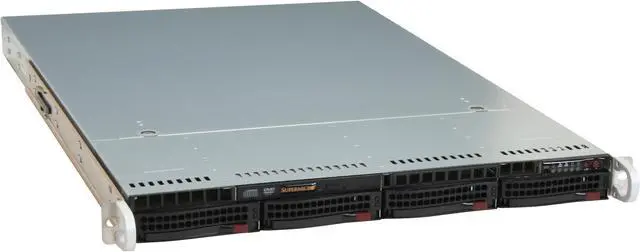

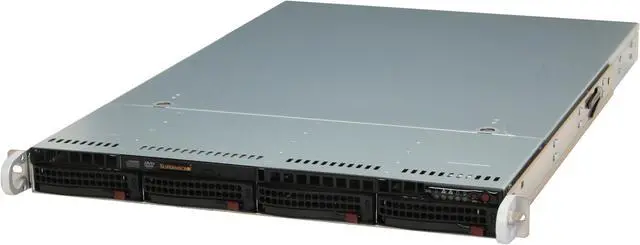

The front of the chassis has 4 hot swappable 3.5" drive bays. The motherboard has 6xSATA ports and supports RAID 0, 1, 5, 10. An EIDE port lets you plug in 2 other drives.
All this fits into a slim 1U chassis. The whole thing is powered by a 1+1 650W redundant power supply so the system will get all the power that it needs. The back panel has 2x USB 2.0 and 2xGigabit Ethernet ports.
Supermicro packs a lot of power into a small package with the SYS-6015C-NTB-1U server barebone system. It is based on the new Super X7DCU motherboard and will accept up to 2 Intel Xeon processors with 2 or 4 cores each. To support all the processing power you can install up to 48GB of fully buffered ECC memory.

The front of the chassis has 4 hot swappable 3.5" drive bays. The motherboard has 6xSATA ports and supports RAID 0, 1, 5, 10. An EIDE port lets you plug in 2 other drives.

All this fits into a slim 1U chassis. The whole thing is powered by a 1+1 650W redundant power supply so the system will get all the power that it needs. The back panel has 2x USB 2.0 and 2xGigabit Ethernet ports.
  • neweggDual Intel 64-bit Xeon SupportDual onboard 771-pin LGA Sockets support two Intel 64-bit Xeon Processors including the Quad-Core Intel Xeon Processor 5400/5300LV sequence up to 3.20 GHz and Dual-Core Xeon Processor 5200/5100LV sequence up to 3.40GHz.
  • neweggIntegrated ATI ES1000 Graphics CoreThe integrated ATI ES1000 graphics core supports flexible memory options and DVO ports for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
  • neweggFB-DIMM DDR2 Memory SupportEight DIMM sockets support FB-DIMM DDR2 800, 667 and 533 SDRAM in capacities of up to 64GB.
  • neweggDual-port Gigabit EthernetDual Gigabit Ethernet LAN ports with the Intel 82575EB Dual-port Gigabit Ethernet Controller deliver ultra-fast network connections.

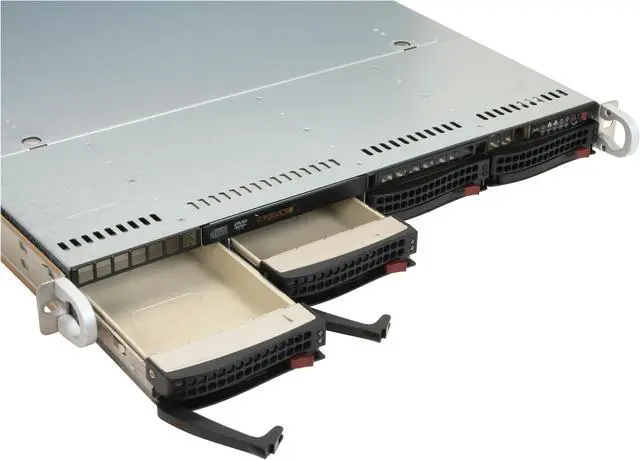

  • neweggHot-swappable SATA Drive BaysThe Super Micro SYS-6015W-NTB features four 3.5” hot-swappable SATA drive bays for easy installation and replacement.
  • newegg560W Highly-Efficient Redundant Power SupplyThe 560W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
