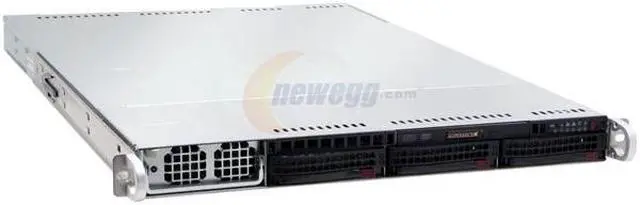

SUPERMICRO SYS-6015X-TB 1U Rackmount Barebone Server Dual LGA 771 Intel 5000P DDRII 667/533

Be the first to review this product...
  • Dual LGA 771
  • Dual Intel Xeon
  • 8 x 240Pin Memory Slots
  • 700W High-efficiency Power Supply
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

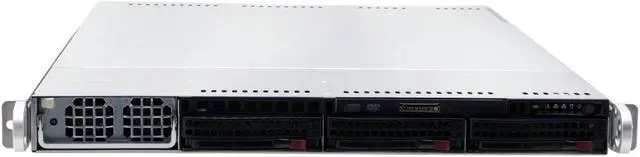

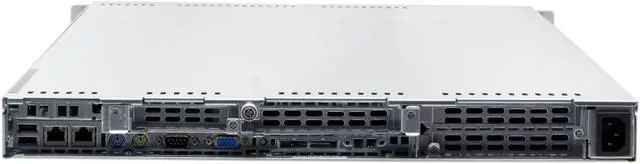

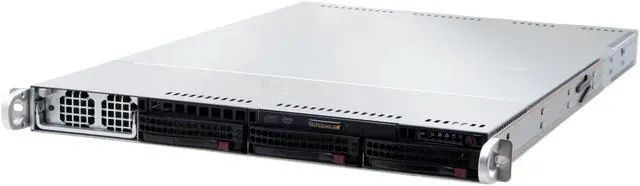

Supermicro's SYS-6015X-TB 1U barebones server is a big bang in a small package. The front panel has 3 hot swap drive bays, a slim DVD-ROM drive and a bay for a slim floppy drive. On the back there are three regular height and one low profile expansion slot. A 700W power supply is included.

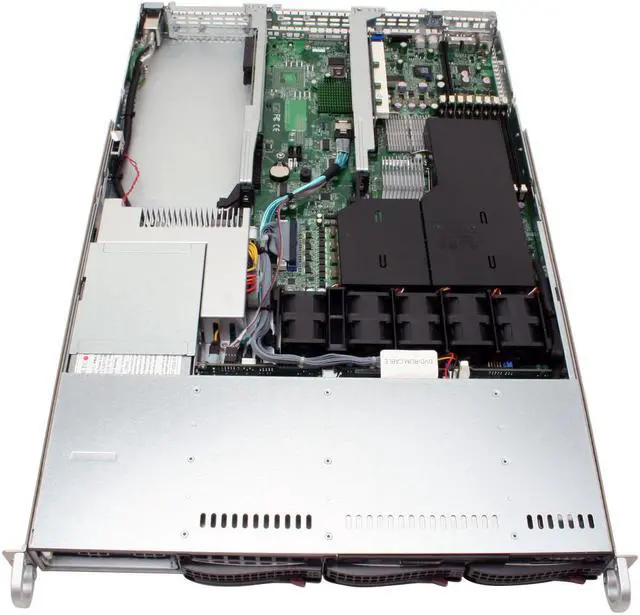

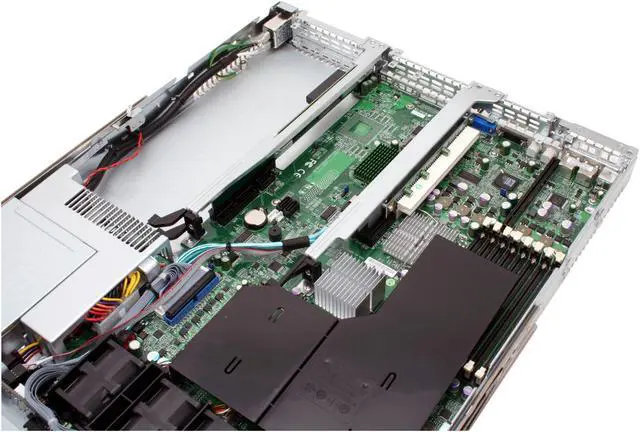

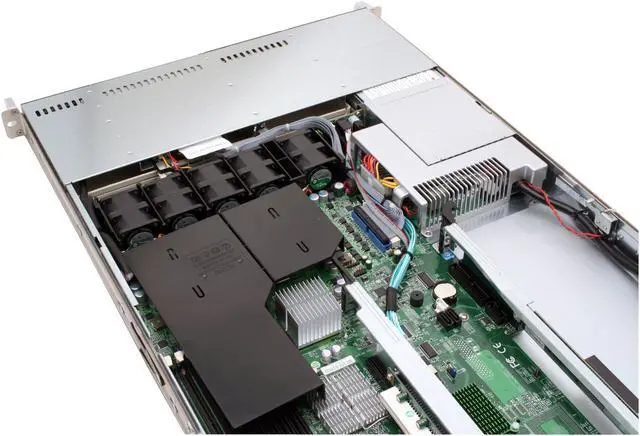

The Super X7DBX-i motherboard supports two dual or quad core Xeon processors. Eight 240 pin DIMM sockets can handle up to 32GB of 667 / 533MHz DDR2 ECC FB-DIMM memory. The on-board SATA 3Gb/s controller supports RAID levels 0, 1, 5 and 10.
ATi's ES1000 video controller with 16MB of memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, an RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
Supermicro's SYS-6015X-TB 1U barebones server is a big bang in a small package. The front panel has 3 hot swap drive bays, a slim DVD-ROM drive and a bay for a slim floppy drive. On the back there are three regular height and one low profile expansion slot. A 700W power supply is included.

The Super X7DBX-i motherboard supports two dual or quad core Xeon processors. Eight 240 pin DIMM sockets can handle up to 32GB of 667 / 533MHz DDR2 ECC FB-DIMM memory. The on-board SATA 3Gb/s controller supports RAID levels 0, 1, 5 and 10.

ATi's ES1000 video controller with 16MB of memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, an RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
  • neweggDual Intel 64-bit Xeon SupportDual onboard 771-pin LGA Sockets support two Intel 64-bit Xeon Processors including the Quad-Core Intel Xeon Processor 5300 sequence up to 2.66 GHz and Dual-Core Intel Xeon Processor 5100/5000 sequence up to 3.73GHz.
  • neweggIntegrated ATI ES1000 Graphics CoreThe integrated ATI ES1000 graphics core supports flexible memory options and DVO ports for remote server management and KVM over IP solutions, delivering best-in-class performance, reliability, compatibility and longevity.
  • neweggFB-DIMM DDR2 Memory SupportEight DIMM sockets support FB-DIMM DDR2 667 and 533 SDRAM in capacities of up to 32GB.
  • neweggPCI Express and PCI-X Expansion SlotsA left universal slot compatible with PCI Express x8 and 64-bit PCI-X 133MHz cards and a right universal slot supporting PCI Express x4 and 64-bit PCI-X 133MHz cards provide supreme expandability.
  • neweggHot-swappable SATA Drive BaysThe SUPERMICRO SYS-6015X-TB features three hot-swappable SATA drive bays for easy installation and replacement.
  • newegg700W Highly-Efficient Redundant Power SupplyThe 700W highly-efficient redundant power supply provides power for all components installed and ensures system reliability.
