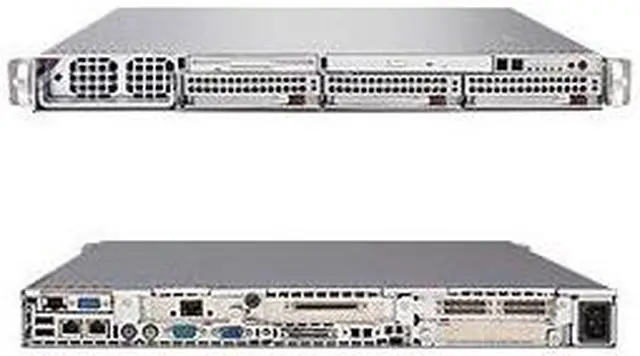

SUPERMICRO SYS-6015X-TV 1U Rackmount Barebone Server Dual LGA 771 Intel 5000P DDRII 667/533

Be the first to review this product...
  • Dual LGA 771
  • Dual Intel Xeon
  • 8 x 240Pin Memory Slots
  • 700W High-efficiency Power Supply
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-6015X-TV

General
Brand SUPERMICRO
Model SYS-6015X-TV
Form Factor 1U Rackmount
CPU Supported
CPU Type Dual Intel Xeon
CPU Socket Dual LGA 771
FSB 1333/1066MHz
Chipset
North Bridge Intel 5000P
South Bridge Intel ESB2
Memory Supported
Memory Slots 8 x 240Pin
Max Memory Supported 32GB
Memory Type Supported DDRII 667/533
ECC Supported Yes
Registered FB-DIMM
Storage Supported
ATA 1x ATA 33/66/100
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/0+1/5
Graphics
GPU/VPU ATI ES1000 controller with 16 MB of video memory
Communications
First LAN Intel 82563EB
Second LAN Intel 82563EB
Max. LAN Speed 1 Gigabit
Expansion Bays
Slim Bays Slim 8x DVD, 24x CD, DVD-ROM drive
Hot-Swap Bays 3 x 1" Hot-swap SATA drive bays
Panel Ports
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2
Power Supply
Max. Power 700W High-efficiency Power Supply
Features
Features Expansion Slots:
Left Universal Slot: 1 PCI-Express (x8) Slot OR 1 64-bit 133MHz PCI-X (3.3V) Slot (Full-height, Full-length)
Right Universal Slot: 1 PCI-Express (x4) Slot OR 1x 64-bit 133MHz PCI-X (3.3V) Slot (Low-profile)
Left Auxiliary Slots: 1 (x8) & 1 (x4) PCI-Express Slot (Default) OR 2x 64-bit 133MHz PCI-X (3.3V) Slot (Optional)
Dimensions & Weight
Dimensions 27.0" x 19.0" x 1.7"
Weight 38.5 lbs. (Gross Weight)
Additional Information
First Listed on Newegg January 05, 2007
