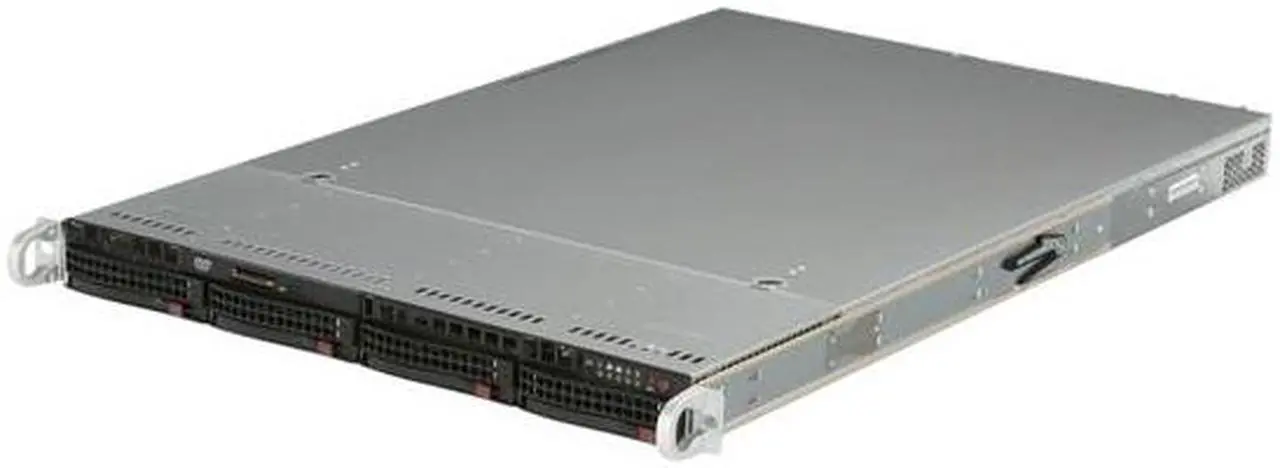

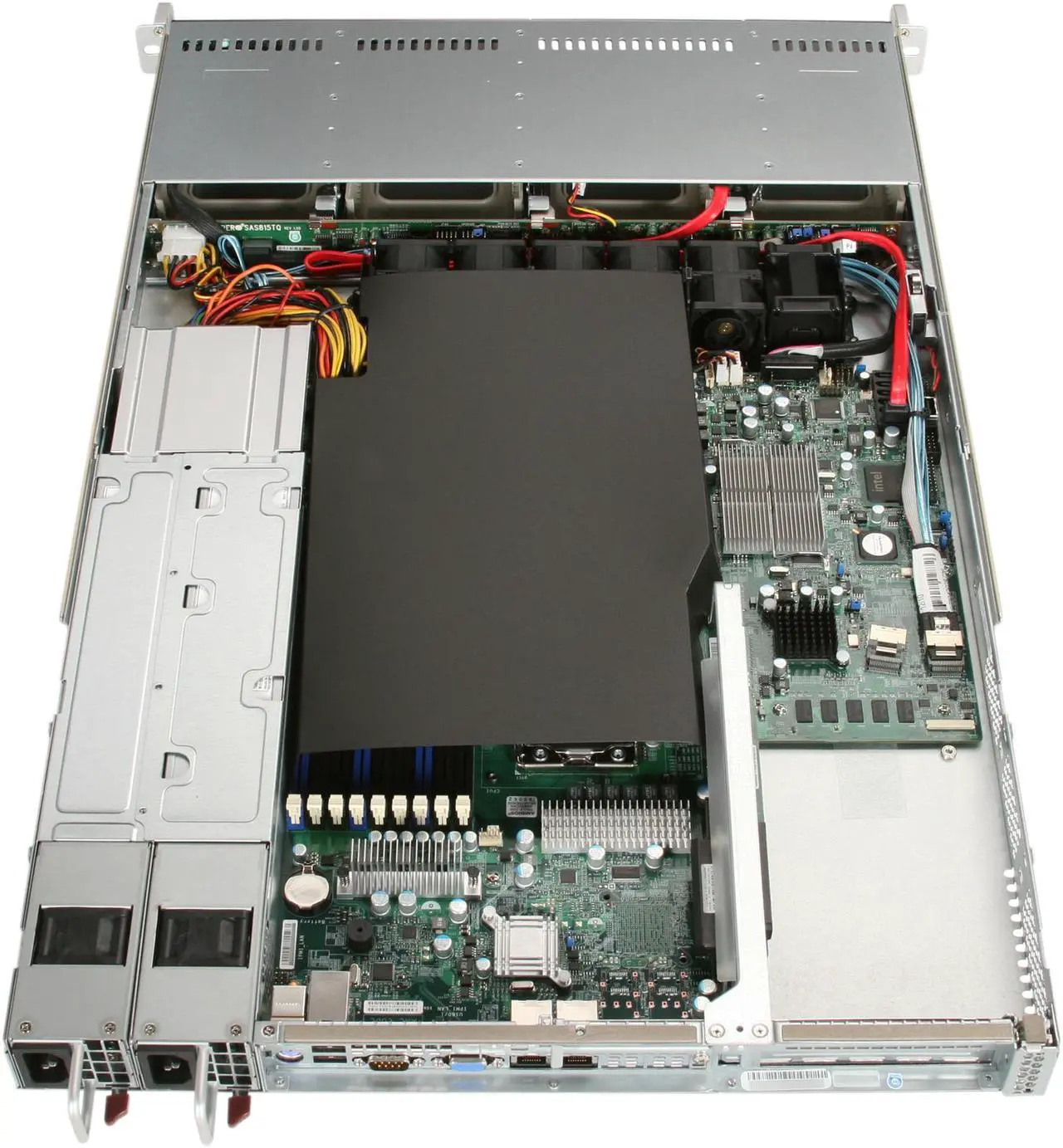

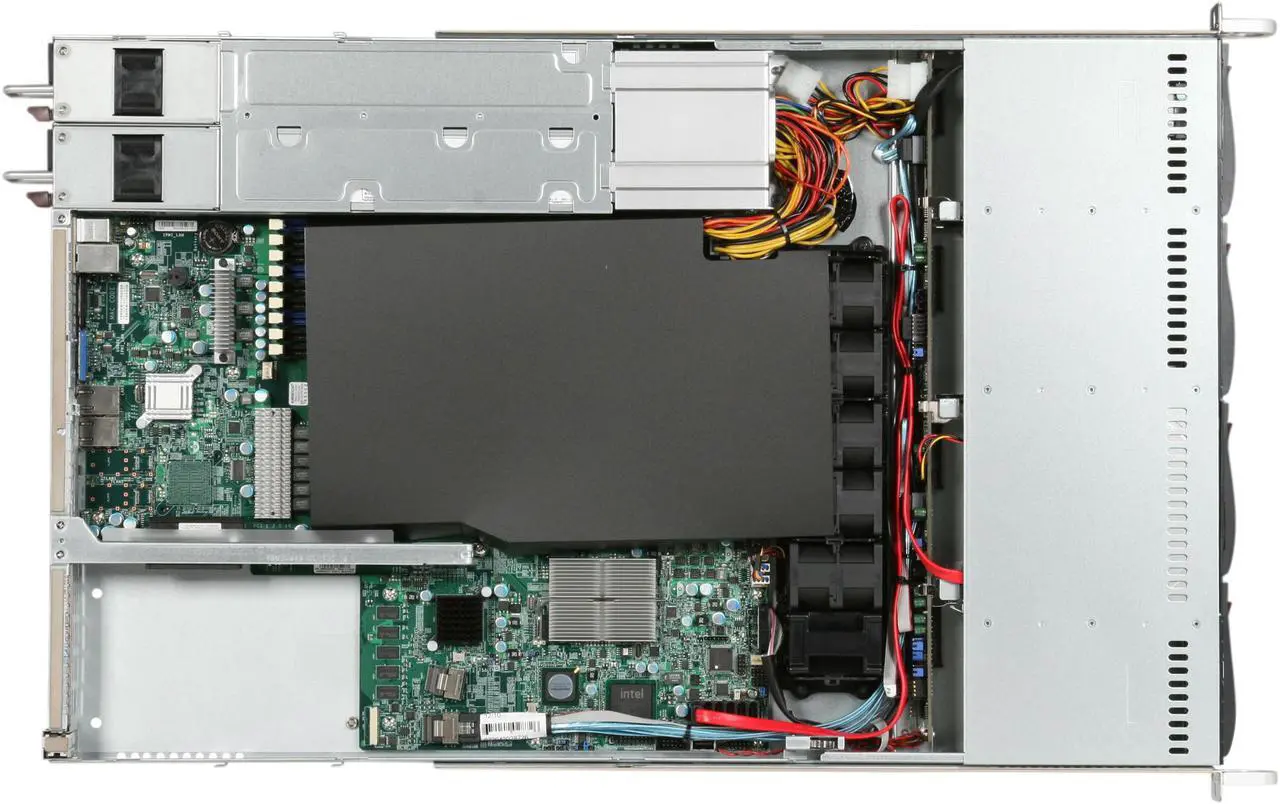

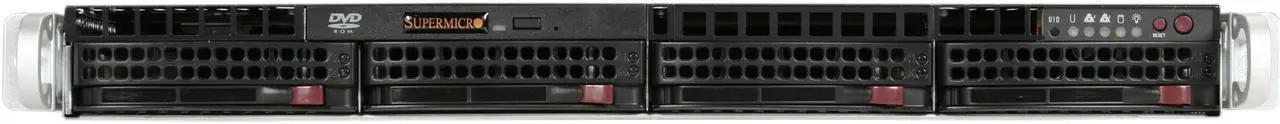

SUPERMICRO SYS-6016T-6RF+ 1U Rackmount Server Barebone Dual LGA 1366 Intel 5520 DDR3 1333/1066/800

Be the first to review this product...
  • Dual LGA 1366
  • Dual Intel Xeon 5600/5500 Series
  • 18 x 240Pin Memory Slots
  • 700W Gold-Level Redundant Power Supply
Specs
Reviews

Learn more about the Supermicro SYS-6016T-6RF+

Model
Brand SUPERMICRO
Model SYS-6016T-6RF+
CPU Supported
CPU Type Dual Intel Xeon 5600/5500 Series
CPU Socket Dual LGA 1366
Chipset
North Bridge Intel 5520
South Bridge ICH10R
Memory Supported
Memory Slots 18 x 240Pin
Max Memory Supported Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
Memory Type Supported DDR3 1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/5/10
SAS LSI 6Gbps SAS 2108 w/ Hardware RAID support
RAID 0, 1, 5, 6, 10 support
Graphics
GPU/VPU Matrox G200eW
Expansion Slots
PCI Express Left Slot : 2 (x8) PCI-E 2.0 slots
Right Slot : 1 (x4) PCI-E 2.0 (in x8 slot -Low-Profile - 5.5" depth)
Communications
First LAN Intel 82576
Max. LAN Speed Dual 10/100/1000Mbps
Expansion Bays
Slim Bays 1
Hot-Swap Bays 4 x 3.5" SAS / SATA

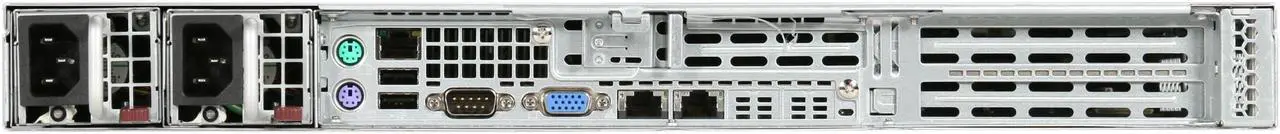

Panel Ports
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 700W Gold-Level Redundant Power Supply
Details
Form Factor 1U Rackmount
Dimensions & Weight

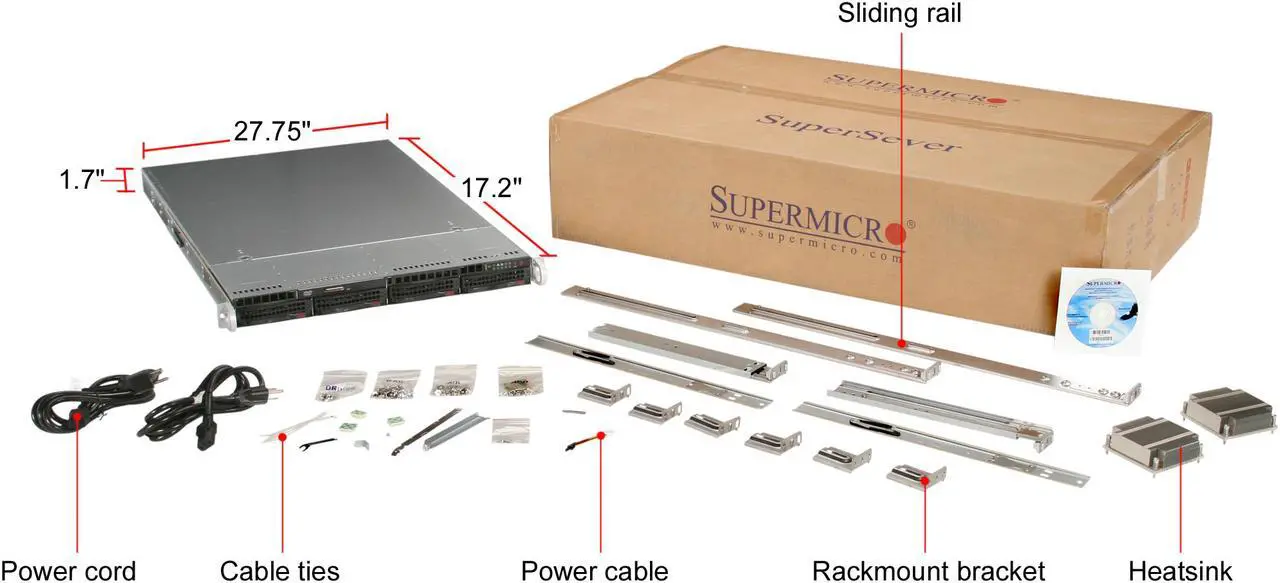

Dimensions 27.75" x 17.2" x 1.7"
Weight 43.0 lbs.
Additional Information
Date First Available July 07, 2010
