SUPERMICRO SYS-6016T-MR 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series
- Dual LGA 1366
- Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
- 6 x 240Pin Memory Slots
- 520W AC to DC power supply w/ PFC
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-6016T-MR
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-6016T-MR |
| Form Factor | 1U Rackmount |
| CPU Type | Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W |
|---|---|
| CPU Socket | Dual LGA 1366 |
| North Bridge | Intel 5500 |
|---|---|
| South Bridge | ICH10R |
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Serial ATA | 6 x SATA 300 |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Matrox G200eW |
|---|---|
| Video Memory | 8 MB DDR2 |
| PCI Express | 1 (x8) PCI-E 2.0 (1 in x16 slot) |
|---|
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| Slim Bays | Slim 8x DVD / 24x CD-ROM Drive |
|---|
| Front USB | 2 |
|---|---|
| COM | 1 |
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 520W AC to DC power supply w/ PFC |
|---|
| Features | 1 x 3.5" internal drive bay |
|---|

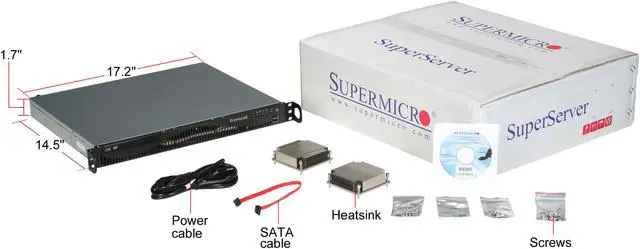

| Dimensions | 17.2" x 14.5" x 1.7" |
|---|---|
| Weight | 20 .bs. |
| First Listed on Newegg | June 01, 2009 |
|---|
