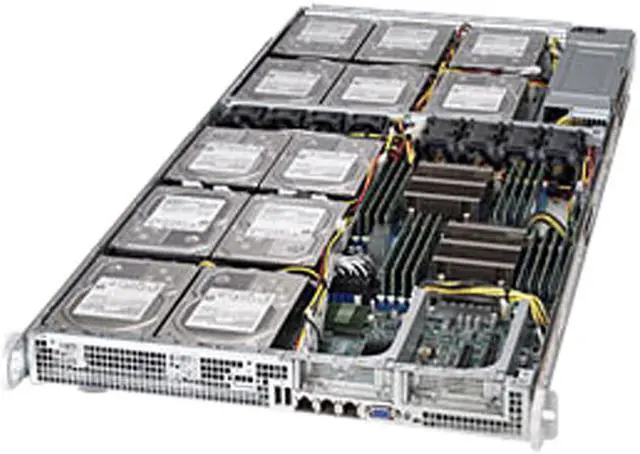

Main image of SUPERMICRO SYS-6017R-73THDP+ 1U Rackmount Server Barebone Dual LGA 2011 Intel C602 DDR3 1866/1600/1333/1066

Shop All Supermicro Products

SUPERMICRO SYS-6017R-73THDP+ 1U Rackmount Server Barebone Dual LGA 2011 Intel C602 DDR3 1866/1600/1333/1066

Be the first to review this product...

Dual LGA 2011
Support Dual Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 130W TDP)
16 x 240Pin Memory Slots
650W AC-DC High Efficiency Power Supply

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Designed for optimal performance, the dual-processor SuperServers support the QPI (8.0GT/s) format Xeon® processor E5-2600 or E5-2600 v2 family in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.

General
Brand	SUPERMICRO
Model	SYS-6017R-73THDP+
Form Factor	1U Rackmount

CPU Supported
CPU Type	Support Dual Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 130W TDP)
CPU Socket	Dual LGA 2011
Installed CPU	No CPU Installed
Max Processors	2

Chipset
North Bridge	Intel C602

Memory Supported
Memory Slots	16 x 240Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC Registered memory (RDIMM) Up to 192GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type Supported	DDR3 1866/1600/1333/1066
ECC Supported	Yes
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	2 x SATA 600 + 4 x SATA 300
SATA RAID	RAID 0, 1, 5, 10
SAS	8 SAS2 ports (6Gbps) SAS2 (6Gbps) via LSI 2308 SW RAID 0, 1, 10 support

Graphics
GPU/VPU	Matrox G200eW

Expansion Slots
PCI Express	1x PCI-E 2.0 x4 (in x8, Half-height) slot 1x PCI-E 3.0 x8 (Low-profile) slot

Communications
First LAN	Intel X540
Max. LAN Speed	1 Gigabit

Expansion Bays
3.5" Bays	12x Fixed 3.5" HDD bays (connected to onboard 8x LSI 2308 SAS2 Ports and 4x SATA2/3 Ports)

Panel Ports
COM	1x Fast UART 16550 ports (rear/header)
VGA	1
Rear USB	3x USB 2.0 ports (2x rear + 1x Type A)
RJ45	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port

Power Supply
Max. Power	650W AC-DC High Efficiency Power Supply

Features
Features	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC Front Panel Buttons Power On/Off button LEDs Network activity LEDs SAS/SATA HDD Backplane 4x 40x56mm PWM cooling fans 4x 40x28mm PWM cooling fans

Dimensions & Weight
Dimensions	35.75" x 17.2" x 1.7" (D x W x H)
Weight	Gross: 38lbs

Additional Information
First Listed on Newegg	April 09, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable
Return for replacement within: 30 days
This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.
