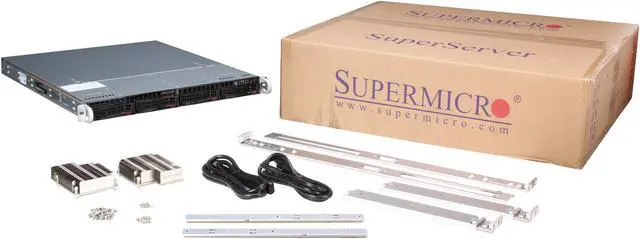

Main image of SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

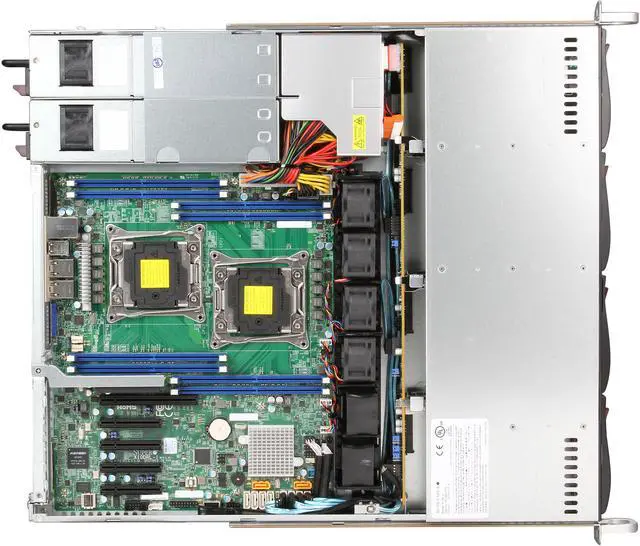

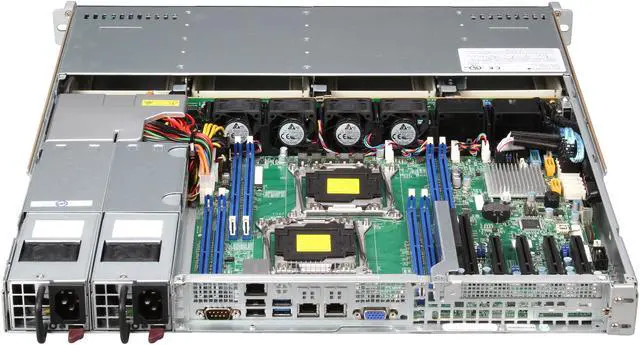

Alt view image 2 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 3 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 4 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 5 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 6 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 7 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Alt view image 8 of 8 - SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Shop All Supermicro Products

SUPERMICRO SYS-6018R-MTR 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Be the first to review this product...

Dual LGA 2011
Intel Xeon processor E5-2600 v3 family (up to 135W TDP )
8 x 288Pin Memory Slots
400W

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-6018R-MTR

General
Brand	SUPERMICRO
Model	SYS-6018R-MTR
Form Factor	1U Rackmount

CPU Supported
CPU Type	Intel Xeon processor E5-2600 v3 family (up to 135W TDP )
CPU Socket	Dual LGA 2011
Installed CPU	No CPU Installed
Max Processors	2

Chipset
North Bridge	Intel C612

Memory Supported
Memory Slots	8 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	Up to 512GB ECC LRDIMM, 256GB ECC RDIMM
Memory Type Supported	DDR4 2133/1866/1600
ECC Supported	Yes
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	4x SATA3 (6Gbps)
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	ASPEED AST2400 BMC

Expansion Slots
PCI Express	1x PCI-E 3.0 x8 Full-height Half-length

Communications
First LAN	Intel I210
Second LAN	Intel I210
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
Hot-Swap Bays	4x 3.5" Hot-swap SATA HDD trays

Panel Ports
VGA	1
Rear USB	2x USB 3.0 2x USB 2.0
RJ45	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
Other Ports	1x Fast UART 16550 port / 1 Header 2x SuperDOM (Disk on Module) ports

Power Supply
Max. Power	400W

Features
Features	1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Up to 512GB ECC DDR4, up to 2133MHz; 8x DIMM sockets 3. 1x PCI-E 3.0 x8 FHHL Expansion slot 4. Intel i210 Dual port Gigabit Ethernet 5. IPMI 2.0 + KVM with Dedicated LAN 6. 4x 3.5" Hot-swap SATA3 HDD Bays 7. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 2x USB 3.0, 2x USB 2.0 8. 400W Redundant Power Supplies Gold Level Certified 9. *Note: SYS-6018R-MTR-BULK Available as Cost Optimized, Bulk Packing - 10 systems in one carton

Dimensions & Weight
Dimensions	1.7" (43mm) x 17.2" (437mm) x 19.8" (503mm) (H x W x D)
Weight	38 lbs (17.24kg)
