SUPERMICRO SYS-6018R-TDW 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM 72-bit

Be the first to review this product...
  • Dual LGA 2011
  • Intel Xeon processor E5-2600 v4 / v3 family (up to 145W TDP)
  • 16 x 288Pin Memory Slots
  • 600W High-Efficiency Power Supply w/ PMBus 1.2, I2C, PFC, and Digital Switching
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
image for this item

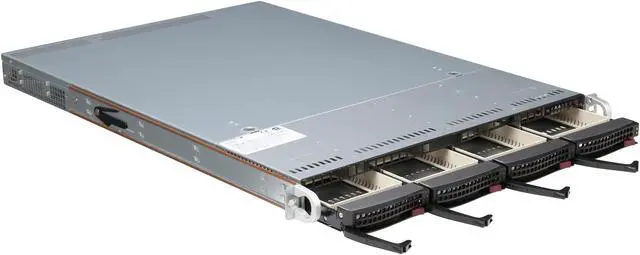

Supermicro SuperServer 6018R-TDW

A 1U rackmount server barebone system that's optimized for data centers. It supports dual Intel Xeon processors, and has 16 DIMM slots that can accommodate up to 2TB ECC 3DS LRDIMM. This barebone also comes with four hot-swap SATA drive bays, two GbE LAN ports, and two PCIe 3.0 x16 & PCIe 3.0 x8 slots for robust expandability. A 600W power supply is 80 PLUS Platinum certified, delivering stable, reliable output for the entire system.

To complete this system, you'll need a processor, system memory, a storage drive and Operating System software.

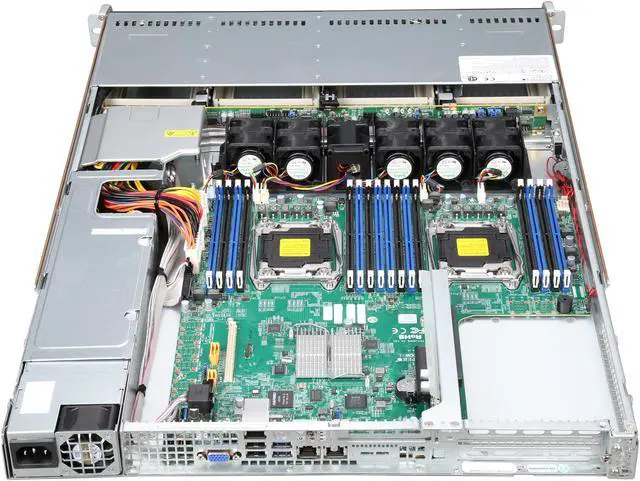

Integrated Board
image for this item
X10DDW-i
  • Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s
  • Intel C612 chipset
  • Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400†MHz ; 16x DIMM slots
  • One PCI-E 3.0 x32 Left riser slot; one PCI-E 3.0 x8 Right riser slot; one PCI-E 3.0 x8 for Add-On-Module
  • Intel i350 Dual port Gigabit Ethernet
  • 10x SATA3 (6Gbps); RAID 0, 1, 5, 10
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • Three USB 3.0 (2 rear, 1 Type A); four USB 2.0 (2 rear, 2 via header)

Please note: images in the description may show a varied configuration or optional parts.

MAIN OVERVIEW FEATURES:

  • Number of Processors Supported: 2
  • Processor Socket: Socket LGA 2011-v3
  • Processor Supported: Xeon
  • 64-bit Processing: Yes
  • Chipset Manufacturer: Intel
  • Chipset Model: C612 Express
  • Maximum Memory: 1 TB
  • Memory Technology: DDR4 SDRAM
  • Memory Standard: DDR4-2133/PC4-17000
  • Number of Total Memory Slots: 16
  • Controller Type: Serial ATA/600
  • RAID Supported: Yes
  • Graphics Controller Manufacturer: ASPEED
  • Graphics Controller Model: AST2400
  • Ethernet Technology: Gigabit Ethernet,Fast Ethernet
  • Number of Total Expansion Bays: 4
  • Number of 3.5" Bays: 4
  • Number of Total Expansion Slots: 3
  • Number of PCI Express x8 Slots: 2
  • Total Number of USB Ports: 5
  • Number of USB 3.0 Ports: 2
  • Number of SATA Interfaces: 4
  • Input Voltage: 120 V AC,230 V AC
  • Number of Power Supplies Installed: 1
  • Maximum Power Supply Wattage: 600 W
  • Color: Black
  • Form Factor: Rack-mountable
  • Rack Height: 1U
  • Height: 1.70" (43.18 mm)
  • Width: 17.20" (436.88 mm)
  • Depth: 25.60" (650.24 mm)

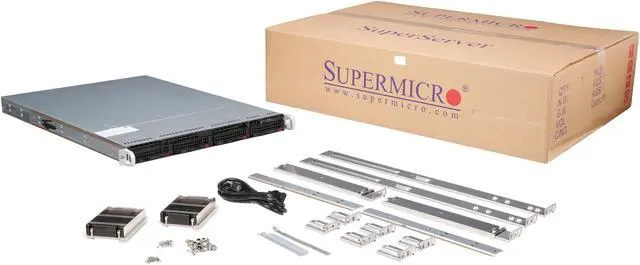

  • Package Contents:
    • SuperServer 6018R-TDW (Black)
    • 1 x Super X10DDW-i Motherboard
    • 1 x 1U Chassis
    • 1 x BPN-SAS-815TQ-O-P
    • 1 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
    • 1 x RA IPASS TO 4 SATA, 75/75/90/90cm w/90cm SB, 30AWG,RoHS/REACH
    • 1 x RSC-R1UW-2E16-O-P
    • 1 x RSC-R1UW-E8R-O-P
    • 2 x 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
    • 1 x 1U 600W Multi Output Power Supply PMbus
    • 1 x SC815/113/116 Intel DP X9, X8 PC air shroud,1368x13/12x13MB
    • 1 x FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF. 28AWG
    • 1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    • 4 x 40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M
    • 4 x Black gen 5.5 hot-swap 3.5" HDD tray
    • 1set Inner rail, front, screw type
    • 1set Outer rail, screw type, 25.6" to 33.05"
    • 1set Inner rail, extension (screw) for 1U 17.2
  • Environmentally Friendly: Yes
  • Environmental Certification: RoHS
  • Limited Warranty: 3 Year
