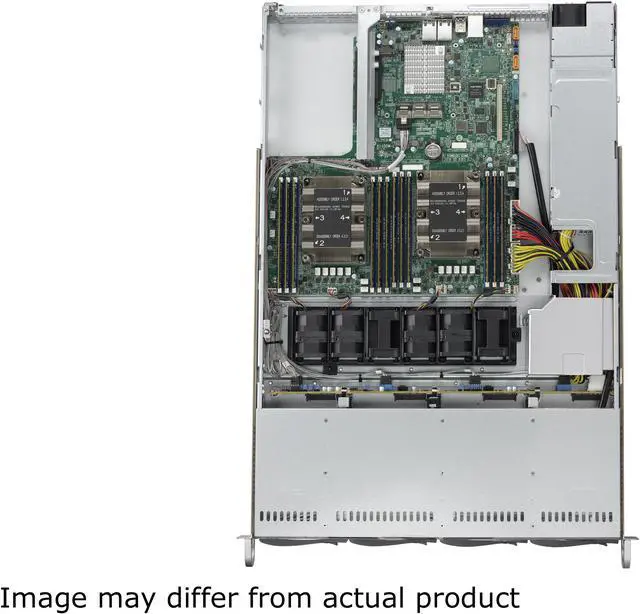

Main image of Supermicro System SYS-6019P-WT 1U Xeon Socket 3647 1.5TB DDR4 4x3.5Hot-swap SATA3/SAS3 600W Brown Box

Alt view image 2 of 4 - Supermicro System SYS-6019P-WT 1U Xeon Socket 3647 1.5TB DDR4 4x3.5Hot-swap SATA3/SAS3 600W Brown Box

Alt view image 3 of 4 - Supermicro System SYS-6019P-WT 1U Xeon Socket 3647 1.5TB DDR4 4x3.5Hot-swap SATA3/SAS3 600W Brown Box

Alt view image 4 of 4 - Supermicro System SYS-6019P-WT 1U Xeon Socket 3647 1.5TB DDR4 4x3.5Hot-swap SATA3/SAS3 600W Brown Box

Shop All Supermicro Products

Supermicro System SYS-6019P-WT 1U Xeon Socket 3647 1.5TB DDR4 4x3.5Hot-swap SATA3/SAS3 600W Brown Box

Be the first to review this product...

Dual LGA 3647
Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W
600W High-Efficiency Power Supply w/ PMBus 1.2, I2C, PFC, and Digital Switching

Overview

Specs

Reviews

See all Q & A

Supermicro System SYS-6019P-WT 1U Xeon Socket 3647 1.5TB DDR4 4x3.5Hot-swap SATA3/SAS3 600W Brown Box

General
Brand	SUPERMICRO
Model	SYS-6019P-WT
Form Factor	1U Rackmount

CPU Supported
CPU Type	Dual Socket P (LGA 3647) Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s Support CPU TDP 70-165W
CPU Socket	Dual LGA 3647

Chipset
North Bridge	Intel C621

Memory Supported
Max Memory Supported	Up to 1.5TB 3DS ECC L/RDIMM, up to DDR4-2666 MHz
Memory Type Supported	DDR4 2666 / 2400 / 2133 MHz ECC RDIMM / LRDIMM
ECC Supported	Yes

Storage Supported
Serial ATA	4 x SATA 600
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	Aspeed AST2500 BMC

Communications
Number of LAN	Dual LAN with Gigabit Ethernet from C621
Max. LAN Speed	Dual 1 Gigabit

Panel Ports
Rear USB	4 x USB 3.0 port
RJ45	2 x RJ45 Gigabit Ethernet ports 1 x RJ45 Dedicated IPMI LAN port

Power Supply
Max. Power	600W High-Efficiency Power Supply w/ PMBus 1.2, I2C, PFC, and Digital Switching

Features
Features	Dual Socket P (LGA 3647) support Intel Xeon Scalable Processors Up to 1.5TB 3DS ECC LRDIMM, up to DDR4-2666 MHz; 12 x DIMM slots 2 x PCI-E 3.0 x16 (FHHL) slots, 1 x PCI-E 3.0 x8 (LP) slot, 1 x PCI-E 3.0 x16 for Add-on-Module (Support SAS3 Storage controller), 1 x PCI-E 3.0 x4 NVMe M.2 slot 4 x Hot-swap 3.5" SAS3 / SATA3 drive bays with SES2 Optional 1 x slim DVD-ROM drive 2 x 1 GbE LAN ports via Intel X722 1 x VGA, 4 x USB 3.0 (rear) 600W Multi Output Power Supply, Platinum Level High-efficiency

Dimensions & Weight
Dimensions	1.70" x 17.20" x 23.50"

Additional Information
First Listed on Newegg	April 17, 2019

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-408-503-8000
