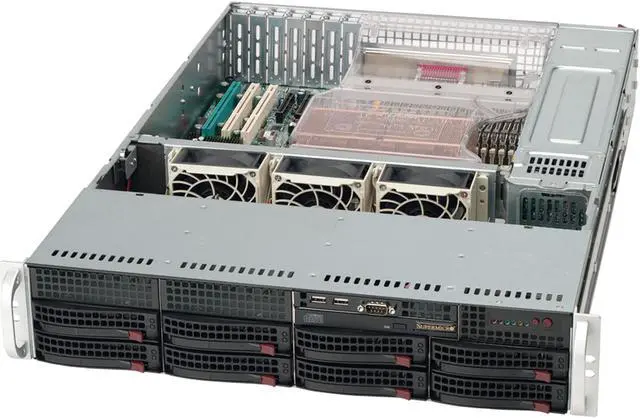

SUPERMICRO SYS-6025B-TR+B 2U Rackmount Barebone Server Dual LGA 771 Intel 5000P DDRII 667/533

Be the first to review this product...
  • Dual LGA 771
  • Dual Intel Xeon
  • 16 x 240Pin Memory Slots
  • (1 + 1) Redundant 700W AC-DC power supply w/ PFC
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-6025B-TR+B

General
Brand SUPERMICRO
Model SYS-6025B-TR+B
Form Factor 2U Rackmount
CPU Supported
CPU Type Dual Intel Xeon
CPU Socket Dual LGA 771
FSB 1333/1066 MHz
Chipset
North Bridge Intel 5000P
South Bridge Intel ESB2
Memory Supported
Memory Slots 16 x 240Pin
Max Memory Supported 64GB
Memory Type Supported DDRII 667/533
ECC Supported Yes
Registered FB-DIMM
Storage Supported
ATA 1x ATA 33/66/100
Serial ATA 6 x SATA 300
SATA RAID RAID 0, 1, 5, 10 support (Windows Only)
RAID 0, 1, 10 support (Linux)
Graphics
GPU/VPU ATI ES1000
Video Memory 16MB
Expansion Slots
PCI Express 2 (x8) PCI-e slots
1 (x4) PCI-e (using x8) slot
PCI-X 2x 64-bit 133MHz PCI-X (3.3V) slots
1x 64-bit 100MHz PCI-X (3.3V) slot
Communications
First LAN Intel 82563EB
Second LAN Intel 82563EB
Max. LAN Speed 1 Gigabit
Expansion Bays
3.5" Bays 8
Slim Bays Slim 8x DVD, 24x CD, DVD-ROM Drive
Slim 1.44MB Floppy Drive (Optional)
Panel Ports
Front USB 2
COM 1
LPT 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2
Power Supply
Max. Power (1 + 1) Redundant 700W AC-DC power supply w/ PFC
Dimensions & Weight
Dimensions 25.5" X 17.2" X 3.5"
Weight 55.0 lbs.
Additional Information
First Listed on Newegg March 03, 2010
