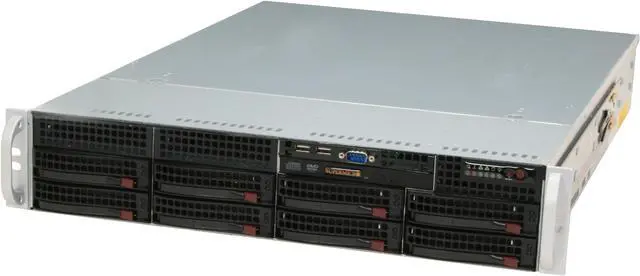

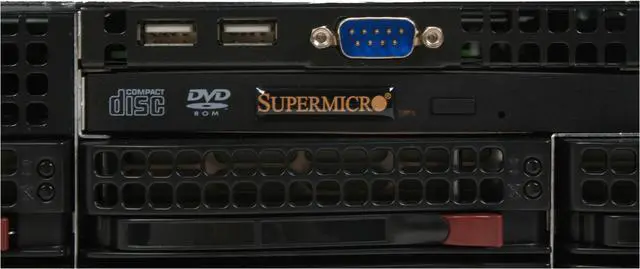

SUPERMICRO SYS-6025W-URB 2U Rackmount Barebone Server Dual LGA 771 Intel 5400 DDRII 800/667/533

(1) Write a Review
  • Dual LGA 771
  • Dual Intel Xeon
  • 8 x 240Pin Memory Slots
  • 700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
Specs
Reviews (1)

Learn more about the Supermicro SYS-6025W-URB

General
Brand SUPERMICRO
Model SYS-6025W-URB
Form Factor 2U Rackmount
CPU Supported
CPU Type Dual Intel Xeon
CPU Socket Dual LGA 771
FSB 1600/1333/1066 MHz
Chipset
North Bridge Intel 5400
South Bridge Intel ESB2
Memory Supported
Memory Slots 8 x 240Pin
Max Memory Supported 64GB
Memory Type Supported DDRII 800/667/533
Channel Supported Dual Channel
ECC Supported Yes
Registered FB-DIMM
Storage Supported
ATA 1x ATA 33/66/100
Serial ATA 6 x SATA 300
SATA RAID RAID 0, 1, 5, 10 support (Windows only)
RAID 0, 1, 10 support (Linux)
Graphics
GPU/VPU ATI ES1000
Video Memory 32MB
Expansion Slots
PCI Express Left Side : 3 (x8) PCI-E Slots (Full-height / Full-length)
Right Side : 2 (x8) PCI-E Slots (Low-Profile)
Communications
First LAN Intel 82575EB
Second LAN Intel 82575EB
Max. LAN Speed 1 Gigabit
Expansion Bays
Slim Bays 1
Hot-Swap Bays 8

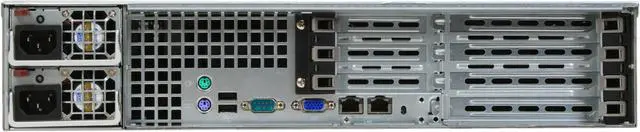

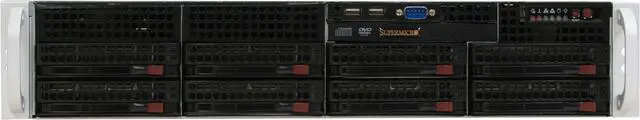

Panel Ports
Front USB 2
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2
Power Supply
Max. Power 700W (1 + 1) Redundant AC-DC high-efficiency power supply w/ PFC
Dimensions & Weight
Dimensions 25.5" x 17.2" x 3.5"
Weight 55 lbs.
Additional Information
First Listed on Newegg September 29, 2008

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
