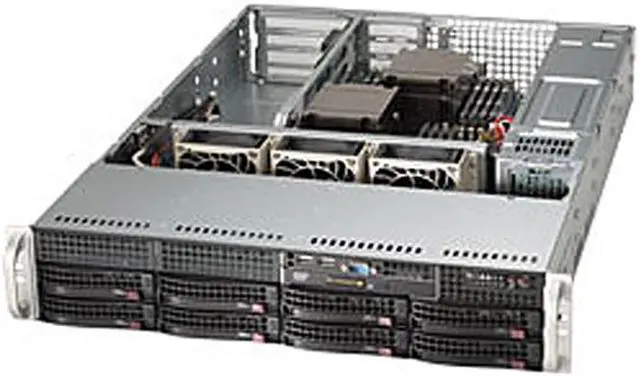

SUPERMICRO SYS-6027B-URF 2U Rackmount Server Barebone Dual LGA 1356 Intel C602 DDR3 1600/1333/1066/800

Be the first to review this product...
  • Dual LGA 1356
  • Support Dual Intel Xeon E5-2400 v2
  • 12 x 240Pin Memory Slots (Max 384GB)
  • 740W (1+1) Redundant high-efficiency power supply with PMBus
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-6027B-URF

General
Brand SUPERMICRO
Model SYS-6027B-URF
Form Factor 2U Rackmount
CPU Supported
CPU Type Support Dual Intel Xeon E5-2400 v2
CPU Socket Dual LGA 1356
Installed CPU No CPU Installed
Max Processors 2
Chipset
North Bridge Intel C602
Memory Supported
Memory Slots 12 x 240Pin
Installed Memory Size No Memory Installed
Max Memory Supported Supports up to 384 GB DDR3 ECC Registered memory (RDIMM)
Supports up to 96 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type Supported DDR3 1600/1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Installed HDD No Storage Installed
SATA RAID SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1
Graphics
GPU/VPU Matrox G200eW
Expansion Slots
PCI Express 1x UIO
4x PCI-E 3.0 x4 (2 Full-height Full-length, 2 Low-profile)
1x PCI-E 3.0 x8 (1 Full-height Full-length)
Communications
First LAN Intel I350
Max. LAN Speed Dual 1 Gigabit
Expansion Bays
Hot-Swap Bays 8x Hot-swap 3.5" SAS / SATA HDD trays (ready for UIO or PCI-E storage controller card)
Panel Ports
COM 2x Fast UART 16550 ports / 1 rear and 1 header
VGA 1
Rear USB 2
RJ45 2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 740W (1+1) Redundant high-efficiency power supply with PMBus
Features
Features IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Nuvoton WPCM450 BMC

Customizable storage

Front Panel
Buttons
Power On/Off button
System Reset button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED

1x 2U SAS backplane w/ Enclosure Management

3x 80mm 7,000 RPM 4-pin PWM fans
Dimensions & Weight
Dimensions 3.5" x 17.2" x 25.5" (H x W x D)
Weight 52lbs
Additional Information
First Listed on Newegg April 23, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
