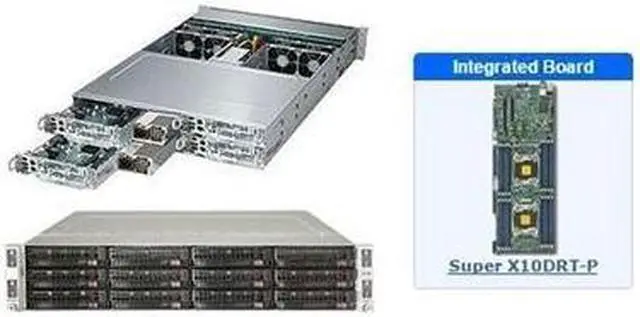

Main image of SUPERMICRO SYS-6028TP-HTR 2U Rackmount Server Barebone LGA 2011 Intel C612 DDR4 2400 / 2133 / 1866 / 1600

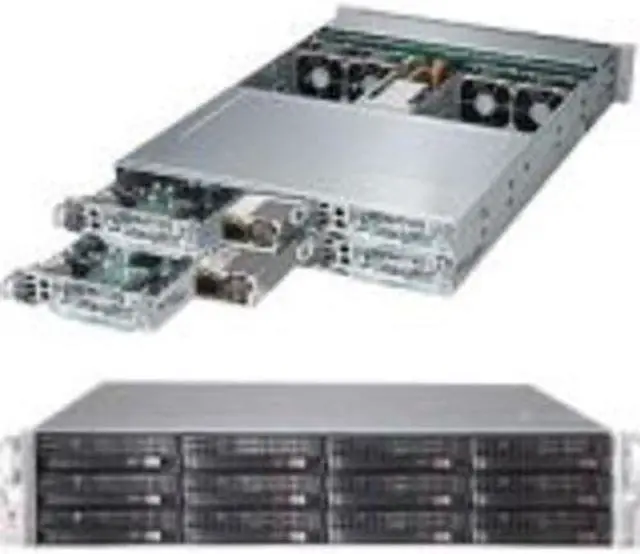

Alt view image 2 of 3 - SUPERMICRO SYS-6028TP-HTR 2U Rackmount Server Barebone LGA 2011 Intel C612 DDR4 2400 / 2133 / 1866 / 1600

Alt view image 3 of 3 - SUPERMICRO SYS-6028TP-HTR 2U Rackmount Server Barebone LGA 2011 Intel C612 DDR4 2400 / 2133 / 1866 / 1600

Shop All Supermicro Products

SUPERMICRO SYS-6028TP-HTR 2U Rackmount Server Barebone LGA 2011 Intel C612 DDR4 2400 / 2133 / 1866 / 1600

Be the first to review this product...

LGA 2011
Intel Xeon Processor E5-2600 v4 / v3 Series
16 x 288Pin Memory Slots
2000W

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.

General
Brand	SUPERMICRO
Model	SYS-6028TP-HTR
Form Factor	2U Rackmount

CPU Supported
CPU Type	Intel Xeon Processor E5-2600 v4 / v3 Series
CPU Socket	LGA 2011

Chipset
North Bridge	Intel C612

Memory Supported
Memory Slots	16 x 288Pin
Max Memory Supported	128GB
Memory Type Supported	DDR4 2400 / 2133 / 1866 / 1600

Storage Supported
Serial ATA	3 x SATA 600
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	Aspeed AST2400

Expansion Slots
PCI Express	1 x PCI-E 3.0 x16 Low-profile slot

Communications
Number of LAN	2
First LAN	Intel i350-AM2 Dual Port Gigabit Ethernet
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
Hot-Swap Bays	3x 3.5" Hot-swap SATA HDD trays

Panel Ports
COM	1 x Fast UART 16550 port 1 x Header (internal)
VGA	1
Rear USB	2 x USB 3.0
Other Ports	1 x SATADOM support on the motherboard

Power Supply
Max. Power	2000W

Features
Features	Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following: Dual socket R (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400 MHz ; 16x DIMM slots 1 x PCI-E 3.0 x16 Low-profile slot; 1 x "0 slot" (x16) Intel i350-AM2 Dual port GbE LAN Integrated IPMI 2.0 with KVM and Dedicated LAN 3 x 3.5" Hot-swap SATA HDD Bays 2000W Redundant Power Supplies Titanium Level (96%)

Dimensions & Weight
Dimensions	3.47" x 17.25" x 30.50"
Weight	72.00 lbs.

Additional Information
First Listed on Newegg	February 03, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.
