SUPERMICRO SYS-6029P-TRT 2U Rackmount Server Barebone Dual LGA 3647 Intel C622 DDR4 2666 / 2400 / 2133 MHz ECC SDRAM

  • Dual LGA 3647
  • Intel Xeon Scalable Processors
  • Dual UPI up to 10.4GT/s
  • Support CPU TDP 70-205W
  • 1000W Redundant Power Supplies with PMBus
This item is covered under the Manufacturer Only Return Policy.
+
+
Overview
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

image for this item

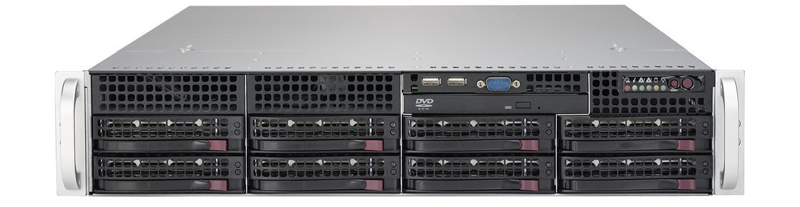

Supermicro SuperServer 6029P-TRT (SKU Model#: SYS-6029P-TRT)

A 2U rackmount server barebone system that's ideal for computing intensive applications, data processing & storage, cloud & virtualization applications, and more. This barebone features two CPU sockets, 16 DIMM slots, eight hot-swap drive bays, and two 10GbE LAN ports. A slew of PCIe slots offer robust, flexible expandability. 1000W 80 PLUS Titanium certified power supplies deliver stable and reliable output, while the redundant configuration keeps your system running even when one unit fails, ensuring maximized uptime that benefits the mission-critical applications.

To complete this system, you'll need one processor, system memory, a storage drive and Operating System software.

  • Eight Hot-swap 3.5" SAT A3 drive bays; RAID 0, 1, 5, 10
  • Optional DVD-ROM drive, optional support: two fixed 2.5" NVMe/SSD/HDD, one M.2 support
  • Two 10GBase-T LAN ports with Intel X722
  • 1000W Redundant Power Supplies Titanium Level (96% efficiency)
Integrated Board
image for this item

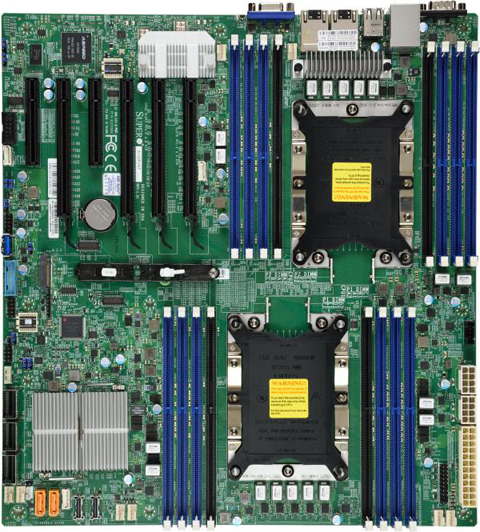

X11DPi-NT
  • Intel Xeon Scalable Processors., Dual Socket P (LGA 3647) supported, CPU TDP support 205W, two UPI up to 10.4 GT/s
  • Intel C622
  • Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
  • Four PCI-E 3.0 x16; two PCI-E 3.0 x8; M.2 Interface: PCI-E 3.0 x4; M.2 Form Factor: 2260, 2280, 22110; M.2 Key: M-Key,
  • One VGA port
  • Intel C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Dual LAN with 10GBase-T with Intel X722 + X557
Gallery
General information General information General information General information

Please note: images in the description may show a varied configuration or optional parts.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
