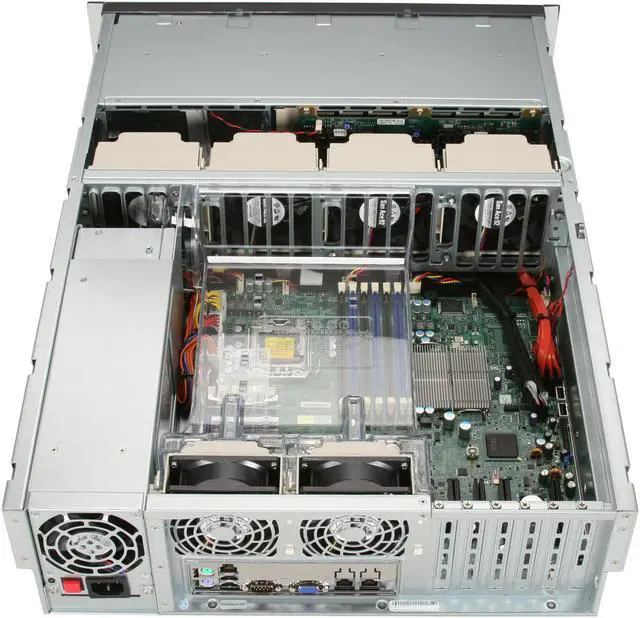

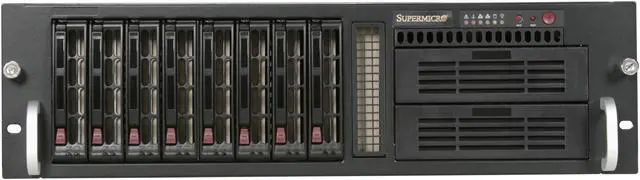

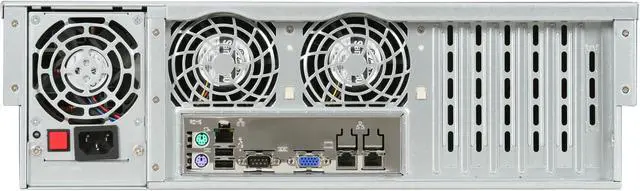

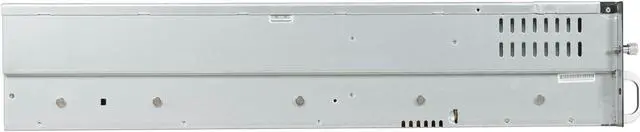

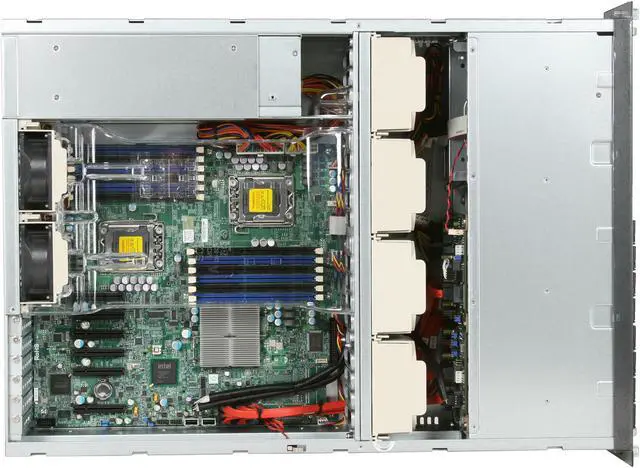

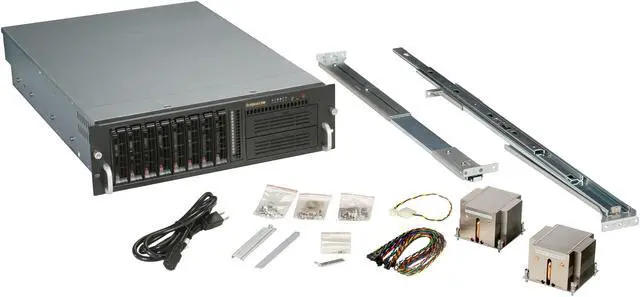

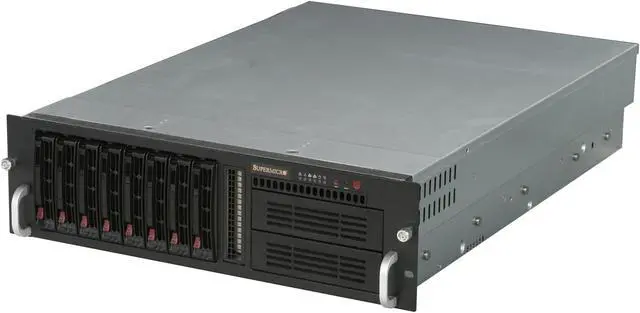

SUPERMICRO SYS-6036T-TF 3U Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series
- Dual LGA 1366
- Dual Intel Xeon
- 12 x 240Pin Memory Slots
- 650W AC-DC high-efficiency power supply w/ PFC Redundant Cooling
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-6036T-TF
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-6036T-TF |
| Form Factor | 3U Rackmount |
| CPU Type | Dual Intel Xeon |
|---|---|
| CPU Socket | Dual LGA 1366 |
| North Bridge | Intel 5520 |
|---|---|
| South Bridge | ICH10R |
| Memory Slots | 12 x 240Pin |
|---|---|
| Max Memory Supported | Supports up to 96 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Serial ATA | 6 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | Matrox G200eW |
|---|---|
| Video Memory | 16MB |
| PCI Express | 4 (x8) PCI-E 2.0 slots 1 (x4) PCI-E 2.0 slot 1 (x4) PCI-E slot |
|---|
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| 3.5" Bays | 1 |
|---|---|
| 5.25" Bays | 2 |
| Hot-Swap Bays | 8 x Hot-swap Drive Bays Supports up to 6x SATA Hard Drives |
| COM | 1 |
|---|---|
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 4 |
| RJ45 | 2 x RJ45 LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| Max. Power | 650W AC-DC high-efficiency power supply w/ PFC Redundant Cooling |
|---|
| Features | Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor 5600 Series (Westmere) Intel Xeon Processor 5500 Series (Nehalem-EP) Integrated IPMI 2.0 with KVM and Dedicated LAN |
|---|
| Dimensions | 25.5" x 17.2" x 5.2" |
|---|---|
| Weight | 71.0 lbs. |
| First Listed on Newegg | February 15, 2010 |
|---|
