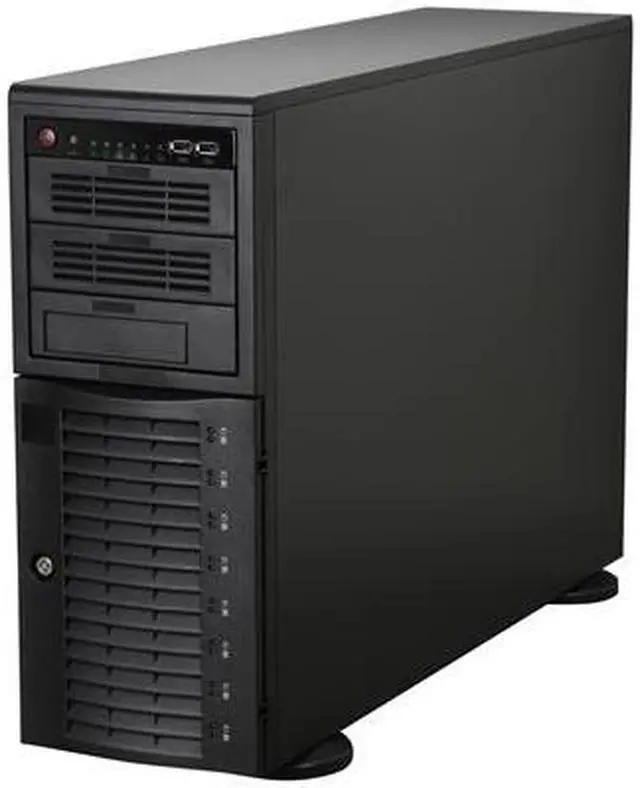

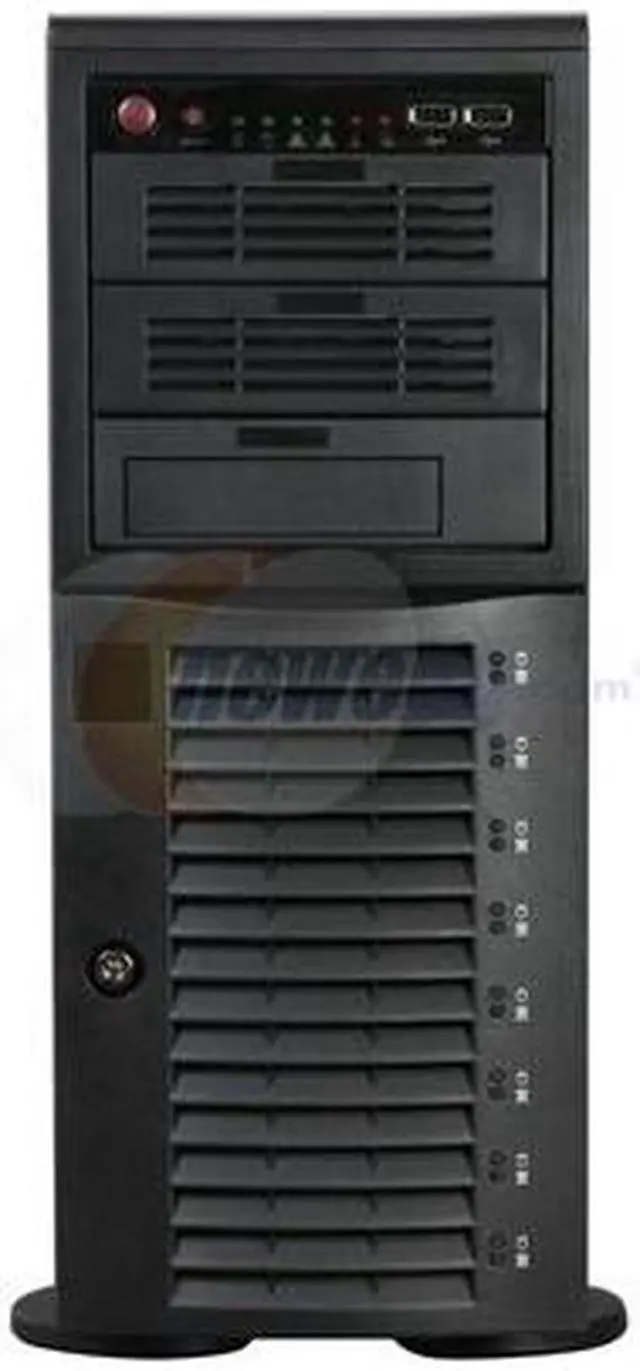

SUPERMICRO SYS-7046A-3 4U Rackmountable / Tower Server Barebone Intel 5520 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

(5) Write a Review
  • Dual LGA 1366
  • Dual Intel Xeon
  • 12 x 240Pin Memory Slots
  • 865W AC power supply (cooling-redundant) w/ PFC
Specs
Reviews (5)
avatar

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-7046A-3

General
Brand SUPERMICRO
Model SYS-7046A-3
Form Factor 4U Rackmountable / Tower
CPU Supported
CPU Type Dual Intel Xeon
CPU Socket Dual LGA 1366
Chipset
North Bridge Intel 5520
South Bridge ICH10R + IOH-36D
Memory Supported
Memory Slots 12 x 240Pin
Max Memory Supported 192GB
Memory Type Supported DDR3 1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/5/10
SAS LSI SAS1068E
8 x SAS / SATA ports
RAID 0, 1, 10 support
Expansion Slots
PCI Express 2 (x16) PCI-E 2.0 slots
1 (x4) PCI-E (in x8 slot)
PCI 3
Onboard Audio Realtek ALC883 7.1 HD audio
Communications
First LAN Intel 82573V
Second LAN Intel 82573L
Max. LAN Speed 1 Gigabit
Expansion Bays
5.25" Bays 2 x 5.25" Peripheral Drive Bay
1 x 5.25" Bay For Floppy Drive
Hot-Swap Bays 8 x SAS
Panel Ports
Front USB 2
COM 2
PS/2 2
Rear USB 4
RJ45 2
Power Supply
Max. Power 865W AC power supply (cooling-redundant) w/ PFC
Features
Features Color: Black

Supports up to two Intel 64-bit Xeon processor(s) of the same type below:
Intel Xeon Processor 5600 Series (Westmere)
Intel Xeon Processor 5500 Series (Nehalem-EP)

QPI: up to 6.4 GT/s

Super I/O: Winbond 83827HF chip

Buttons: Power On/Off, System Reset.

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat / Fan Fail LED

SC743 SAS / SATA Backplane w/ Enclosure Management

Fans:
2x 8cm Hot-swappable PWM Cooling Fans
1x 9cm Rear Exhaust PWM Fan
2x Active heatsink w/ heatpipe

Other:
Chassis intrusion detection
Chassis intrusion header.

RoHS Compliant.
Dimensions & Weight
Dimensions 25.5" x 17.2" x 7.0"
Weight 63 lbs.
Additional Information
First Listed on Newegg April 16, 2009

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
