$1,500.00
Meet Your Seller

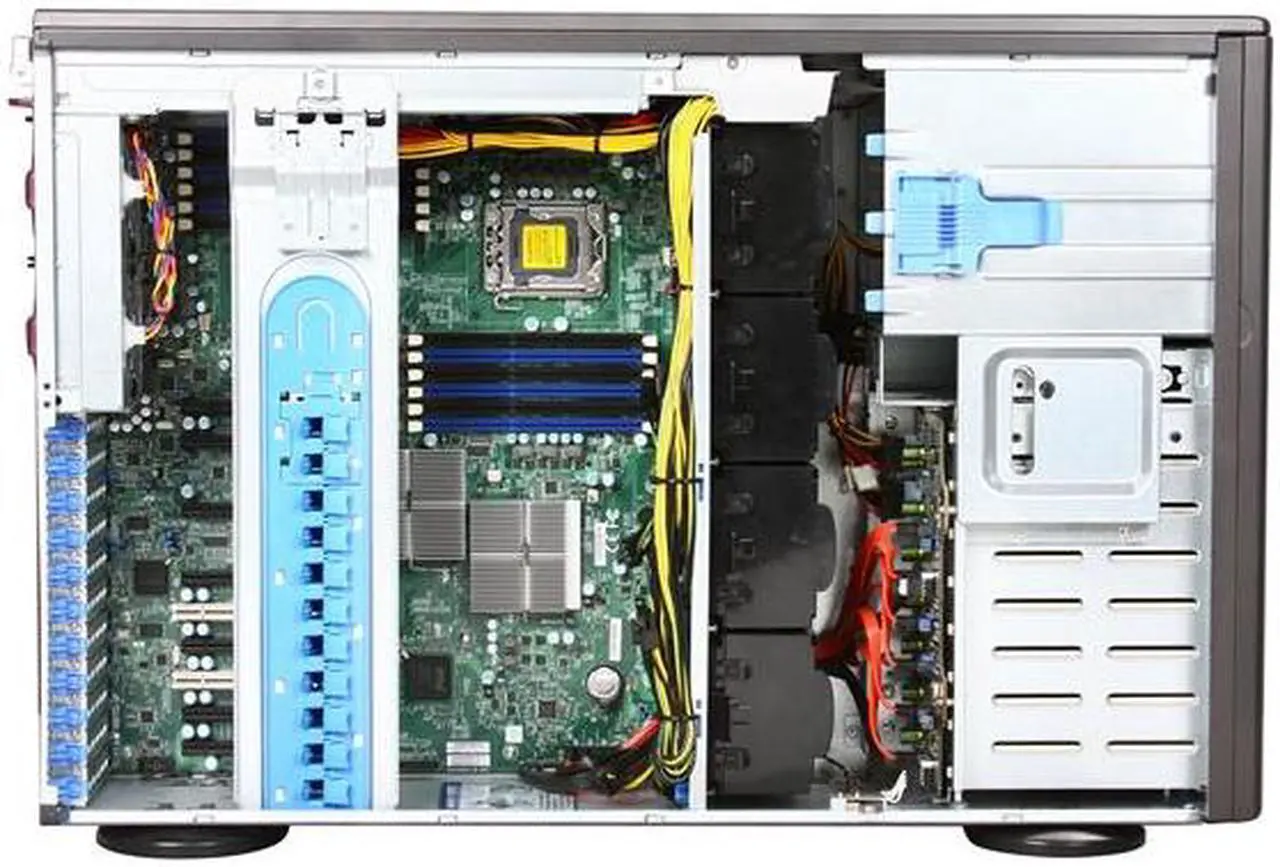

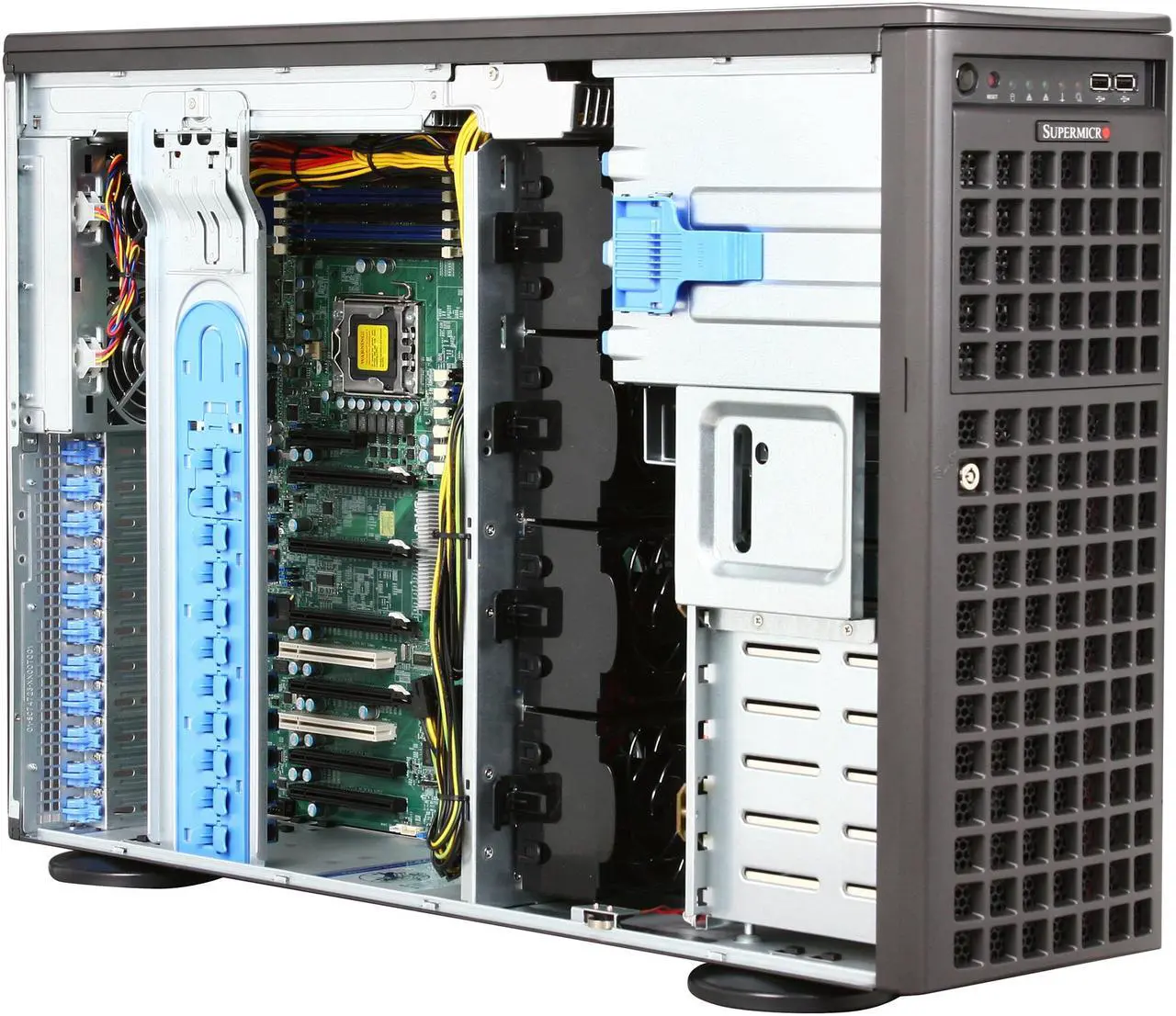

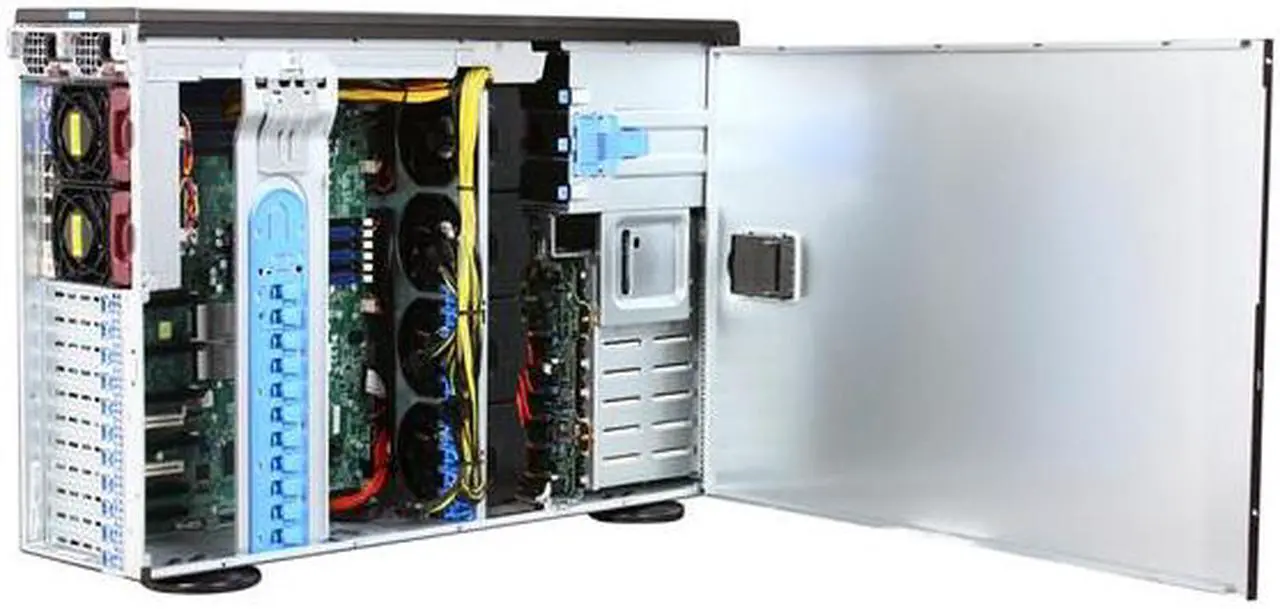

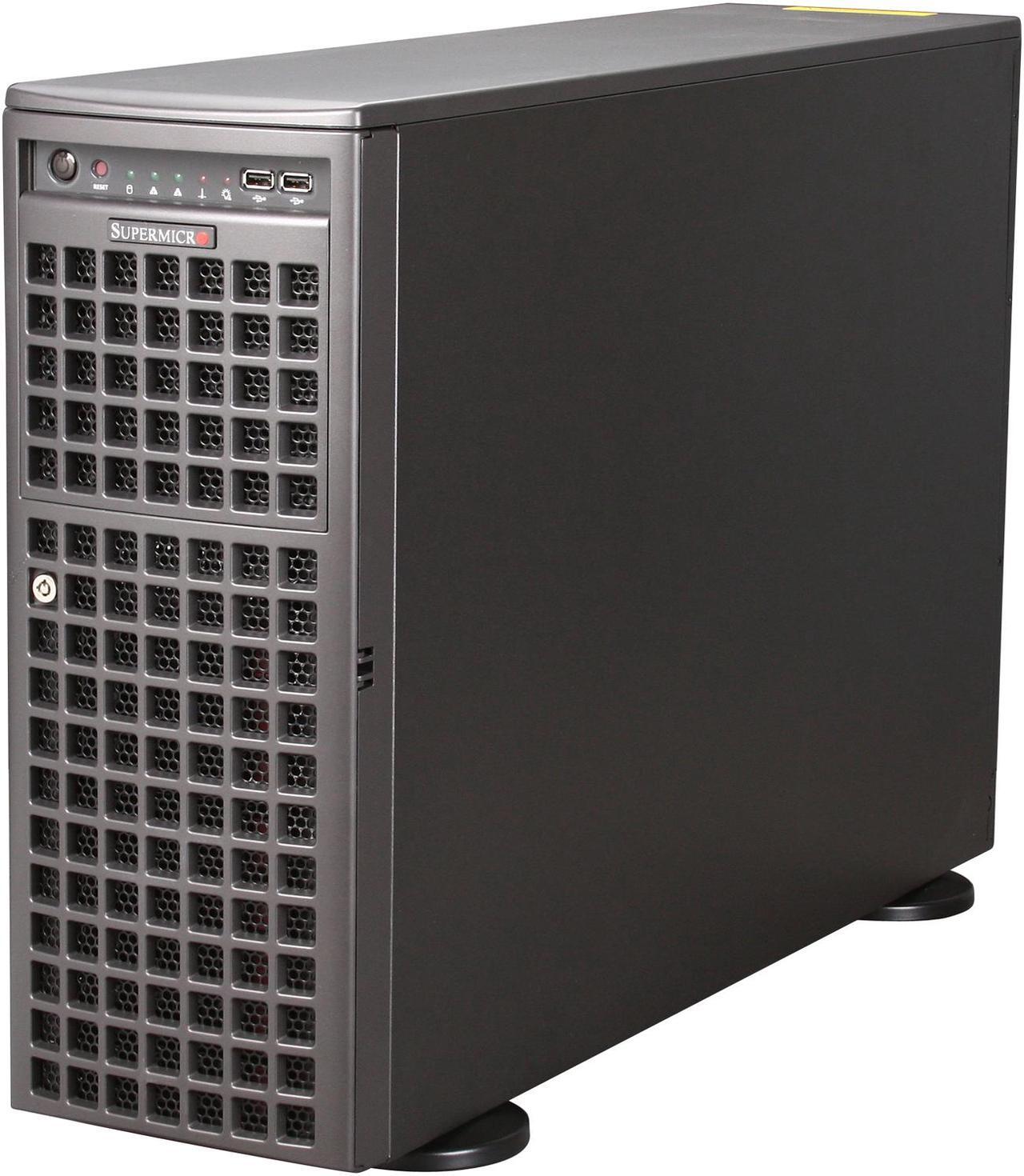

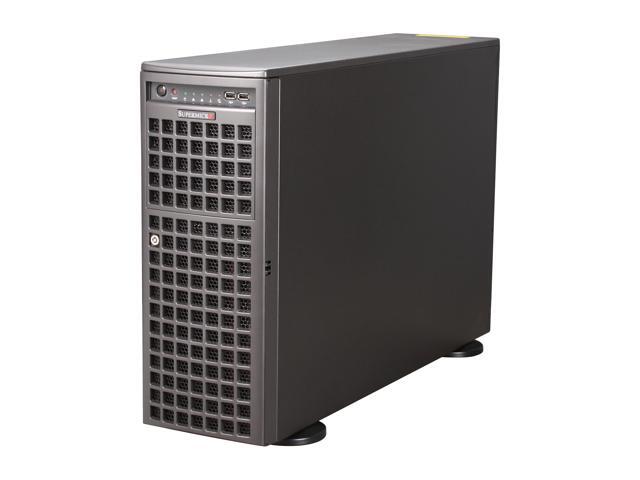

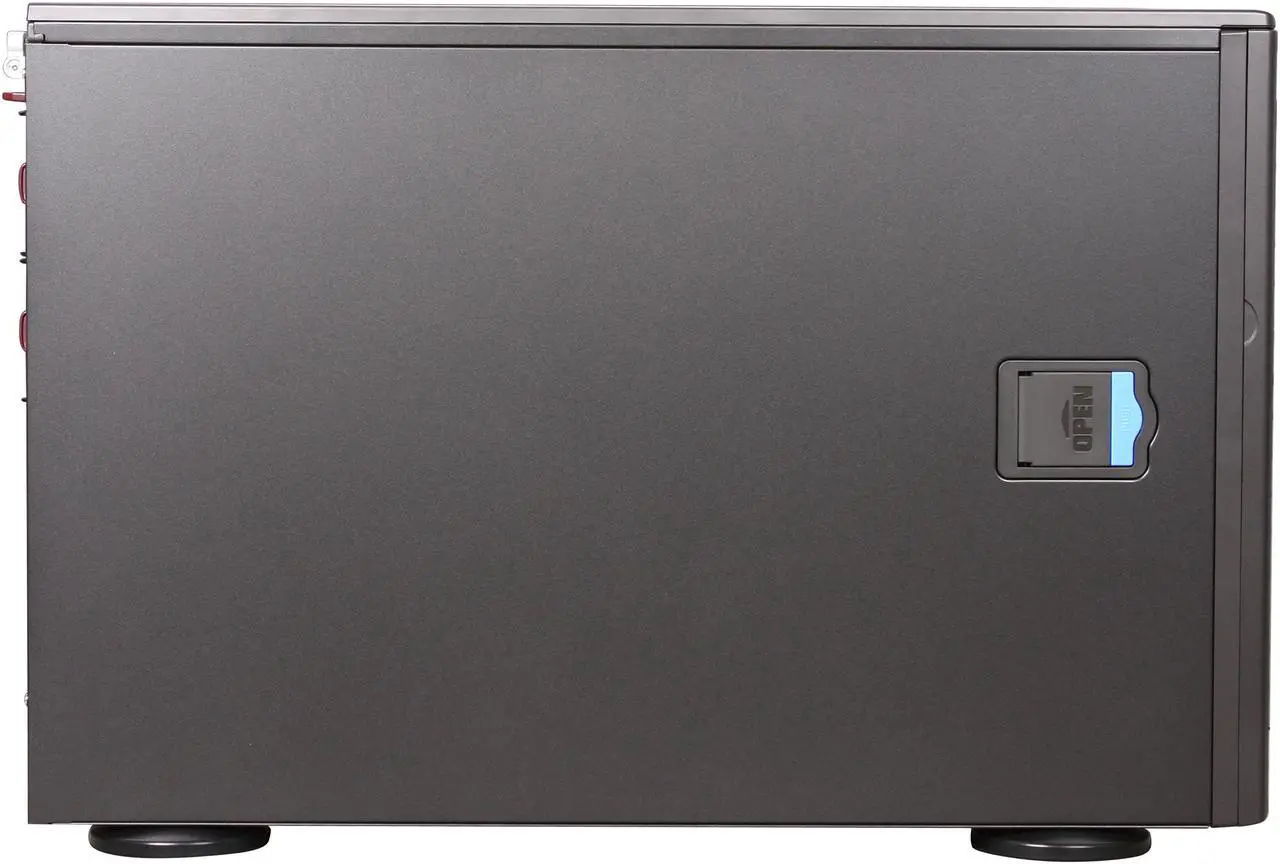

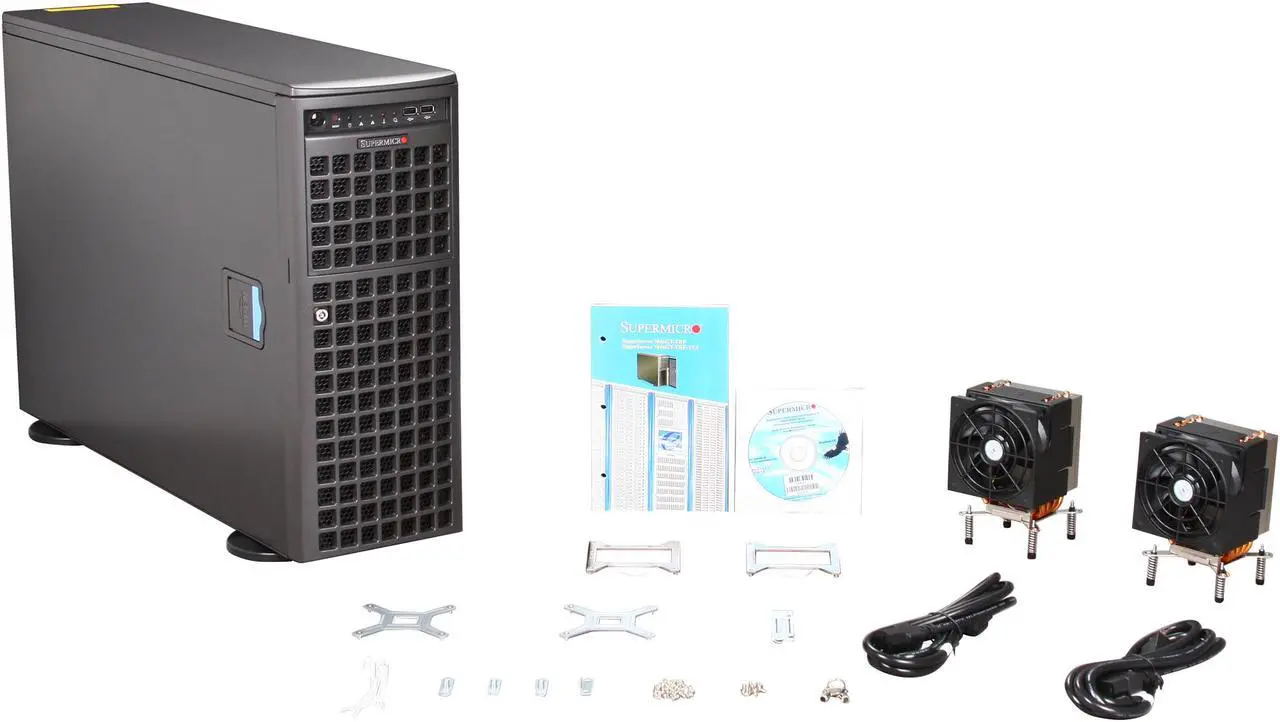

SUPERMICRO SYS-7046GT-TRF 4U Rackmountable / Tower Server Barebone Dual LGA 1366 Intel 5520 DDR3 1333/1066/800
- Dual LGA 1366
- Support Dual Intel Xeon 5600/5500 series
- 12 x 240Pin Memory Slots (Max 192GB)
- 1400W high-efficiency (1+1) redundant power supply with PMBus, 80 PLUS Gold Certified
+
+
Learn more about the Supermicro SYS-7046GT-TRF
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-7046GT-TRF |
| Form Factor | 4U Rackmountable / Tower |
| CPU Type | Dual Intel Xeon 5600/5500 series |
|---|---|
| CPU Socket | Dual LGA 1366 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| North Bridge | Intel 5520 |
|---|---|
| South Bridge | ICH10R |
| Memory Slots | 12 x 240Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 192GB |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 6 x SATA 300 |
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Matrox G200eW |
|---|
| PCI Express | 4 (x16) PCI-E 2.0 slots 2 (x4) PCI-E 2.0 (in x16 slots) 1 (x4) PCI-E (in x8 slot) |
|---|---|
| PCI | 2x 33MHz PCI slots |
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| 3.5" Bays | 1 x 3.5" fixed drive bay |
|---|---|
| 5.25" Bays | 3 |

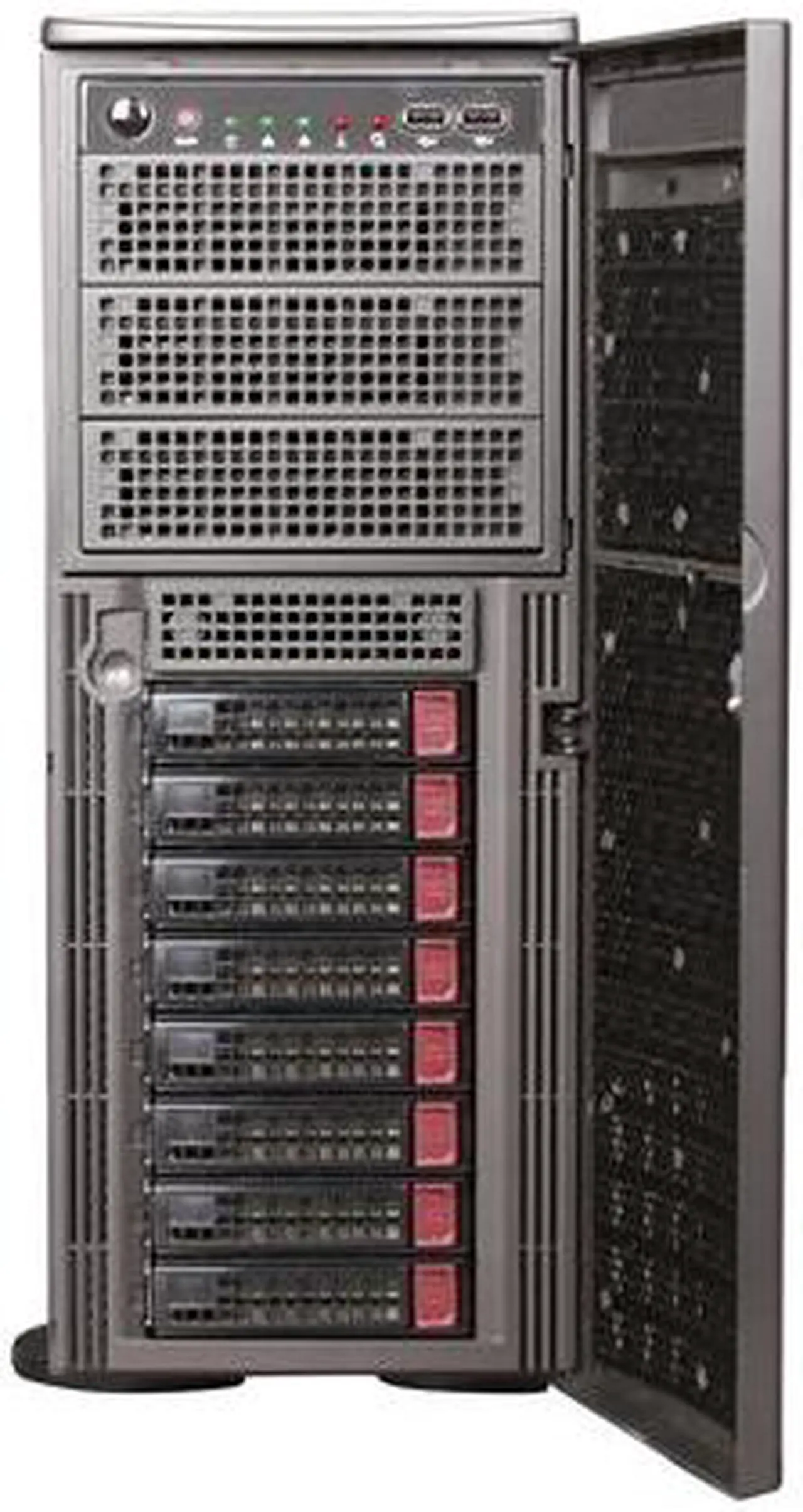

| Hot-Swap Bays | 8 x 3.5" SAS/SATA |
| Front USB | 2 |
|---|---|
| COM | 1 |
| PS/2 | 2 |
| VGA | 1 |
| RJ45 | 2 |
| Rear Audio Ports | Yes |

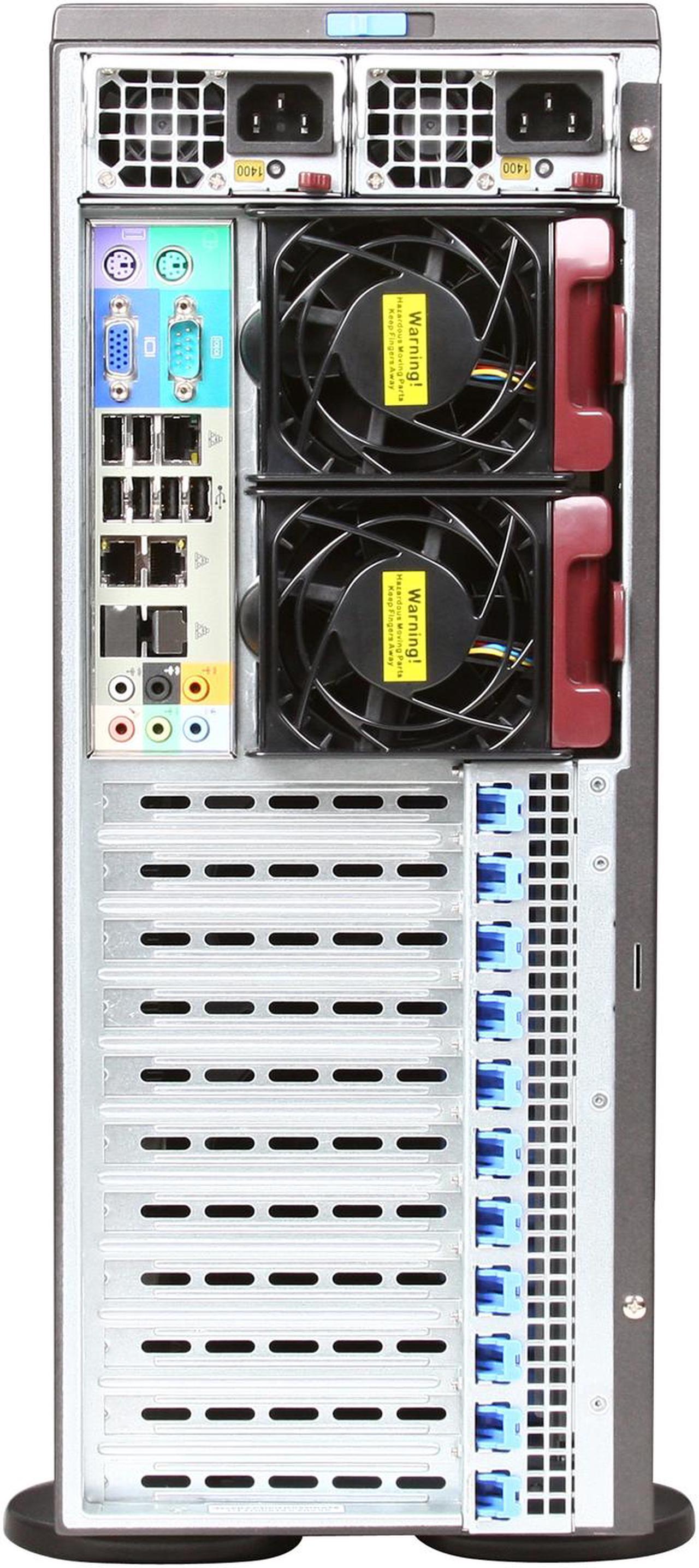

| Max. Power | 1400W high-efficiency (1+1) redundant power supply with PMBus, 80 PLUS Gold Certified |
|---|
| Features | CPU: Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor 5600 Series (Westmere) Intel XeonProcessor 5500 Series (Nehalem-EP) SAS / SATA Hard Drive Backplane with SES2 System Cooling Fans: 4 x 5000 RPM Hot-swap Cooling Fans 2 x 5000 RPM Hot-swap Rear Exhaust Fan GPU: Supports 4x Nvidia Fermi C2050, C2070, or C2075 GPU Cards |
|---|
| Dimensions | 26.5" x 17.8" x 7" |
|---|---|
| Weight | 72.0 lbs. Gross |
| First Listed on Newegg | November 07, 2024 |
|---|
