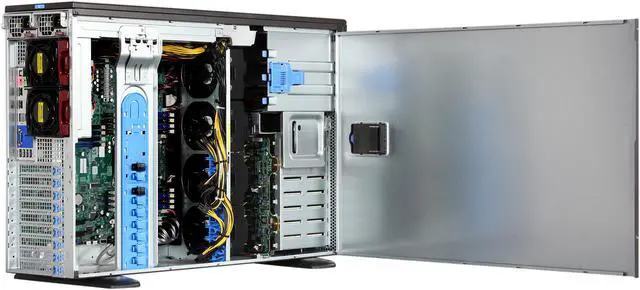

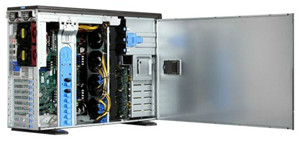

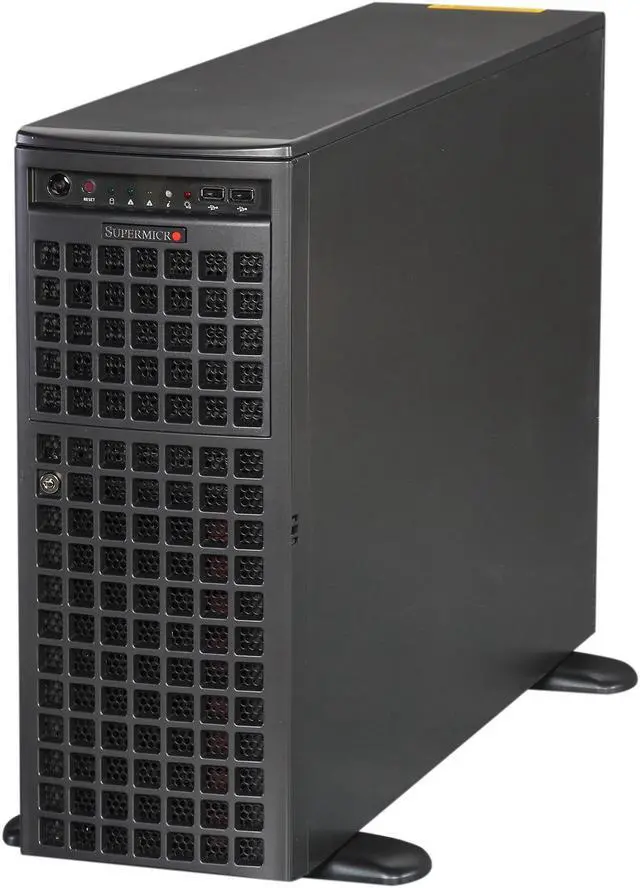

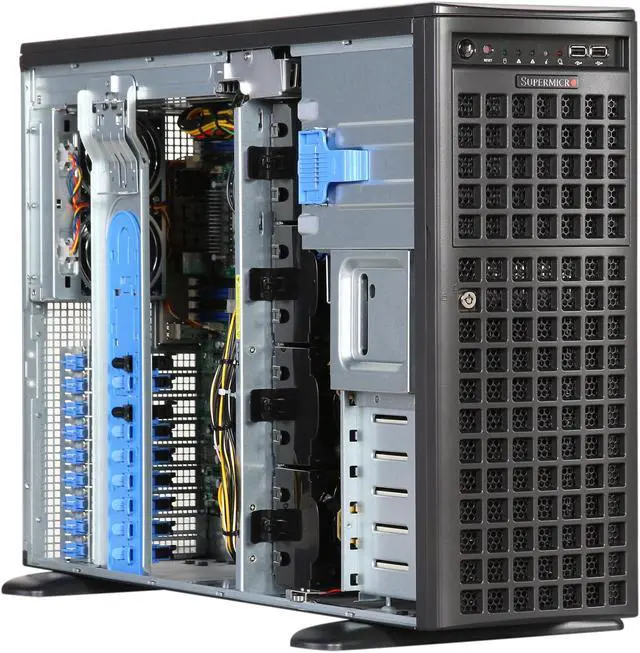

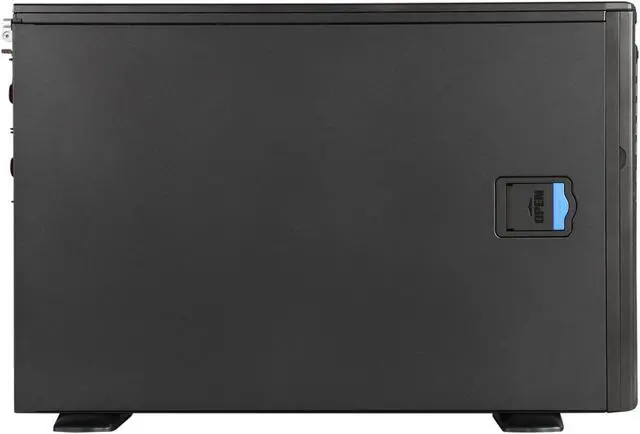

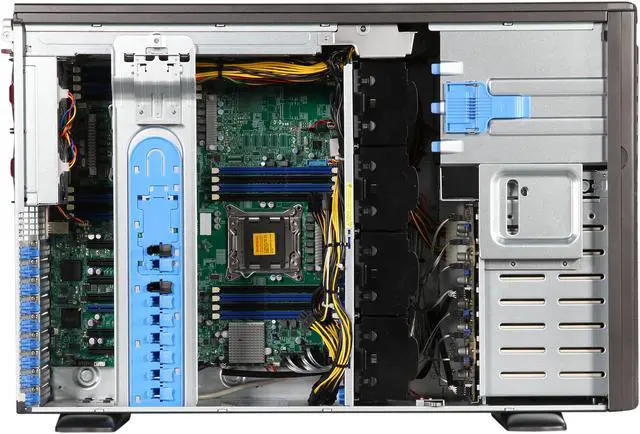

SUPERMICRO SYS-7047AX-TRF 4U Rackmountable / Tower Server Barebone Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

Be the first to review this product...
  • Dual LGA 2011
  • Support Dual Intel Xeon E5-2600 (up to 150W TDP)
  • 16 x 240Pin Memory Slots (Max 1TB)
  • 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2, 80PLUS Platinum
This item is covered under the Manufacturer Only Return Policy.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
SYS-7047AX-TRF

SUPERMICRO SYS-7047AX-TRF 4U Rackmountable

Features

SYS-7047AX-TRF
  • Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 and E5-2600 v2 family†
  • Up to 1TB ECC DDR3, up to 1866MHz; 16x DIMM slots
  • 2x PCI-E 3.0 x16, 3x PCI-E 3.0 x8, 1x UIO PCI-E 3.0 x8 (for SMC UIO) or 1x PCI-E 2.0 x4 (in x8)
  • I/O ports: 1 VGA, 1 COM, 2 GbE LAN, 2 USB 3.0, 6 USB 2.0, 2 HD/AC97, & 1 IPMI dedicated LAN ports
  • 8x 3.5" Hot-swap SATA HDD Bays
  • 2x Exhaust Fans and 4x Internal Fans
  • 1280W Redundant High-efficiency Digital Power Supplies w/ PMBus Platinum Level (95%)
  • Tower or Rackmount
  • Cooling Optimized Solution
  • Support Hyper-Speed

Specifications

Product SKUs
SuperWorkstation SYS-7047AX-TRF (Black)
Motherboard
Motherboard Super X9DAX-iF
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 and E5-2600 v2 family† (up to 150W TDP)
  • Dual Socket R (LGA 2011)
Note † BIOS version 3.0 or above is required
Cache Up to 20MB
System Bus QPI up to 8 GT/s
System Memory
Memory Capacity
  • 16x 240-pin DDR3 DIMM slots
  • Up to 1TB DDR3 ECC LRDIMM
  • Up to 512GB DDR3 ECC Registered memory (RDIMM)
Memory Type 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C602 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® i350 Dual Port Gigabit Ethernet
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
Audio RealTek ALC889 7.1 High Definition Audio with S/PDIF header
Graphics Matrox G200eW
Input / Output
SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 8x SATA 2.0 ports (3Gbps)
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 (2 rear)
  • 6x USB 2.0 (2 front + 4 rear)
Audio Line-in / Line-out / Microphone Ports
Video 1x VGA port
Serial Port / Header 2x Fast UART 16550 ports
IEEE 1394a 2x Headers
Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 slots
  • 3 PCI-E 3.0 x8 slots
  • 1 UIO PCI-E 3.0 x8 (for SMC UIO) or 1 PCI-E 2.0 x4 (in x8) slot
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • DMI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
  • UEFI

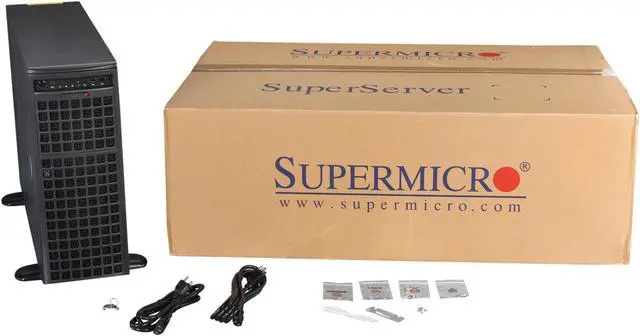

Whats in the Box

SYS-7047AX-TRF

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
