SYS-7048GR-TR
Featuring advanced performance and great expandability, the Supermicro SYS-7048GR-TR is a superb 4U rack-mountable GPU workstation built for your growing business. With the 2000W Platinum Level redundant power supplies, you can set up the most power-hungry configurations and enable them to run continuously even when one unit fails. It prepares you for the competition both today and in the future.
FEATURES
Superb Performance
Supporting two Intel Xeon E5-2600 V4/V3 family processors (LGA 2011) and up to 2TB of 3DS LRDIMM DDR4 ECC memory in 16 memory slots, the Supermicro SYS-7048GR-TR delivers significant computing capability to conquer the most intense and demanding tasks.
Excellent Expandability
The chassis comes with eight hot-swap 3.5” SAS 3 / SATA 3 hard drive bays. The motherboard offers four PCI-E 3.0 x16 slots, two PCI-E 3.0 x8 slots (support Thunderbolt 2.0 AOC), and one PCI-E 2.0 x4 slot.
Advanced Cooling System
Two active heatsinks combined with four PWM middle cooling fans and two rear exhaust fans provide excellent cooling efficiency. It also supports two optional rear fans when passive GPUs are installed. Less heat means higher performance without throttling.
Great Power Supply
The high-efficiency, Titanium Level 2000W redundant power supplies ensure all the components run stably at full load continuously. Down time will be reduced to a minimum.

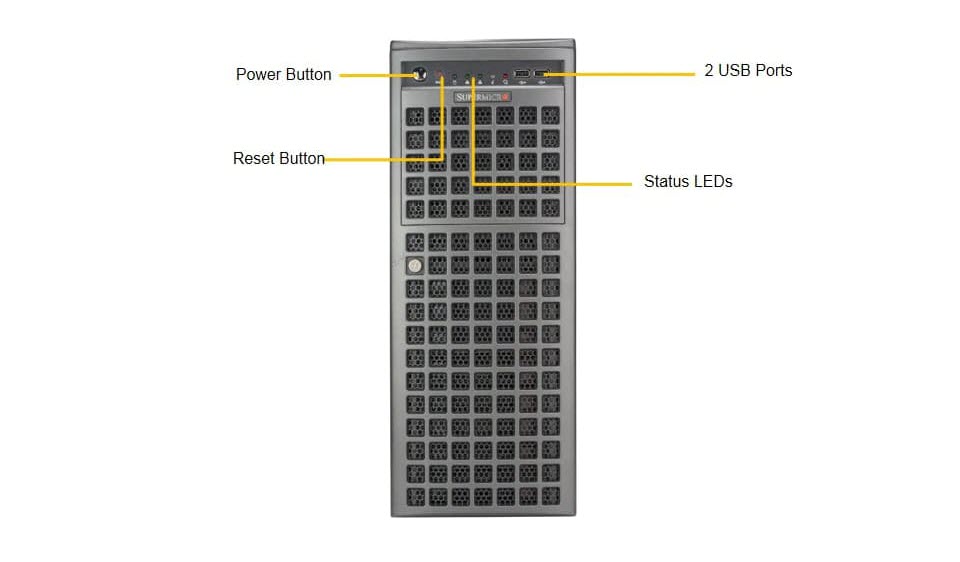

VIEWS
Integrated Board: Super X10DRG-Q
MAIN OVERVIEW FEATURES: Number of
Processors Supported: 2Processor
Socket: Socket LGA 2011-v3Processor
Supported: Xeon64-bit
Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C612 Express
Maximum Memory: 1
TBMemory Technology: DDR4 SDRAM
Memory Standard: DDR4-2133/PC4-17000Number of Total
Memory Slots: 16Controller
Type: Serial
ATA/600RAID Supported: Yes
Graphics Controller Manufacturer: ASPEED
Graphics Controller Model: AST2400Ethernet
Technology: Gigabit Ethernet
Number of Total
Expansion Bays: 12Number of External 5.25"
Bays: 3Number of 3.5"
Bays: 9Number of Total
Expansion Slots: 7Number of PCI Express x8
Slots: 3Number of PCI Express x16
Slots: 4Total Number of
USB Ports: 9Number of
USB 3.0 Ports: 5Number of
SATA Interfaces: 10Input
Voltage: 120 V AC, 230 V ACNumber of
Power Supplies Installed: 2Maximum
Power Supply Wattage: 2
kWColor: Black
Form Factor: Tower
Rack Height:
4UHeight: 18.20"
( 462.28 mm)Width: 7"
( 177.80 mm)Depth: 26.50" ( 673.10 mm)Package
Contents: Super
Server 7048GR-TR (Black) 1 x Super X10DRG-Q Motherboard1 x 4U Chassis1 x 4U, SAS Backplane, x8 3.58 x 55cm 30AWG SATA S-S cable2 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1, RoHS/REACH2 x 4U Active CPU Heat Sink for X9, X10 Workstations2 x 2000W redundant platinum power supply
Environmentally Friendly: Yes
Environmental Certification: RoHS
