do you need to purchase fans to put on the heat sinks?

Hello, Thank you for contacting us in regards to your question. The best way to confirm specs is actually by checking the manufacturer's website (that's where we get them). Click on the Specifications tab on the item page, and look in the Quick Info box on the bottom of the page. You'll find a link to the item on the manufacturer's own site with the most up-to-date details. Thank you, Newegg Support

Can you tell me if the BIOS is version 2 or above so this board supports v4 CPU's?

I don't know off had which bios version it has, however the unit I purchased 12/17 has dual E5-2603 v4 CPUs

Can this be used as a workstation that also plays games? Can I put in an NVIDA SLI set of GPU's?

That would be a complete waste of money, and no this board doesn't support SLI/Crossfire its a WORKSTATION, it's not meant for gamming at all. If you wanted to run a workstation/gamming rig I'd recommend the i7 6800k or better with a chipset that supports multiple GPU's for gamming like any x99 based motherboard.

Does it have a backplane? Does the backplane support 12 gb/s? Does the built in SAS support handle 12 gb/s SAS?

Yes/no/no No SAS support. I thought it had SAS as well but no.

Hello - We are having boot problems with this server. Is it necessary to first install the CDR-X10 chipset ISO? There is no BIOS display, only runs for 8-10 seconds, stops and restarts. Thank you for your help, - Karl

Check your RAM, also make sure the processor you have is on the compatibility list. These things are really picky.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

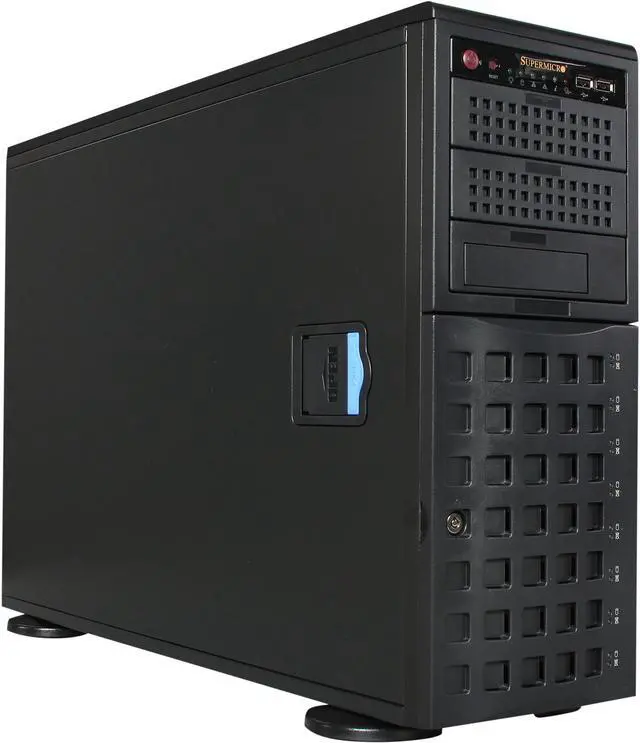

Main image of SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

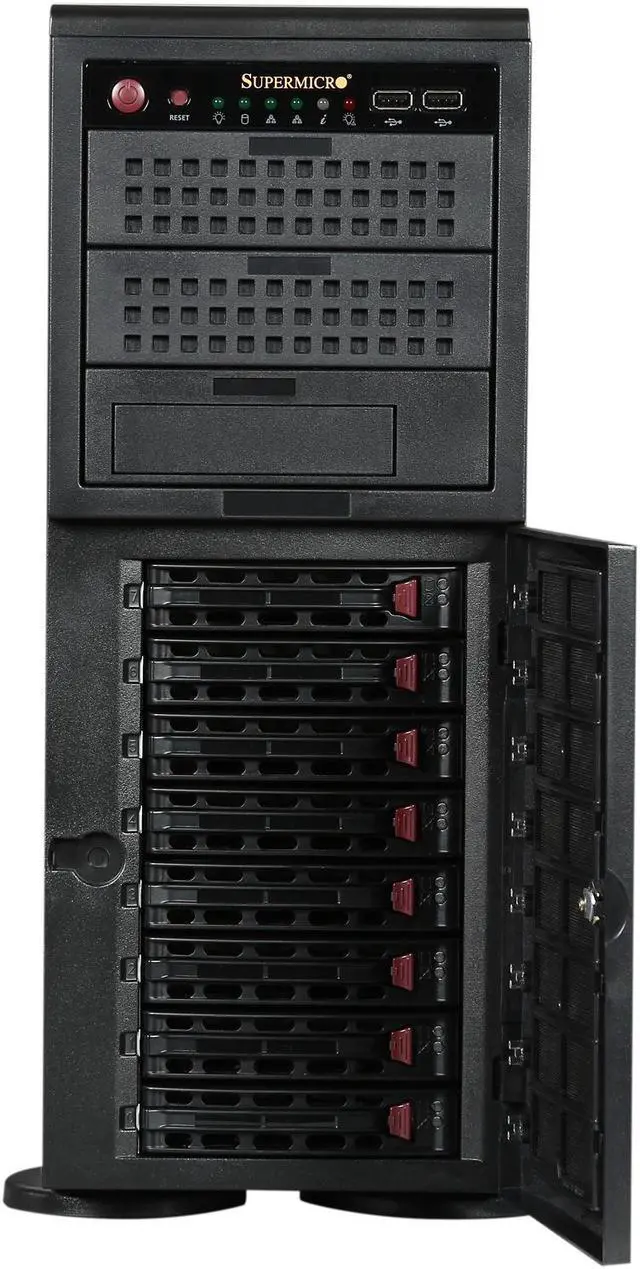

Alt view image 2 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

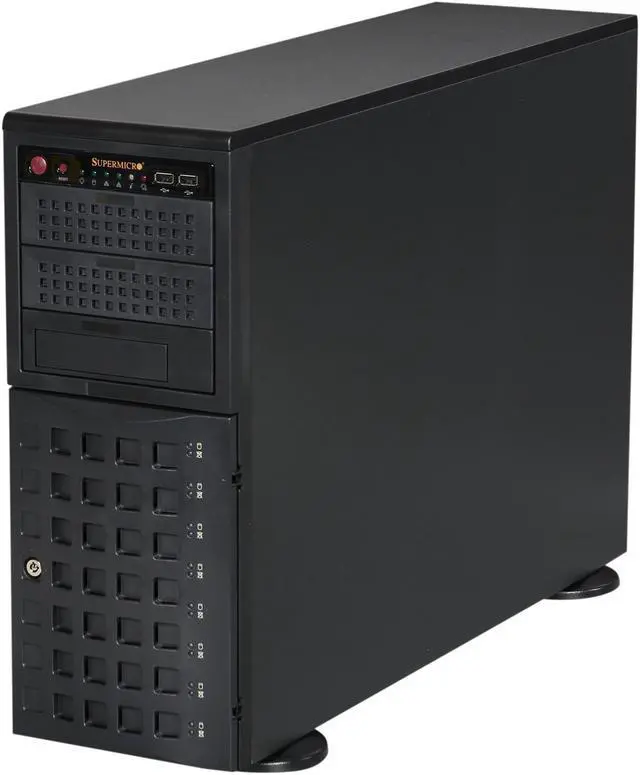

Alt view image 3 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

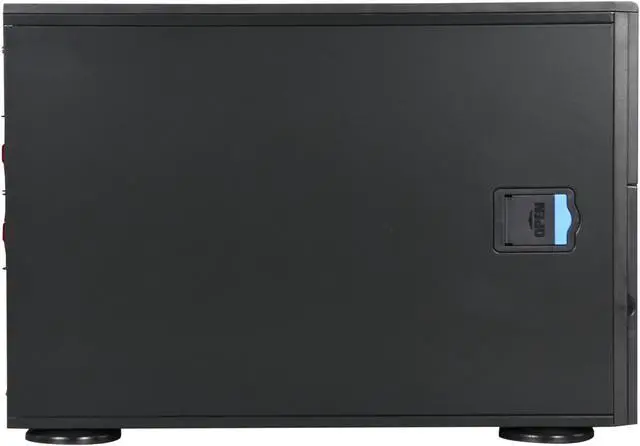

Alt view image 4 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

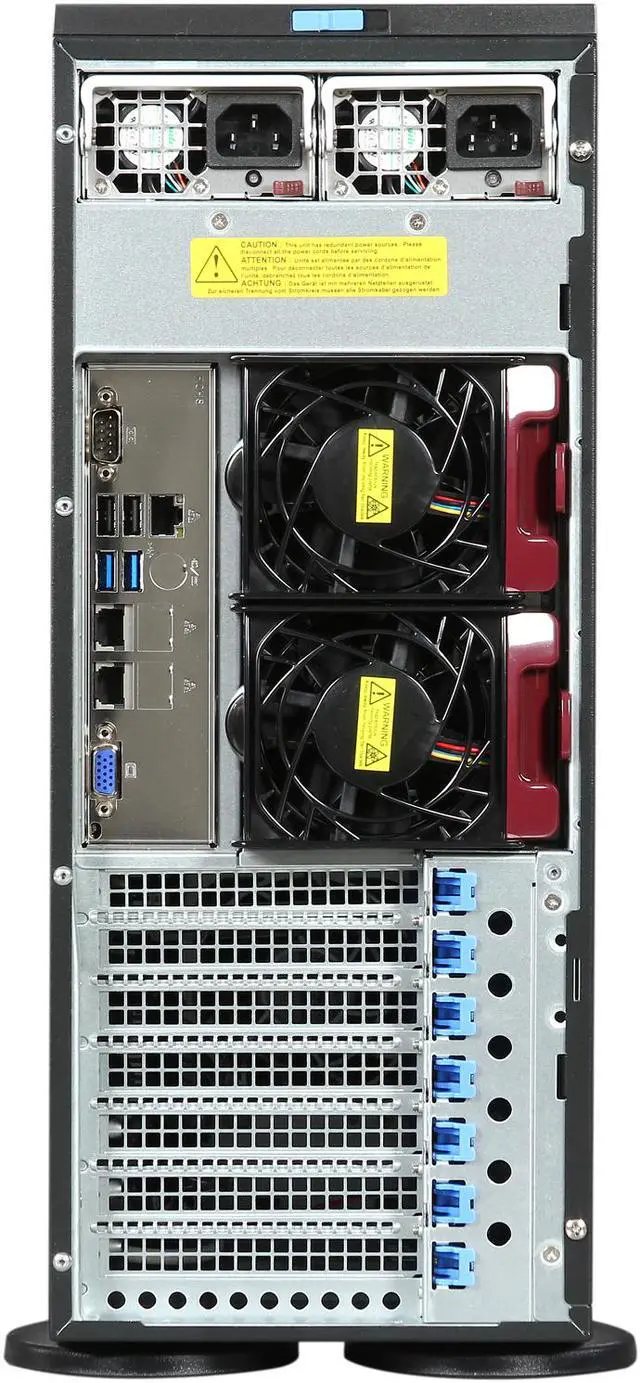

Alt view image 5 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

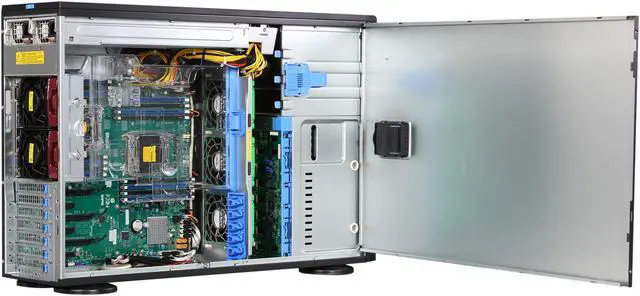

Alt view image 6 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

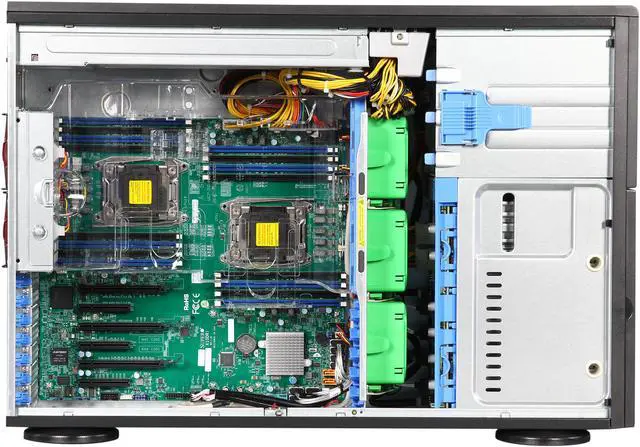

Alt view image 7 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

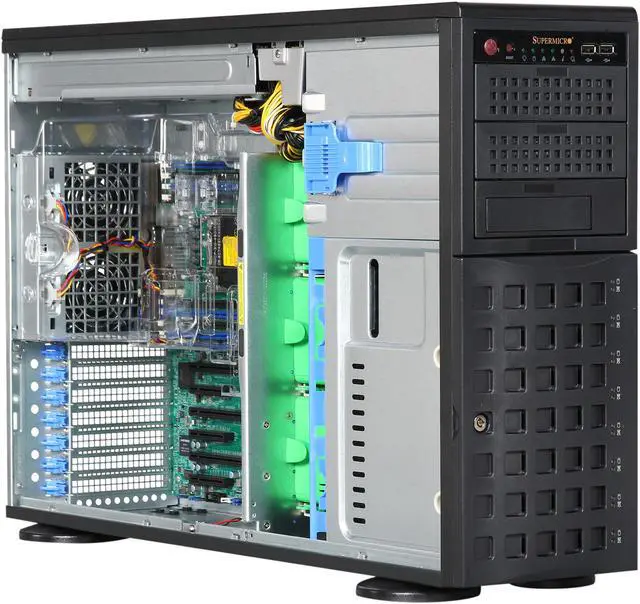

Alt view image 8 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

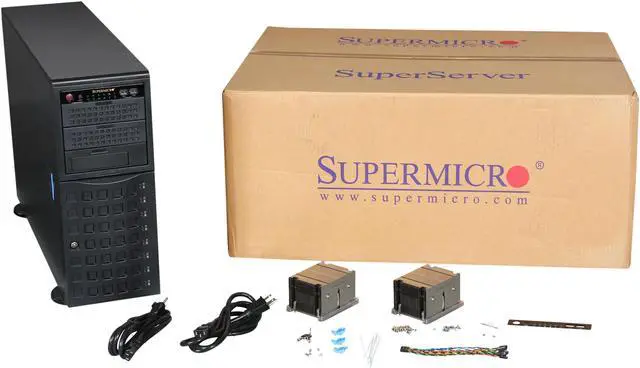

Alt view image 9 of 9 - SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

Shop All Supermicro Products

SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 2133/1866/1600

(3) Write a Review

Dual LGA 2011
Intel Xeon processor E5-2600 v3 family (up to 145W TDP)
16 x 288Pin Memory Slots
920W

Overview

Specs

Reviews (3)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

SUPERMICRO SYS-7048R-TR 4U Rackmount Server Barebone

Features

Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots
Intel® i350 Dual port GbE LAN
Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10
8x 3.5" Hot-swap SATA3 HDD Bays
920W Redundant Power Supplies Platinum Level (94%)

Specifications

Product SKUs
SYS-7048R-TR	SuperServer 7048R-TR (Black)
Motherboard
Motherboard	Super X10DRi
Key Features
Key Features	Cloud and Virtualization needs Compute Intensive Application Database Processing and Storage High Availability Storage Mission-critical Applications
Processor/Cache
CPU	Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) * Dual Socket R3 (LGA 2011)
Cores / Cache	Up to 18 Cores / Up to 45MB Cache
System Bus	QPI up to 9.6 GT/s
Note	* Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity	16x 288-pin DDR4 DIMM slots Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type	2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes	RDIMM: 32GB, 16GB, 8GB, 4GB LRDIMM: 64GB, 32GB
Memory Voltage	1.2 V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C612 chipset
SATA	SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2400 BMC
Network Controllers	Intel® i350 Dual Port Gigabit Ethernet Virtual Machine Device Queues reduce I/O overhead Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output 1x Realtek RTL8201N PHY (dedicated IPMI)
Video	ASPEED AST2400 BMC
Input / Output
SATA	8x SATA3 (6Gbps) ports 2x SATA3 powered ports that support SATA DOM
LAN	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port
USB	Rear USB: 2x USB 3.0 + 2x USB 2.0 Front USB: 2x USB 2.0 USB Header: 2x 3.0, 2x 2.0, 1x Type A
Video	1x VGA port
Serial Port / Header	1x COM/Serial
System BIOS
BIOS Type	128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features	Plug and Play (PnP) APM 1.2 PCI 2.3 ACPI 1.0 / 2.0 / 3.0 / 4.0 USB Keyboard support SMBIOS 2.7. UEFI 2.3.1
Management
Software	SuperDoctor® 5 Watch Dog NMI, SPM, SUM IPMI 2.0 Intel Node Manager
Power Configurations	ACPI / APM Power Management Power-on mode for AC power recovery

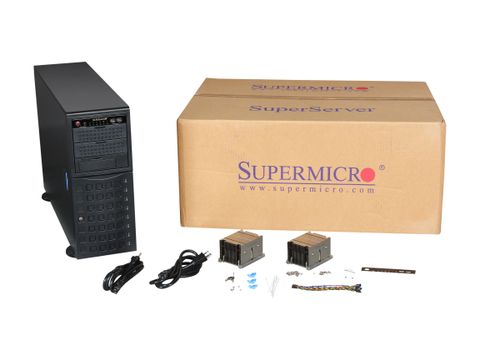

Whats in the Box

Designed for optimal performance, the dual-processor SuperServer 7048 series and the uni-processor SuperServer 5048 series support the QPI (9.6 GT/s) format Xeon® E5-2600 v3 Family processors in a high-density 4U form-factor. The 7048 SuperServer have excellent expansion capability and feature set while 5048 SuperServer is optimized as storage powerhouse.

General
Brand	SUPERMICRO
Model	SYS-7048R-TR
Form Factor	4U Rackmount

CPU Supported
CPU Type	Intel Xeon processor E5-2600 v3 family (up to 145W TDP)
CPU Socket	Dual LGA 2011
Installed CPU	No CPU Installed
Max Processors	2

Chipset
North Bridge	Intel C612

Memory Supported
Memory Slots	16 x 288Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type Supported	DDR4 2133/1866/1600
ECC Supported	Yes
Registered	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	8x SATA3 (6Gbps) ports 2x SATA3 powered ports that support SATA DOM
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	ASPEED AST2400 BMC

Expansion Slots
PCI Express	3x PCI-E 3.0 x16 (Full-height, Full-length) 3x PCI-E 3.0 x8 (Full-height, Full-length)

Communications
First LAN	Intel I350
Second LAN	Intel I350
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays
5.25" Bays	2x 5.25" Peripheral Drive Bays 1x 5.25" Bay that fits 3.5" bay devices
Hot-Swap Bays	8x 3.5" Hot-swap SAS/SATA Drive Trays

Panel Ports
Front USB	2 x USB 2.0
COM	1
VGA	1
Rear USB	2 x USB 3.0 2 x USB 2.0
RJ45	2x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port

Power Supply
Max. Power	920W

Features
Features	- Cloud and Virtualization needs - Compute Intensive Application - Database Processing and Storage - High Availability Storage - Mission-critical Applications 1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM sockets 3. 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 slots 4. Intel i350 Dual port GbE LAN 5. Intel C612 controller for 8 SATA3 ports; RAID 0, 1, 5, 10 6. 8x 3.5" Hot-swap SATA3 HDD Bays 7. 920W Redundant Power Supplies Platinum Level (94%)

Dimensions & Weight
Dimensions	17.2" (437mm) x 7.0" (178mm) x 25.5" (648mm) (H x W x D)
Weight	56 lbs (25.6 kg)
