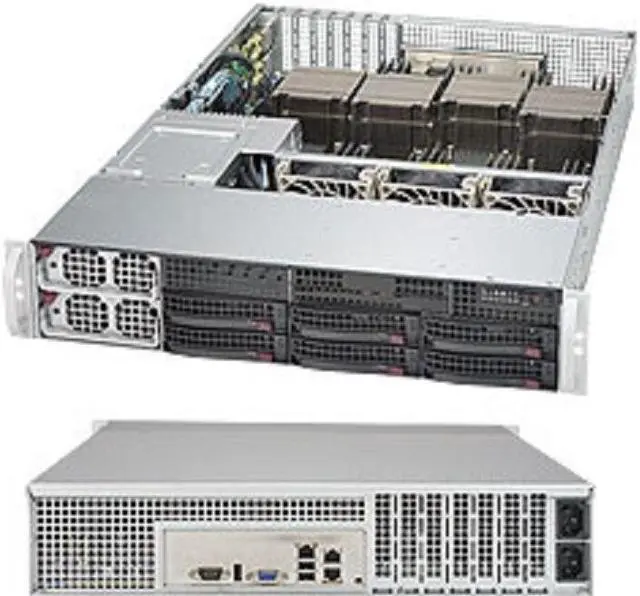

SUPERMICRO SYS-8027R-TRF+ 2U Rackmount Server Barebone Quad LGA 2011 Intel C602 DDR3 1866/1600/1333/1066/800
- Quad LGA 2011
- Intel Xeon processor E5-4600 v2 (12-Core) or E5-4600 (8-Core) family (up to 130W CPU at 35°C)
- 32 x 240Pin Memory Slots
- Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-8027R-TRF+
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-8027R-TRF+ |
| Form Factor | 2U Rackmount |
| CPU Type | Intel Xeon processor E5-4600 v2 (12-Core) or E5-4600 (8-Core) family (up to 130W CPU at 35°C) |
|---|---|
| CPU Socket | Quad LGA 2011 |
| North Bridge | Intel C602 |
|---|
| Memory Slots | 32 x 240Pin |
|---|---|
| Max Memory Supported | Supports up to 1TB DDR3 ECC Registered memory (RDIMM) in 32 DIMM sockets |
| Memory Type Supported | DDR3 1866/1600/1333/1066/800 |
| ECC Supported | Yes |
| Serial ATA | 2 x SATA 600 + 4 x SATA 300 |
|---|---|
| SATA RAID | SATA 2.0 3Gbps with RAID 0, 1, 5,10 SATA 3.0 6Gbps with RAID 0, 1 |
| GPU/VPU | Matrox G200eW (Nuvoton WPCM450 BMC) |
|---|
| PCI Express | 4x PCI-E 3.0 x16 (2 in x8) Low-profile Slots |
|---|
| First LAN | Intel i350 |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| 3.5" Bays | 6 x 3.5" Hot-swap SATA3 HDD Bays5 |
|---|
| COM | 1 Fast UART 16550 serial port |
|---|---|
| VGA | 1 |
| Rear USB | 4 |
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports 1 x dedicated LAN port for IPMI |
| Max. Power | Redundant 1400W High-efficiency AC power supply with Digital Switching Control & PMBus 1.2 |
|---|
| Features | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2 x Network activity LEDs System Overheat LED System Cooling Fans: 3x 8cm Hot-swap Cooling fans Shroud: 1x Air Shroud |
|---|
| Dimensions | 27.9" x 17.2" x 3.5" (D x W x H) |
|---|
| First Listed on Newegg | January 06, 2016 |
|---|
