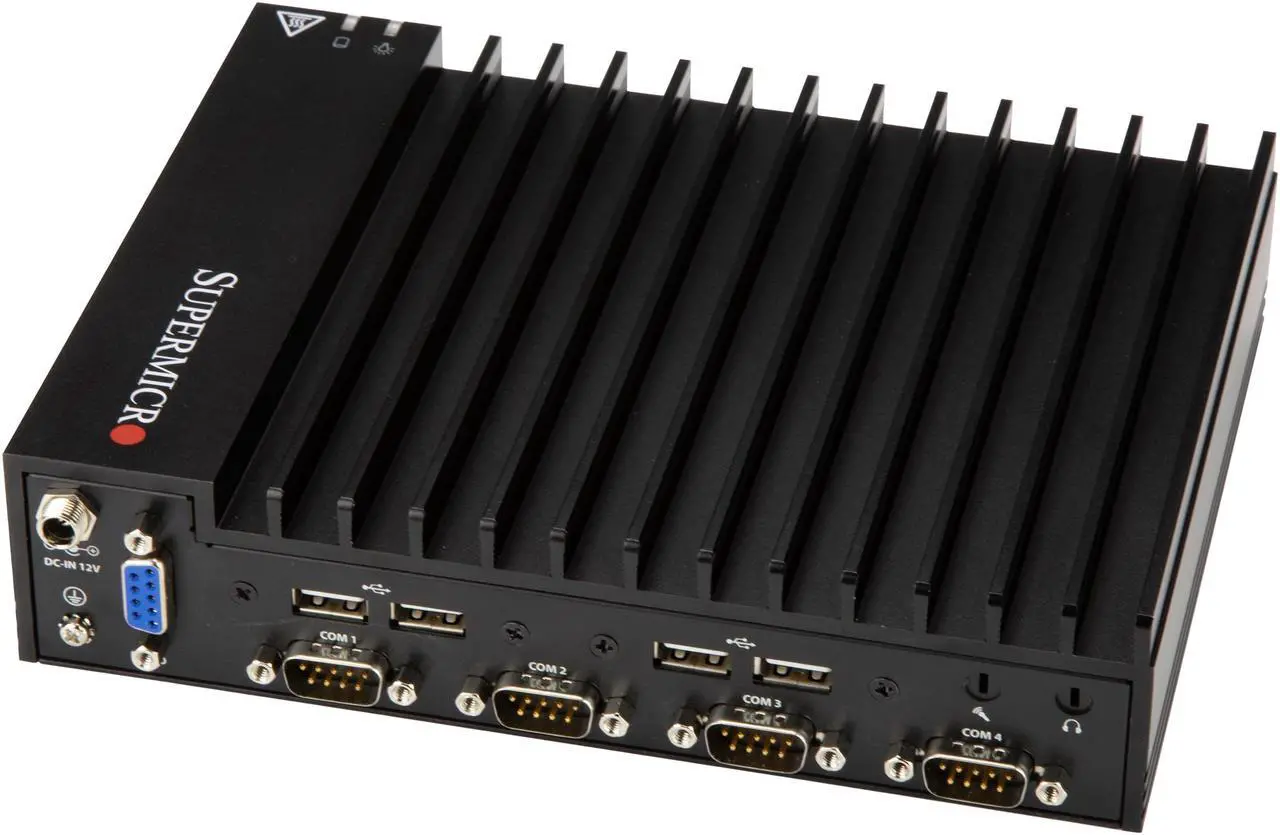

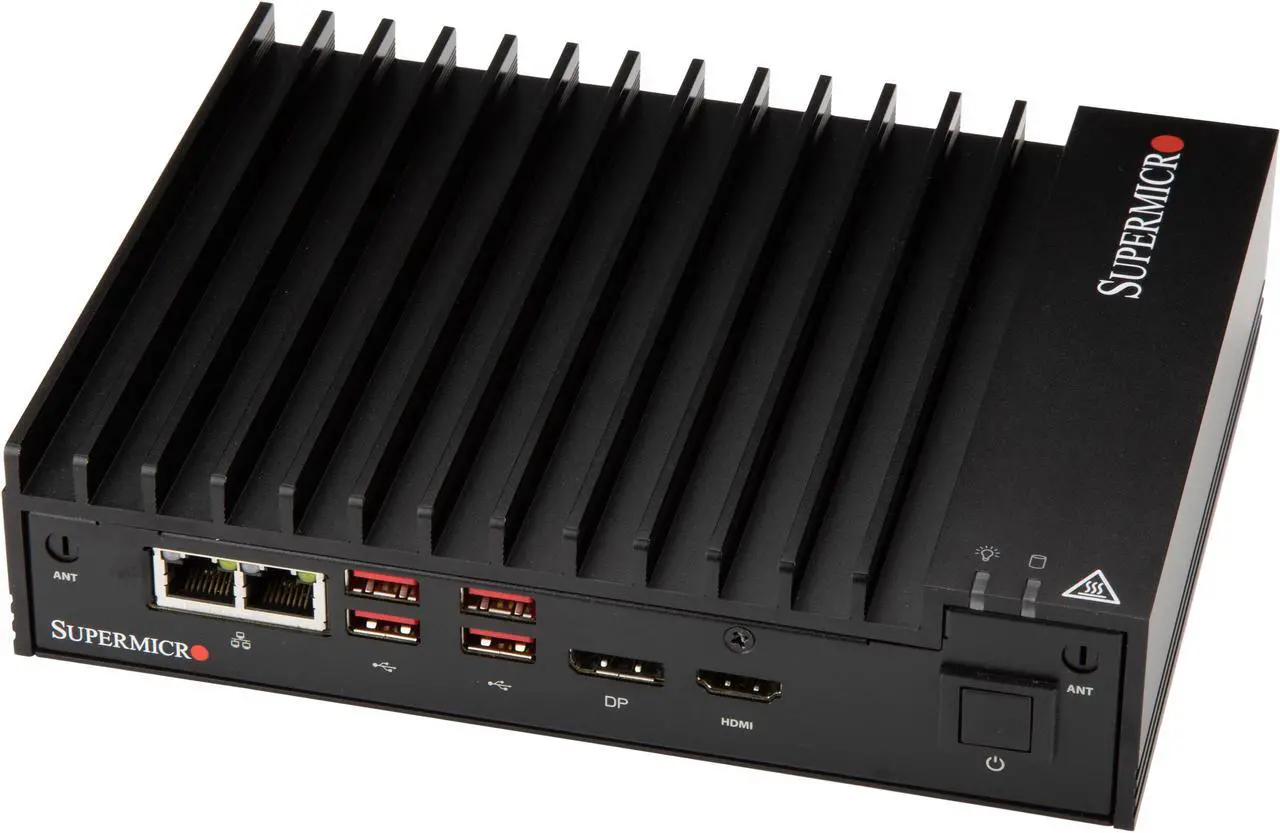

SUPERMICRO SYS-E100-9W-L 3.5" SBC Server Barebone DDR4 up to 2400MHz

(1) Write a Review
  • 8th Generation Intel Core i3-8145UE Processor; Single Socket FCBGA-1528
  • System-on-Chip
  • M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
  • Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
  • Dual GbE LAN w/ Intel i219LM + i210IT
  • 4 COM (RS-232/422/485), 4 USB 3.1, 1 DIO via DB9
  • 1 HDMI and 1 Display Port
  • Fanless design
  • Lockable 12V DC 60W power adapter
Specs
Reviews (1)

Learn more about the Supermicro SYS-E100-9W-L

Model
Brand SUPERMICRO
Series SuperServer
Model SYS-E100-9W-L
CPU Supported
CPU Type Intel Core i3
Installed CPU 8145UE (2.20 GHz)
Memory Supported
Memory Slots 2 x 240Pin
Installed Memory Size No Memory Installed
Max Memory Supported 64GB
Memory Type Supported DDR4 up to 2400MHz
Storage Supported
Installed HDD No Storage Installed
Serial ATA M.2
Key: B-Key, M-Key, E-Key
M.2 2242/3042/2280
B-Key (1 USB 3.0/2.0, 1 SATA Gen3) with nano SIM holder
Panel Ports
Front USB 4 USB 3.1 Gen2 ports (Type A)
Other Ports Video Output: 1 HDMI and 1 Display Port
COM Port: 4 COM ports: 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
Audio: 1 HD Audio header (Mic-in/Line-Out) (option)
Others : 1 DIO via DB9
Features
Features 8th Generation Intel Core i3-8145UE Processor; Single Socket FCBGA-1528
System-on-Chip
M.2: M-Key 2242/2280, E-Key 2230, B-Key 2242/2280
Up to 64GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMM slots
Dual GbE LAN w/ Intel i219LM + i210IT
4 COM (RS-232/422/485), 4 USB 3.1, 1 DIO via DB9
1 HDMI and 1 Display Port
Fanless design
Lockable 12V DC 60W power adapter
Details
Form Factor 3.5" SBC
Dimensions & Weight

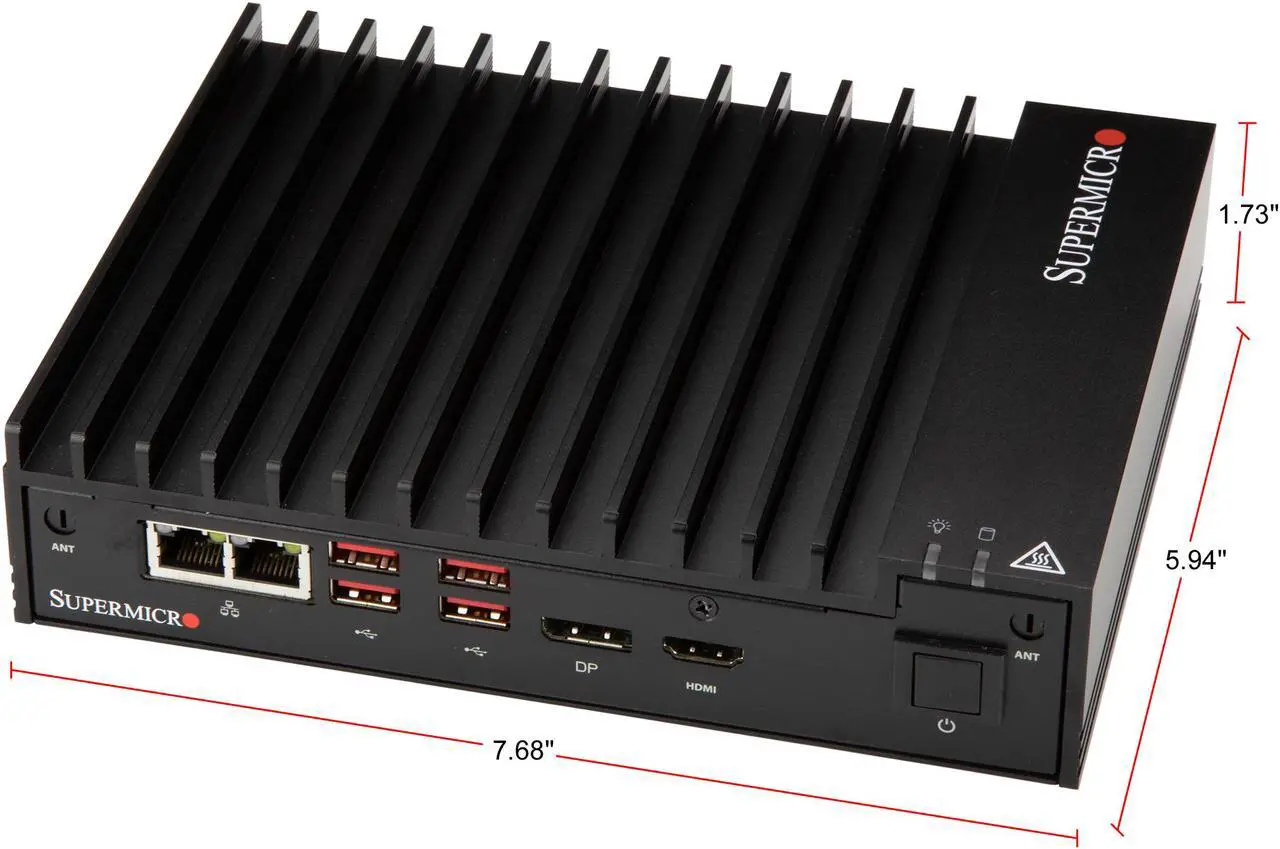

Dimensions 7.68" x 1.73" x 5.94
Weight 2.65 lbs.
Additional Information
Date First Available August 12, 2020
