SUPERMICRO SYS-E200-8B Mini-ITX Server Barebone Socket FCBGA1170 Intel J1900 System on Chip DDR3 1333/1066

In stock.
Ships from United States.
  • Socket FCBGA1170
  • Intel Celeron Processor J1900 2M Cache, up to 2.42 GHz, 10W (formerly Bay Trail)
  • 2 x 204Pin Memory Slots
  • 60W DC Power Adapter
Overview
Specs
Reviews
SYS-E200-8B

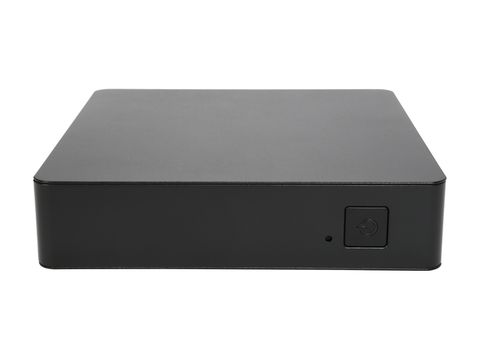

SUPERMICRO SYS-E200-8B Mini-ITX Server Barebone

Features

SYS-E200-8B
  • Single socket FCBGA1170 supports Intel® Celeron™ J1900 (10W, 4C)
  • Intel® Silvermont microarchitecture 22nm System-on-Chip
  • 1x 2.5" internal drive bay (no exceed 9.5mm thickness for the HDD selection)
  • Up to 8GB 1333MHz DDR3 Non-ECC SO-DIMM in 2 socket
  • 1x Mini-PCIe and 1x mSATA slot, 2x SATA 2.0, 4x SATA 3.0 (RAID 0, 1, 10)
  • I/O ports: 2x GbE, 1x HDMI, 1x Display Port, 1x VGA
  • 1x USB 3.0 and 1x USB 2.0 ports
  • 1x 4cm high performance PWM fan
  • 1x SATA DOM support
  • 60W DC power adapter

Specifications

Product SKUs
SYS-E200-8B SuperServer E200-8B (Black)
Motherboard
Motherboard Super X10SBA
Processor/Cache
CPU
  • Socket FCBGA1170
  • Intel® Celeron Processor J1900
  • 2M Cache, up to 2.42 GHz, 10W (formerly Bay Trail)
Key Features
  • Compact Embedded System
  • Long Life Cycle Support
  • Digital Signage, Indoor Kiosk
System Memory
Memory Capacity
  • 2x 204-pin SO-DIMM slot
  • Supports up to 8GB non-ECC DDR3 1333MHz memory (Dual Channel)
  • Some 1600MHz memory can be used, but memory capacity will operate at 1333MHz
Memory Type 1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes 4GB, 2GB
Memory Voltage 1.35 V
On-Board Devices
Chipset Intel® J1900 System on Chip
SATA
  • SATA 2.0 (3Gbps) from Intel® SoC
  • SATA 3.0 (6GbpS) from Marvell 88SE9230 with HW RAID 0, 1, 10 (Windows only)
Network Controllers Dual Intel® I210-AT Gigabit Ethernet LAN ports
Graphics Intel® HD Graphics
USB 3.0 Intel® SoC
COM Ports Nuvoton NCT5104D
Input / Output
SATA
  • 4x SATA3 (6Gbps) ports
  • 2x SATA2 (3Gbps) ports
LAN 2x RJ45 Gigabit Ethernet LAN ports
USB
  • 1x USB 3.0 port
  • 1x USB 2.0 port
Display 1x Display Port, 1x HDMI, 1x VGA, 2x Independent Displays
DOM DOM (Disk on Module) power connector support
Others TPM 1.2 header
System BIOS
BIOS Type 64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
  • Plug and Play (PnP)
  • ACPI 5.0
  • UEFI 2.3.1
  • SMBIOS 2.7
  • DMI 2.3
  • USB Keyboard support
  • RTC (Real time Clock) Wakeup
  • 3TB HDD Support

Whats in the Box

SYS-E200-8B

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
