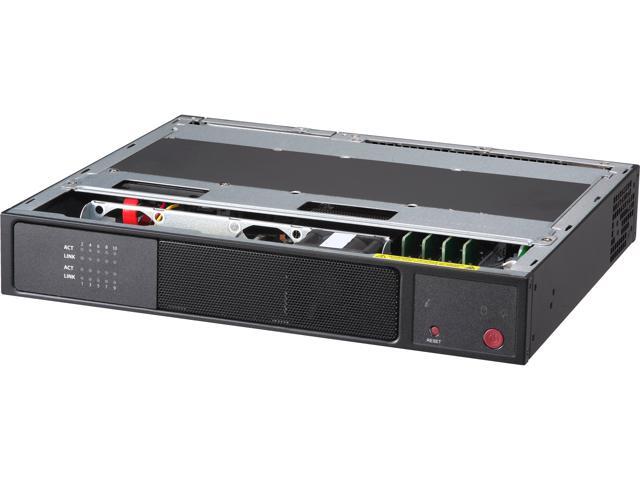

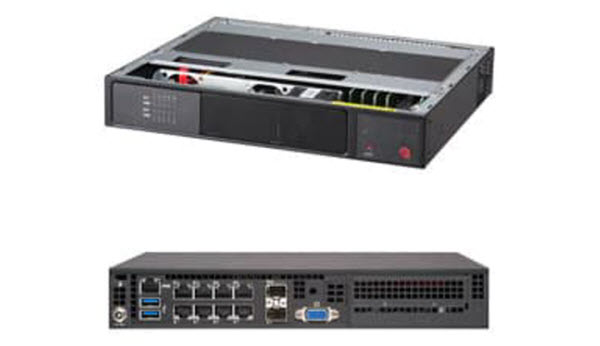

Coming with the power-efficient Intel Atom C3558 quad-core processor and offering a wide range of slots and ports for expansion, the Supermicro SYS-E300-9A-4CN10P is great for building a Virtual-CPE white box solution, network security appliance, embedded IoT gateway, or networking edge device. The entire configuration is enclosed in a compact (8.9" depth) Mini-1U rackmount chassis.
Integrated Board: A2SDV-4C-LN10PF
The four DDR4 DIMM sockets support up to 256GB DDR4 ECC RDIMM or up to 64GB DDR4 ECC/non-ECC UDIMM. The motherboard comes with one PCIe 3.0 x2 AOC slot and four on-board SATA 3 ports.
The motherboard has one M.2 slot. M.2 supports a variety of card sizes with increased functionality and spatial efficiency. It supports PCI-E 3.0 x2 (16 Gb/s) SSD card in the B Key 3042 and 2280 form factors.

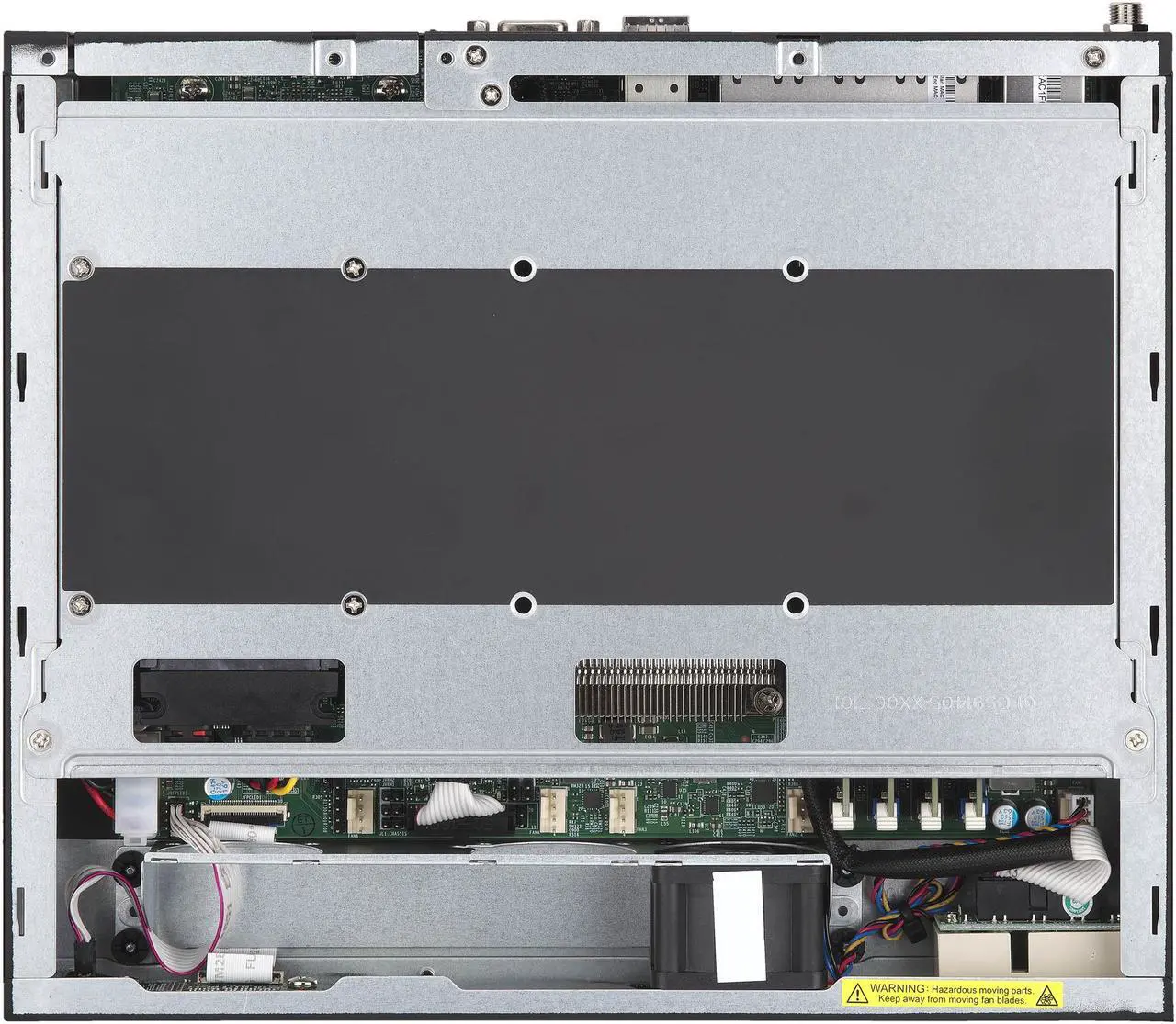

One 40mm chassis fan provides excellent cooling efficiency while not producing excess noise. Less heat means higher performance without throttling.
