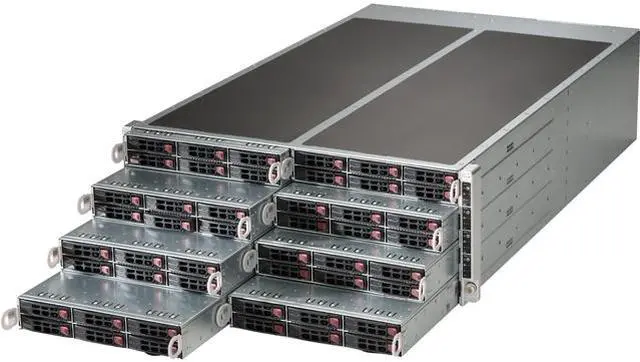

SUPERMICRO SYS-F617R2-R72+ 4U Rackmount Server Barebone (8 Nodes) Dual LGA 2011 Intel C602 DDR3 1600/1333/1066/800

Be the first to review this product...
  • Dual LGA 2011
  • Dual Intel Xeon E5-2600 series (up to 130W TDP)
  • 16 x 240Pin Memory Slots
  • 1620W high-efficiency redundant power supply w/ PMBus, 80PLUS Platinum
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-F617R2-R72+

General
Brand SUPERMICRO
Series SuperServer
Model SYS-F617R2-R72+
Form Factor 4U Rackmount
CPU Supported
CPU Type Dual Intel Xeon E5-2600 series (up to 130W TDP)
CPU Socket Dual LGA 2011
Chipset
North Bridge Intel C602
Memory Supported
Memory Slots 16 x 240Pin
Max Memory Supported 512GB RDIMM
Memory Type Supported DDR3 1600/1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 4 x SATA 300 + 2 x SATA 600
2 x SATA 300 (SCU)
SATA RAID AHCI:
SATA 2.0 3Gbps with RAID 0, 1, 5, 10
SATA 3.0 6Gbps with RAID 0, 1

SCU: SATA 2.0 3Gbps with RAID 0, 1, 10
SAS 8x SAS 2.0 ports (6Gbps) via LSI 2208

HW RAID 0, 1, 5, 6, 10, 50 support
Graphics
GPU/VPU Matrox G200eW
Expansion Slots
PCI Express 1x PCI-E 3.0 x16 Low-profile
1x PCI-E 3.0 x8 (Micro LP)
Communications
First LAN Intel I350
Max. LAN Speed Dual 1 Gigabit
Expansion Bays
Hot-Swap Bays 6 x 2.5" SAS2/SATA (per node)
Panel Ports
RJ45 2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 1620W high-efficiency redundant power supply w/ PMBus, 80PLUS Platinum
Features
Features QPI up to 8 GT/s

IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

1x SAS2 / SATA backplane
Dimensions & Weight
Dimensions 29" x 17.63" x 6.96"
Weight 150 lbs.
Additional Information
First Listed on Newegg April 12, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
