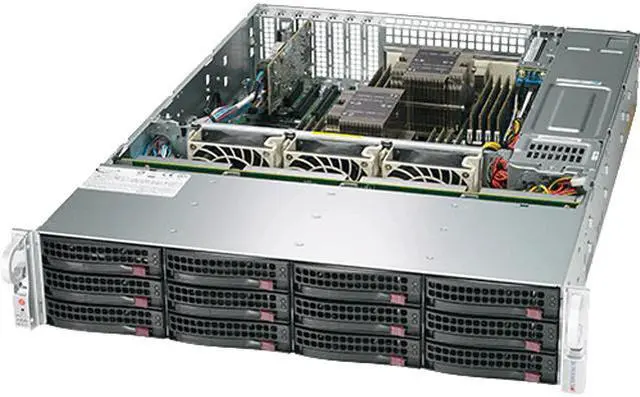

Supermicro Storage SuperServer SSG-620P-ACR12H

Be the first to review this product...

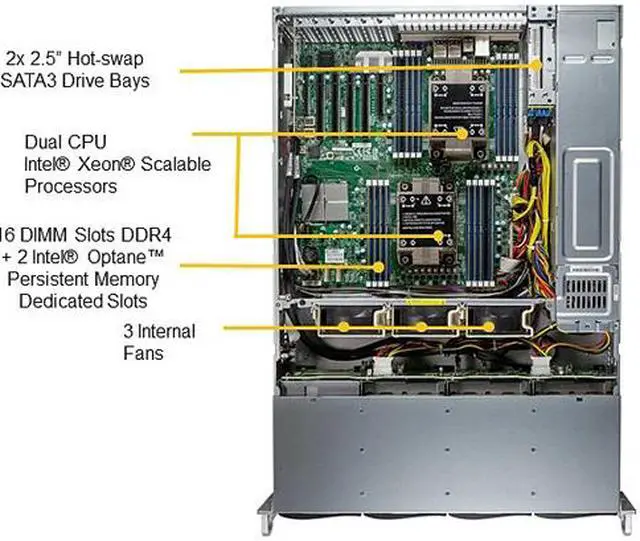

  • Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable Processors
  • 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel Optane Persistent Memory Dedicated Slots
  • 2 x 10Gbe

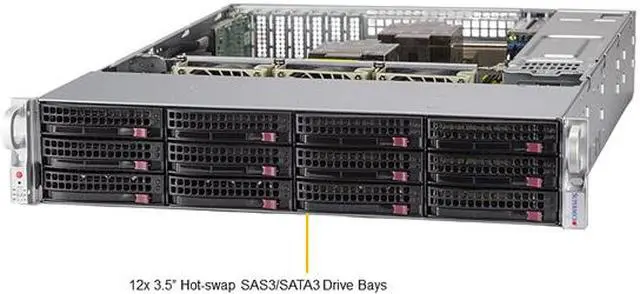

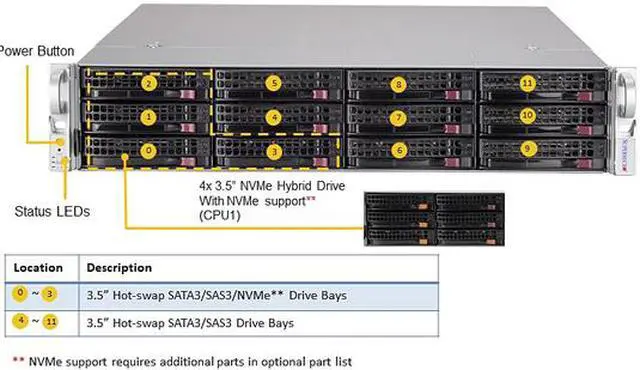

  • 12 x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe
  • 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
  • Broadcom 3916 controller
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SSG-620P-ACR12H

Model
Brand Supermicro
Model SSG-620P-ACR12H
Interfaces

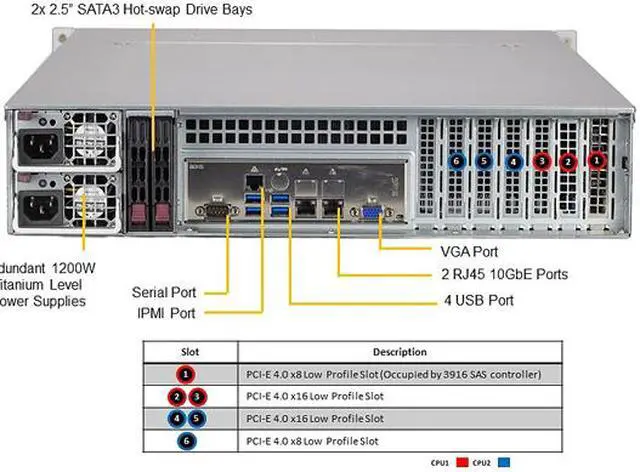

Port RJ-45 1 x RJ45 Dedicated IPMI LAN port
2 x RJ45 10GBase-T LAN ports
Port USB 4 x USB3.0
PCIe Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP

* PCIe slot 1 is occupied by the Storage Controller.
Port Others 1 VGA port(s)
1 COM Port(s)
Configuration
Form Factor 2U
Memory Slot 16 DIMM slots
Hard Drive Performance
Included HDD Capacity Diskless System
Conveniences
LEDs HDD activity
Network activity
Power status
System information (overheat/UID)
Power
Power AC 1200W, Titanium Level, Redundancy, PMBUS 1.2, +12V/+5Vsb
Features
Features Dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable Processors

16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel Optane Persistent Memory Dedicated Slots

2 x 10Gbe

12 x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hyprid Ports); 2 rear SATA 2.5" slots; onboard 1 M.2 NVMe

3 heavy duty fans with optimal fan speed control; 1 Air Shroud

Broadcom 3916 controller
Environmental
Temperature 10°C - 35 °C
Dimensions & Weight
Dimensions 3.50" x 17.30" x 25.50"
Weight 34.00 lbs.
Additional Information
First Listed on Newegg July 15, 2021

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
