These dc boost converters are excellent power transformers. They feature wide input voltage, low power consumption, high efficiency, great reliability. They can work safely and reliable in -40°C~80°C range. Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency, Maximum Efficiency:=95%.
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection.

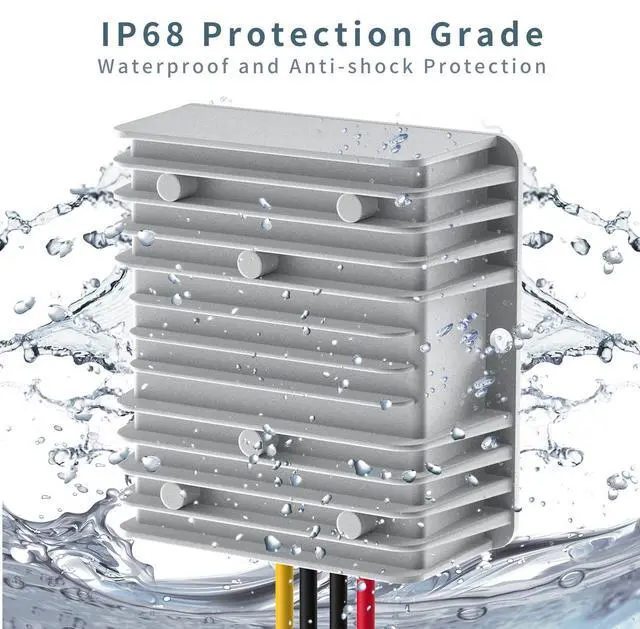

100% Waterproof Module
Compact aluminium shell with epoxy potting is IP68 waterproof, anti-shock, damp-proof , anti-dust protection and better heat dissipation, adapt to a variety of harsh environment and extend service life.
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.

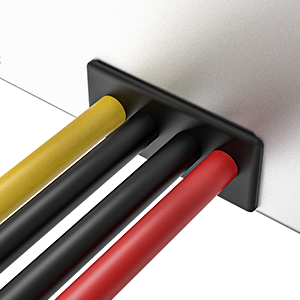

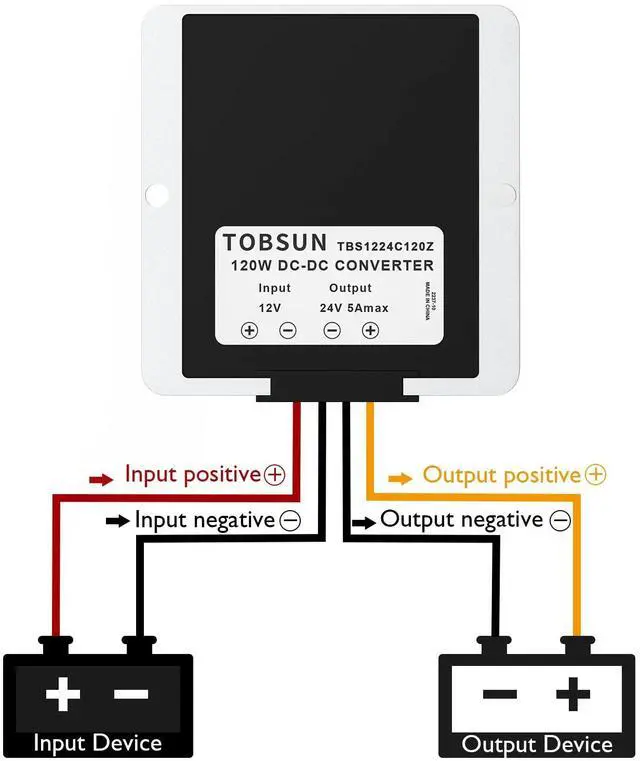

Easy Installation---Positive and negative wires can’t be reversed connection.

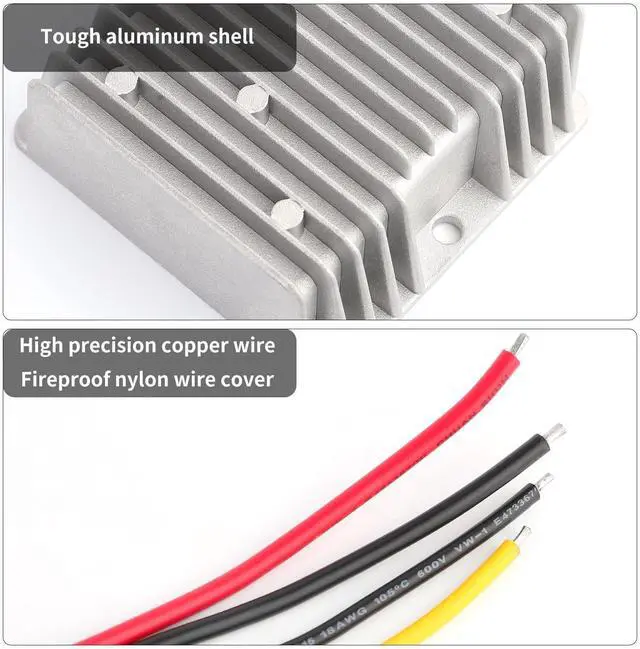

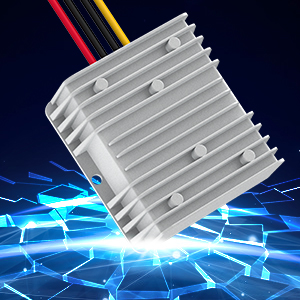

Hard Shell

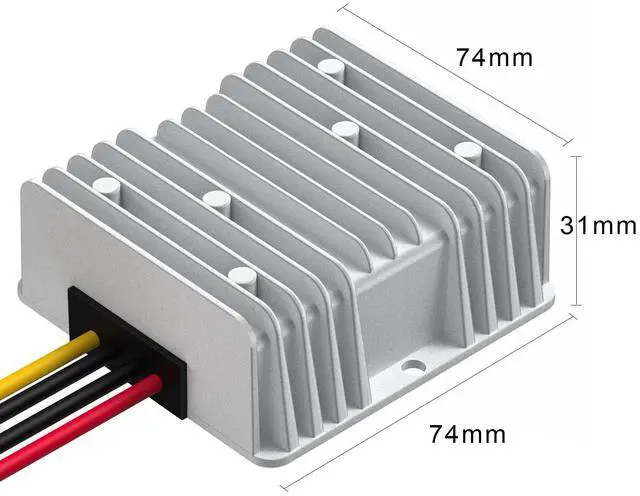

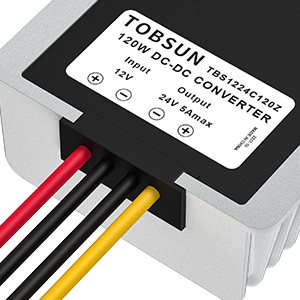

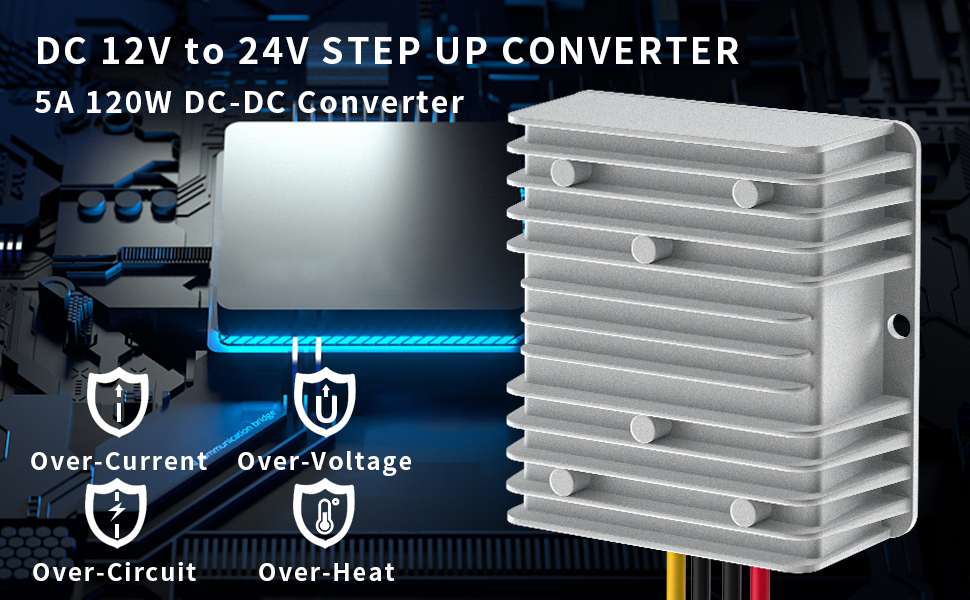

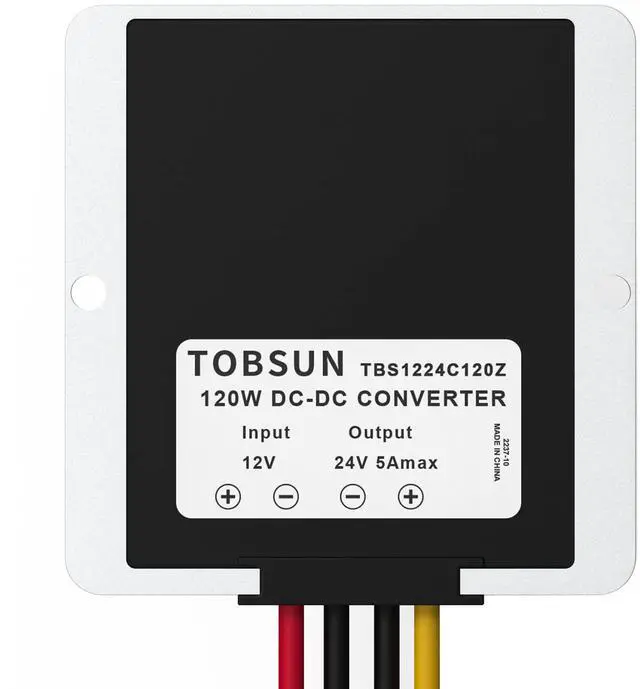

DC 12V to DC 24V 5Amax 120W

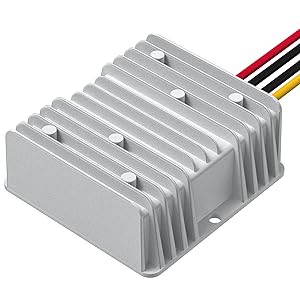

Epoxy Potting
Package include:
- 1x Voltage Boost Converter 12V to 24V 5A 120W
Notes:
It's normal that the case is hot when converter inside temp is over 113?, converter will protect itself when inside temp is over 185?.
Specification:
Input Voltage: 12V nominal
No-load input current: =5mA
Output Voltage: DC 24V
Output Current: 5Amax
Ripple Wave: 50Mv
Starting Delay time: = 2S
Maximum Efficiency: =95%
Non-isolated Module
