Brand | Swiftech |
---|---|
Model | H20-220-APEX-GT |
Type | Liquid Cooling System |
Block Compatibility | Complete CPU liquid kit for Intel socket 478 (Intel Pentium 4), socket 775 (Pentium 4 "Prescott", Pentium D), socket 603-604 (Intel Xeon including"Nocona" class processors), socket 462 (AMD Athlon, Duron, XP, MP) with motherboard mounting holes, socket 754, 939, 940 (AMD 64 bit Athlon 64, X2, Sempron, Opteron processors) |
---|---|
Block Material | Copper |
Pump Bearing | Ceramic |
---|
Radiator Size | 1 3/8" x 11.1" x 5.1" |
---|
Fan RPM | 2100 RPM |
---|---|
Fan Air Flow | 72.4 CFM |
Fan Noise | 34.0 dBA |

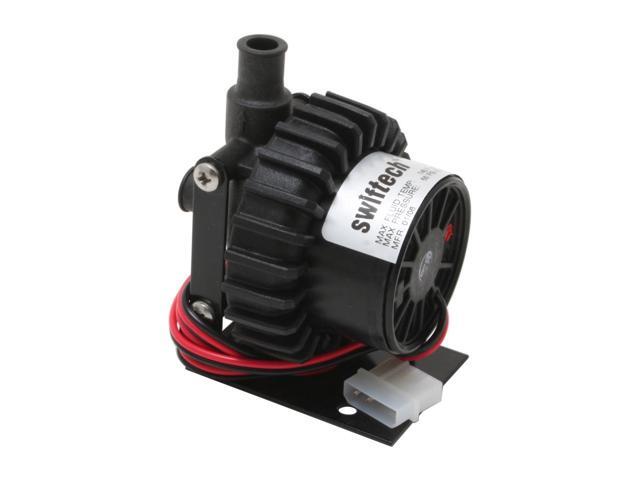

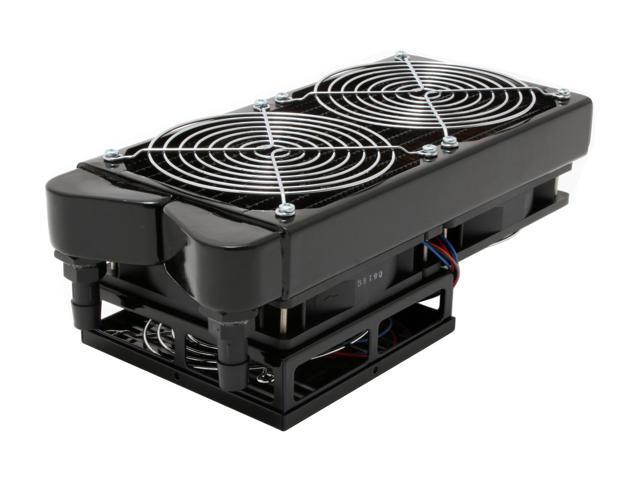

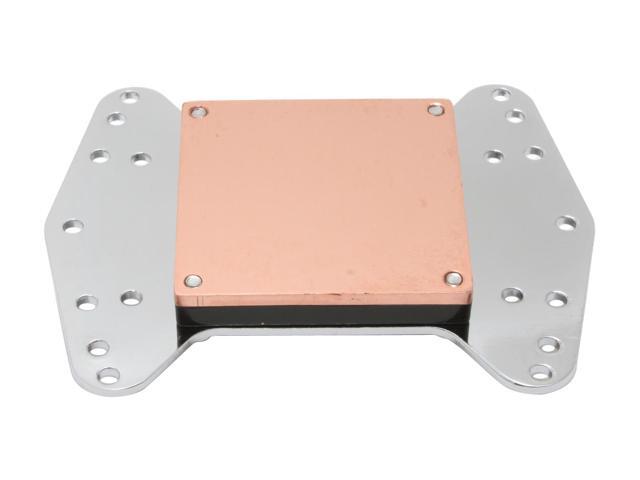

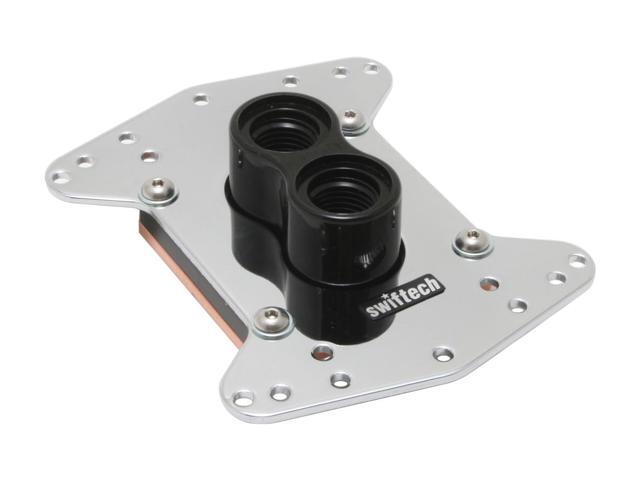

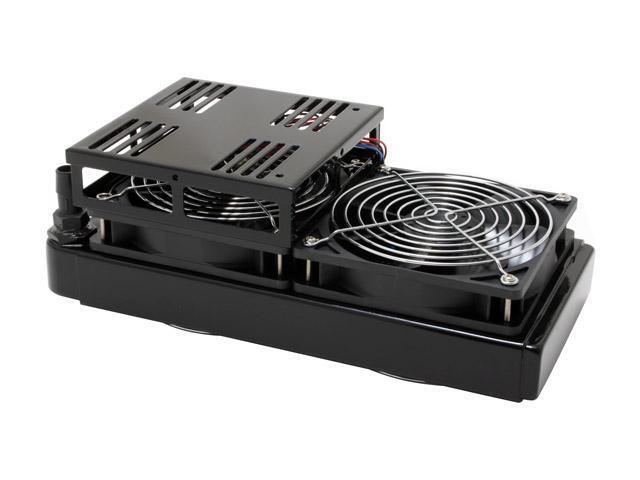

Features | Capturing the heat: The extreme performance APOGEE Universal water-block is responsible for absorbing the heat generated by today's hottest CPU's with incredible efficiency. Moving the Heat around: The Extreme performance MCP655™ 12 Volts DC industrial pump pushes the coolant throughout the circuit at high velocity. Larger 7/16" ID (5/8" OD) tubing is used to maximize the coolant flow rate inside the system. Dissipating the heat into the atmosphere: The new MCR-220 copper and brass radiator doubles the surface area available for heat convection into the air compared to a single 120mm radiator, and uses two 72 CFM 120mm fans, at a reasonable* sound noise level of 37 dBA. The MCB120 "Radbox" optimizes cooling by using fresh air from outside the computer, without adding any thermal load to other components. |
---|

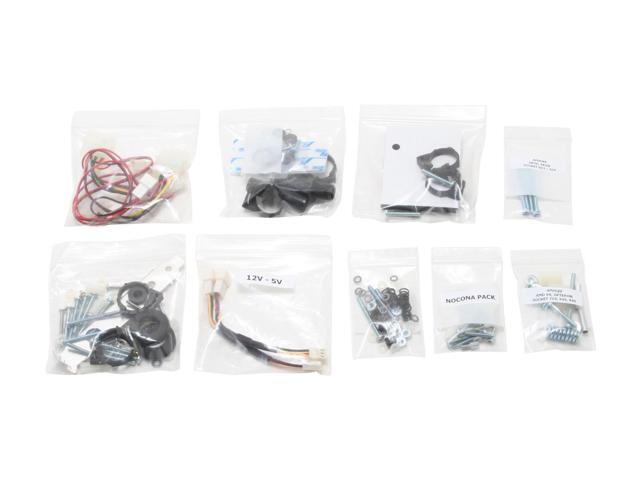

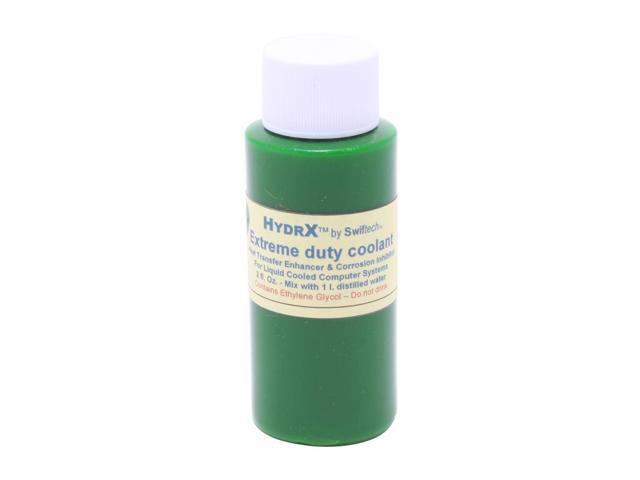

Package Contents | CPU Cooler Block Pump/Reservoir Thermal Grease Coolant Radiator Rubber Rings Hose Bolts Clips |
---|
Date First Available | March 01, 2006 |
---|
Pros: Contains all components necessary, instructions are relatively easy to follow if you know what you are doing, and offers excellent improvement over air-cooling
Cons: While the instructions were relatively clear to me, I have been building water-cooling kits for close to five years now, and I had to refer to the Swiftech forums now and then, someone with low-understanding might have difficulty understanding them. I had a minor leak in the lower reservoir barb after two days, i found it with my UV cathodes and discovered it was only due to a slightly loose barb mount. I tightened it, and there have been no leaks for well over a year.
Overall Review: Please, save yourself the trouble and research water-cooling, and your case layout thoroughly before purchasing, only then can you be truly satisfied with your results. Q6600 running at 29, 28, 34, 27 (CoreTemp 4 core measurement) Idle, 43, 42, 46, 46 Load
