SXD12025 6IN1 Six-Fan Adjustable DC Cooling Kit, 120 x 120 x 25mm Fans, 3-12V Controller, Dual Ball Bearing, 100-240V AC Input Adapter, for Mining Rigs & Equipment Cabinets

SXD12025 6IN1 Adjustable Six-Fan DC Cooling Kit

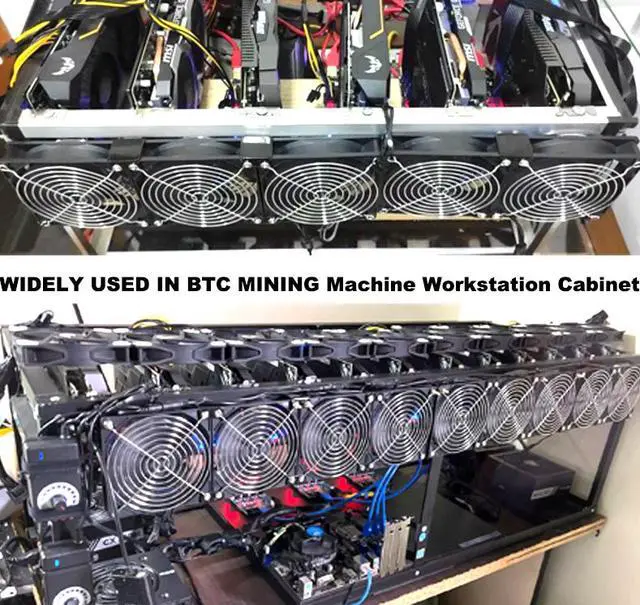

Designed for equipment cooling and ventilation projects, the SXD12025 6IN1 combines six 120mm DC fans with one adjustable power controller and one 6-way splitter. The kit provides flexible airflow for mining rigs, workstation cabinets, equipment enclosures, ventilation panels, and other compatible installations.

IMPORTANT POWER INFORMATION

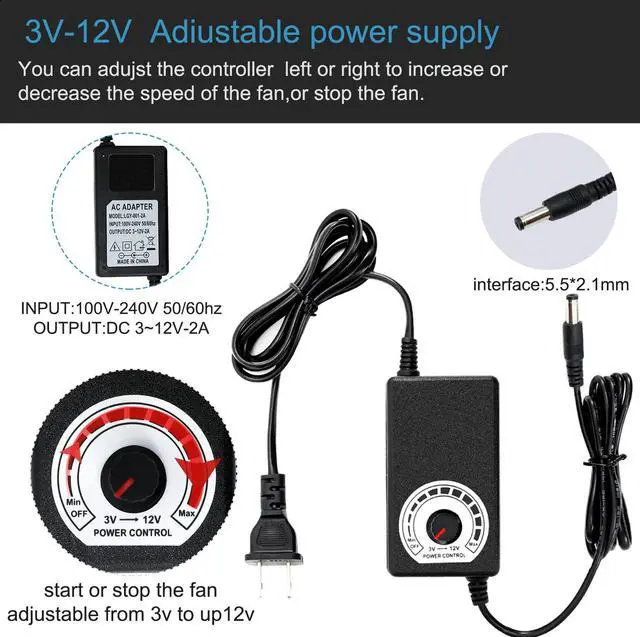

The included adapter accepts 100-240V AC at 50/60Hz and converts it to adjustable DC 3-12V, up to 2A, through a 5.5 x 2.1mm barrel interface. The fans themselves are low-voltage DC devices. Do not connect any fan directly to 110V or 220V AC. The 2A specification is the total output limit of the included adapter, not the current rating of one fan.

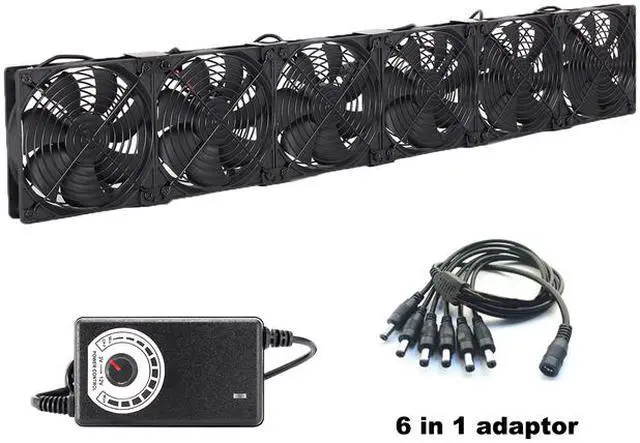

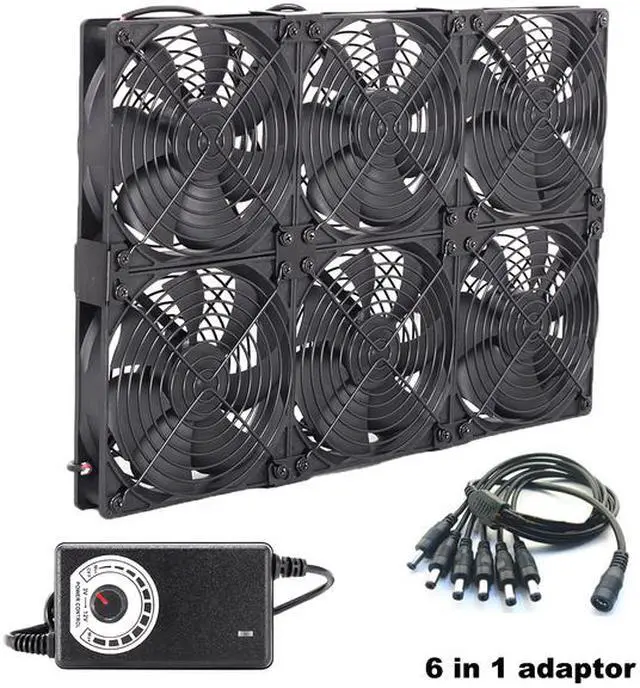

VERIFIED KIT CONTENTS

- Six 120mm DC cooling fans

- One adjustable 3-12V controller/power adapter

- One 6-way splitter

- Pack quantity: 1 complete six-fan kit

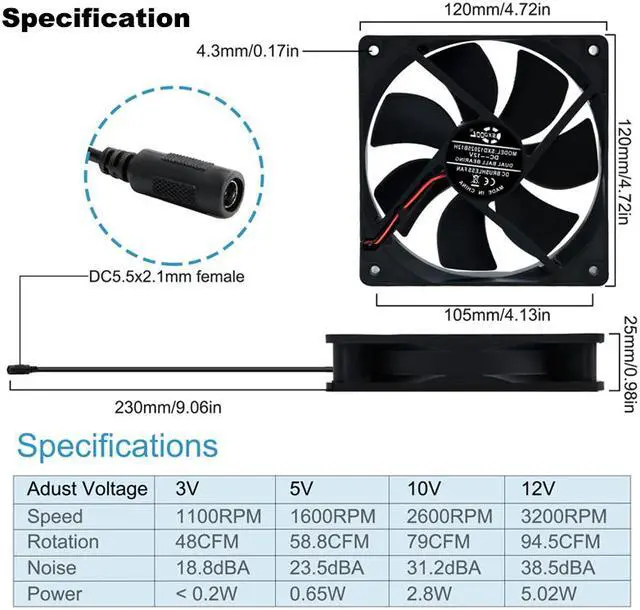

VERIFIED SPECIFICATIONS FOR EACH FAN

- Frame size: 120 x 120 x 25mm

- Mounting-hole spacing: 105mm

- Mounting-hole diameter: 4.3mm

- Lead length: approximately 230mm

- Interface: DC 5.5 x 2.1mm female connector

- Blade count: 7

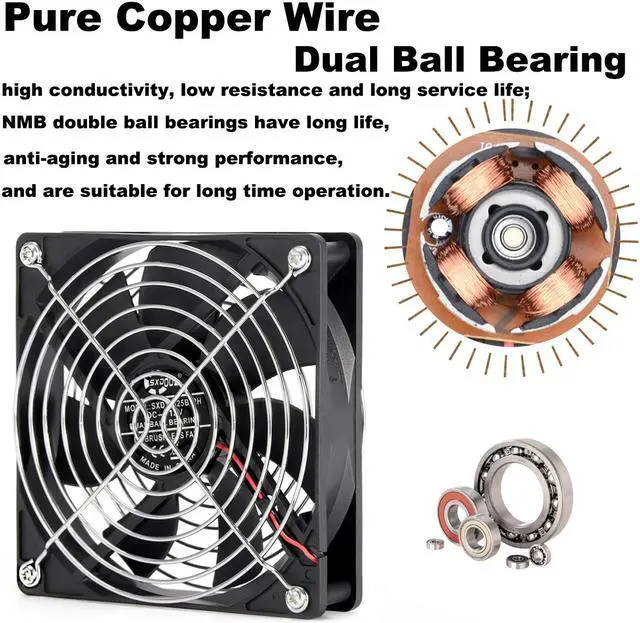

- Bearing type: dual ball bearing

PER-FAN VOLTAGE AND PERFORMANCE REFERENCE

At 3V: 1100 RPM, 48 CFM, 18.8 dBA, under 0.2W

At 5V: 1600 RPM, 58.8 CFM, 23.5 dBA, 0.65W

At 10V: 2600 RPM, 79 CFM, 31.2 dBA, 2.8W

At 12V: 3200 RPM, 94.5 CFM, 38.5 dBA, 5.02W

All RPM, airflow, noise, and power figures above apply to one fan. They are not combined six-fan totals and should not be multiplied to create a kit rating. Simultaneous operation depends on the selected voltage, airflow restriction, wiring conditions, and the total load supported by the adapter. No claim is made that all six fans will simultaneously reach the maximum per-fan reference values.

INSTALLATION CHECKLIST

Before purchase and installation, confirm the available 120 x 120 x 25mm space for each fan, 105mm mounting pattern, 4.3mm hole size, 5.5 x 2.1mm connector fit, cable routing, and electrical requirements. Keep cables and nearby objects clear of the rotating blades. Select a voltage setting appropriate for the required balance of airflow and noise.

FREQUENTLY ASKED QUESTIONS

Is this a 110V or 220V fan?

No. The included adapter accepts 100-240V AC, but its output to the fans is adjustable DC 3-12V.

Are the listed RPM and CFM values totals for all six fans?

No. Every performance value is a reference for one fan, not the combined output of the kit.

Can all six fans reach the maximum reference values at the same time?

No simultaneous maximum is claimed. Actual operation depends on the voltage setting, total electrical load, airflow restriction, and installation conditions.

What does Pack Quantity 1 include?

One complete kit containing six fans, one adjustable controller/power adapter, and one 6-way splitter.
