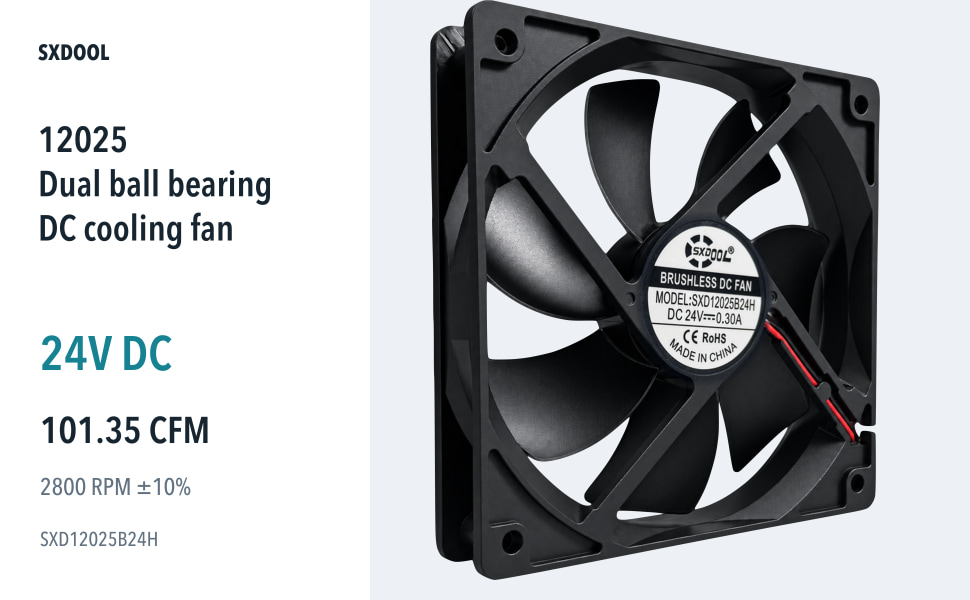

12025 dual ball bearing DC cooling fan
SXD12025B24H | 24V DC | 101.35 CFM

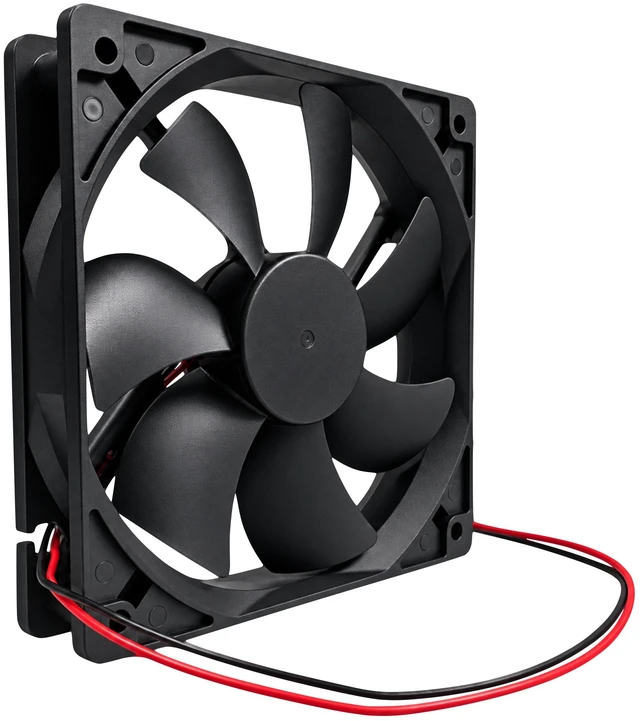

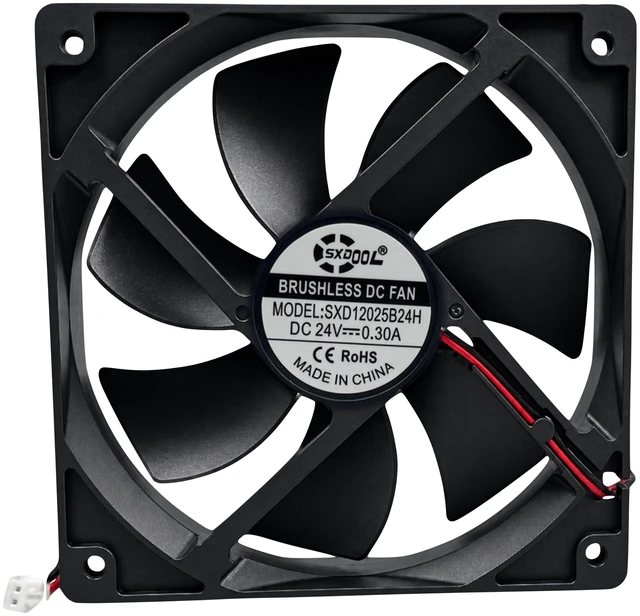

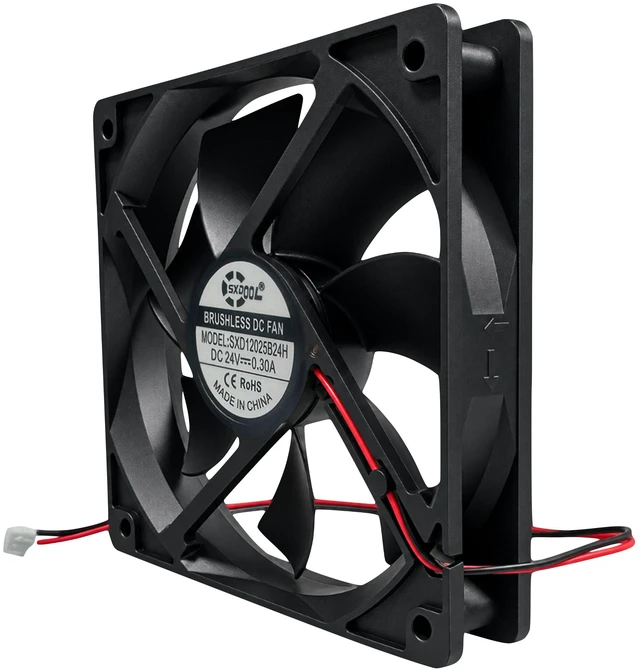

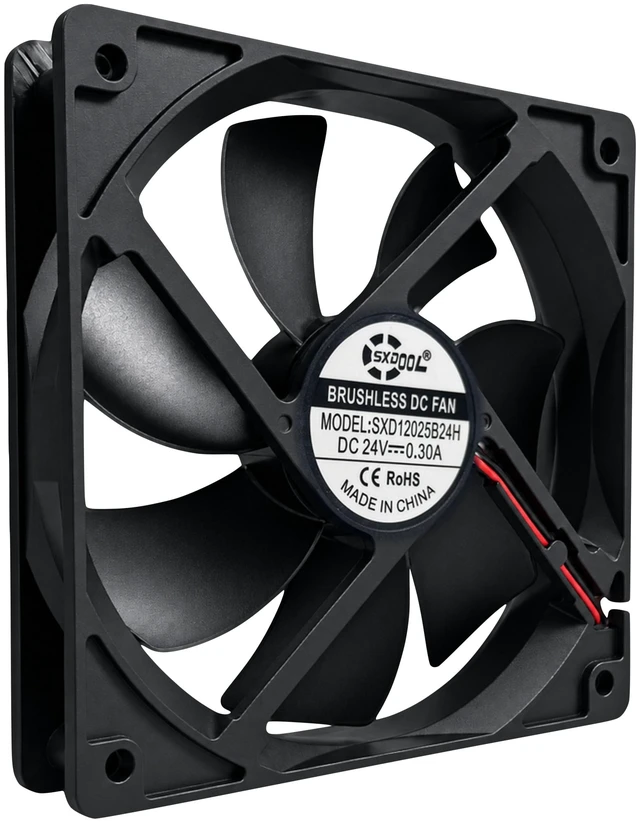

Build airflow into a matched electronics enclosure with SXDOOL SXD12025B24H. This 120 x 120 x 25 mm dual ball bearing fan delivers 101.35 CFM at 2800 RPM +/-10% with a 42 dBA noise rating. Rated input is 24V DC 0.30A.

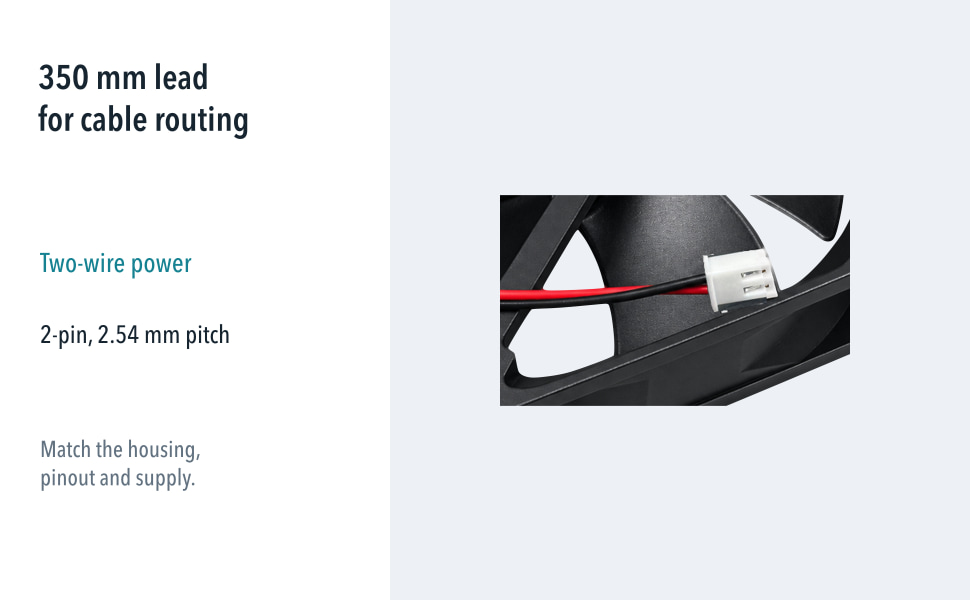

350 mm lead for cable routing
2-wire lead | 2-pin connector | 2.54 mm pitch
Route power inside your enclosure with a 350 mm two-wire lead. The connector has two pins with 2.54 mm spacing. Match the housing, pinout, polarity and equipment supply.

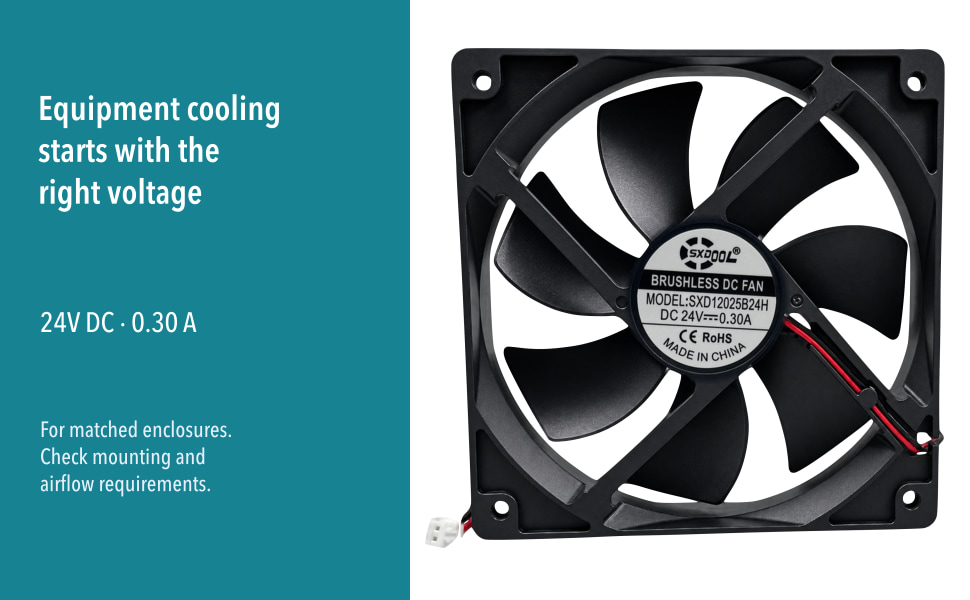

Match the equipment supply
24V DC equipment cooling
This model uses 24V DC power. For an equipment case, control enclosure or electronics housing, match the mounting pattern, available depth, connector and airflow requirements.
Specifications
SXD12025B24H
|
Brand |
SXDOOL |
|---|---|
|
Model |
SXD12025B24H |
|
Product type |
DC cooling fan |
|
Dimensions |
120 x 120 x 25 mm |
|
Rated voltage |
24V DC |
|
Rated current |
0.30A |
|
Bearing |
Dual ball bearing |
|
Speed |
2800 RPM +/-10% |
|
Airflow |
101.35 CFM |
|
Noise level |
42 dBA |
|
Wiring |
2-wire |
|
Lead length |
350 mm |
|
Connector |
2-pin, 2.54 mm pitch |
Which power supply does this model use?
Use a 24V DC supply with correct polarity. Rated current is 0.30A. Match the voltage shown on the fan label.
What does 12025 mean?
12025 refers to a 120 x 120 x 25 mm frame. Check the mounting holes, available depth and airflow path before ordering.
What connector and lead are fitted?
A 350 mm two-wire lead is fitted with a 2-pin connector at 2.54 mm pitch. Confirm the socket, housing, pinout and polarity on your equipment.
Can I connect it directly to a PC motherboard?
Check the connector and electrical requirements first. This fan has two power wires. A 2-pin connector with 2.54 mm pitch does not by itself establish compatibility with 3-pin or 4-pin motherboard headers.
How do I match this fan to my equipment?
This model requires 24V DC power. Compare the original fan rating, frame dimensions, mounting pattern, connector housing and pinout, as well as airflow requirements.
