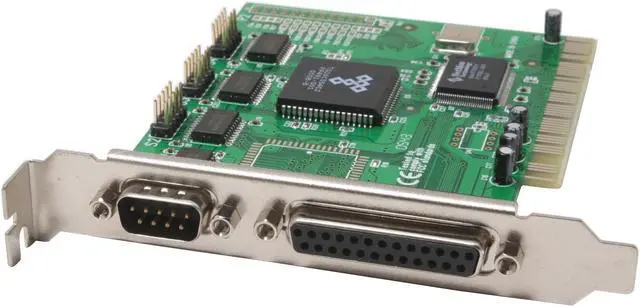

SYBA 32-Bit PCI to 4x Serial & 1x Parallel Port Host Controller Card Model SD-PCI-4S1P
- PCI to Parallel / Serial Port Card
- PCI to 4 Serial ports & 1 Parallel port controller card based on NM9755CV
- Plug & Play - Automatically selects IRQ and I/O address
- Supports PCI IRQ sharing
- Com
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Syba SD-PCI-4S1P
| Brand | SYBA |
|---|---|
| Model | SD-PCI-4S1P |
| Type | PCI to Parallel / Serial Port Card |
|---|---|
| External Ports | DB25 parallel port connector x 1 DB9 serial port connector x 1 |
| Internal Ports | Pin header serial port connector x 3 |
| Standard | PCI Specification Revision 2.1 |
| Data Transfer Rate | Serial Interface : up to 1 Mbytes/sec Parallel Interface: up to 1.5 Mbytes/sec |
| Operating Systems Supported | Windows 98SE/ME/2000/XP/NT4.0, Linux & DOS |
| Features | PCI to 4 Serial ports & 1 Parallel port controller card based on NM9755CV Plug & Play - Automatically selects IRQ and I/O address Supports PCI IRQ sharing Compatible with standard 16C550 UART with 16 byte transmit-receive FIFO SPP, PS2, EPP, ECP compatible IEEE 1284 printer port Built in 16 Byte FIFO |
|---|

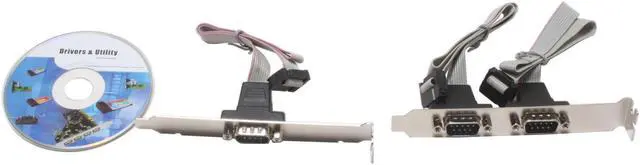

| Package Contents | Syba PCI to 4-Serial & 1-Parallel port host controller card One rear brackets with two DB9 serial port connectors One rear brackets with one DB9 serial port connector User's manual Software driver disc x 1 |
|---|
| First Listed on Newegg | January 26, 2006 |
|---|
