SYBA IEEE 1394a FireWire PCI Card with Internal 9-pin Header Model SD-VIA-FW1E1H

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • PCI to 1394 Card
  • 1394A
  • 400/200/100 Mbps Data Transfer Rate

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews

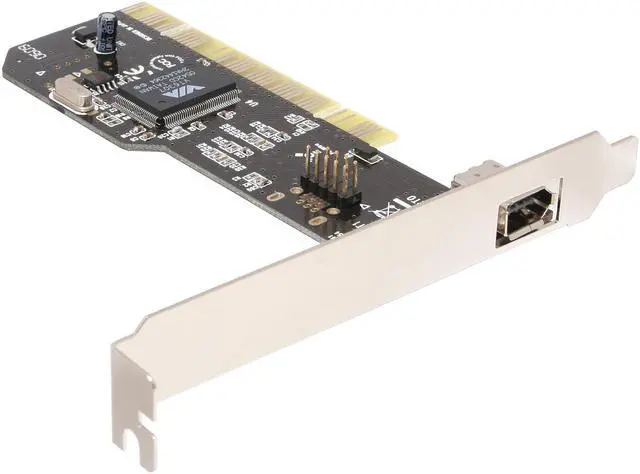

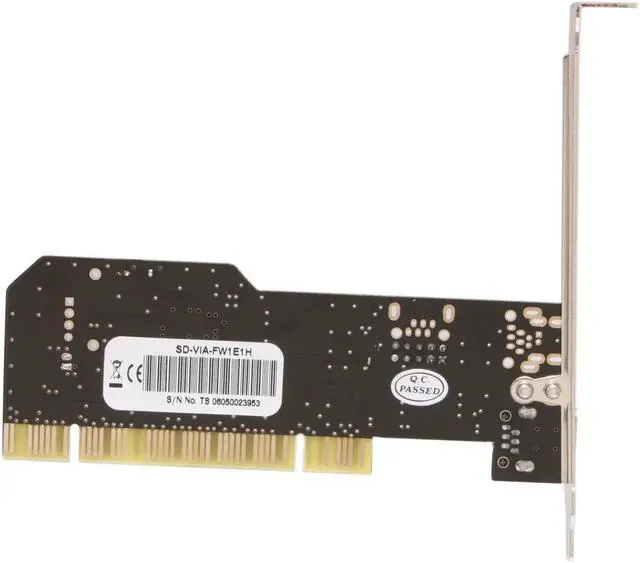

Need a 9-pin internal connector for your case’s front panel FireWire400 port? This is your card. The Syba SD-VIA-FW1E1H PCI FireWire card is a solid IEEE 1394a board with one external port and an internal 9-pin header. Compatible with Win98SE/ME/2000/XP and Mac OS 9.0 and above, this card will give you that extra connectivity you want.

  • newegg Two IEEE 1394 Ports The SYBA SD-VIA-FW1E1H features two IEEE 1394 (FireWire) ports to add IEEE 1394 capability directly to your computer.
  • newegg PCI Interface Install the card into your PC's free PCI slot with plug-and-play simplicity.

Learn more about the Syba SD-VIA-FW1E1H

Model

|
Brand
SYBA
Model
SD-VIA-FW1E1H

Details

|
Type
PCI to 1394 Card
External 1394 Ports
1x 1394 Port
Internal 1394 Ports
1 x IEEE1394.A Internal Header
Standard
1394A
Data Transfer Rate
400/200/100 Mbps
Operating Systems Supported
Windows 98SE/ME/2000/XP, MAC OS 9.0 & above

Features

|
Features

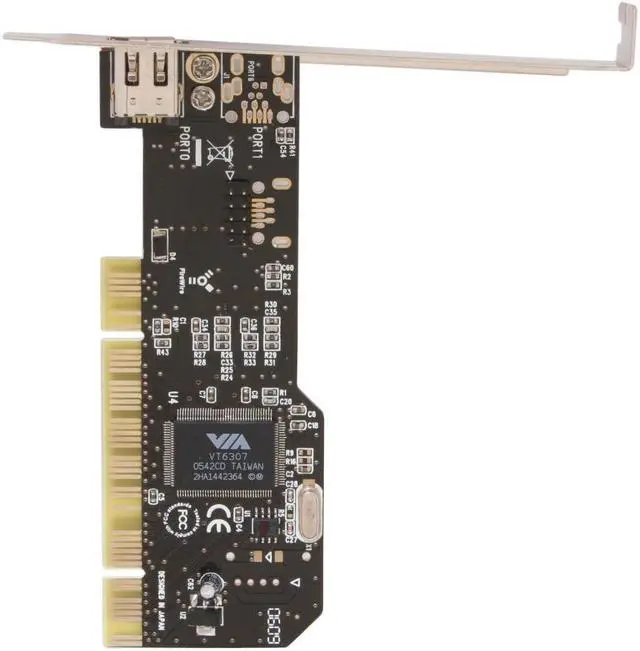

VIA 6307 PCI to FireWire IEEE1394.a controller chip
Type : IEEE1394.A compliant OHCI specification V0.94
Interrupter : Plug and play Bus : PCI Bus
Supports Provisions of IEEE 1394-1995 Standard for High Performance Serial Bus and the P1394a Supplement 2.0
Provides Two 1394a Fully Compliant Cable Ports at 100/200/400 Megabits per Second (Mbit/s)
Logic Performs Bus Initialization and Arbitration Functions
Encode and Decode Functions Included for Data-Strobe Bit-Level Encoding
Incoming Data Resynchronized to Local Clock.
Data Interface to Link-Layer Controller Provided Through 2/4/8 Parallel Lines at 49.152 MHz
24.576 MHZ Crystal Oscillator and PLL Provide TX/RX Data at 100/200/400 Mbps and Link-Layer Controller Clock at 49.152 MHZ.
Cable Power Presence Monitoring.
Programmable Node Power Class Information for System Power Management
Embedded Bus Holder Isolation to Link Layer Controller Interface
Fully Compliant P1394a 2.0 PHY Map
Separate TPBIAS for Each Port
Fully Interoperable with IEEE Std1394-1995 Devices
Cable Ports Monitor Line Conditions for Active Connection to Remote Node
Low Power Design for Battery-Powered Applications includes: User Controlled Power-Down via PD, Automatic Device Power-Down during All Ports Suspended and Link Interface Disabled, Link Interface Power-Down via Inactive LPS, Automatic Inactive Ports Powered-Down, and Automatic Inactive Logic Power-Down
Self Power Up Reset and Pinless PLL to Reduce Component Counts on System

Packaging

|
Package Contents
PCI FireWire Card
User's manual

Additional Information

|
Date First Available
July 31, 2006
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 month to 1 year
Verified Owner
5/ 5
It worked. 11/3/2011 3:38:22 AM

Pros: It worked great. Solved my issue of not having a firewire card for a iPod.

Cons: No cons.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Firewire wire card 9/9/2011 7:22:18 AM

Pros: great for photography

Cons: not namebrand aftermarket item

Did you find this review helpful?
Ownership: less than 1 day
Verified Owner
4/ 5
Works good. Strange fit on tool-less chassis. 8/3/2011 10:50:20 PM

Pros: Works good. Can't complain about the functionality.

Cons: Was difficult to get to go in to a tool-less chassis. I had to match it up against the blanks that were in the case to see why. For some reason the leading end of the blanks had a slight angle to them. I formed the leading edge of this card's frame to match and it went right in.

Overall Review: I don't know if all tool-less cases are similar in this way.

Did you find this review helpful?
Anonymous
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Works great on my Core i7 Hackintosh 5/26/2011 4:49:21 PM

Pros: Works great on my Core i7 hackintosh build! No special drivers needed for Mac OS X...works out of box.

Cons: The drivers for this card on Windows 7 work, but they aren't that great.

Overall Review: Internal FW port header for front panel has weird pinout. Check to make sure your case header pinout matches if you want to use that.

Did you find this review helpful?
Ownership: less than 1 day
Verified Owner
4/ 5
Mounting bracket 5/11/2011 10:02:13 AM

Pros: Simple installation and works great.

Cons: Although it is a small form factor card, it does not come with the small form factor mounting bracket. I had to modify the bracket to fit in the case we have. After that, it fits and works great.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
FireWire PCI Card 4/22/2011 11:46:13 AM

Pros: No problems at startup, works great, cheap price, and sturdy material.

Cons: None yet

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
SYBA FW 1394a PCI card 3/17/2011 2:46:46 PM

Pros: Cheap, reliable, PCI interface, header pins for front case ports.

Cons: At this price range, nothing.

Overall Review: Not particularly great at anything, it does the job without fuss. Doesn't need drivers in Win 7. As mentioned, the best feature - and the rarest - is the header pins for use with case front ports. This allows use of those ports when a replacement motherboard doesn't have headers for firewire.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Works Fine 2/2/2011 1:29:45 PM

Pros: Works in Win 7 no problem. Was nice to have the header on the card to connect front panel connector on case (only one I could find like this, all others had an internal port).

Cons: It is a very tight fit to get the front port internal connector hooked up but it did just fit.

Did you find this review helpful?
