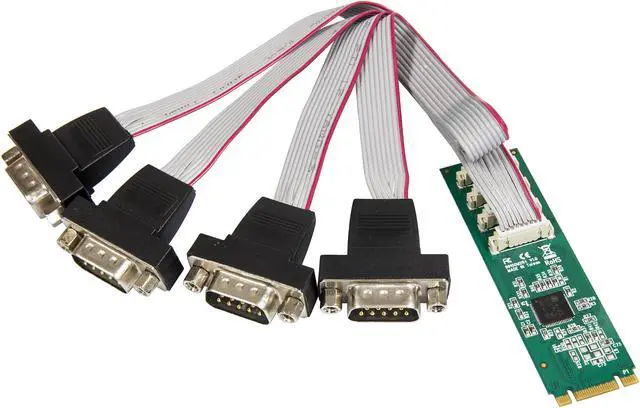

SYBA 4 Port RS-232 DB9 Serial M.2 B+M Key Controller Card - SY-PEX15066
- AX99100 Chipset
- Supports RS-232
- Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control
- Supports Hardware, Software Flow Control
- Even, Odd, None, Space and Mark parity
- Special Baud Rate (Option)
- Multi-drop application for 9-bit mode
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Syba SY-PEX15066
| Brand | SYBA |
|---|---|
| Model | SY-PEX15066 |
| Type | RS-232 DB9 Serial M.2 B+M Key Controller Card |
|---|---|
| External Ports | 4 x Serial Ports |

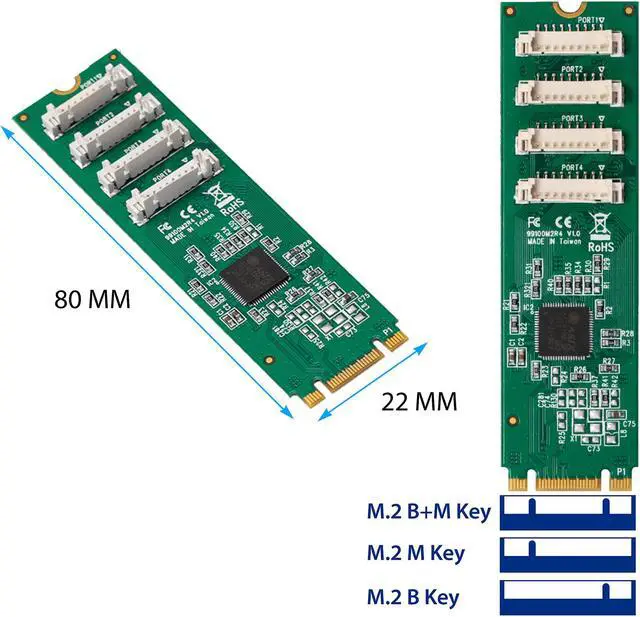

| Internal Ports | 1 x M.2 B+M Key |
| Operating Systems Supported | Windows 7, 8, 10, Linux Kernal 2.6.15 , Android 1.x-5.x |

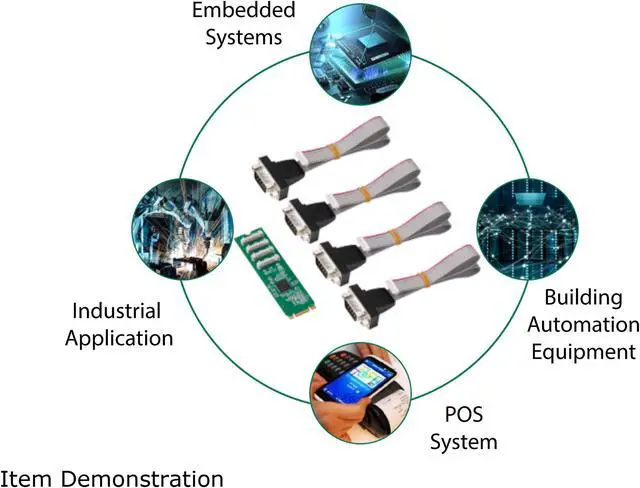

| Specifications | The IOCrest SY-PEX15066 lets you add 4 RS-232 serial ports to your embedded computer thought a free M.2 Slot. To be used in applications such as serial attached devices, serial networking/monitoring equipment, data acquisition system, POS terminal and industrial PC, add-on I/O cards-serial/usb, and Embedded systems -For I/O expansion. |
| Features | AX99100 Chipset Supports RS-232 Bi-directional speeds up to 25 Mbps per port Full Serial Modem Control Supports Hardware, Software Flow Control Even, Odd, None, Space and Mark parity Special Baud Rate (Option) Multi-drop application for 9-bit mode |
|---|
| Package Contents | 1 x M.2 B+M Key Serial DB9 RS-232 1 x Driver CD 1 x User Manual 4 x Serial DB9 Cables |
|---|
| First Listed on Newegg | January 06, 2020 |
|---|
