I have PCI express open slots will this fit? PCI Express x16: 1 PCI Express x1: 3 PCI Express x1 minicard socket: 1

This card fits the PCI express mini card socket. My computer only has PCI slots and so I needed a PCI to PCI express adapter. I used the Startech PCI to PCI Express adapter card (PCI1PEX1). I had to use the half high bracket that is supplied with the SYBA USB 3.0 controller card. Both cards install easily. The SYBA driver installed without any problems. I use the internal USB 3.0 socket for a 4gb SONY memory stick (USM4GM) which is configured as an Extended Memory Device (ReadyBoost) in Windows 7. Don't used a stick larger than 4gb because Windows 7 supports a max of 4gb for this function. See windows help on how to set this up, it's very easy. This really helps with system performance. The USB 3.0 sockets on the back of the board are used for various devices. I also had to get an extender Molex IDE power cable to connect to the inside Molex connector on the board. This is needed in case a high powered device is connected to the USB 3.0 board (IE; a disc drive). I highly recommend this board.

has anyone attempted to install and use this card in Windows 2012 R2 Server? Drivers say nothing specifically about 2012 Server but does mention Windows 8 support.

I did not use Windows 2012 R2, but I did use WHS2, which is essentially the same thing (from the driver perspective). It worked perfectly fine with that and Windows 7.

$13^.99

Free 60-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Novatek

Top Rated

4.5 (370 seller ratings)

Shipped by Novatek

Meet Your Seller

Novatek

See Seller Store

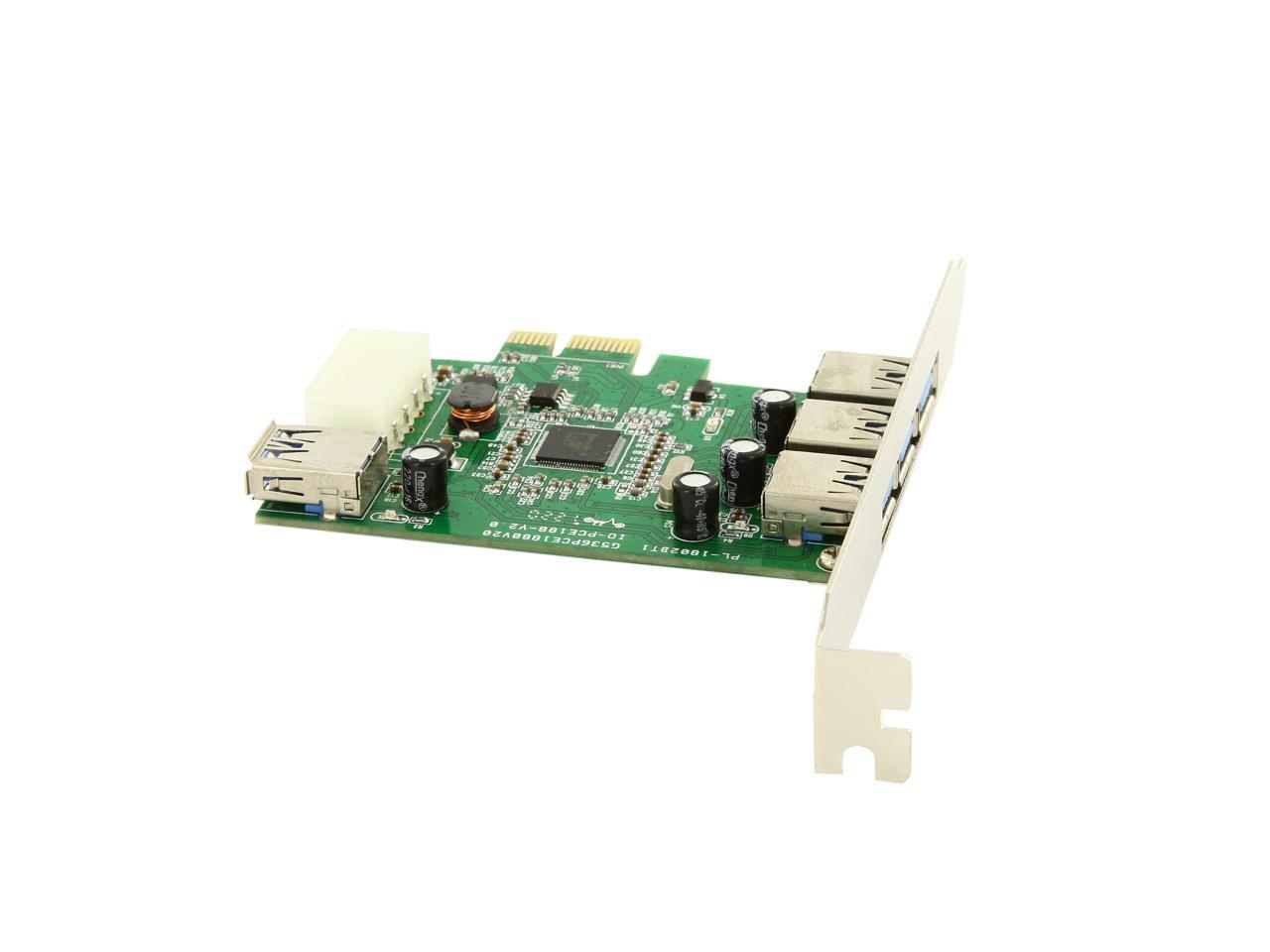

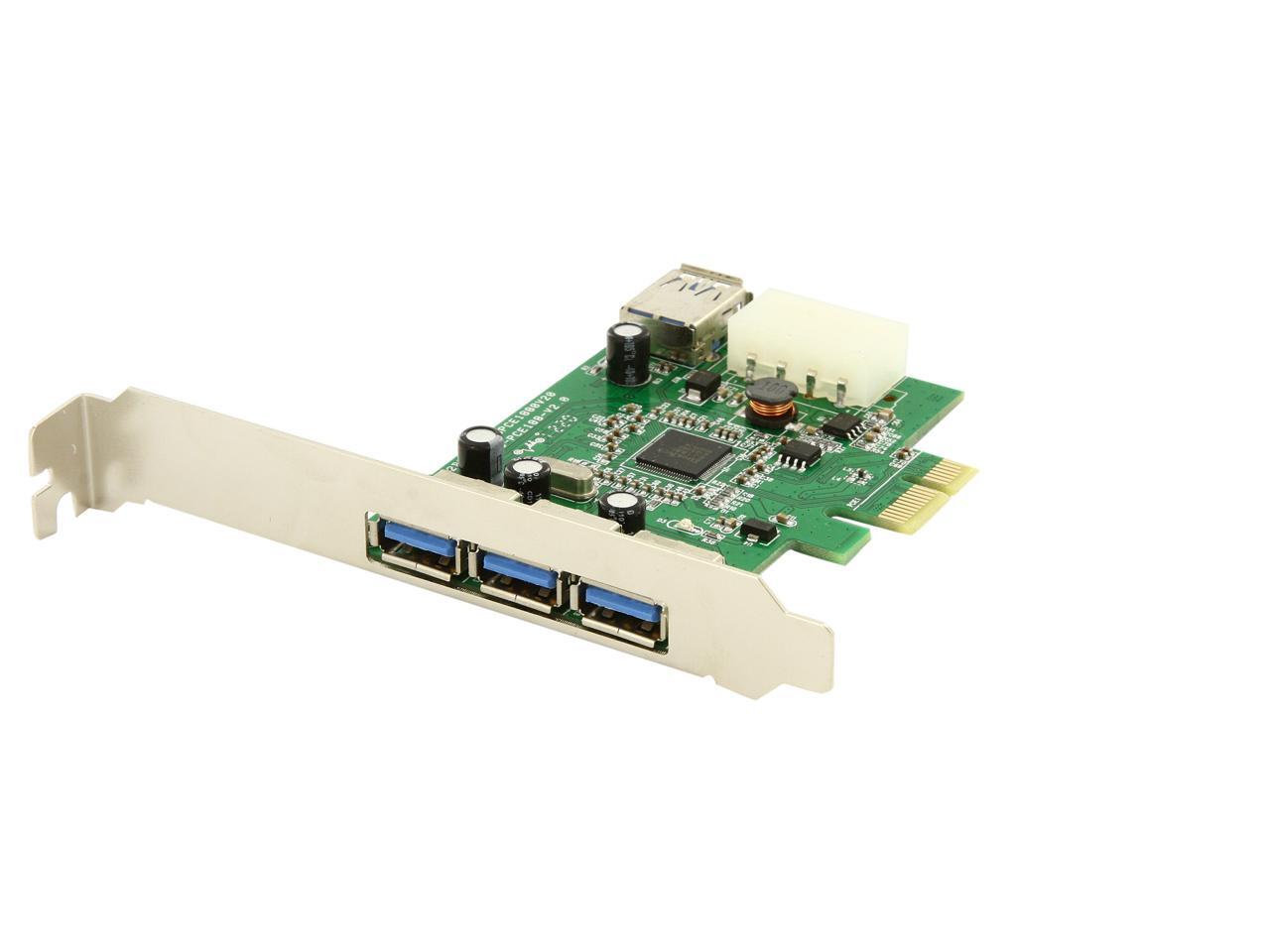

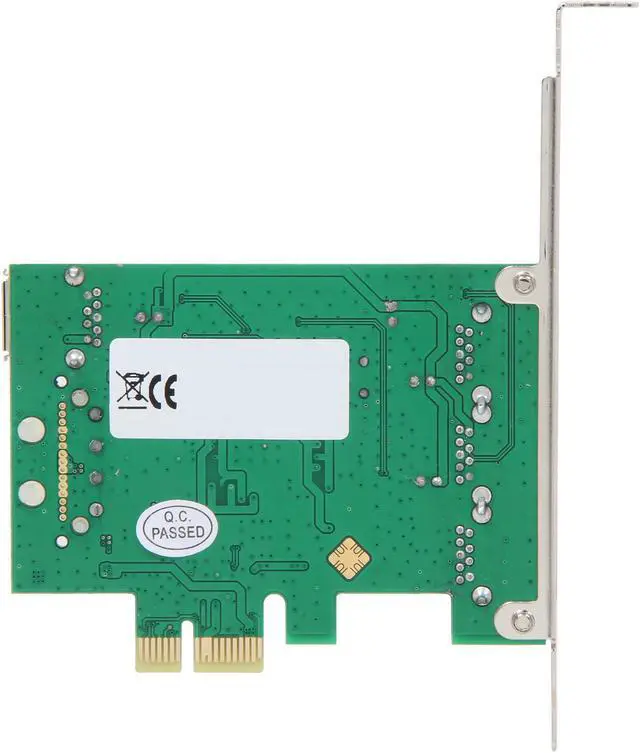

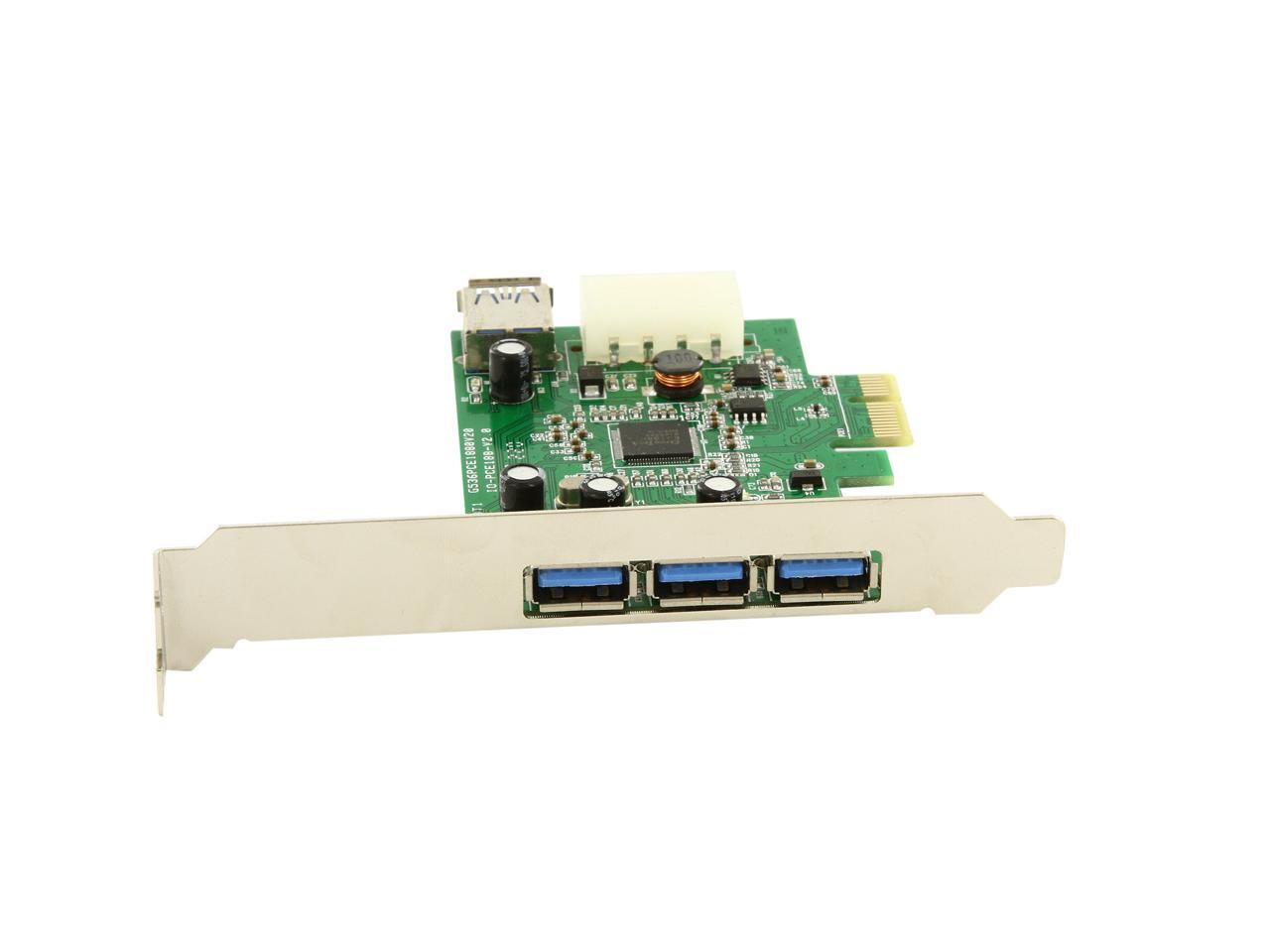

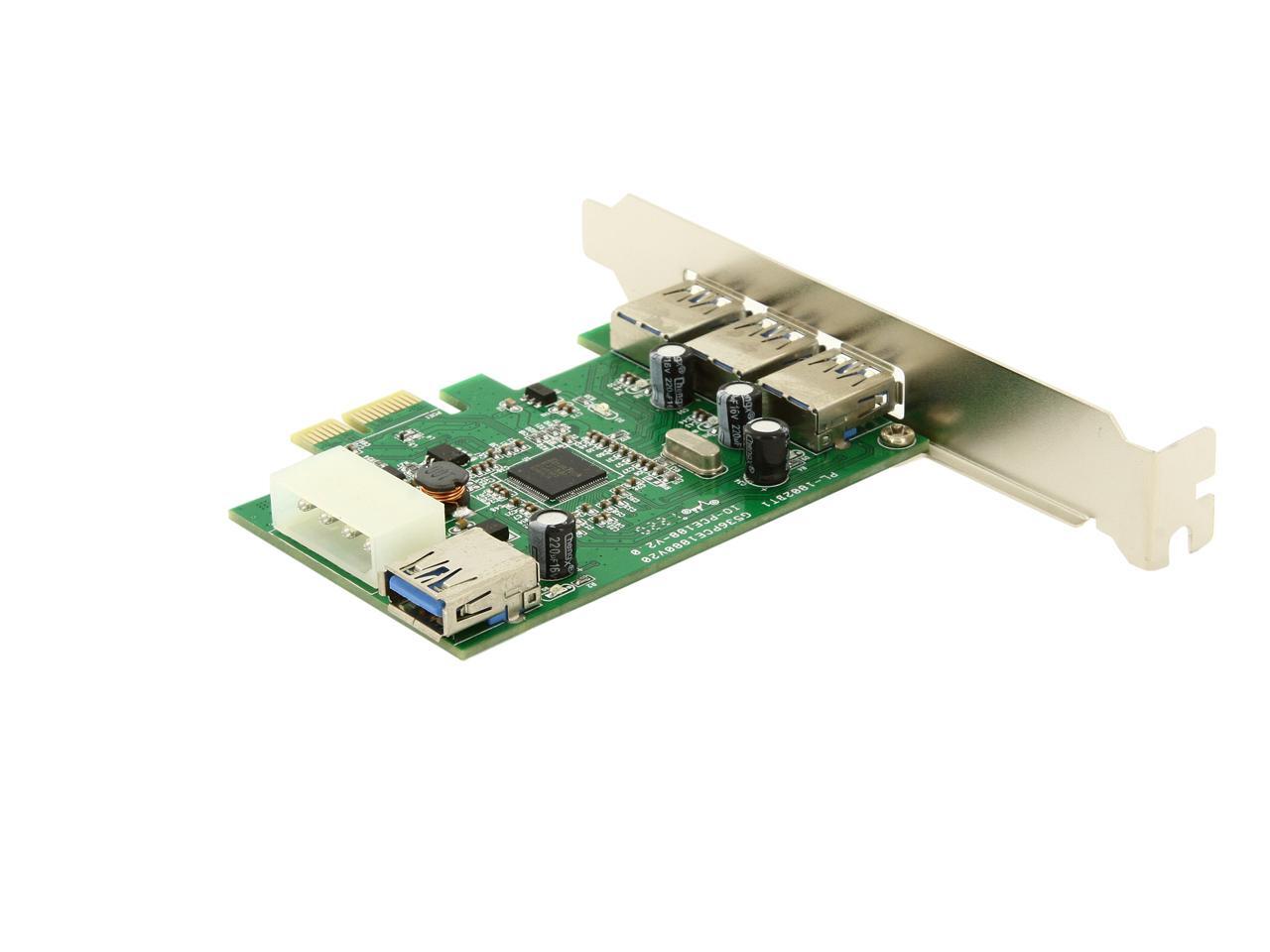

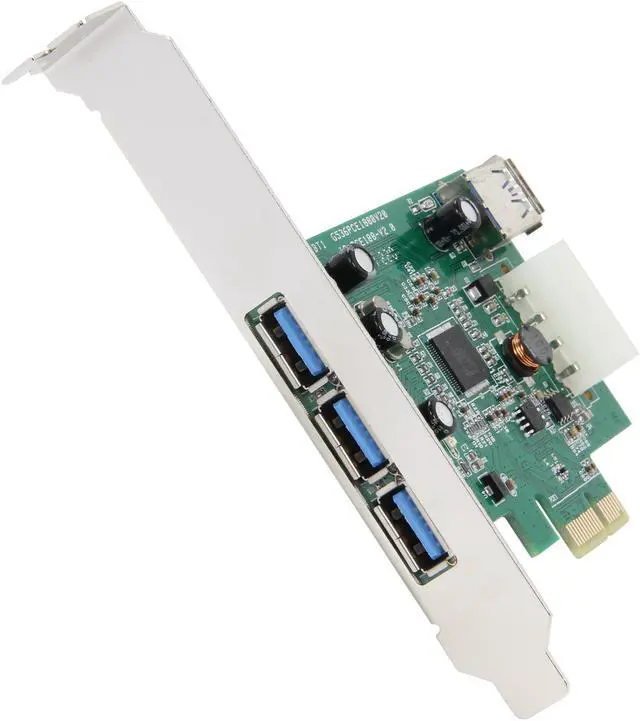

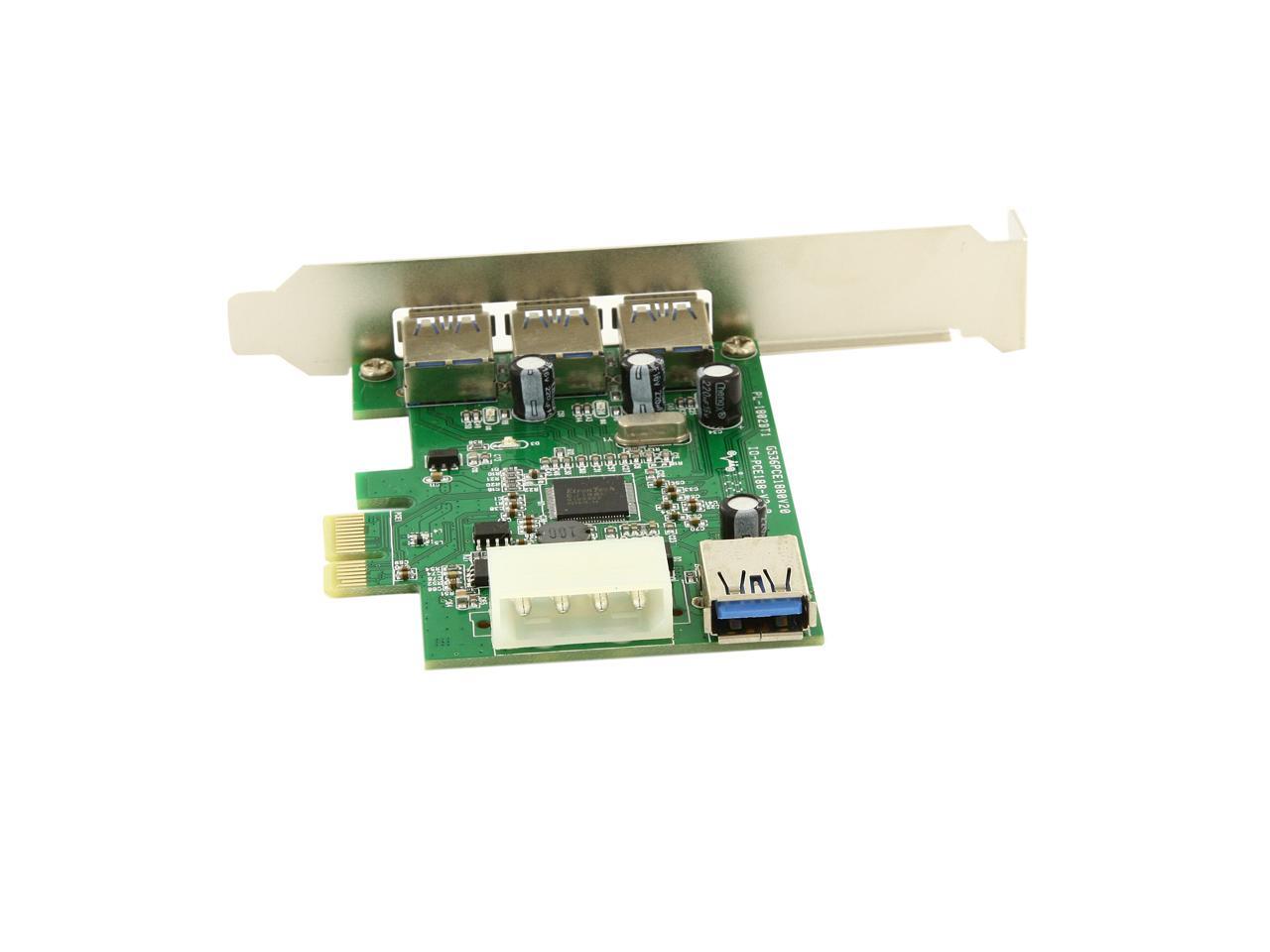

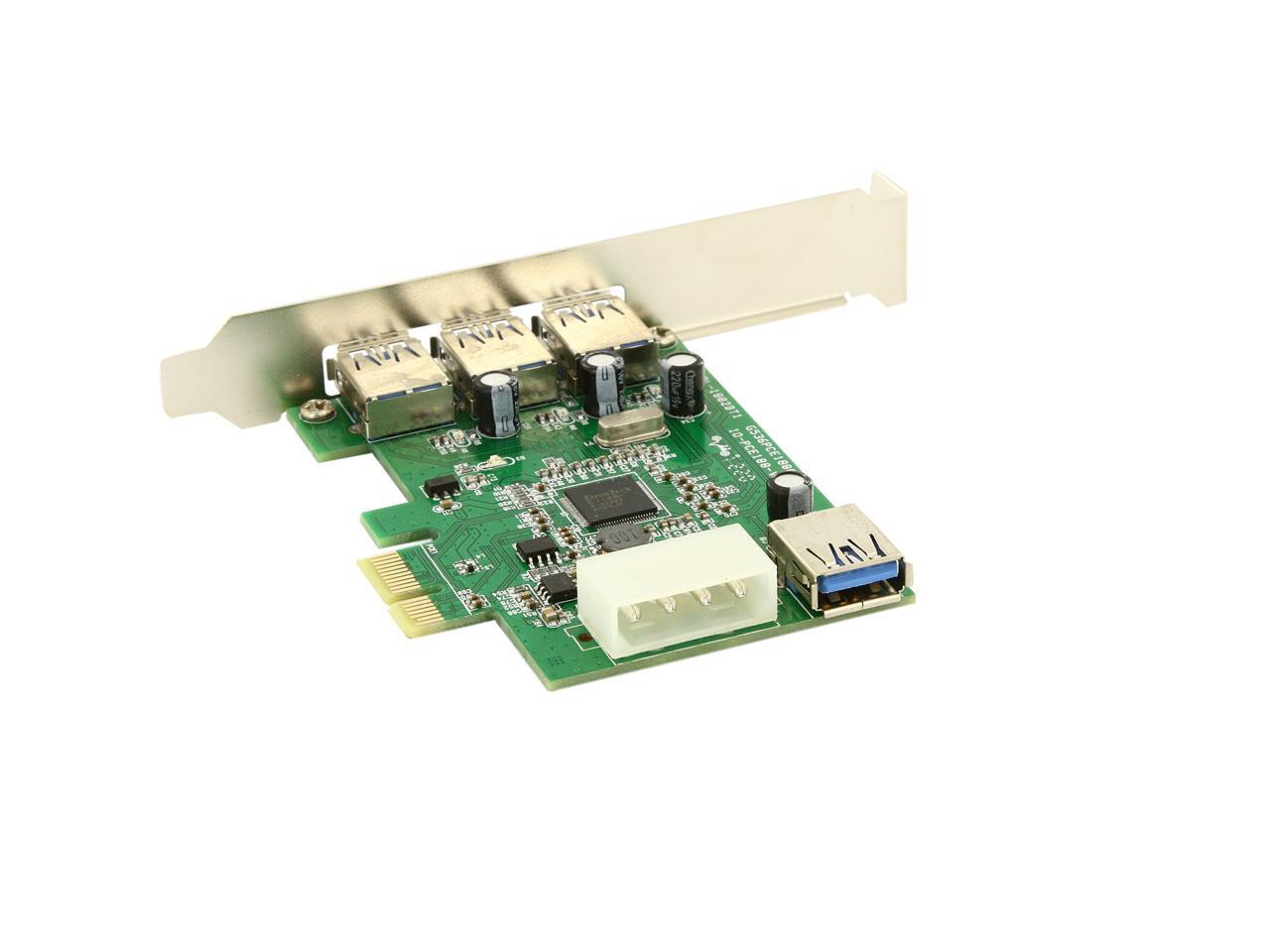

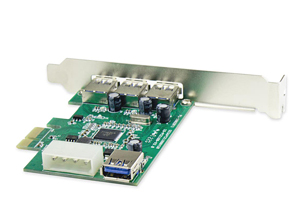

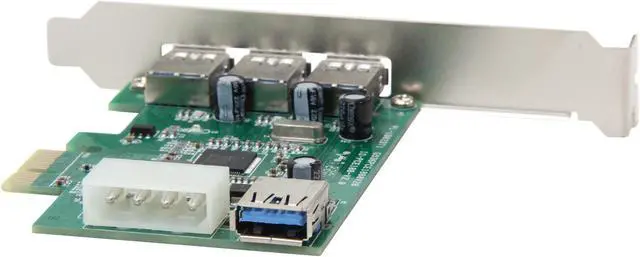

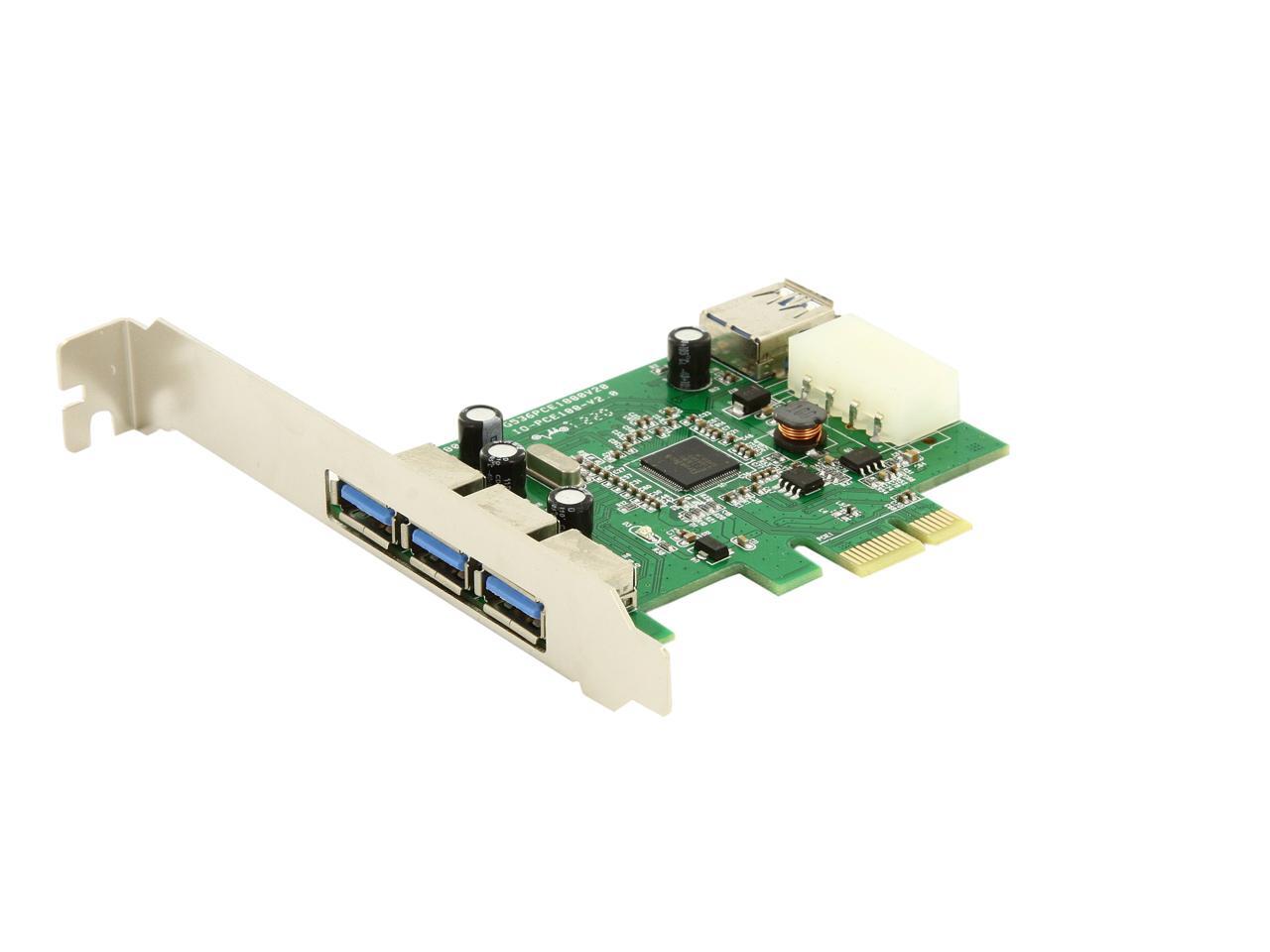

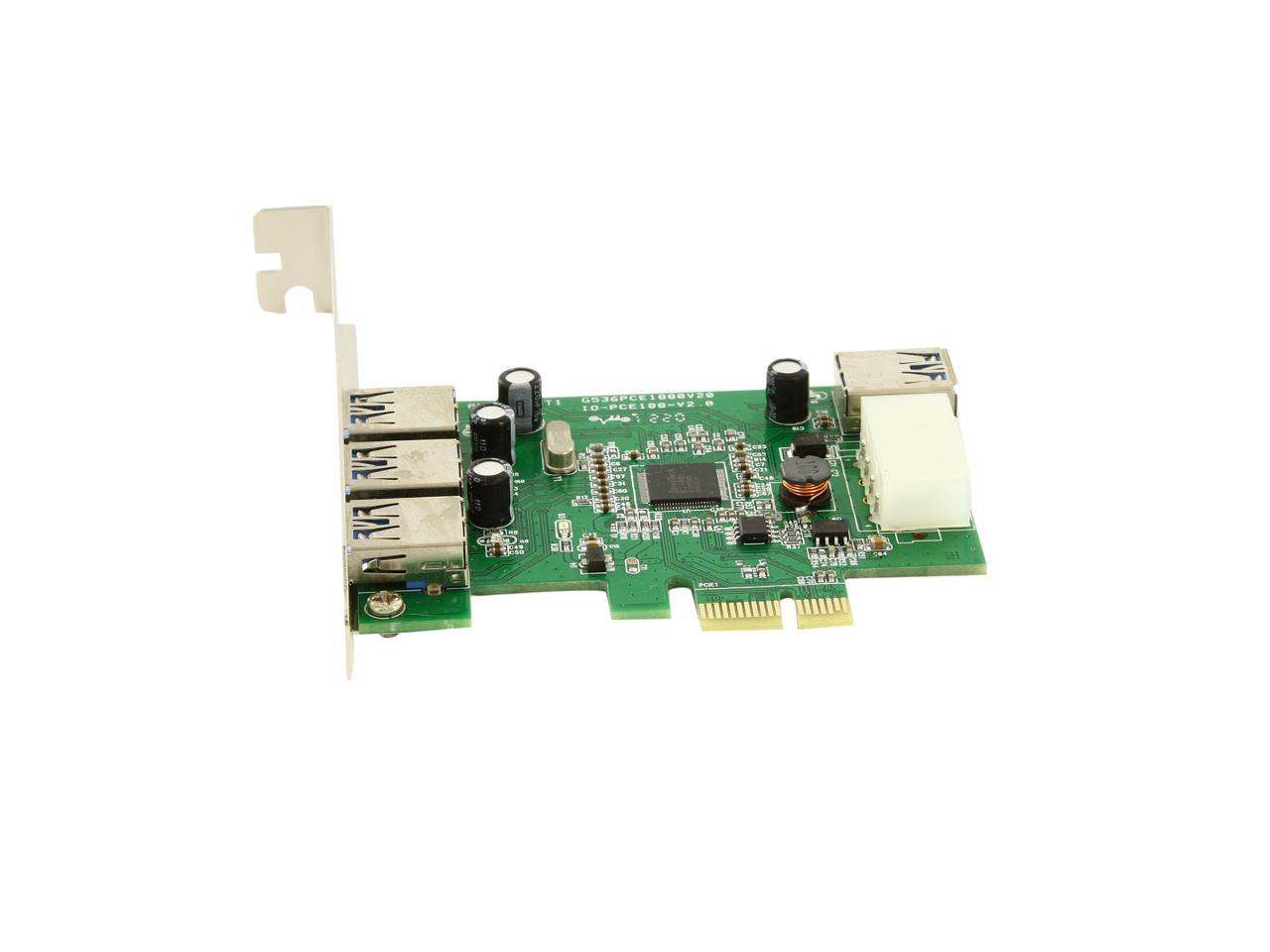

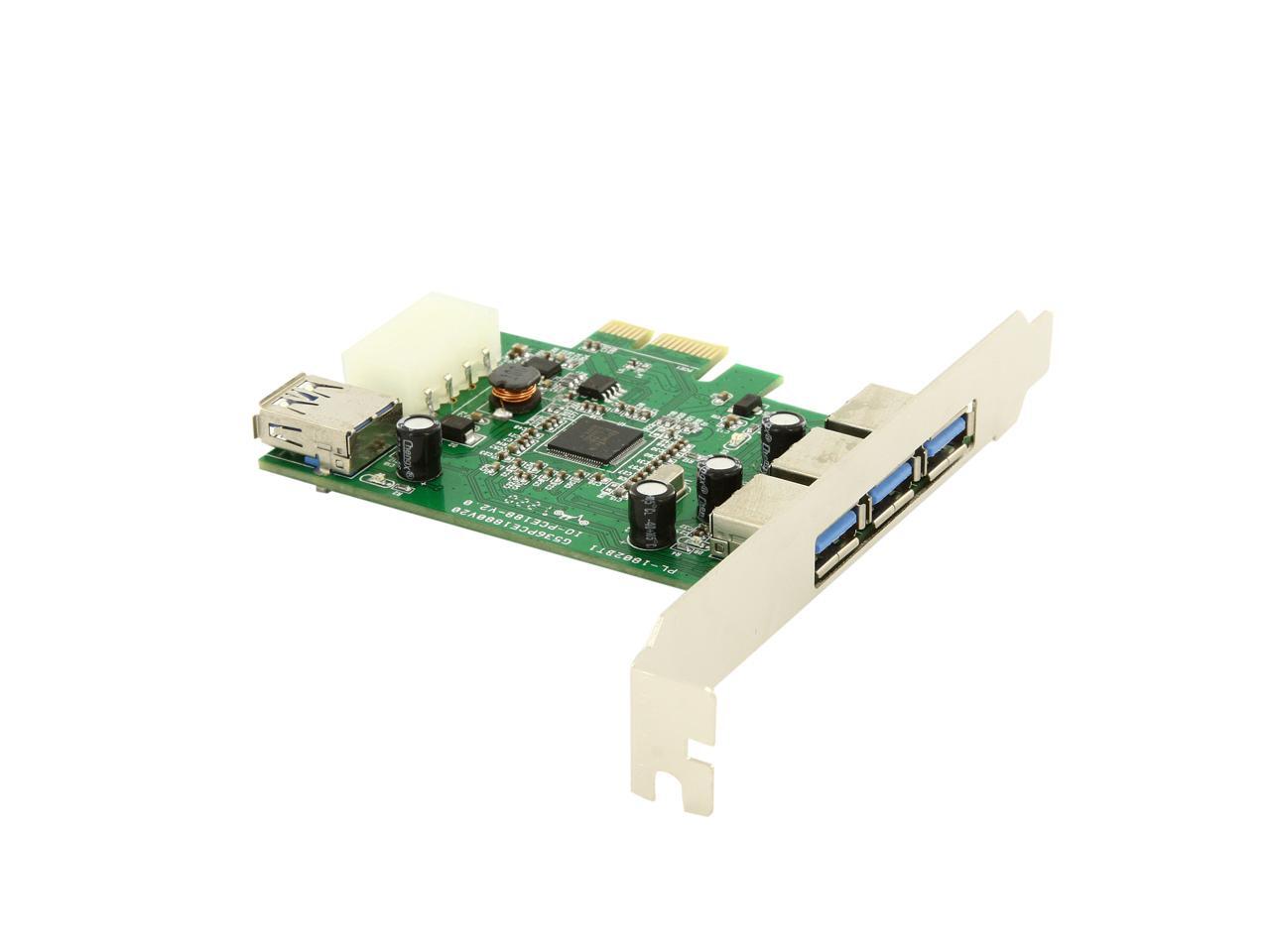

Main image of SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

100%

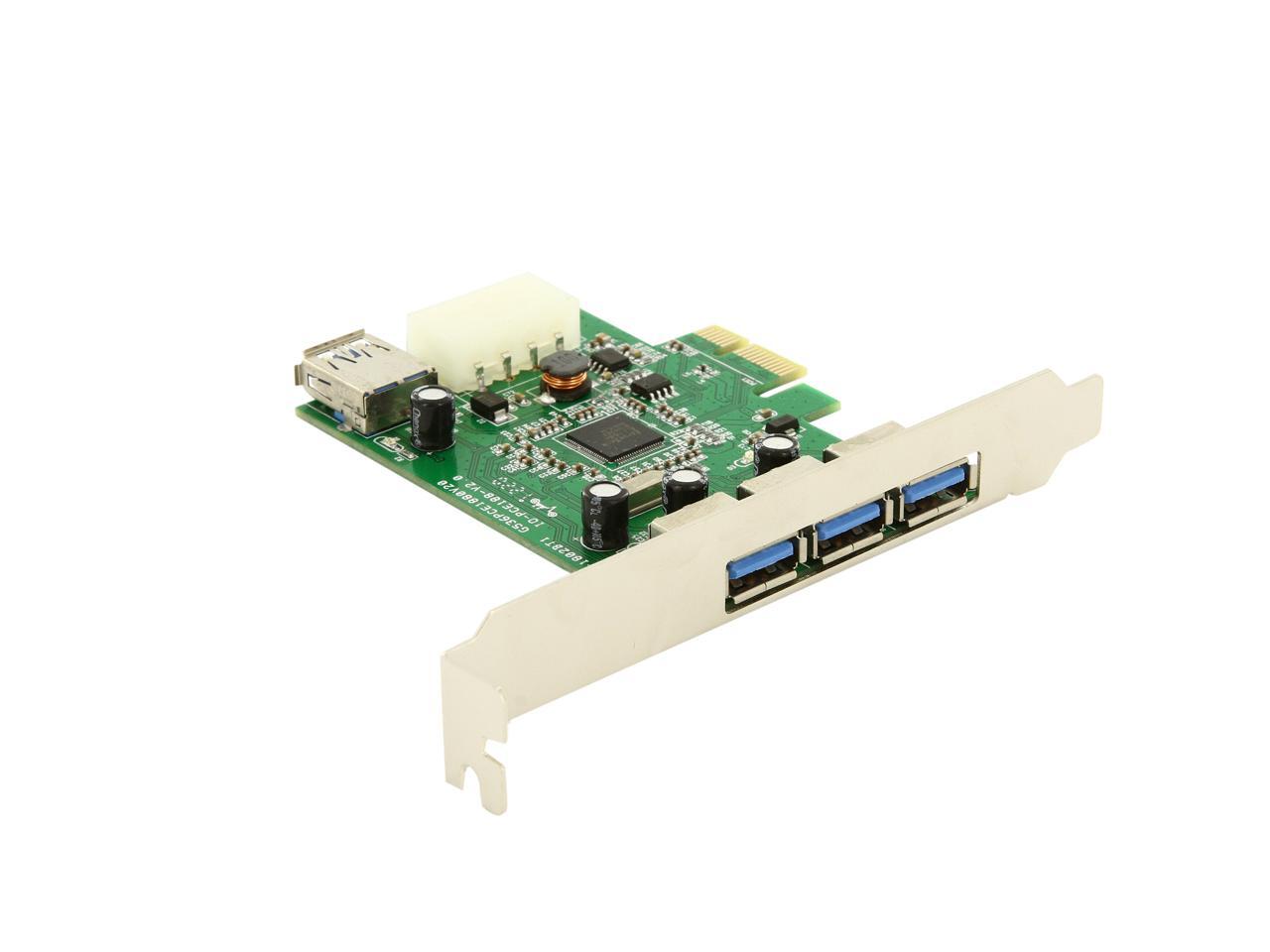

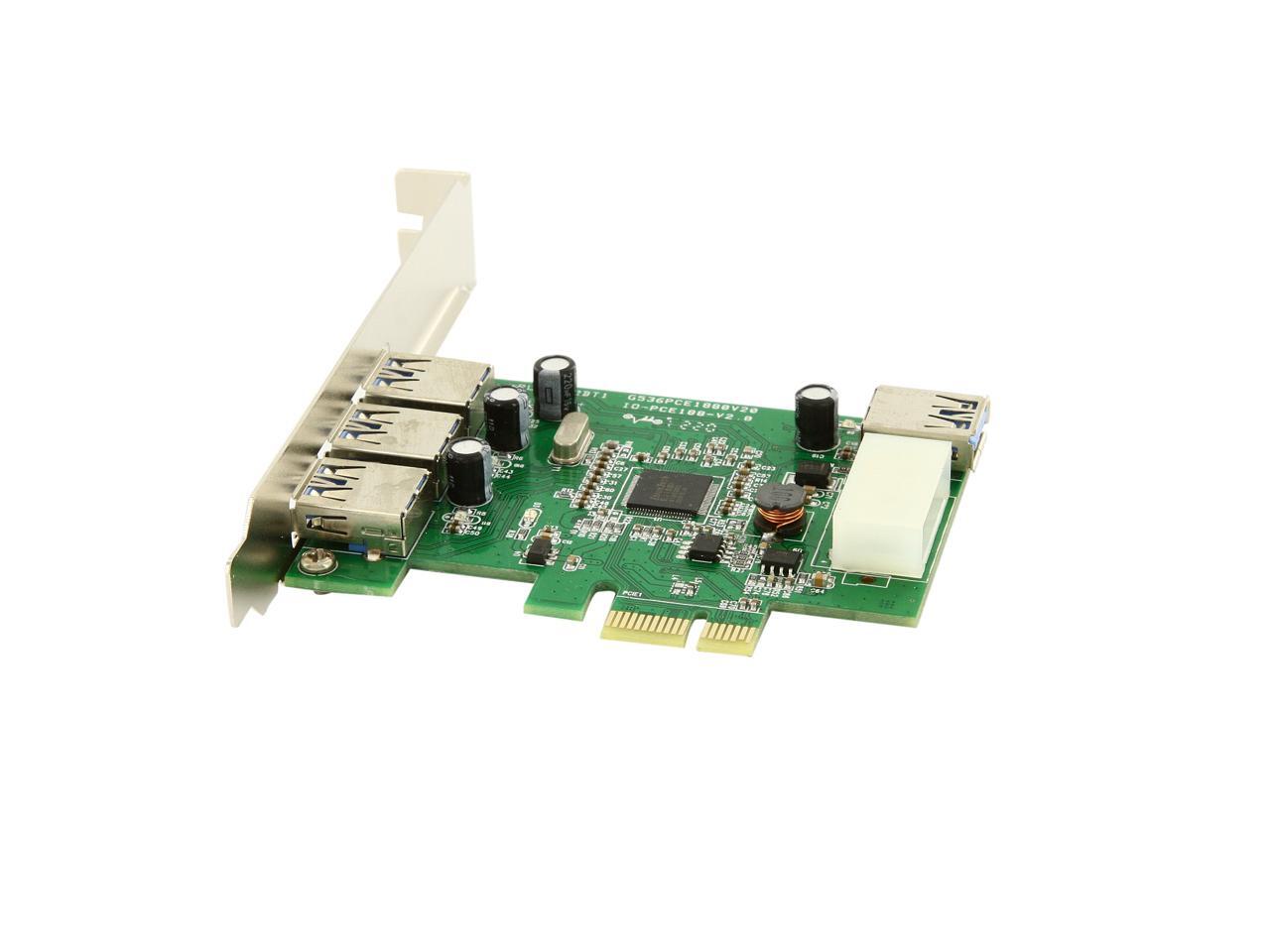

Alt view image 3 of 6 - SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

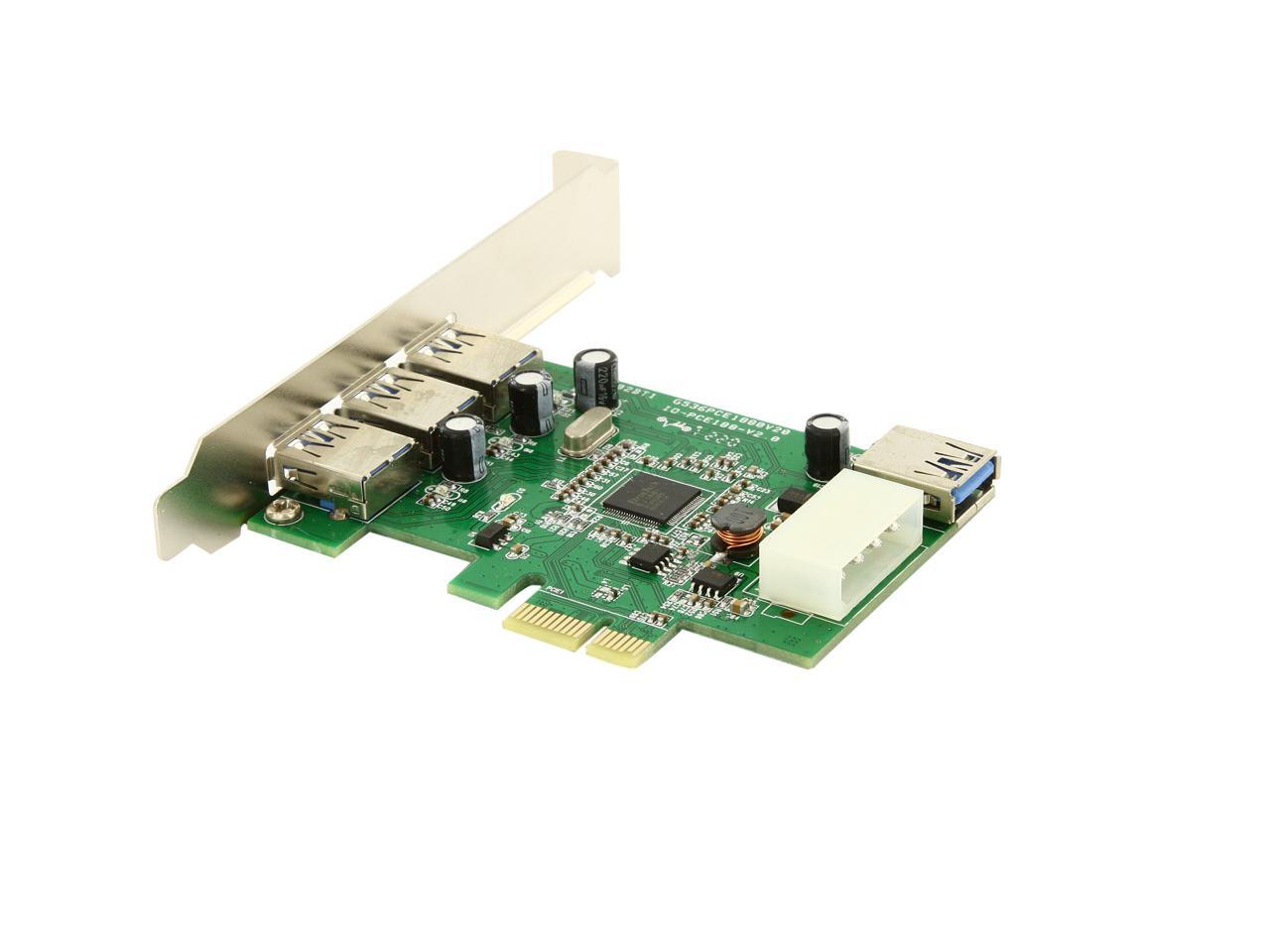

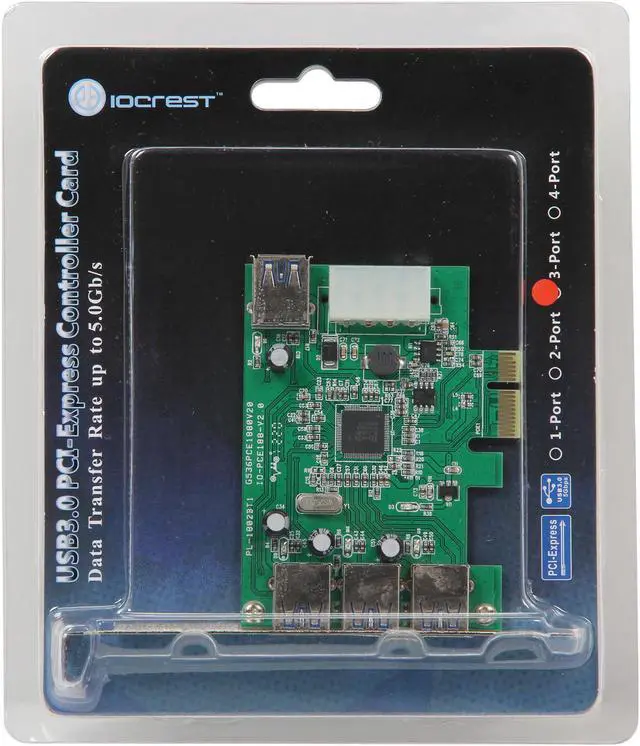

Alt view image 4 of 6 - SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

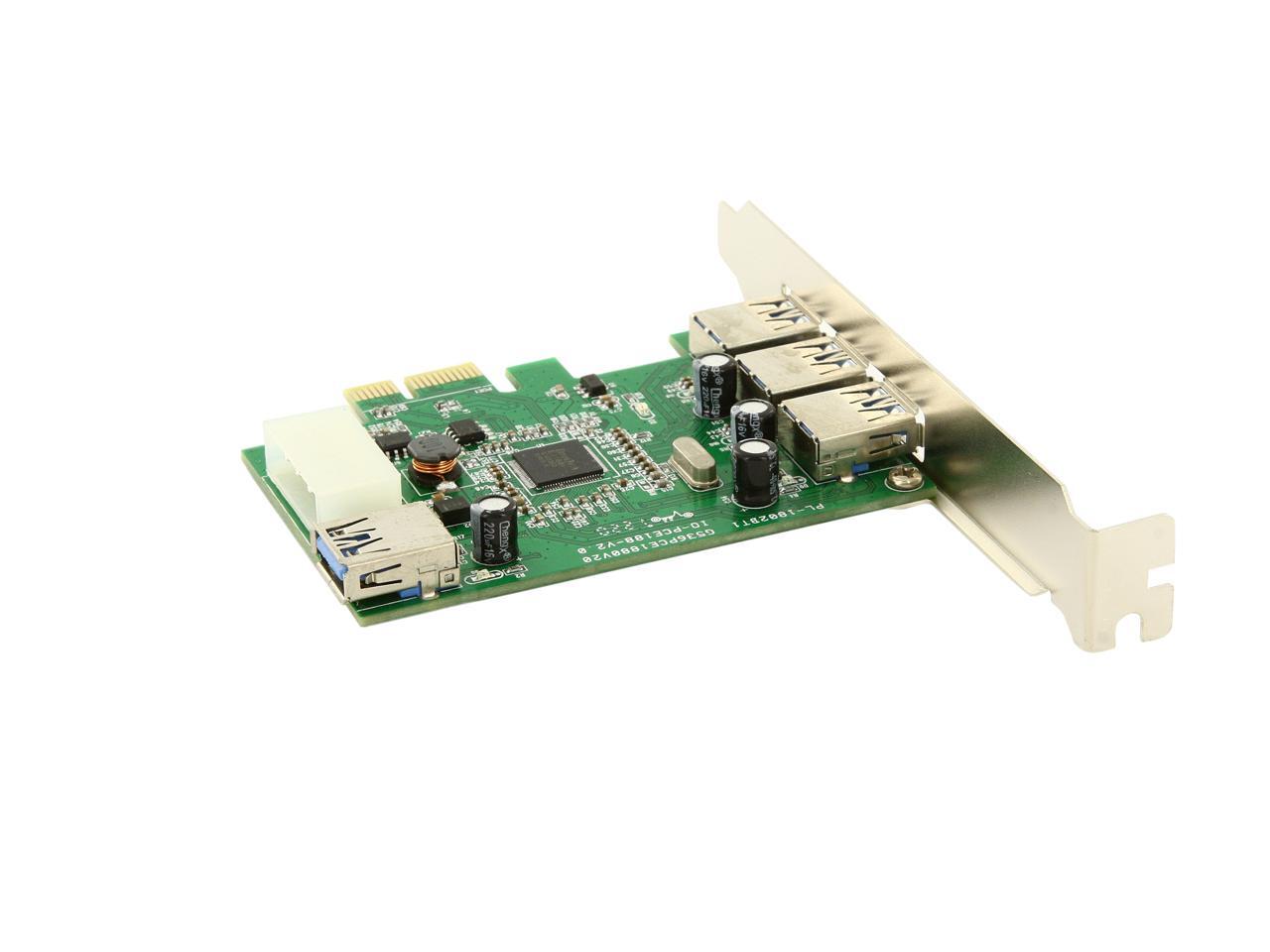

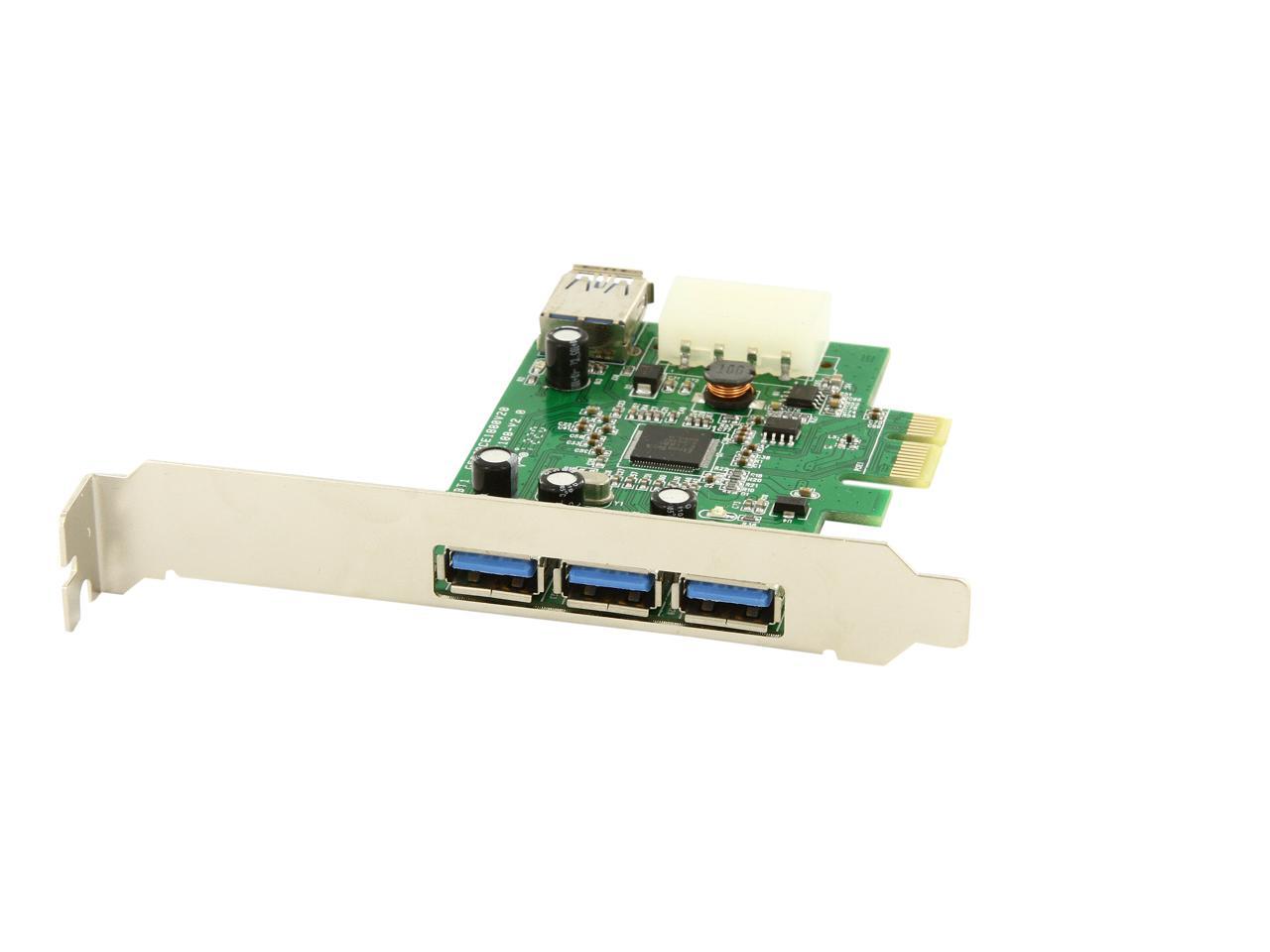

Alt view image 5 of 6 - SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

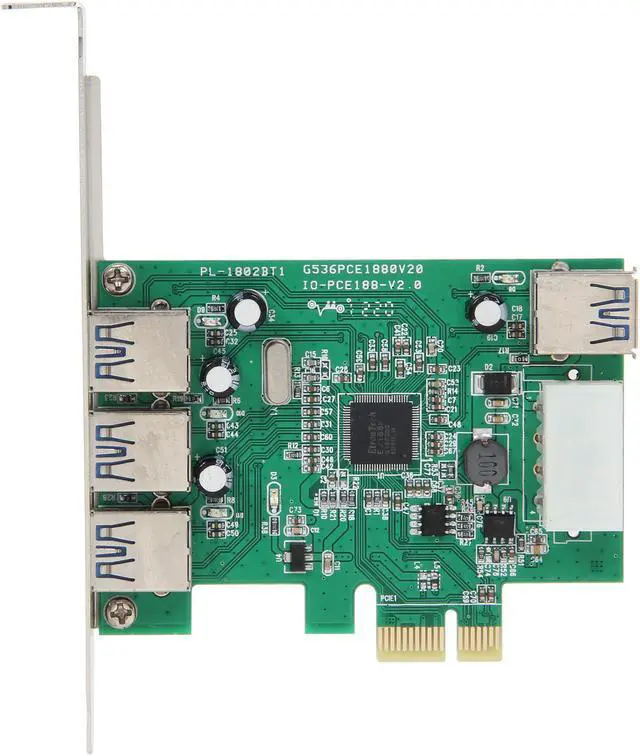

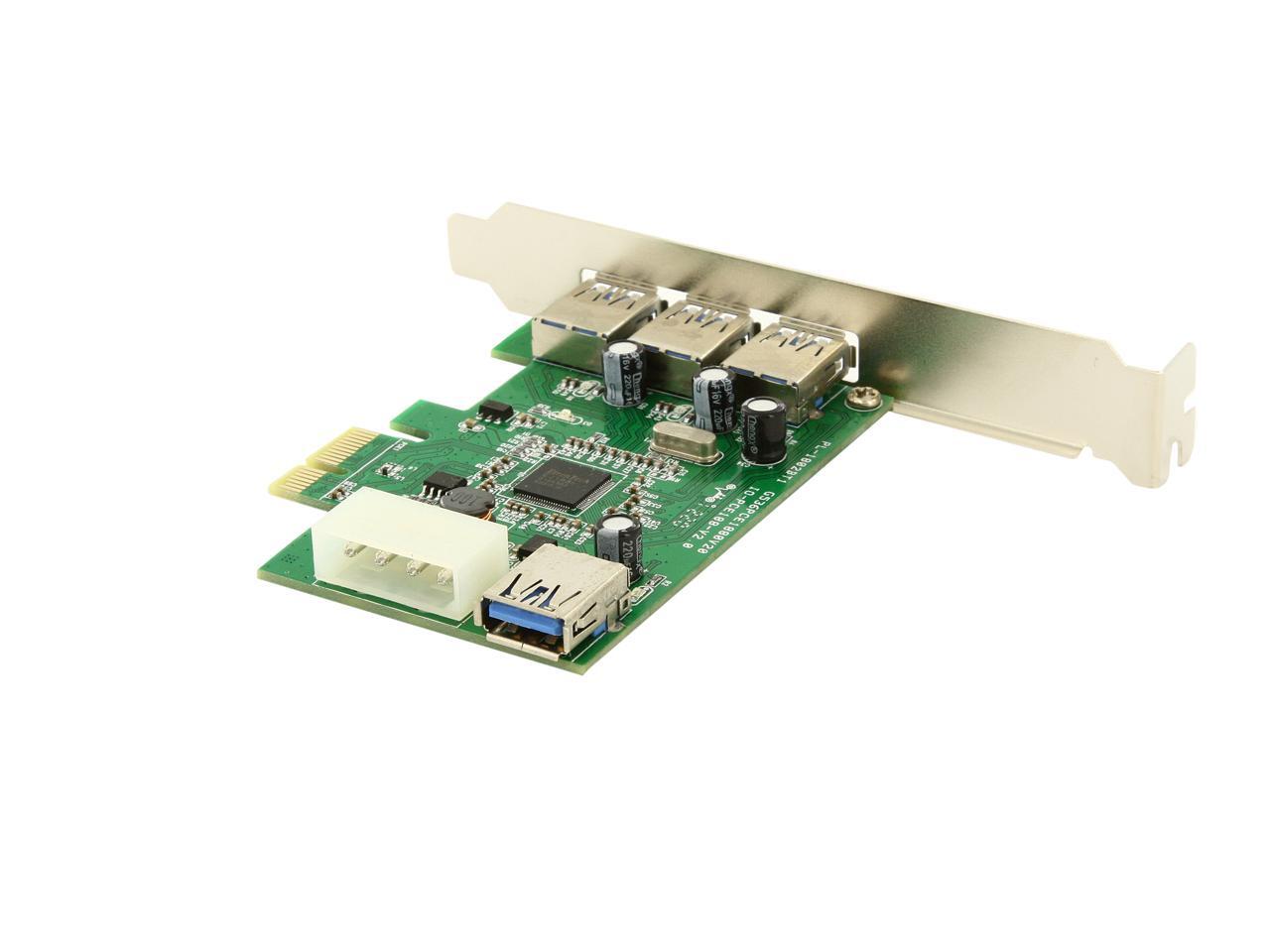

Alt view image 6 of 6 - SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

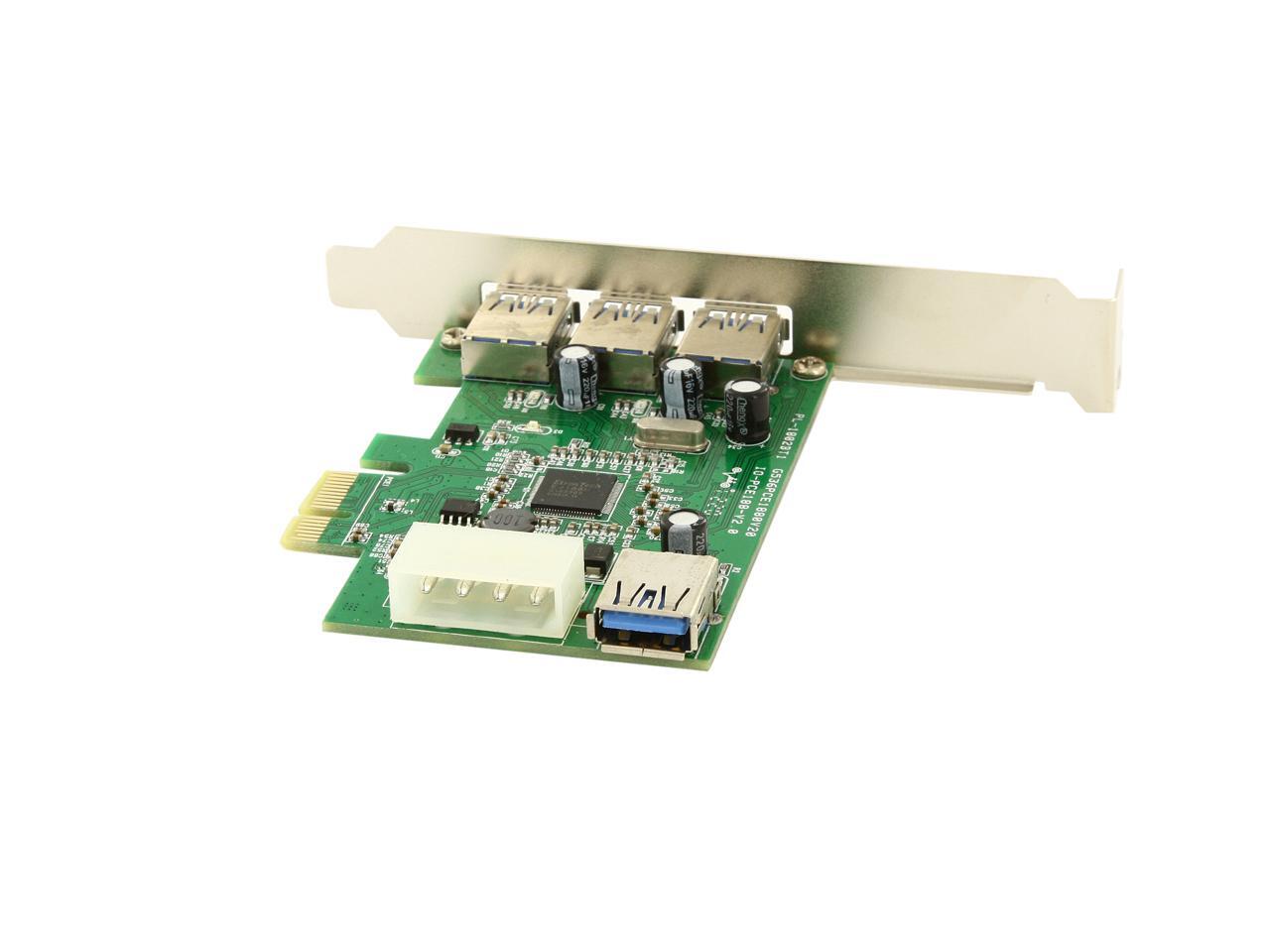

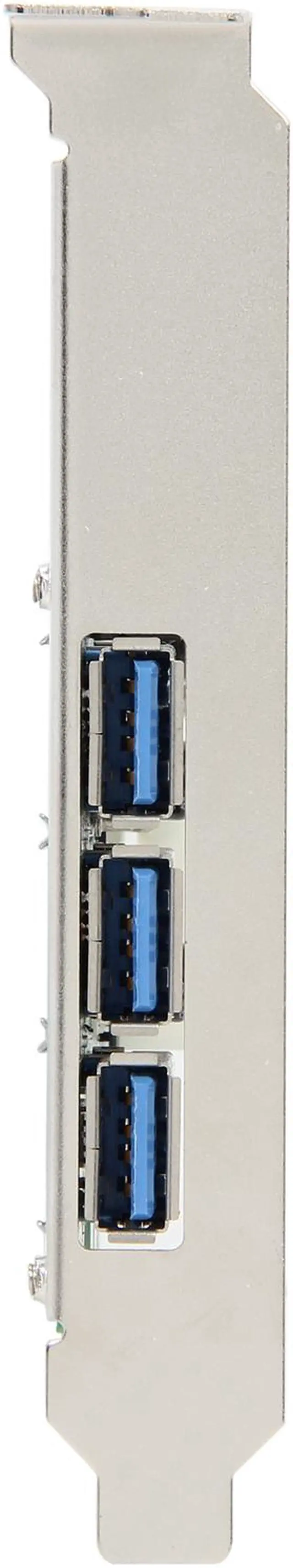

Alt view image 7 of 6 - SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

360^°

Shop All Syba Products | Visit Novatek Store

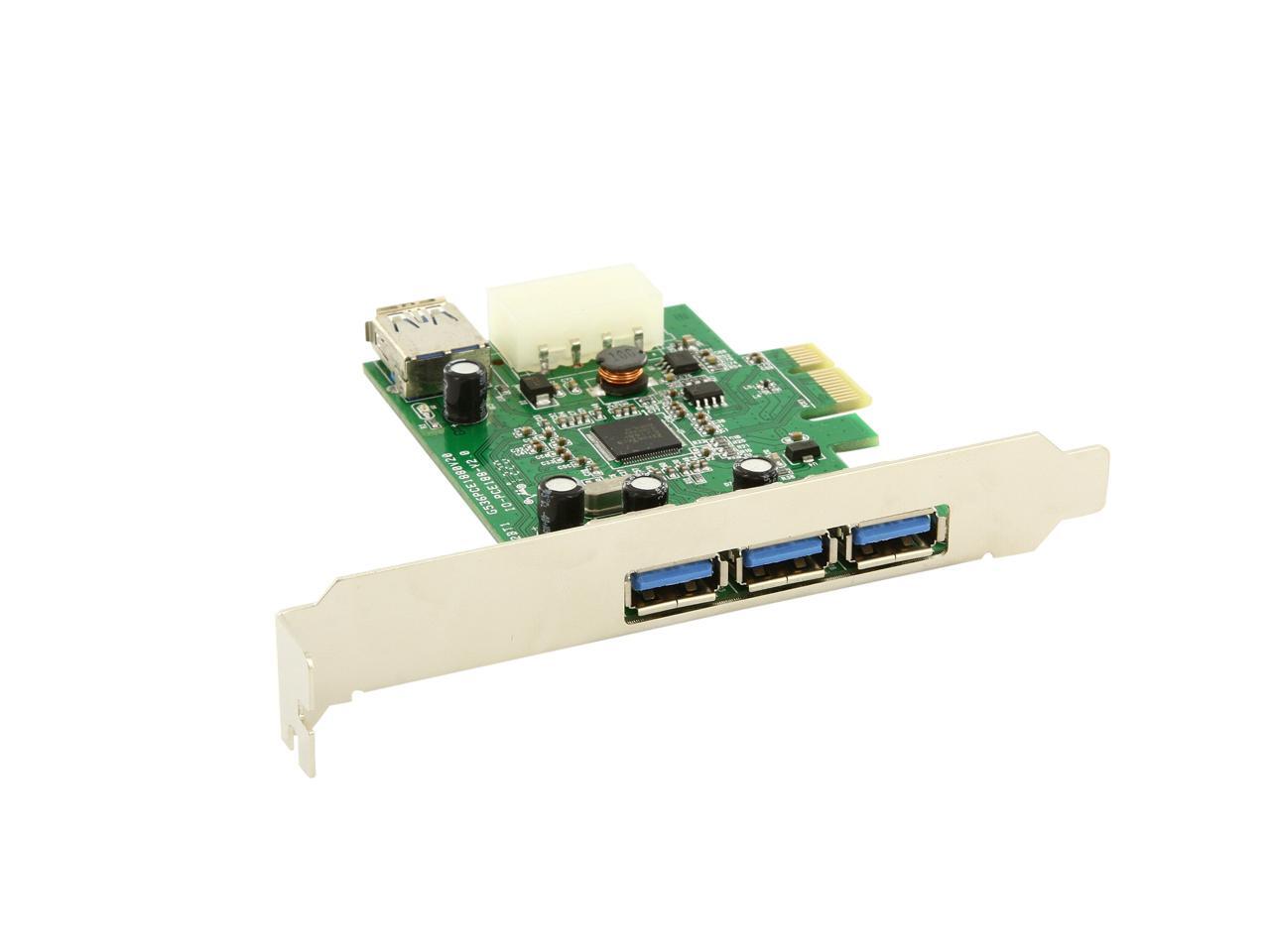

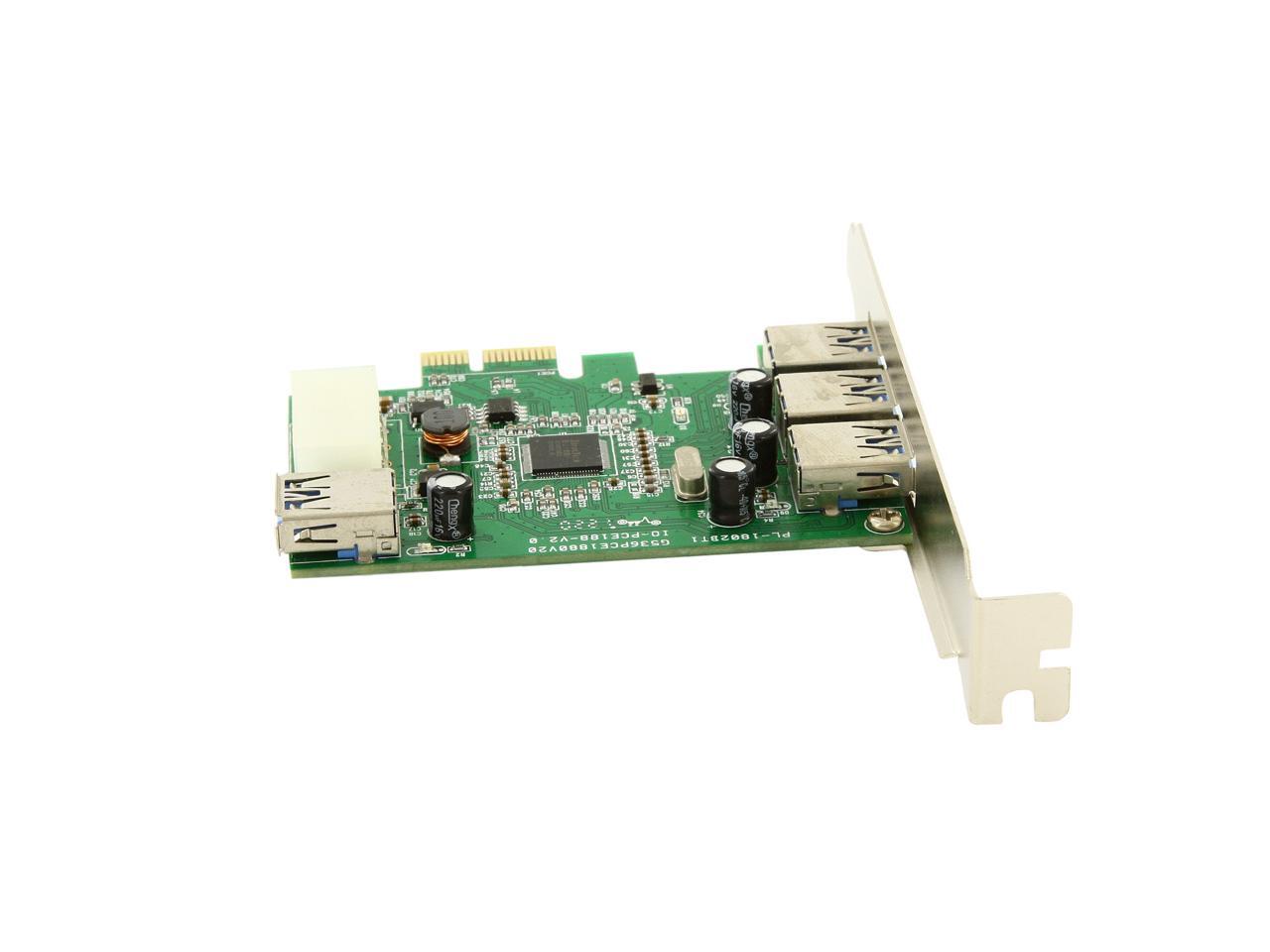

SYBA USB 3.0 (3+1) PCI-e Controller Card, Etron Chipset, Molex (IDE HD 4-pin) Built-in Model SY-PEX20135

(43) Write a Review

PCI Express to USB Card
USB 3.0 Fully Compliant with PCI Express Base Specification Revision 2.0

Overview

Specs

Reviews (43)

Any questions? Our AI beta will help you find out quickly.

Try me now

Three USB 3.0 Ports with One Internal Shared Port PCI-E x1
SY-PEX20135

The SY-PEX20135 USB 3.0 (3 + 1) PCI-e Controller Card is a PCI Express to USB card and adds three external and one internal USB 3.0 ports for fast data transfer. A built-in internal Molex power connector provides enough power to run higher energy consuming devices.

Highlights

The SY-PEX20135 USB 3.0 (3 + 1) PCI-e Controller Card allows you to connect up to three USB peripherals such as digital cameras, printers, external hard drives, mice, keyboards, flash drives, and tablets to your laptop or desktop.
The SY-PEX20135 USB 3.0 (3 + 1) PCI-e Controller Card comes with a USB 3.0 interface which is 10 times faster than USB 2.0, great for copying or moving files.
Backwards compatible with USB 2.0 and USB 1.1 devices.

Specifications

Ports (Supports Four Downstream Ports for All Speeds)
- 3 External Ports
- 1 Internal Port
Power Connector:
- Molex (IDE HD 4-pin) Power Connector
Single-lane (x1) PCI Express Throughput Rates up to 5Gbps
Fully Compliant with PCI Express Base Specification Revision 2.0
Compliant with Universal Serial Bus 3.0 Specification revision 1.0
Supports Simultaneous Operation of Multiple USB 3.0 USB 2.0 and USB 1.1 Devices
Supports Data Rates:
- Super Speed (5Gbps)
- High Speed (480Mbps)
- Full Speed (12Mbps)
- Low Speed (1.5MbsP
Compliant with Intel's Extensible Host Controller Interface Specification revision 1.0

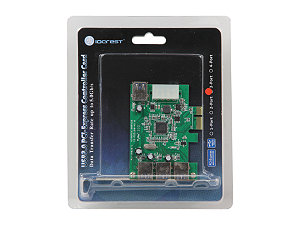

What's in the Box

USB 3.0 3 + 1 PCI-e Controller Card
Driver CD
User Manual
Low Profile Bracket
Female 15-pin SATA to Male 4-pin Molex cable

Dimensions (L x W x H): 6.5 x 5.75 x 2.25 inches
Weight: 0.25lbs

Software Requirements

Windows 8
Windows 7
Vista
Windows XP
Windows 2008
Windows 2003
Windows 2000

Model
Brand	SYBA
Model	SY-PEX20135

Details
Type	PCI Express to USB Card
External USB Ports	3x USB Ports
Internal USB Ports	1x USB Port
Internal Ports	Molex (IDE HD 4-pin) Power Connector
Standard	USB 3.0
Operating Systems Supported	Windows 7 Vista Windows XP Windows 2008 Windows 2003 Windows 2000
Specifications	Single-lane (x1) PCI Express Throughput Rates up to 5Gbps Fully Compliant with PCI Express Base Specification Revision 2.0 Compliant with Universal Serial Bus 3.0 Specification revision 1.0 Supports Simultaneous Operation of Multiple USB 3.0 USB 2.0 and USB 1.1 Devices Supports Data Rates: - Super Speed 95Gbps) - High Speed (480Mbps) - Full Speed (12Mbps) - Low Speed (1.5Mbs) Compliant with Intel's Extensible Host Controller Interface Specification revision 1.0

Dimensions & Weight
Weight	1

Packaging
Package Contents	USB 3.0 3+1 PCI-e Controller Card Driver CD User Manual Low Profile Bracket

Additional Information
Date First Available	June 08, 2023
