Product Info• Unique bi-directional SATA IDE converter• Supports 3.5-inch SATA and IDE (ATA) hard drive• Supports 5.25-inch SATA and IDE (ATA) optical drives• Power-On and HDD-Activity LED indicators• Ultra low power consumption• Connectors: one IDE (ATA) connector, one SATA host connector (Yellow), one SATA device connector (Black) and one 4-pin FDD power connectorTwo independent Ultra ATA channels with 128/256 bytes buffer per channel• Driverless. No driver is neededSerial ATA Interface• Complies with SATA 1.0a specification• Supports SATA Generation 1 with transfer rate up to 1.5Gbps (150MB/s)• Supports Spread Spectrum in receiver• Supports SATA power saving mode: Partial and SlumberIDE (ATA) Interface• Complies with ATA Specification• Complies with Ultra ATA 133 with transfer rate up to 133MB/s• Supports PIO mode o, 1, 2, 3, 4, 5, 6, MDMA mode 0, 1, 2 and Ultra DMA mode 0, 1, 2, 3, 4, 5, 6• Supports Master/Slave/Cable Select mode by configuration switches• Dimension: 6.7x7x2.5 Inch

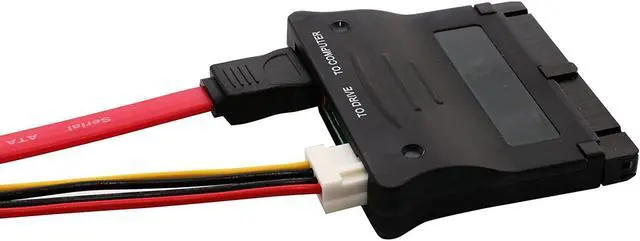

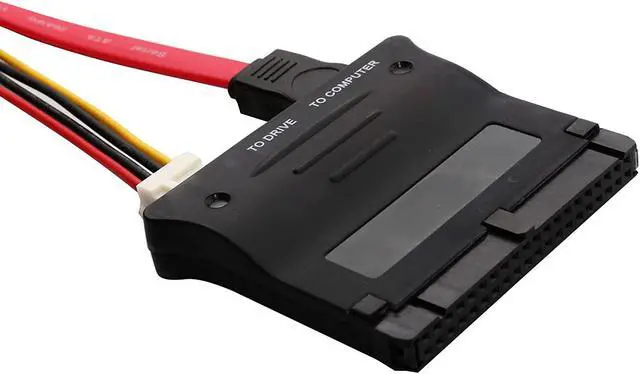

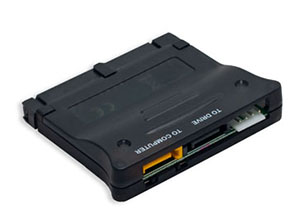

SATA to IDE, IDE to SATA Bi-Directional Adapter
The Bi-Directional Adapter is the perfect solution for adding 3.5" and 5.25” SATA and IDE drives to motherboards lacking compatibility, while saving space within the computer. It's a pure hardware solution to converting an IDE connection to SATA and vice versa. It requires no drivers or software, it’s “plug and play” for easy installation.
Highlights
Supports 3.5-inch SATA and IDE (ATA) Hard Drive.
Supports 5.25-inch SATA and IDE (ATA) Optical Drives.
Bi-directional converter is an easy and convenient way that allows you to convert your existing IDE devices to the new Serial ATA standard and vice versa.
Learn more about the Syba SD-ADA50016
Model
Brand
SYBA
Model
SD-ADA50016
Details
Color
Black
Changer Type
SATA to IDE
Specifications
Unique Bi-directional SATA to IDE Converter
Chipset: Satalink Spif223a
Supports 3.5-inch SATA and IDE (ATA) Hard Drive
Supports 5.25-inch SATA and IDE (ATA) Optical Drives
LED Indicators: Power-On and HDD-Activity
Ultra Low Power Consumption
Connectors: IDE (ATA) SATA to Computer (Yellow) SATA to Drive (Black) 4-pin FDD Power ConnectorTwo Independent Ultra ATA Channels with 128/256 Bytes Buffer Per Channel
Driverless Installation
Serial ATA Interface: Complies with SATA 1.0a Specification Supports SATA Generation 1 with Transfer Rate up to 1.5Gbps (150MB/s) Supports Spread Spectrum in Receiver Supports SATA Power Saving Mode (Partial and Slumber)
IDE (ATA) Interface: Complies with ATA Specification Complies with Ultra ATA 133 with Transfer Rate Up To 133MB/s Supports PIO Mode o, 1, 2, 3, 4, 5, 6 Supports MDMA Mode 0, 1, 2 Supports Ultra DMA Mode 0, 1, 2, 3, 4, 5, 6 Supports Master/Slave/Cable Select Mode by Configuration Switches

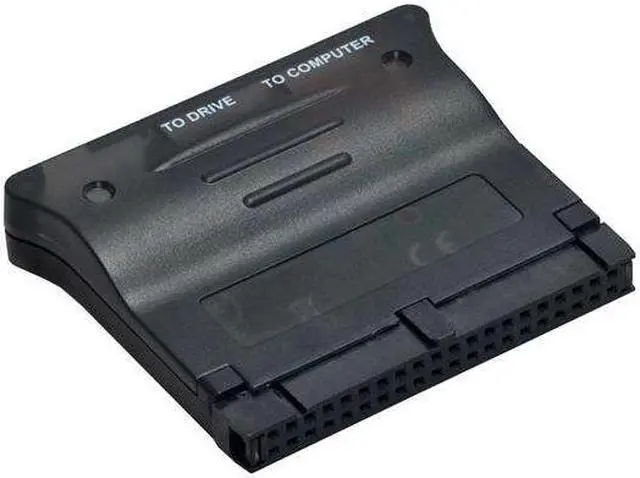

40 Pin IDE interface
Connectors
Connector A

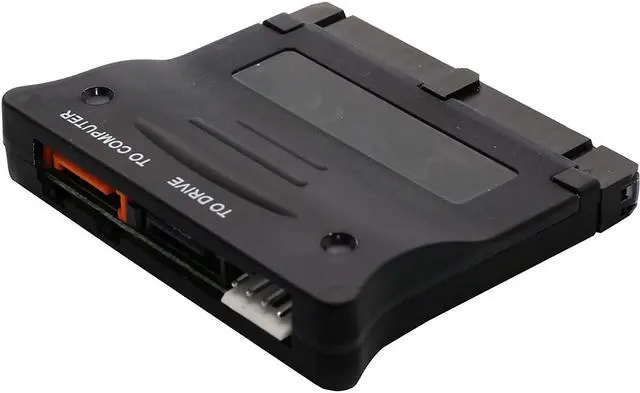

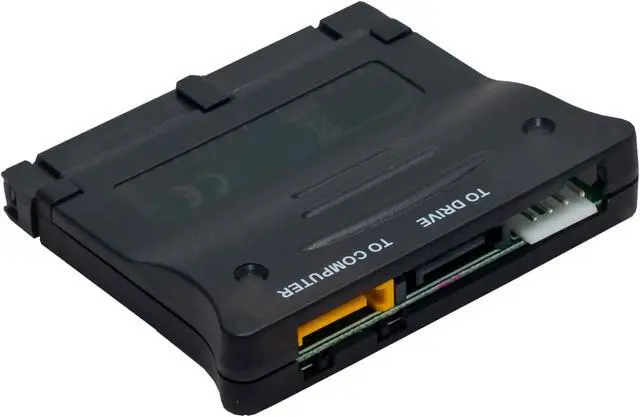

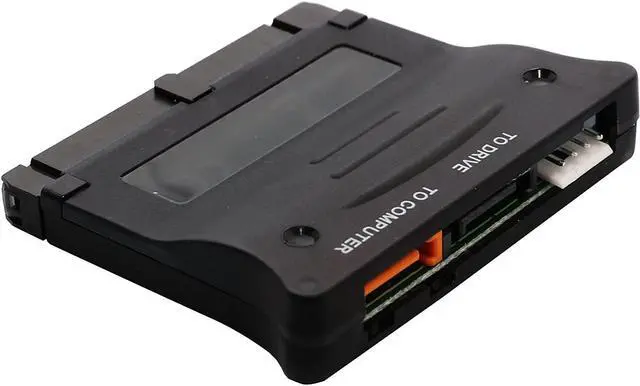

1 x SATA host (Yellow) 1 x SATA device (Black)
Connector B

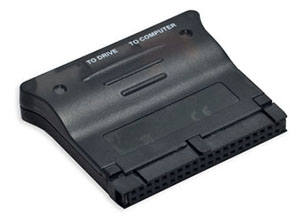

1 x 40-pin IDE (ATA)
Features
Features
Unique bi-directional SATA - IDE converter Supports 3.5-inch SATA and IDE (ATA) hard drive Supports 5.25-inch SATA and IDE (ATA) optical drives Power-On and HDD-Activity LED indicators Ultra low power consumption Two independent Ultra ATA channels with 128/256 bytes buffer per channel Driverless. No driver is needed
Serial ATA Interface Complies with SATA 1.0a specification Supports SATA Generation 1 with transfer rate up to 1.5Gbps (150MB/s) Supports Spread Spectrum in receiver Supports SATA power saving mode: Partial and Slumber
IDE (ATA) Interface Complies with ATA Specification Complies with Ultra ATA 133 with transfer rate up to 133MB/s Supports PIO mode o, 1, 2, 3, 4, 5, 6, MDMA mode 0, 1, 2 and Ultra DMA mode 0, 1, 2, 3, 4, 5, 6 Supports Master/Slave/Cable Select mode by configuration switches
Dimensions & Weight
Dimensions
2.40" x 6.20" x 6.80"
Weight
0.15 lb.
Package Contents
Package Contents

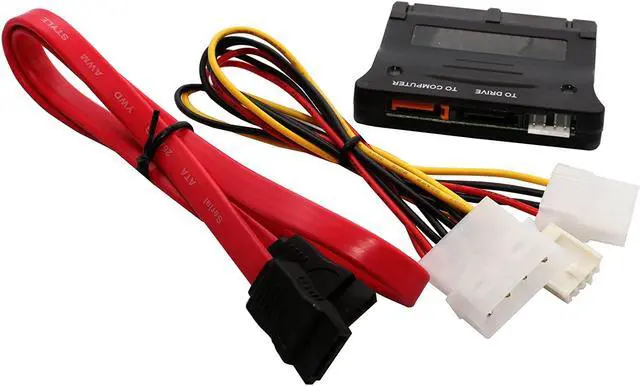

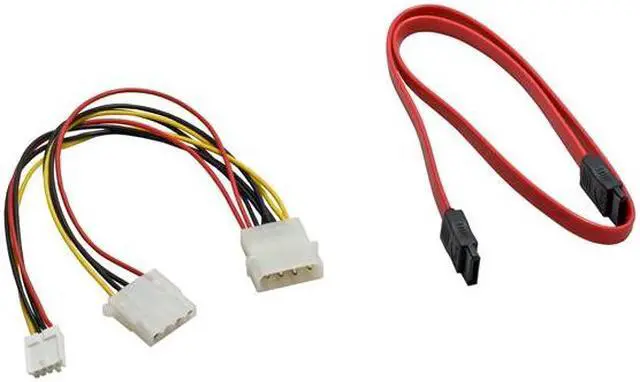

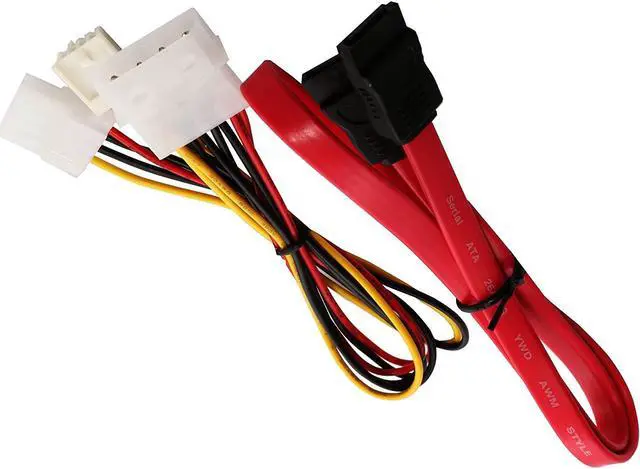

1 x SATA to IDE (IDE to SATA) Bi-Directional adapter 1 x Small and big 4-pin power extension Y-cable & SATA Cable
