Does this work with DOS?

Yes, the CF card reader works well with DOS 3.3; if there are problems, it will be with the CF card brand as some cards work better than others.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 1 wish list)

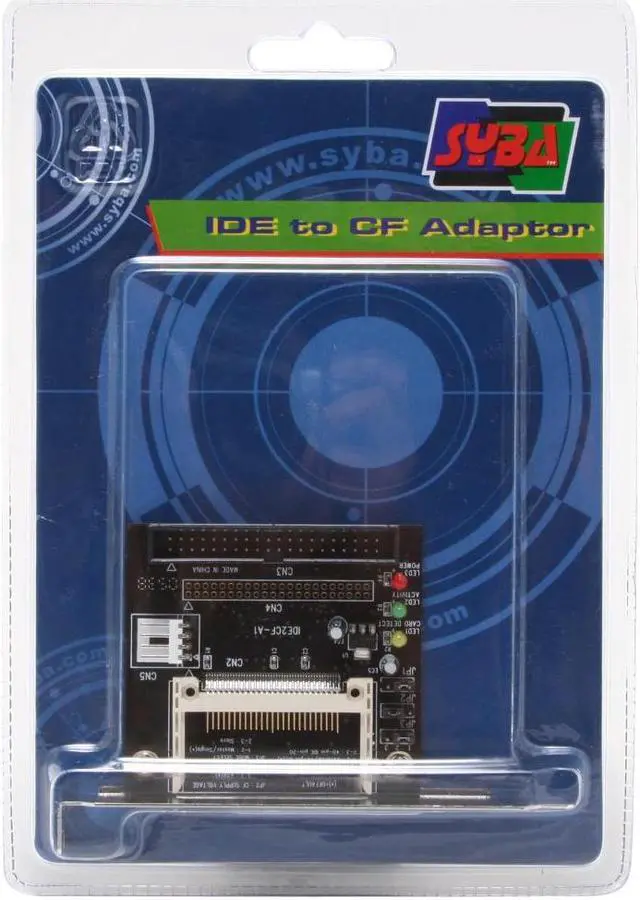

Main image of SYBA 40 Pins IDE PATA to CF Compact Flash Adapter with PCI Bracket SD-CF-IDE-BR

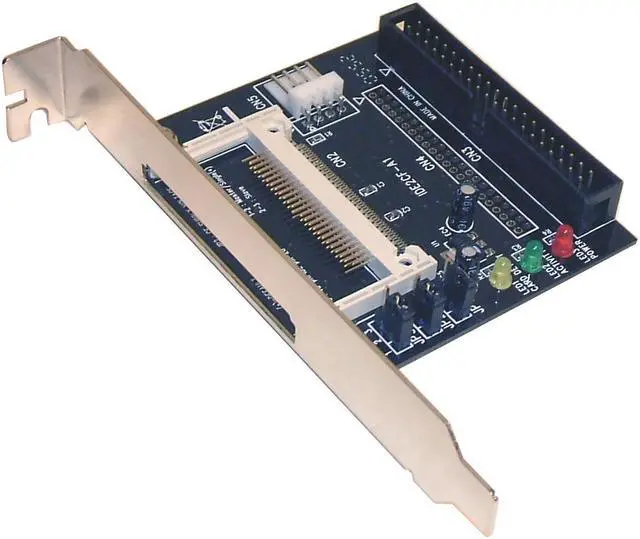

Alt view image 2 of 2 - SYBA 40 Pins IDE PATA to CF Compact Flash Adapter with PCI Bracket SD-CF-IDE-BR

Shop All Syba Products

SYBA 40 Pins IDE PATA to CF Compact Flash Adapter with PCI Bracket SD-CF-IDE-BR

(32) Write a Review

On-board LED indicators for power-on and compact flash access
Voltage selection for +3.3V / 5V compact flash
Master / Slave mode selection
Fully compatible with CF Type I, II and Micro Drive
40-2ay ( 2.54mm ) standard IDE connector
Power input: +5V, floppy disk Drive power connector

Overview

Specs

Reviews (32)

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

The SD-CF-IDE-BR is an adapter for connecting a compact flash memory card to a 3.5” IDE host interface, aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive. No external power needed when used on VIA’s EPIA series motherboard On-board LED indicators for power-on and compact flash access Voltage selection for +3.3V / 5V compact flash Master / Slave mode selection Fully compatible with CF Type I, II & Micro Drive 40-2ay ( 2.54mm ) standard IDE connector Power input: +5V, floppy disk Drive power connector Board Size: 61 X 52 X 0.8mm Linux-based set-top boxes, routers, firewalls Diskless network clients Industrial computers Any other device requiring rugged solid-state storage

Model
Brand	SYBA
Model	SD-CF-IDE-BR

Details
Changer Type	IDE to Compact Flash
Specifications	This adapter connects a compact flash memory card to a 3.5” IDE host interface. Aiming at educational sectors, IT development, and the embedded technology enthusiast to enable the use of a compact flash card as an IDE hard drive.

Features
Features	-- Ideal for applications, such as Linux-based set-top boxes (routers, firewalls), diskless network clients, industrial computers, and any other device requiring rugged solid-state storage. -- Board size: 70mm x 63mm x 0.8mm (W, L, T). -- On-board LED indicators for power-on and compact flash access. -- Voltage selection for +3.3V or +5V compact flash. -- Master or Slave mode selection. -- Power input: +5V, FDD power connector. -- Fully compatible with Compact Flash Type I, Type II, and Micro-drive. -- 40-way (2.54mm) standard IDE connector. -- This adapter does NOT support hot insertion of CF cards. -- Support Windows 98SE/ME/2000/XP Operating System

Dimensions & Weight
Weight	1

Additional Information
First Listed on Newegg	February 14, 2006

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 45 days
Return for replacement within: 1 year
This item is covered by Newegg.com's 45/1 Return Policy.
