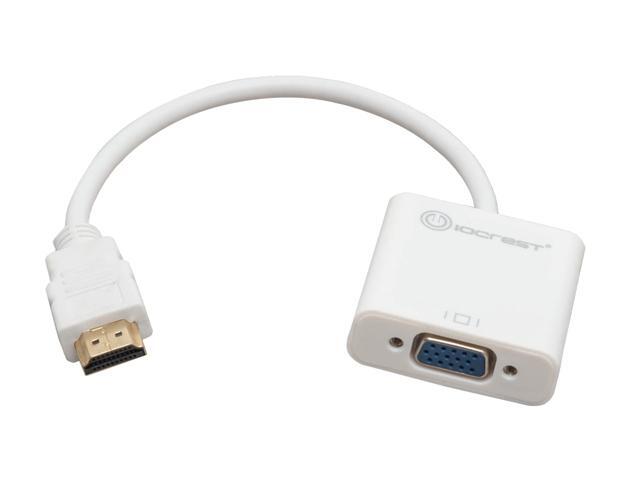

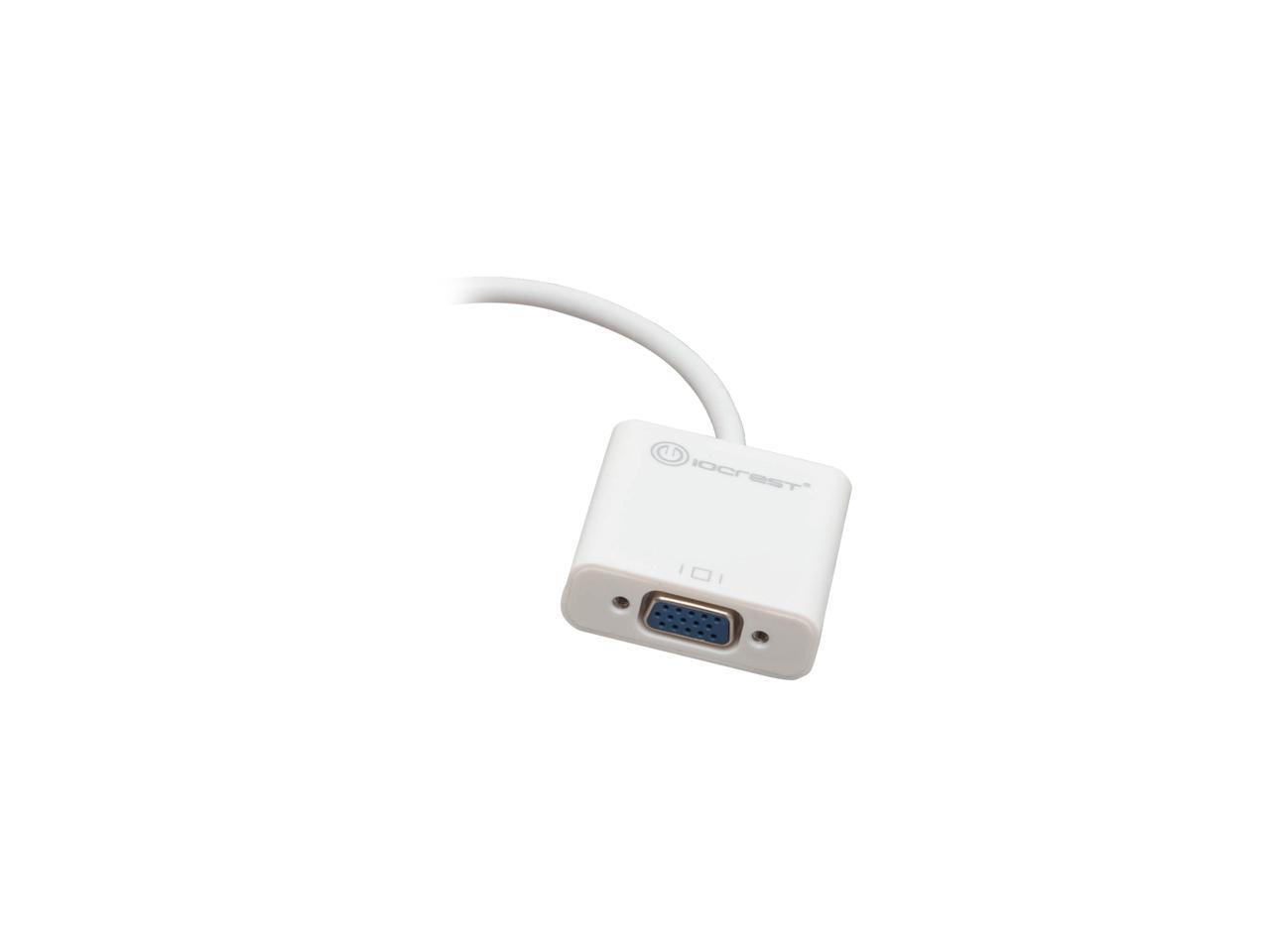

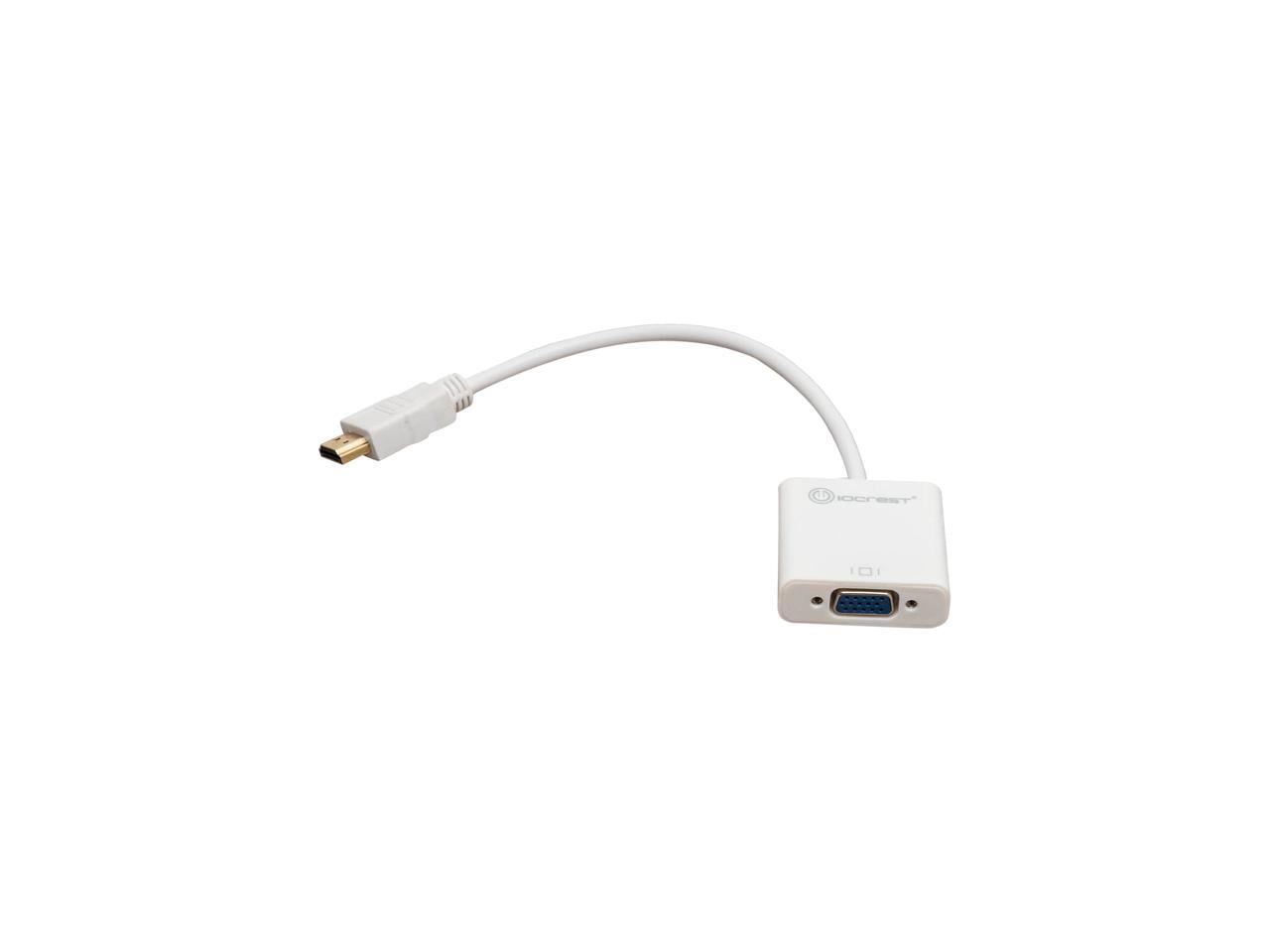

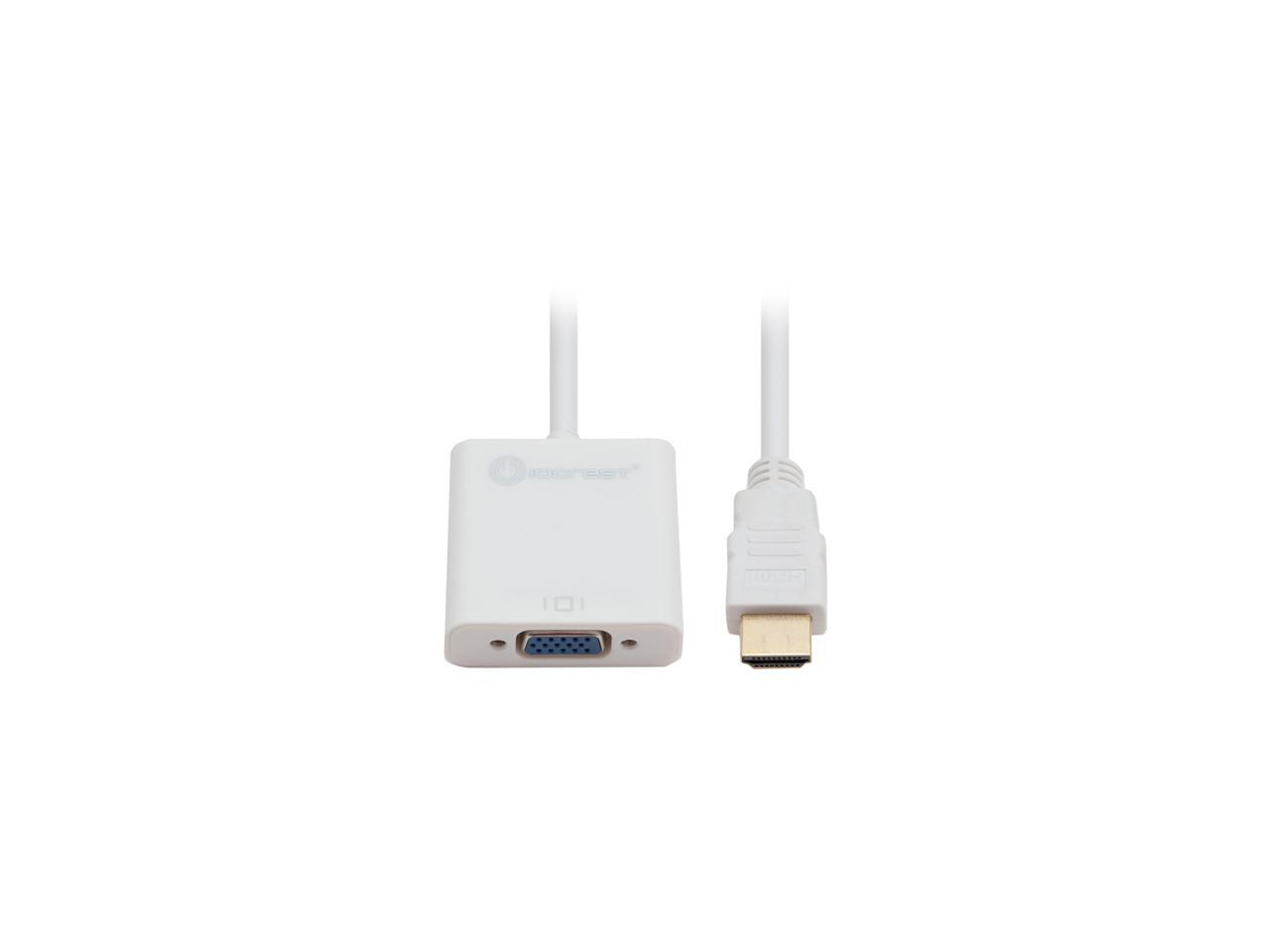

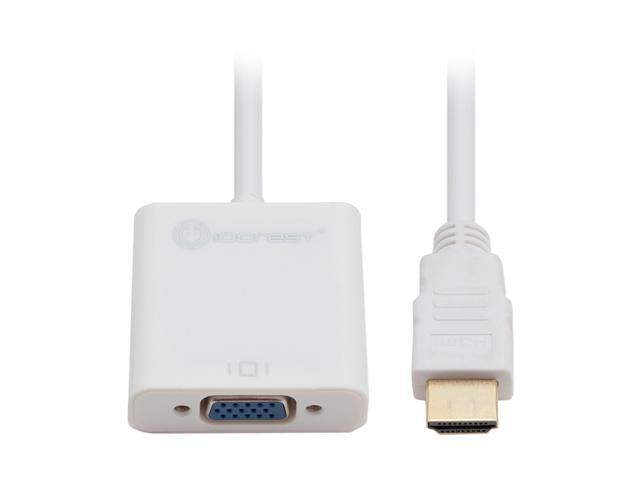

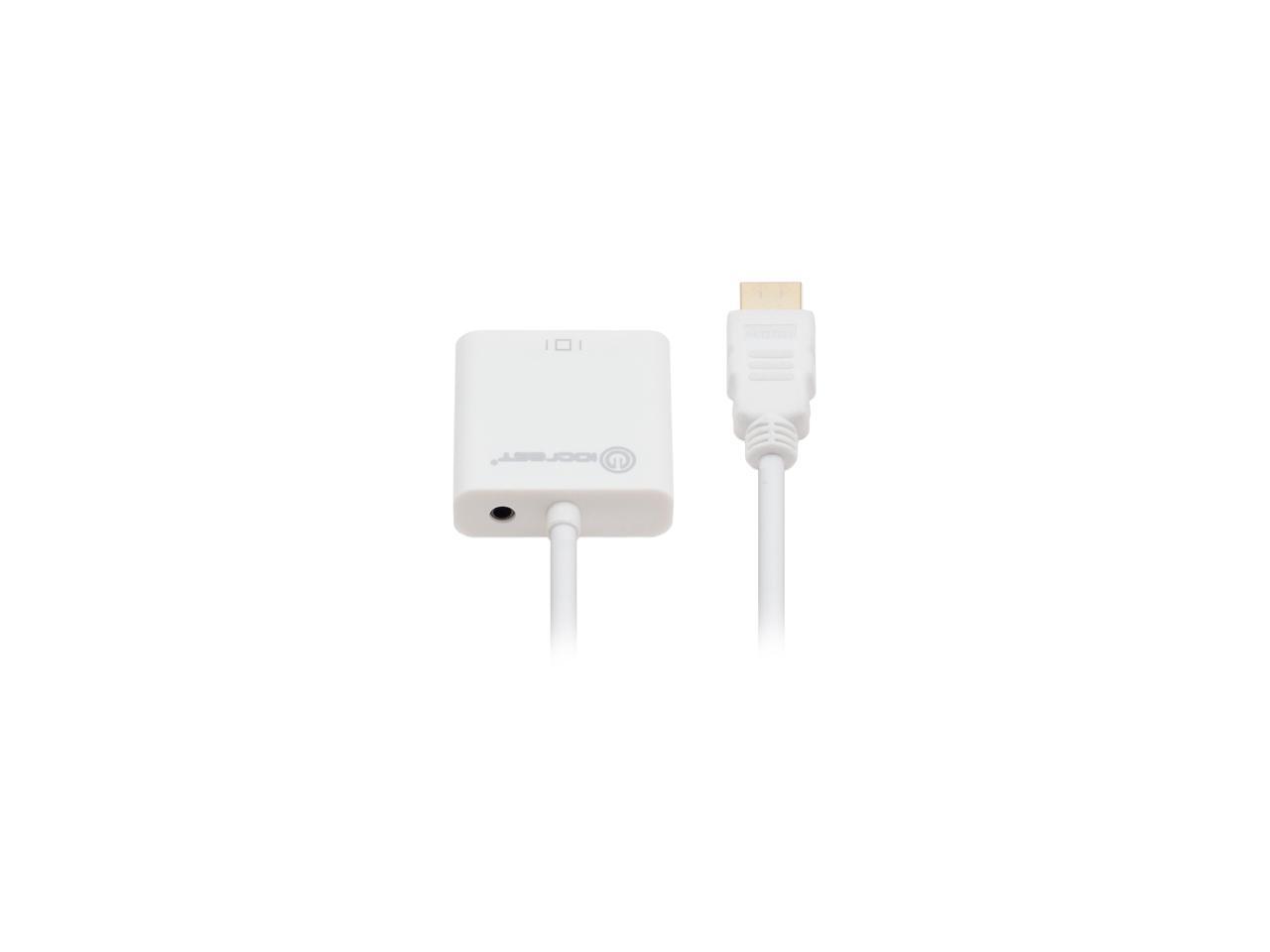

SYBA SY-ADA31044 HDMI to VGA Adapter with Audio Support

This HDMI to VGA Adapter connects your devices to large VGA displays. This allows you to increase the workspace area for smaller devices. This is a low-power semiconductor that consists of an HDMI receiver, three separate 9-bit video Digital-to-Analog Converters (DACs), and audio encoder, which can convert HDMI signals into VGA outputs at a maximum conversion rate of 200MHz with IIS audio output. The HDMI receiver is compliant with HDMI1.4b. The DACs are based on current source architecture, and the VGA output meets VESA VSIS v1r2 clock jitter target.

Specifications

Supports HDMI Standard Norm
Complaint with HDMI 1.4 specifications
Analog RGB output for VGA with Triple 9-bit DAC up to 200MHz pixel rate.
Supports VESA and CEA timing standards up to WUXGA 1920 x 1200 @ 60MHz and 1920 x 1080 @ 60MHz.
Integrated EDID buffer
VGA/HDMI connection detection supported
Supports Auto Power Saving mode and low stand-by current

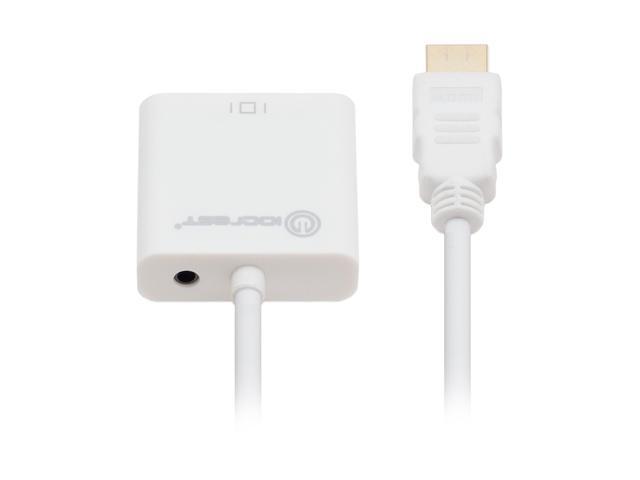

Supports Audio via Jack Stereo Cable
Plug and Play, Driverless Installation
Device is 10.3 in Long (Cable is 6.5 in.)
Audio Cable is 18.4 in. Long

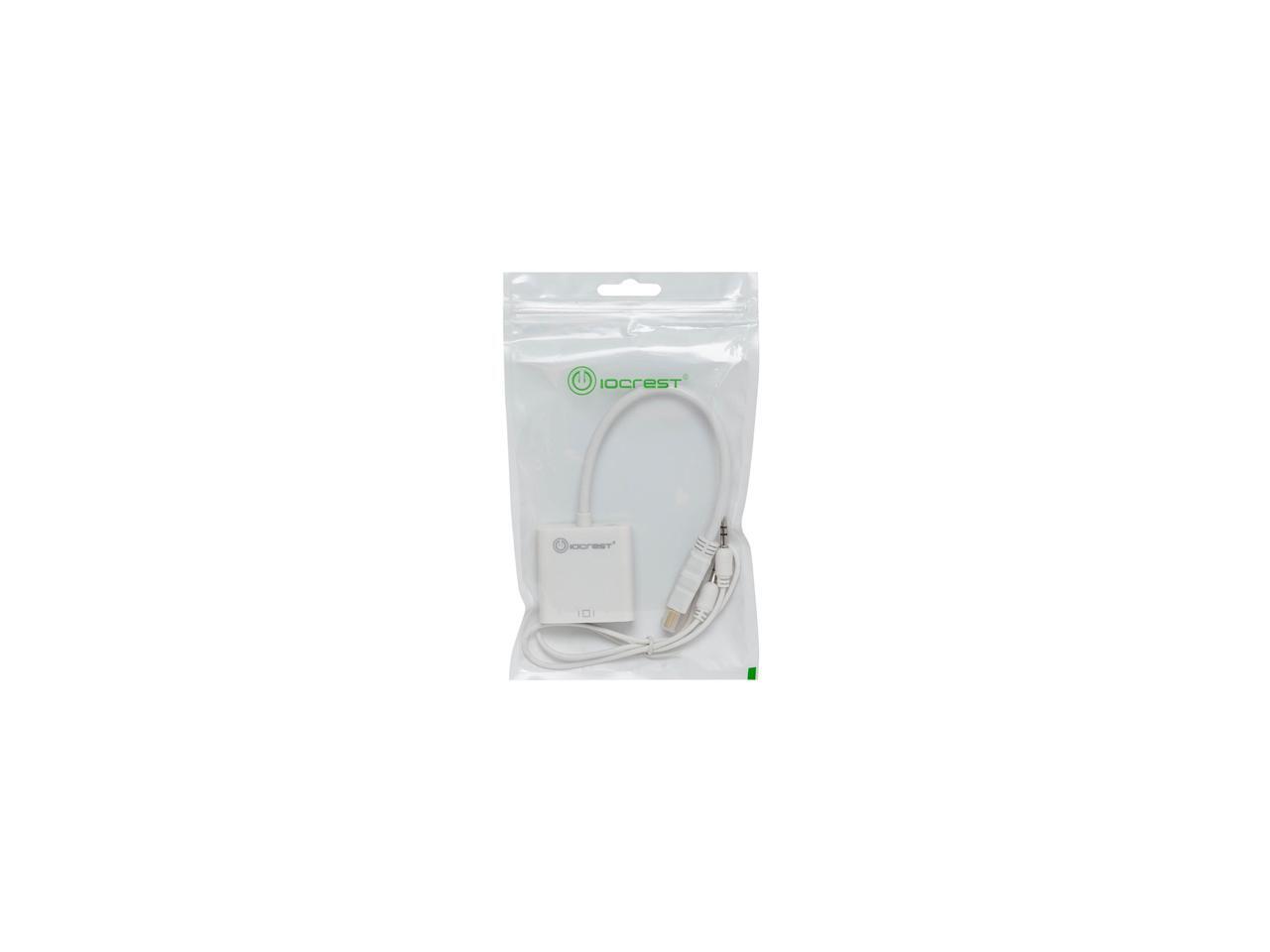

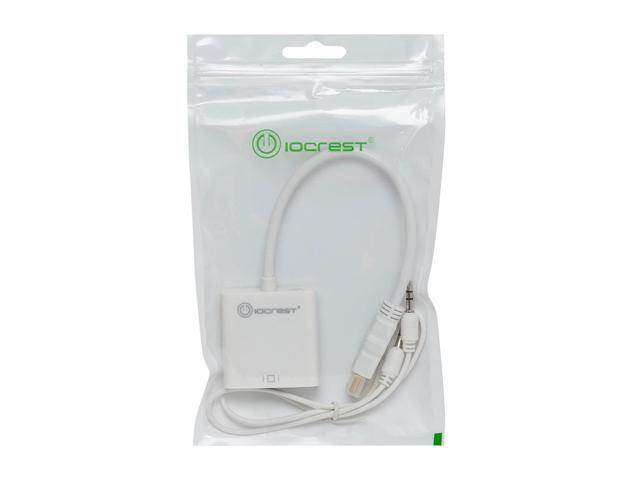

What's in the Box

HDMI to VGA Adapter
Male to Male Audio Jack
