Brand | Synology |
---|---|
Model | DS411+ |
Port RJ-45 | 1 x 10/100/1000M |
---|---|
Port USB | 2 x USB2.0 |
Port eSATA | 1 x eSATA II |
HDD Interface | 4 x SATA (4 x Bay) |
Form Factor | 4-Bay |
---|---|
Operating System | Supported Clients - Windows 2000 onward - Mac OS X 10.3 onward - Linux Supported Mobile Devices (Photo Station, File Station) - iPhone OS 2.2.1 onward - Windows Mobile (IE Mobile or Opera 9.0 onward) - Symbian OS 9.1, S60 3rd Edition onward |
Processor | Intel Atom D510, Dual Core 1.67 GHz |
Default/ Max. Memory | DDR2 1 GB (64bit@DDR800) |
Included HDD Capacity | Diskless System |
---|---|
RAID | Synology Hybrid RAID iSCSI Target (Max size: 16TB):10 Volume Type: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 5+Spare, RAID 6, RAID 10 RAID Migration: from Basic to RAID 1, Basic to RAID 5, Basic to RAID 5+Spare, RAID 1 to RAID 5, RAID 1 to RAID 5+Spare, RAID 5 to RAID 5+Spare, RAID 5 to RAID 6 Expand RAID 1, RAID 5, RAID 5+Spare or RAID 6 with Larger Hard Drives |
Supported Protocols | Networking Protocols: CIFS, AFP, FTP, iSCSI, Telnet, SSH, NFS, SNMP |
---|---|
Management | Backup Solutions: Network Backup Local Backup Desktop Backup (using Synology Data Replicator 3 or Apple Time Machine backup application) 3rd-Party Backup Support Security: FTP over SSL/TLS IP Auto-Block Firewall Encrypted Network Backup over rsync HTTPS Connection Management: Firmware Email Notification SMS Notification Customized User Quota DDNS Support PPPoE Resource Monitor UPS Management Scheduled Power On/Off Custom Management UI HTTP/HTTPS Ports System Temperature Display HDD Management: HDD Hibernation S.M.A.R.T. Dynamic Bad Sector Mapping |
Power | AC Input Power Voltage: 100V to 240V Power Frequency: 50Hz to 60Hz, Single Phase Power Consumption: 60.5W (Access); 19.8W (HDD Hibernation) |
---|
Temperature | 5°C - 35 °C |
---|
Features | 112.99 MB/sec Reading 103.07 MB/sec Writing Power-saving with only 60.5W in Operation Wake on LAN/WAN Scheduled Power On/Off Hard Drive Hibernation Includes Feature-Rich Synology DiskStation Manager 2.3 (DSM 2.3) Max Internal Capacity: 8TB (4X 2TB hard drives) |
---|
Dimensions | 9.06" x 7.24" x 6.61" |
---|---|
Weight | 4.92 lbs. |

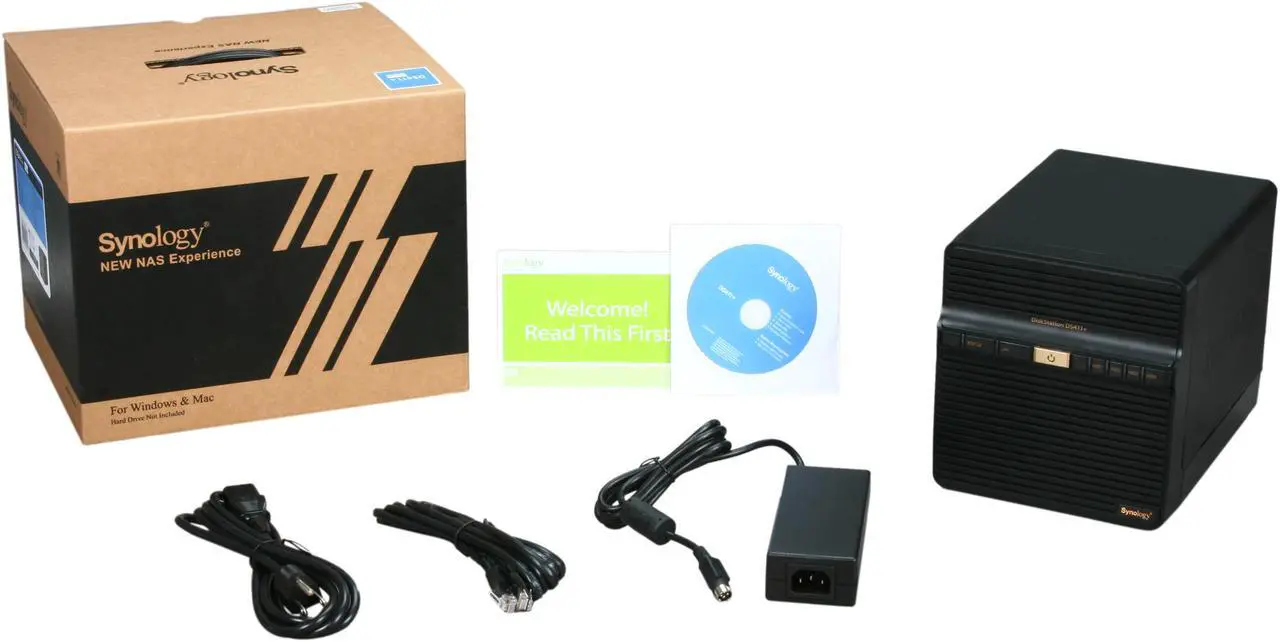

Package Contents | DS411+ Main Unit Installation CD Welcome Note Assembling Kit AC Power Adaptor AC Power Cord 2M RJ-45 LAN Cable |
---|
Date First Available | July 19, 2010 |
---|
Pros: Using version 2.3 of the firmware (browser-based) and it is very easy to use. Very fast up/down transfer speeds on my home wired/wireless LAN using a WRT320N Linksys router. Included client backup software works well. The 80cm fans are almost noiseless (this sits on my desk) and, depending on your disk selection, is a very quiet unit (the deathstars I use can be heard, but are not intrusive).
Cons: Currently, iTunes server is broken with iTunes 10 (worked well with iTunes 9) Synology website says this will be fixed soon as a patch to the current 2.3 version of the firmware and in the initial 3.0 version release. Documentation is limited, but there are tutorials, a dedicated wiki page, as well as a robust user forum. Apple timemachine works well, but if any Win7 clients are of the Home Premium flavor, you have to install the client backup program to run on each of those machines, as the backup program in the consumer version of Win7 will not recognize network locations by design (this will hold true as well for Vista machines). You have to choose to run on startup (should be by default) and you can't disable an anoying popup selection window (but at least it closes automatically after 20 seconds).
Overall Review: Populated with 4 x HITACHI Deskstar (7K2000 HDS722020ALA330) in a RAID5 configuration, which took a while to format (didn't look at the log, but it was done when I woke up). I bought this primarily to backup a half dozen home computers (1 x apple, 5 x Win7) containing huge music and picture collections. My previous solution was an internal RAID5 array on a tower, but this required a level of dedication the female family members of the household lacked (none have Win7 Professional installed on their laptops).
