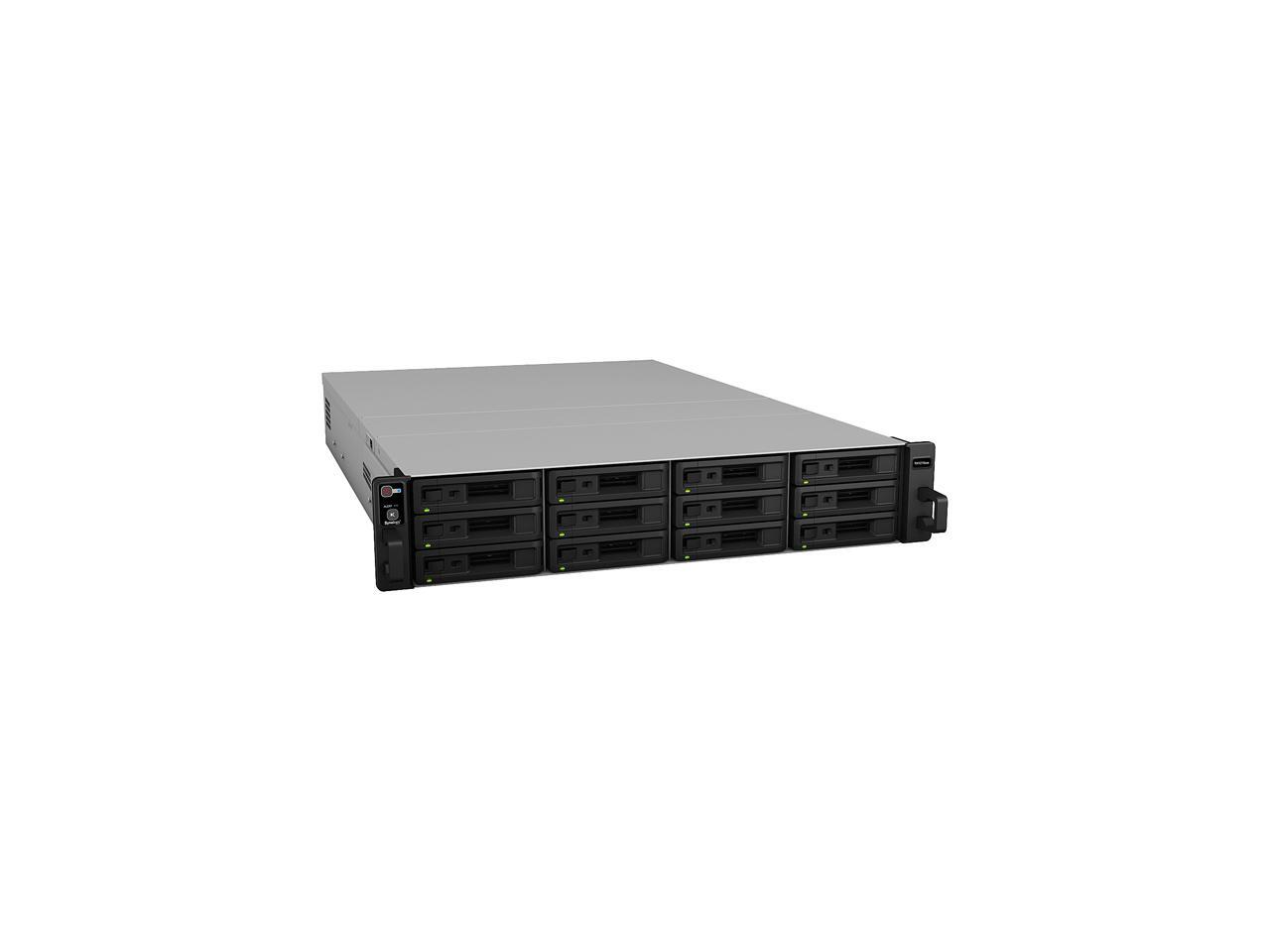

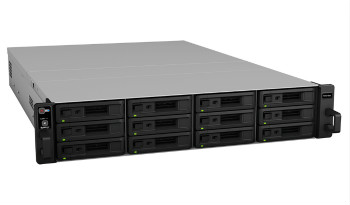

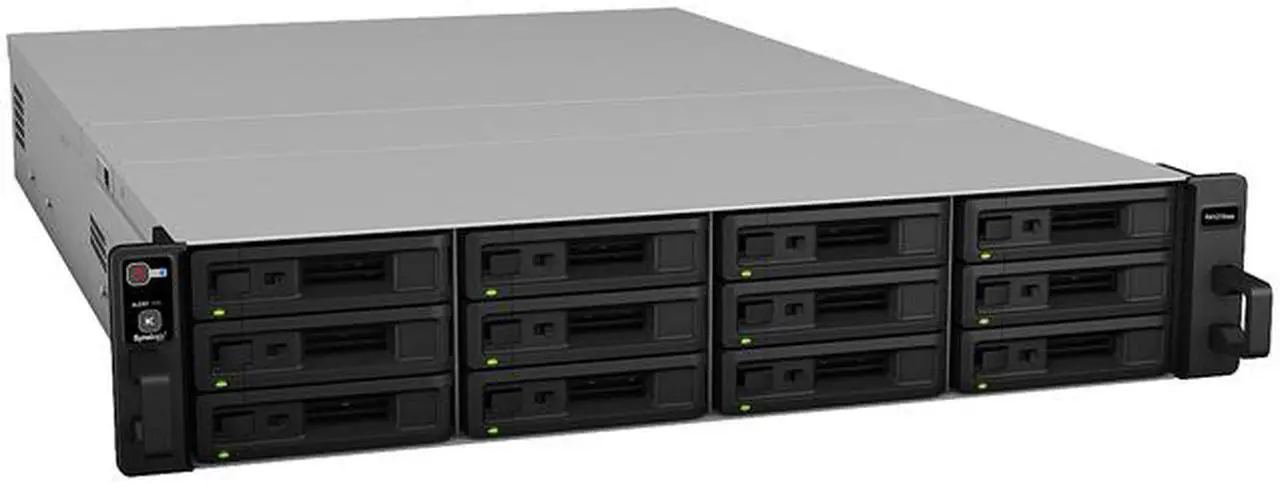

Synology High-Availability 12-Bay Rack Mount Expansion Unit (RX1216sas)

RX1216sas

The Ultimate SAS & SATA Storage Expansion Solution

Synology RX1216sas delivers an effortless storage capacity expansion solution for Synology RackStation RS18016xs+ by adding 12 drives on-the-fly while directly connected.

Highlight

• Plug-n-use design for seamless storage space upgrade
• Redundant data paths & power supplies ensure service uptime
• SATA and SAS drives for flexible capacity and balanced performance
• Managed with Synology DiskStation Manager (DSM)
• Backed with Synology's 5-year limited warranty & Synology Replacement Service (SRS)*

When storage capacity on the Synology RS18016xs+ reaches its limit, Synology RX1216sas provides an easy way to immediately scale up by additional 12 SATA, or SAS drives for flexibility and balanced performance. Volumes on the Synology RS18016xs+ can be expanded directly without having to reformat existing drives, ensuring that service on Synology RS18016xs+ continues during capacity expansion. Created as an independent volume, Synology RX1216sas provides an easy means of backing up Synology RS18016xs+.

Hardware Specifications
Applied Models	RS18016xs+
Storage
Drive Bay(s)	12
Compatible Drive Type	3.5" SATA III / SATA II HDD 2.5" SATA III / SATA II HDD 2.5" SATA III / SATA II SSD 3.5" SAS HDD 2.5" SAS HDD 2.5" SAS SSD
Maximum Internal Raw Capacity	96 TB (8 TB HDD X 12) (Capacity may vary by RAID types)
Hot Swappable Drive
RAID Management through Synology DSM

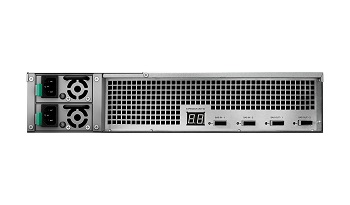

External Ports
MiniSAS IN-port	2
MiniSAS OUT-port	2
Appearance
Size	88 mm X 430 mm X 692 mm
Weight	13.5 kg
Power
Power Recovery	Synchronized with the Synology RackStation
Power Supply Unit / Adapter	2 X 500W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	67.31 W (Access) 34.05 W (HDD Hibernation)
British Thermal Unit	229.84 BTU/hr (Access) 116.25 BTU/hr (HDD Hibernation)
Note	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Redundant Power Supply
Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Others
System Fan	80 mm X 80 mm X 4 pcs
Easy Replacement System Fan
Noise Level*	45.1 dB(A)
Note	Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Certification	FCC Class A CE Class A BSMI Class A
Warranty	5 Years
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 EXpansion Cable: MiniSAS X 2 Quick Installation Guide X 1
Optional Accessories	Synology RKS1314 - Rail Kit Sliding

*Available in selected countries only. For detailed terms and conditions, please visit the Synology Replacement Service (SRS) website
