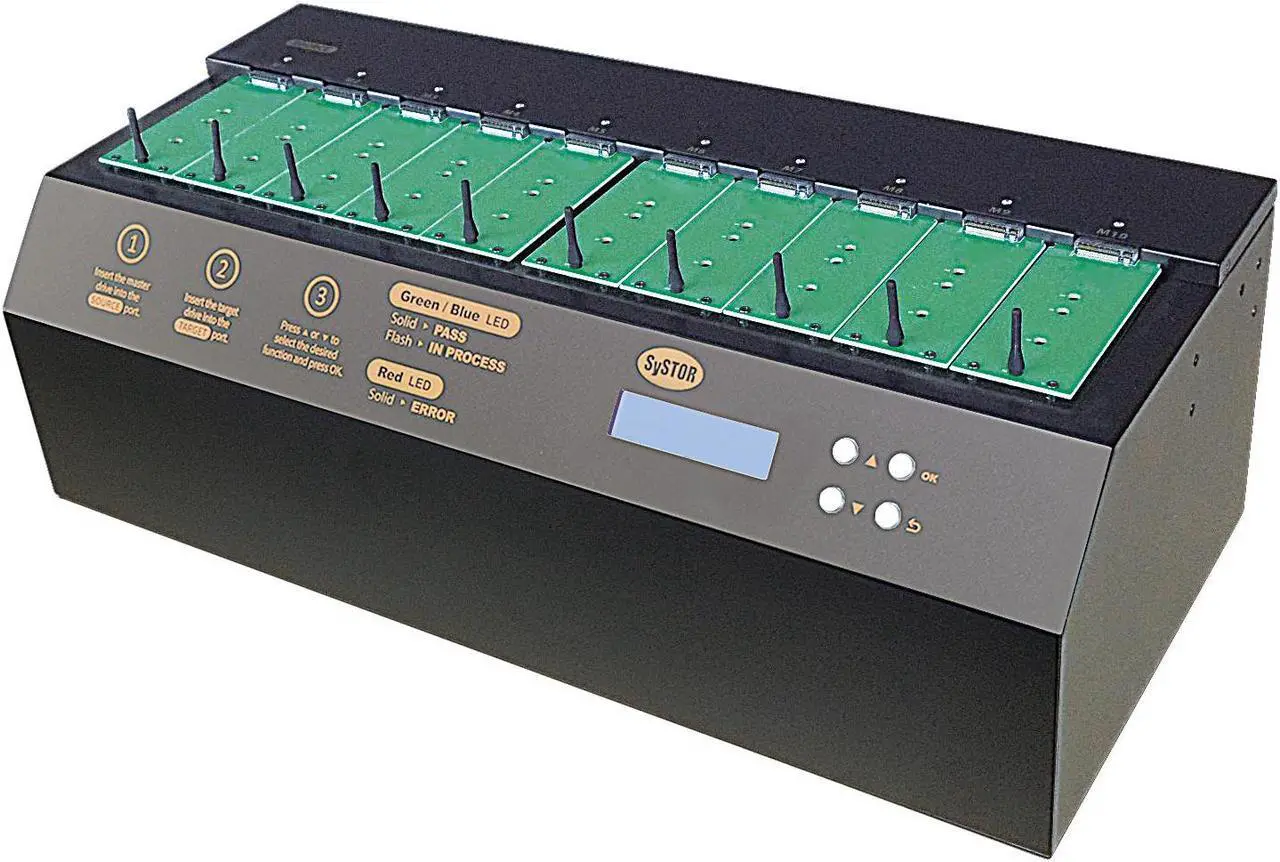

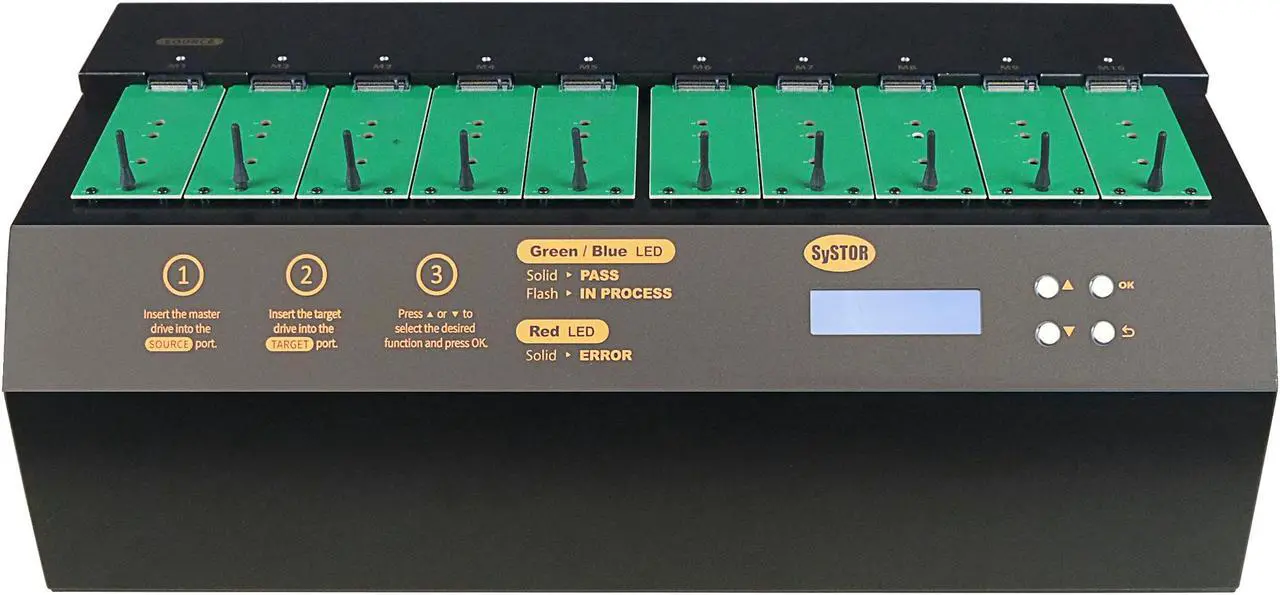

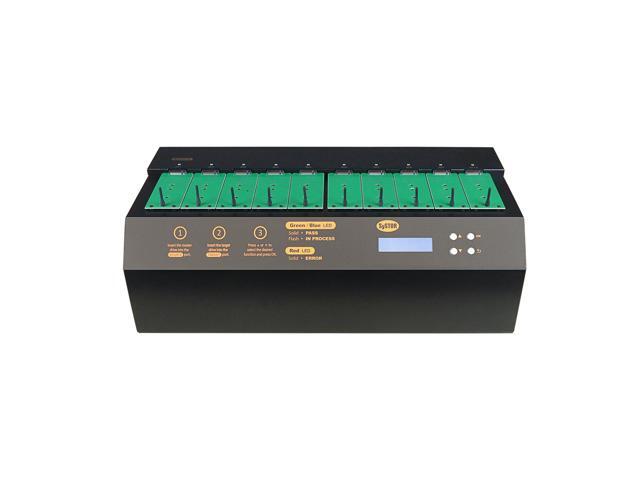

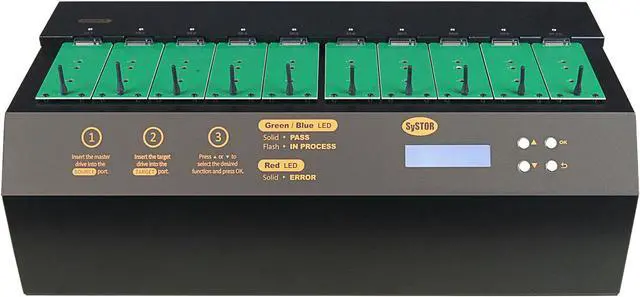

Systor M.2 NVMe PCIe duplicators are completely standalone units that can clone or sanitize a number of different media types. Easily insert and copy (or erase) either NVMe M.2 or SATA M.2 drives with a single touch of a button. These duplicators consistently perform copy sessions with no speed degradation even when the number of target devices increase. Various copying and erasing modes help in managing different task requirements for duplicating and wiping your storage media. These high-speed, high-performance M2 copiers are the perfect solution for business (small to enterprise), education, and government entities (military, law enforcement, etc.) where copying and erasing device data needs to be accomplished with precision and minimal time.
* Duplication speed will vary depending on read/write transfer rates of master (source) and target (blank) drives.

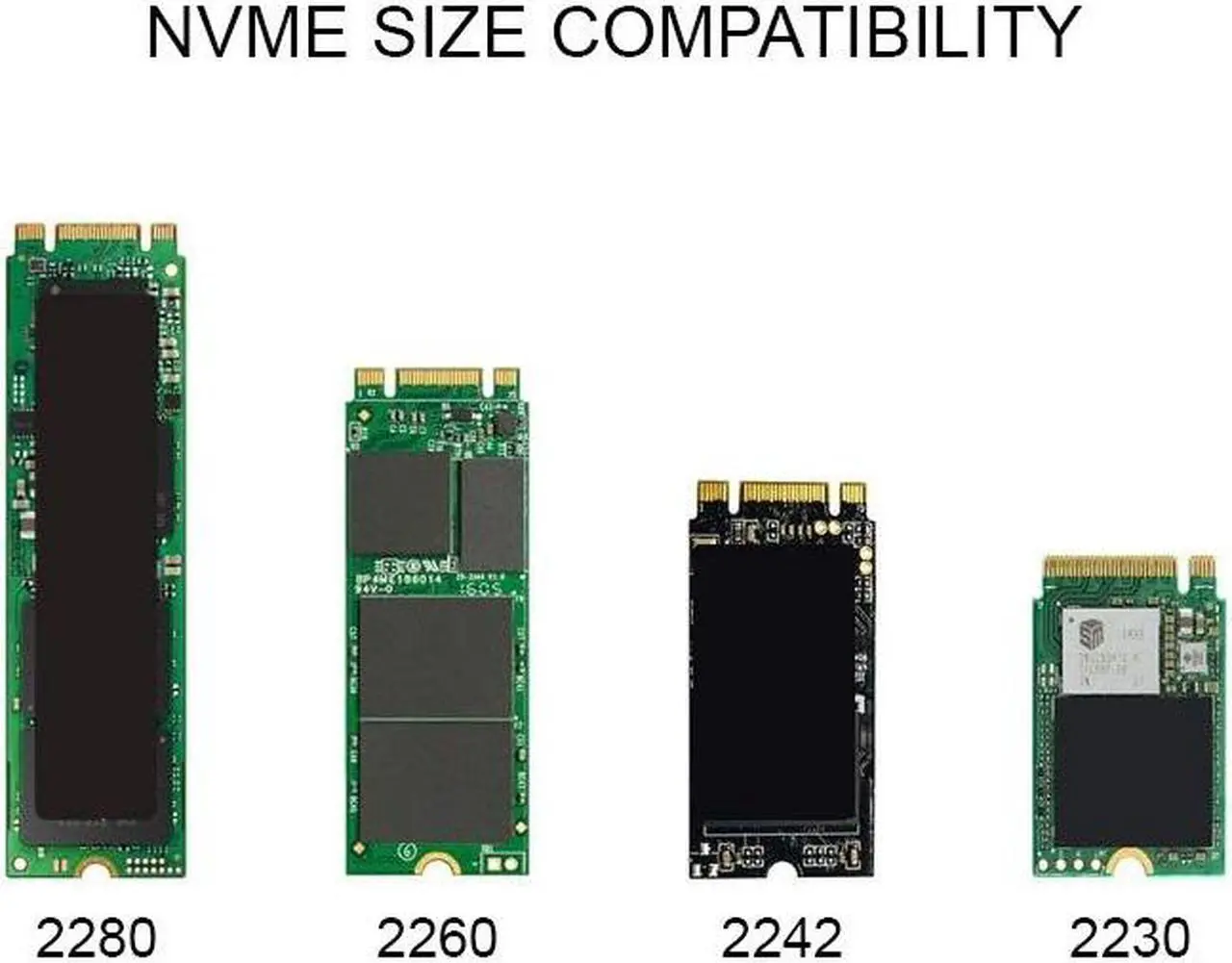

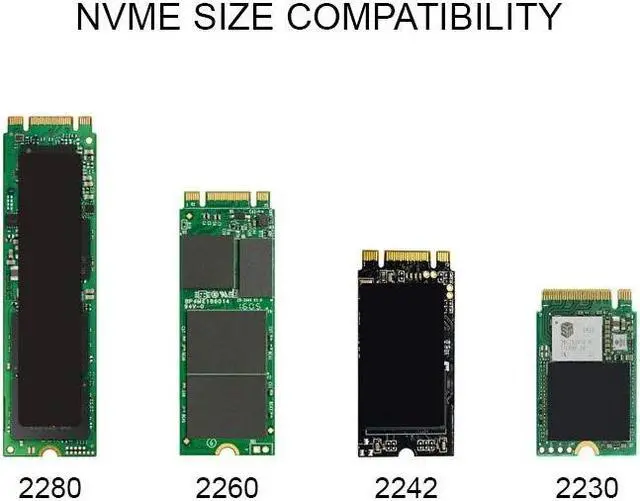

Compatible sizes:
- 2230
- 2242
- 2260
- 2280

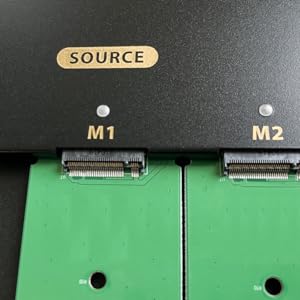

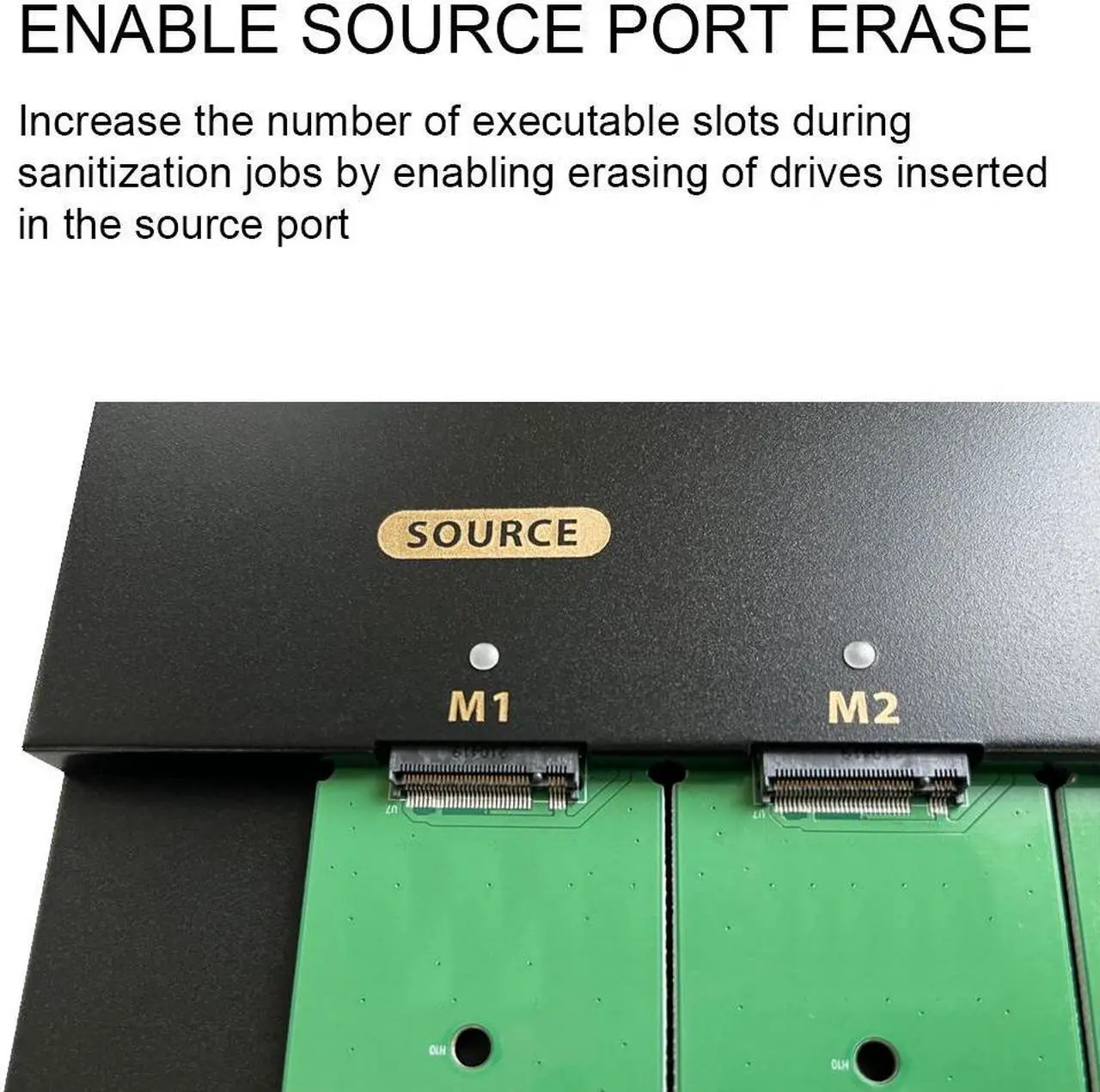

Increase the number of executable slots during wiping jobs by enabling erasing of drives inserted in the source port

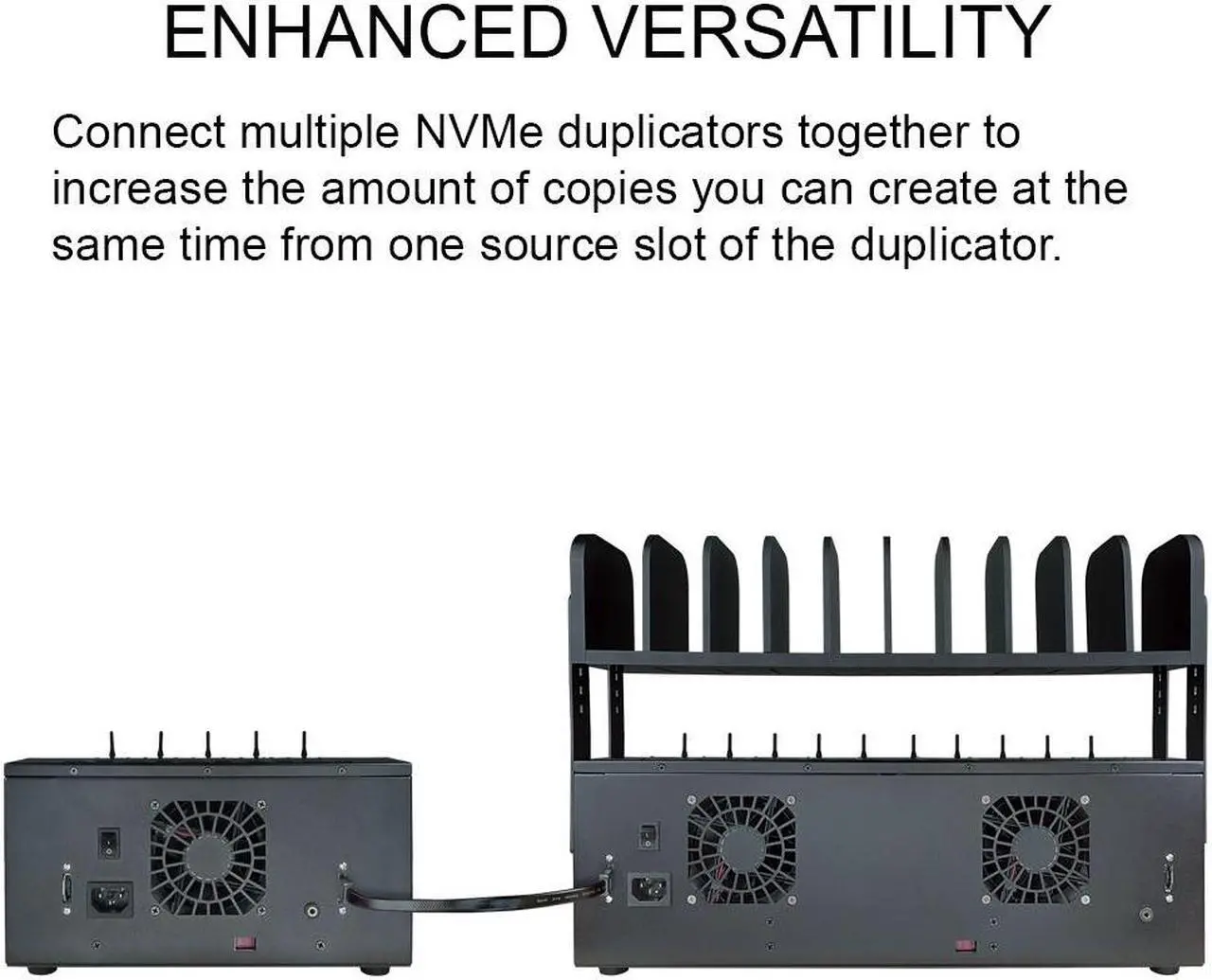

Connect multiple NVMe duplicators together to increase the amount of copies you can create at the same time from one source slot of the duplicator.
Note: Only daisy chain same speed models

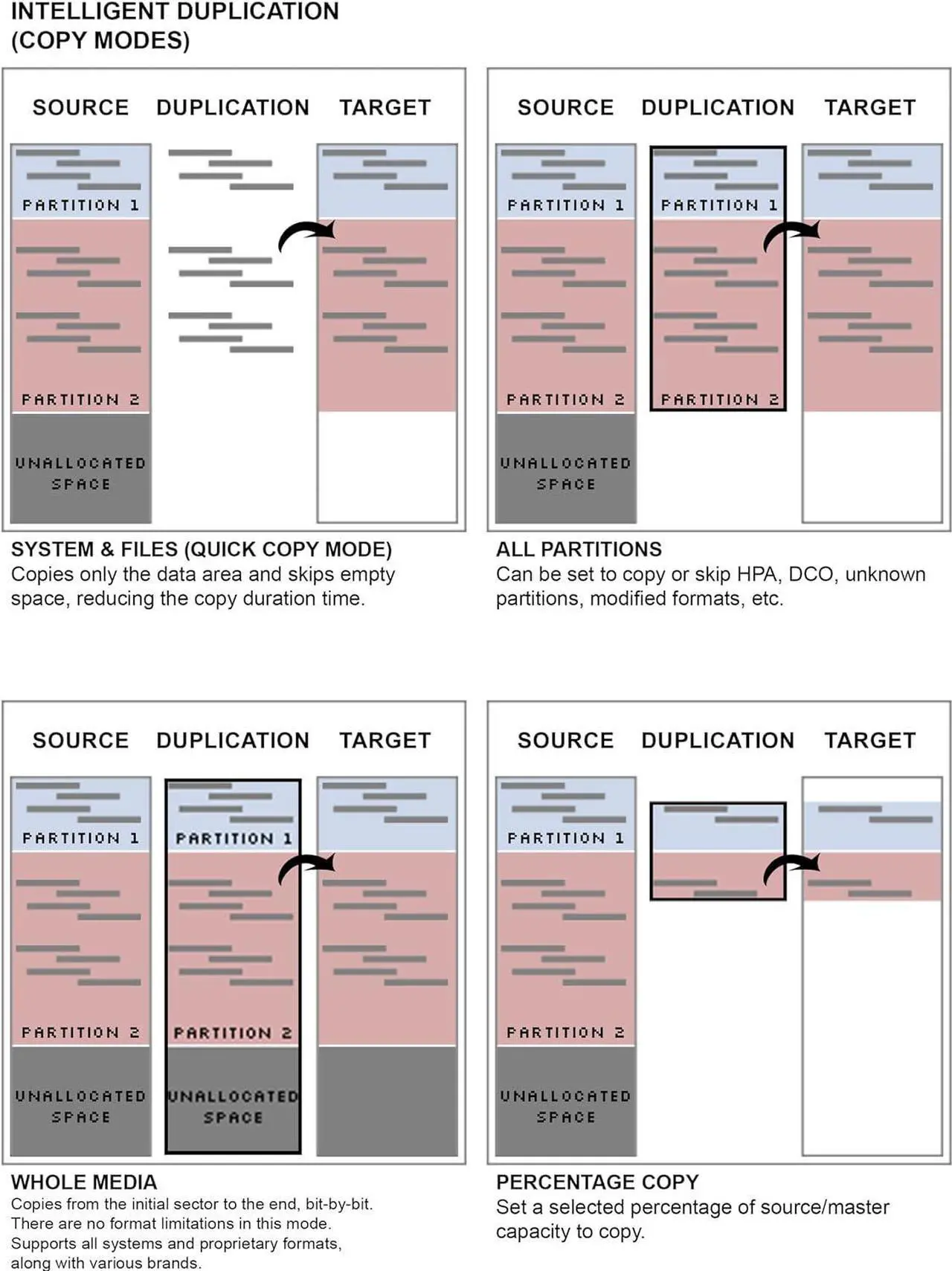

Copies only the data area and skips empty space, reducing the copy duration time.
Can be set to copy or skip HPA, DCO, unknown partitions, modified formats, etc.
Copies from the initial sector to the end, bit-by-bit. There are no format limitations in this mode. Supports all systems and proprietary formats, along with various brands.
Set a selected percentage of source/master capacity to copy.

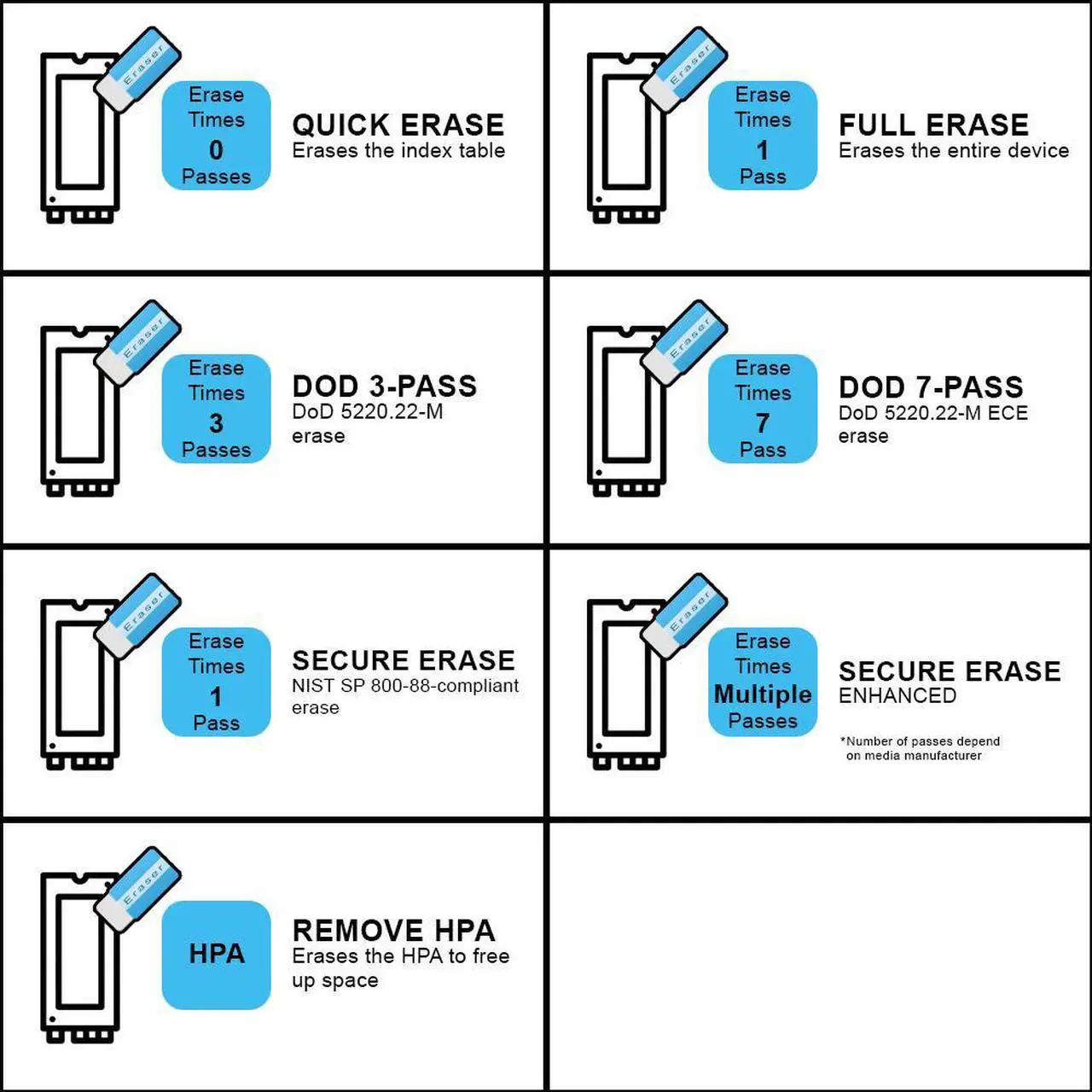

Erases the device's index table, and only takes a few seconds to complete.
Erase all data from the device by overwriting each sector.
Complies with the 3-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M.
Complies with the 7-pass erase standards of the U.S. Department of Defense (DoD) 5220.22-M ECE.
Complies with standards of the National Institute of Standards and Technology (NIST) 800-88.
Complies with SSD erasure standards of the National Institute of Standards and Technology (NIST) 800-88.
Remove the drives' HPA (Host Protected Area) to free up space.
| Products | ||||||
|---|---|---|---|---|---|---|
| Brand | Systor | Systor | Systor | Systor | Systor | Systor |
| Speed | 36GB/min (600MB/sec) | 36GB/min (600MB/sec) | 18GB/min (300MB/sec) | 18GB/min (300MB/sec) | 18GB/min (300MB/sec) | 18GB/min (300MB/sec) |
| Target size | 1 to 9 | 1 to 4 | 1 to 9 | 1 to 4 | 1 to 9 | 1 to 4 |
| Media supported | NVMe M.2, SATA M.2, SATA 3.5" HDD, SATA 2.5" HDD, SATA 2.5" SSD | NVMe M.2, SATA M.2, SATA 3.5" HDD, SATA 2.5" HDD, SATA 2.5" SSD | NVMe M.2, SATA M.2, SATA 3.5" HDD, SATA 2.5" HDD, SATA 2.5" SSD | NVMe M.2, SATA M.2, SATA 3.5" HDD, SATA 2.5" HDD, SATA 2.5" SSD | NVMe M.2, SATA M.2 | NVMe M.2, SATA M.2 |
| M.2 key supported | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key | B-Key, M-Key, B+M Key |
| File systems supported | Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) | Windows (FAT, FAT32, exFAT, NTFS), Linux (Ext2/Ext3/Ext4, LVM, XFS), and Mac (HFS, HFS+, HFSX) |
| Daisy-chain | ||||||
| Maximum copies via daisy-chain | Up to 2294 (255 units) | Up to 1019 (255 units) | Up to 2294 (255 units) | Up to 1019 (255 units) | Up to 2294 (255 units) | Up to 1019 (255 units) |
| Downloadable log file | ||||||
| Quality check | Verify Bad Sector, Tested Capacity Size, Read & Write Speed of each media | Verify Bad Sector, Tested Capacity Size, Read & Write Speed of each media | Verify Bad Sector, Tested Capacity Size, Read & Write Speed of each media | Verify Bad Sector, Tested Capacity Size, Read & Write Speed of each media |
