$35.99
Ships from China.
Meet Your Seller

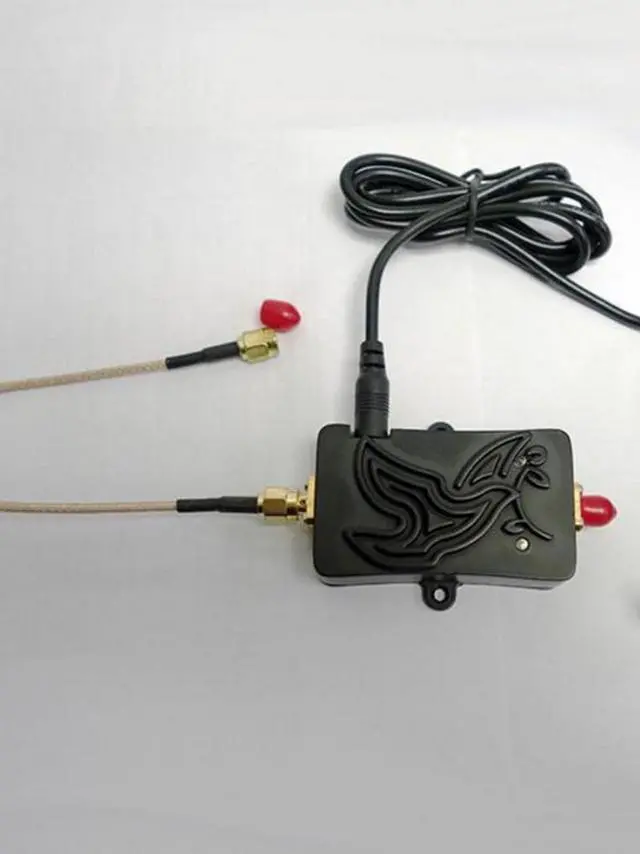

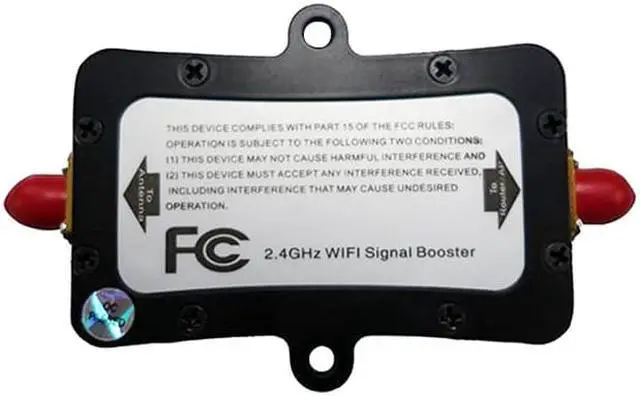

SZHUASHI 4W 2.4GHz Wifi Amplifier Router 802.11b/g/n Wireless Signal Extender Wi-Fi Booster WLAN Repeater Adapter
- 2.4GHz 802.11b/g/n Signal BoosterHS242036T12.4G4W
- WiFi booster, WiFi extender
- Key Features
- 20X the power, improving the link quality and coverage of certified WLAN devices
- 2.5dB ultra-low noise
- Wide 6v to 16v operating input range
- Working with certified IEEE 802.11b/g/n Wireless LAN devices
- Simply plug and play, no software is required
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Frequency Range: 2.4 ~ 2.5GH z
Operating Voltage: 6~16V
Receiving Gain: 10dB±1
Transmission Gain: 13dB±1
Input Trigger Power: Min: 3dBm Max: 20dBm
Maximum Output Power (P1dB): 36dBm (4W)
EVM: 3%@28dBm 802.11 g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V
Noise Figure: 2.5 dB
TX/RX Switch Time Delay: 1us
LED Indicator: Transmitter: green; Receiver: red
Operating Ambient Temperature: -40~+70
Operating Humidity: up to 95% rel. humidity
Dimension: 82mm×50mm×21mm
Weight: 0.25K g net
