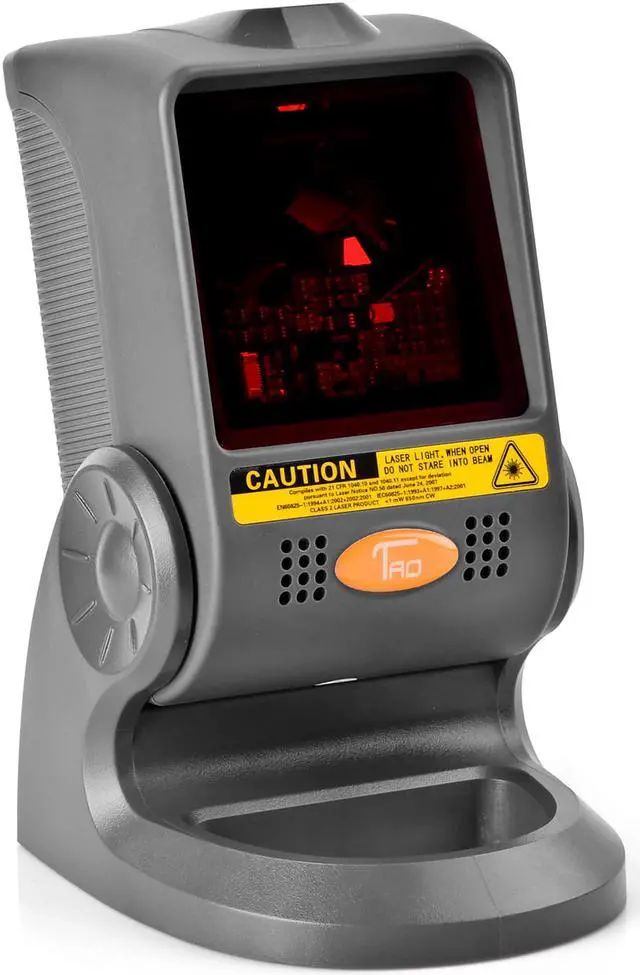

TaoTronics TT-BS015 Orbit Omni-Directional Bar Code Scanner Reader with USB, 5 VDC, 900 mW, 20-line, Black

Be the first to review this product...
  • Handheld barcode reader can be used to scan and decode linear 1D barcodes at different angles; comes with stand for stationary use
  • 650-nm, 900-mW laser produces 20 lines of light in omnidirectional pattern; can make up to 1,400 scans per second
  • Head tilts up to 30 degrees to accommodate scanning different objects and workstations
  • USB cable can be connected to a computer or another host system (sold separately) to transmit barcode data
  • Decode Capability: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
TaoTronics

TaoTronics® Orbit Omni-Directional Bar Code Scanner Reader with USB, 5 VDC, 900 mW, 20-line, Black

  • Handheld barcode reader can be used to scan and decode linear 1D barcodes at different angles; comes with stand for stationary use
  • 650-nm, 900-mW laser produces 20 lines of light in omnidirectional pattern; can make up to 1,400 scans per second
  • Head tilts up to 30 degrees to accommodate scanning different objects and workstations
  • USB cable can be connected to a computer or another host system (sold separately) to transmit barcode data
  • Decode Capability: UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded

Overview

POWERFUL
RETAIL SOLUTION

The TaoTronics TT-BS015 omni-directional scanner is made for any retail shops or stores.

TaoTronics

Never Miss A Scan

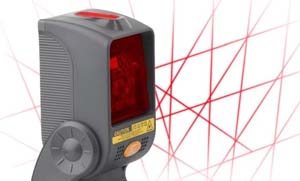

This multi-line, omni-directional laser scanner aggressively picks up barcodes in fraction of a second, meaning it can scan more barcodes with greater efficiency and accuracy.

TaoTronics

Hands-free Reliability

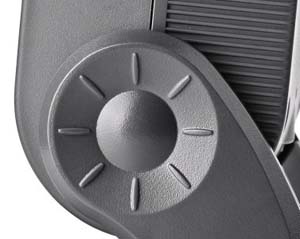

This hands-free scanner is built for reliability and performance by featuring a 30 degree rotatable scanner head and large scanning angles. It is also light enough to be picked up and used as a hand-held scanner.

TaoTronics

Compatible Barcode Types
The scanner supports a wide range of barcode types including: UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with full ASCII), Codabar (NW7), and Code 128 & EAN 128.

TaoTronics

System Compatibility
The scanner quickly reads barcodes and uploads it straight to Word, Excel or your own in-house software application for Windows, Mac, or Linux operating systems, such as Novell or Quickbook.

TaoTronics

Plug and Play
Plug into the nearest computer or laptop and begin scanning. No installations or other steps needed.

TaoTronics

Safety Standards
The scanner is built with durable ABS plastic, and is 1.5 meter drop tested. Furthermore, this is a CORH class 2 laser product with FCC class B and CE certifications.

TaoTronics

Technical Support
At TaoTronics, we don't just sell great products; we back them up with responsible customer services too. Just email us or visit our website for more information.

Features:
-an award-winning design for retailers seeking an affordable, aesthetically-pleasing scanning solution.
-hands-free omnidirectional scanner, presents an innovative, elegant and affordable solution for convenience retail applications

-orbit's award-winning shape enables hand-held scanning of large, bulky items.



Specification:

Light Source:650nm visible laser diode (VLD)

Depth of Field: 0~206mm @ UPC/EAN PCS=90%

Scan Pattern: 5 directions of scan field

Number of Scan Lines:20 Lines

Scan Rate:1400 scans per second

Min. Resolution:0.127mm(5mil)@Code 39, PCS=90%

Print Contrast:Min. 30% (UPC/EAN 100%)

Indicators (LED):Two-color LED (Blue & Red)

Beeper Operation: Programmable tone & volume

System Interfaces: HID USB?USB Virtual COM?RS-232

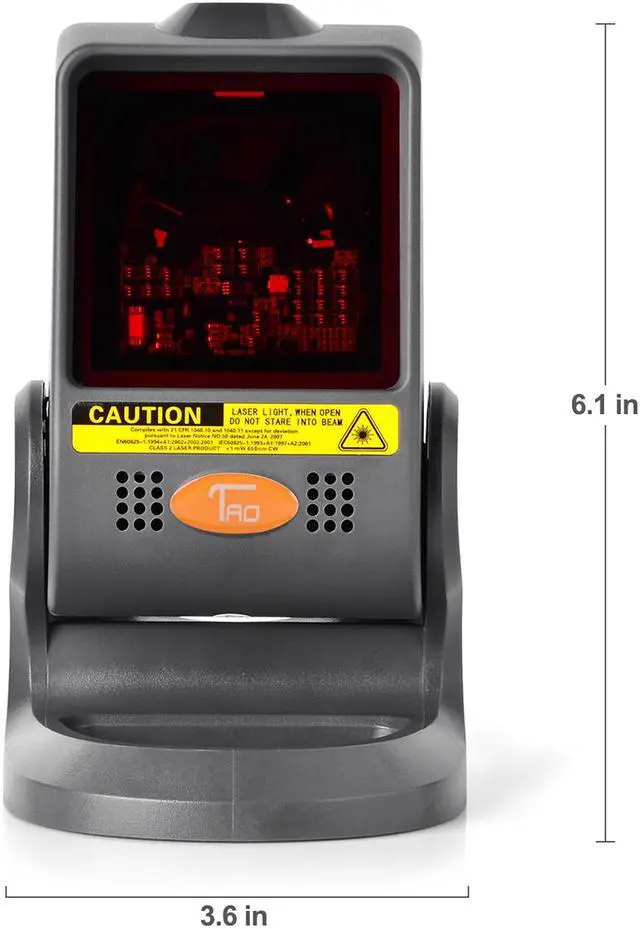

Dimension:94mm*158.4mm*110mm

Weight:609g

Cable Type:Standard 2M straight (replaceable)

Input Voltage:5VDC±10%

Operating Current:220mA

Operating Temperature:0?~+50?

Operating Humidity:5%~95%(non-condensed)

Temperature in Storage:-20?~+60?

Ambient Light:0~4,000Lux(fluorescence)

EMC:CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI

Laser Class:CDRH Class IIa, IEC 60825-1 Class 1

Decode Capability:UPC/EAN/JAN,UPC-A & UPC-E,EAN-8 & EAN-13, JAN-8 &JAN-13, ISSN, Code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128,Code 93,Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATA Code,MSI/Plessy, China Postal Code,Code 32 (Italian Pharmacode),RSS 14,RSS Limited, RSS Expanded

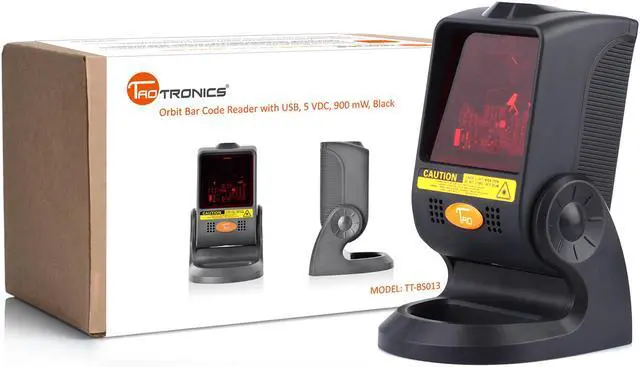

Package included:

-1 X Scanner

-1 X User's manual

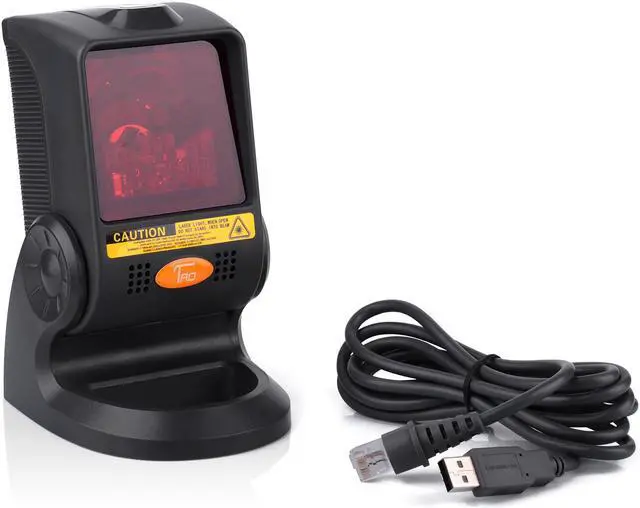

-1 X USB Cable
