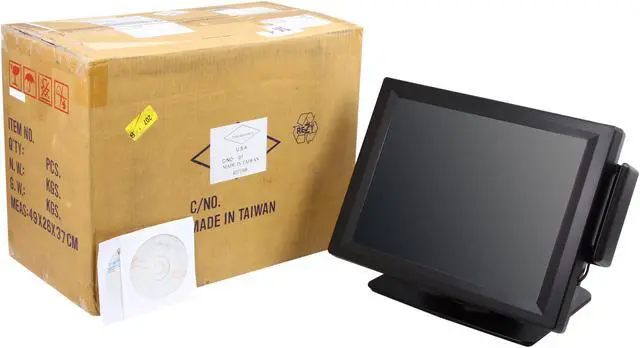

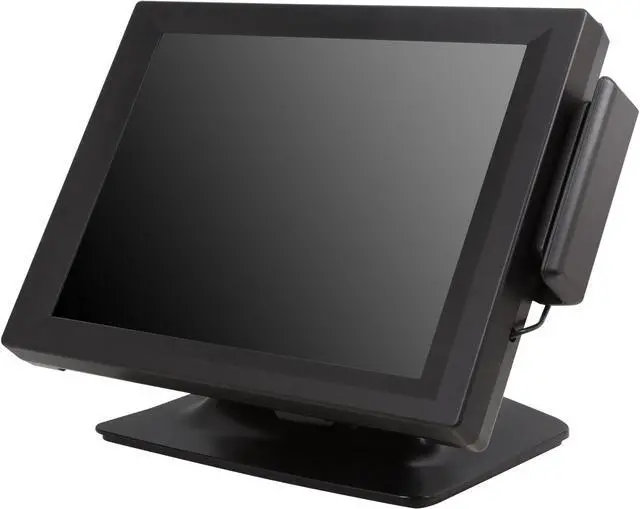

TEAMSable RDT150F-4G-7READY All-in-One POS Touch Screen Computers
- Intel Celeron Dual Core 1.8 GHz
- 4 GB 320GB
- Windows Embedded POSReady 7
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Highlights
- Fanless design for quiet operation
- 15" resistive touch panel
- Intel Celeron 1037U CPU and DDRIII memory up to 8GB
- Rich I/O with 2 x LAN support
- Spillage-Proof resistive front bezel
- Small footprint and hidden cable management
- VESA Wall Mount
Magnetic Card Reader
External HDD Access
2 x 20 VFD or 7" Display
2nd 12.1 or 15" Display

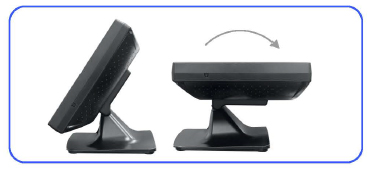

Wide Adjustable Angle
System Specifications
| Hardware Specifications | |
| CPU | INTEL® Celeron 1037U Processor |
| Core Logic | Intel® NM70 Express Chipset |
| System Memory | 2GB Standard, Maximum 8G (204-pin DDR3 SO-DIMM x 1) |
| Graphics | Intel® HD, 350MHz, 1GHz |
| Audio | Realtek ALC662 6-Channel HD Audio |
| Display | 15" TFT-LCD /1024 X 768; Touch Screen: 5-Wired resistive |
| Storage | 1 x 2.5" SATA II HDD/SSD (Optional SATA III) 1 x m-SATA |
| Color | Black |
| Power Supply | 80W (12V/6.6A) power adapter |

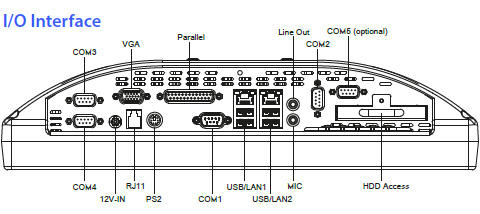

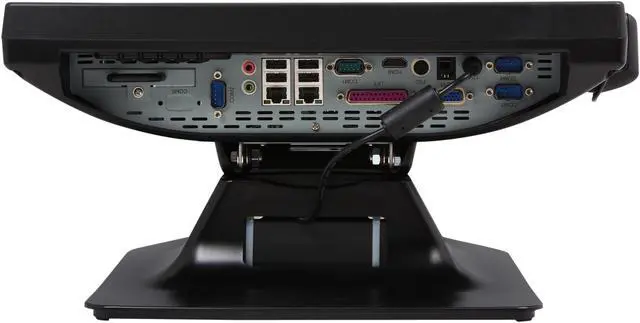

| External I/O Ports | |
| USB 2.0 | 4 |
| COM port | 4 x DB-9 with RI/5V/12V power selectable, 1 x DB9 (RS232/RS422/RS485) None powered |
| Cash drawer | 1 x RJ-11 (12V/24V) |
| VGA | 1 |
| PS2 | 1 x K/M COMBO |
| Parallel | 1 |
| LAN | 2 x 10/100/1000Mbps |
| Audio I/O | 2; MIC and Line-out |
| Expansion Slots | |
| PCI-E Slot | 1 |
| Mini PCIe socket | 1 |
| Optional Peripherals | |
| MSR | 3 Tracks, JIS-I or II |
| 2-in-1 Reader | MSR+i-Button |
| Customer Display | 2 x 20 VFD/ 4 line 7" Full Colored VFD |
| 2nd Display | 7"/10" optional with 12V DC out from Main Board |
| Wireless LAN | 802.11 b/g mini-PCIe wireless module |
| OS Support | |
| Windows | POSReady 2009, POSReady 7, Win 7, Win8 |
| Linux | Per Request |
| Environment | |
| Green Product | RoHs, REACH |
| EMI/Safety | CE CLASS A,FCC Part 15 Subpart B,CLASS A |
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | 14 - 131°F (-10 - 55°C) |
| Relative Humidity | 10% - 90% (Non-Condensing) |

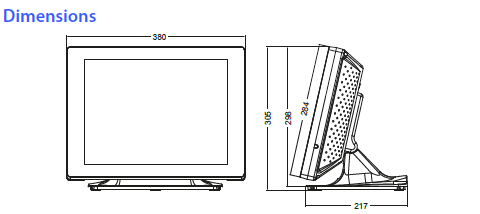

| Dimensions | |
| Dimensions (W x D x H) | 14.9 x 8.5 x 12.2" (380 x 217 x 311mm) |
| Weight | 11.6 lbs (5.3kg) |
