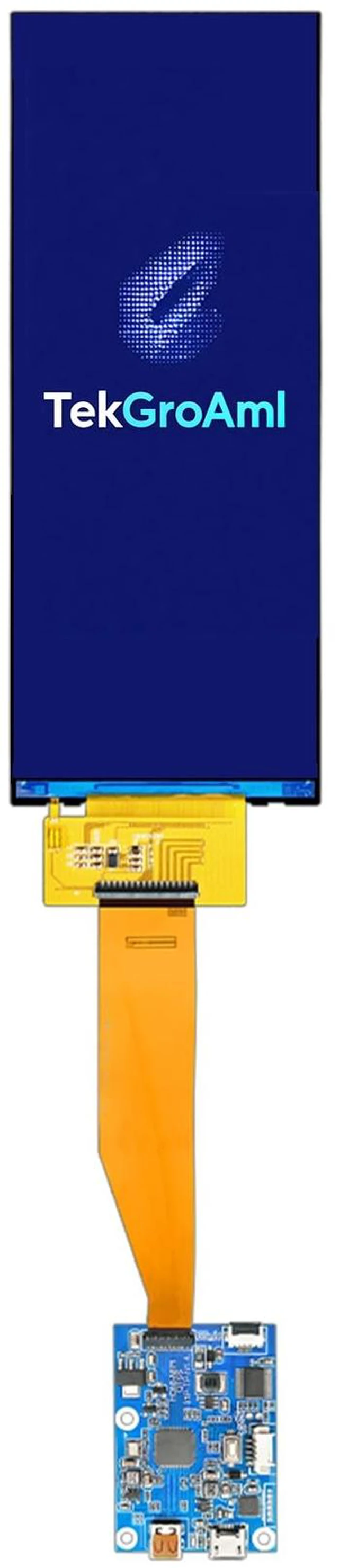

    TekGroAml 6.8-Inch Portrait 480x1280 LCD Display Kit, Non-Touch, HDMI Controller

    Limited time offer, ends 12/15 By TekGroAml

    • Display: 6.8-inch portrait 480x1280 TFT LCD.
    • Panel: 16.7 million display colors; 60.19 x 160.51 mm active area.
    • Connection: HDMI video input through the included controller board. 5 V DC, 1 A.
    • Power: 5 V DC, 1 A. Keep the exposed circuit board insulated from conductive mounting surfaces.
    • Included: 1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    6.8 inch IPS MIPI LCD screen with H/D driver board

    6.8fang-1

    Specifications

    Screen size 6.8 inch
    Resolution 480 x 1280
    Display Type a-Si TFT
    Display Type a-Si TFT, RGB stripe, 16.7M color
    Voltage IOVCC 1.8V typical; VCI 2.8V typical
    Viewing Angle ALL
    Active Area 60.19 x 160.51 mm
    LCD Outline Size 65.7 x 171.69 mm
    Display Interface RGB18BIT
    Backlight 16 white LEDs

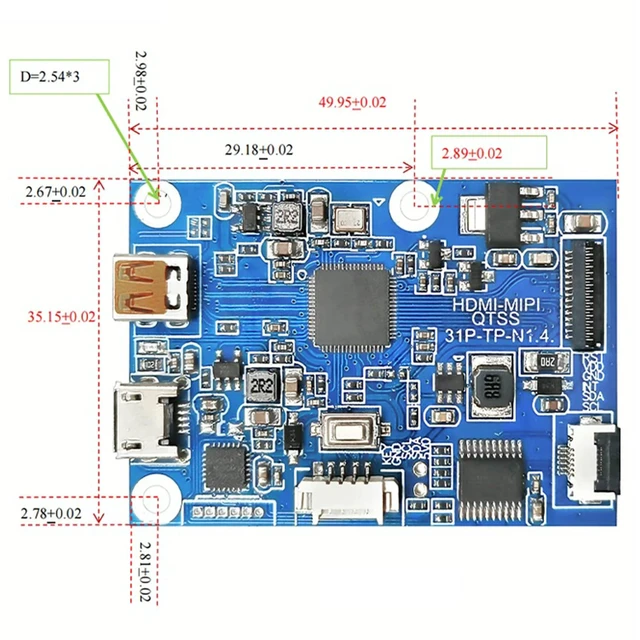

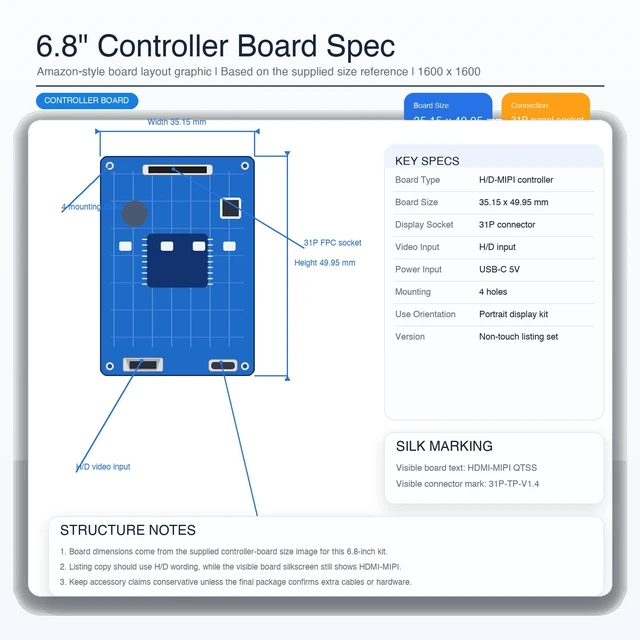

    Controller Board Size 49.95 x 35.15 mm from board size source
    6.8-2

    Maker-Friendly Integration

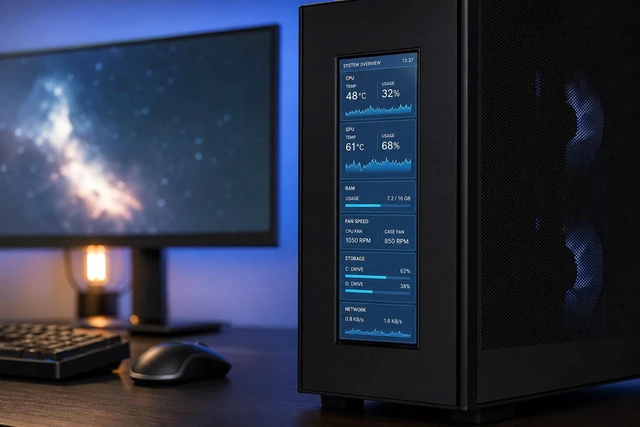

    Suitable for Windows PC sensor panels, mini PCs, case mod displays, simulator instruments, smart control surfaces, appliance prototypes, and other maker projects where users can configure the display output and software layout

    6.8fang
    1

    6.8 inch IPS MIPI LCD screen with H/D driver board

    6.8fang-1

    Specifications

    Screen size 6.8 inch
    Resolution 480 x 1280
    Display Type a-Si TFT
    Display Type a-Si TFT, RGB stripe, 16.7M color
    Voltage IOVCC 1.8V typical; VCI 2.8V typical
    Viewing Angle ALL
    Active Area 60.19 x 160.51 mm
    LCD Outline Size 65.7 x 171.69 mm
    Display Interface RGB18BIT
    Backlight 16 white LEDs
    Controller Board Size 49.95 x 35.15 mm from board size source
    6.8-2

    Maker-Friendly Integration

    Suitable for Windows PC sensor panels, mini PCs, case mod displays, simulator instruments, smart control surfaces, appliance prototypes, and other maker projects where users can configure the display output and software layout

    6.8fang
    1

    The TekGroAml 6.8-inch portrait LCD display kit provides 480x1280 pixels for PC sensor panels, custom gauges, equipment readouts and compact DIY interfaces.

    Project use

    Use the portrait viewing area for status widgets, instrument graphics or a host-rendered monitoring layout. The display shows the image supplied by the host; it does not measure CPU or GPU data on its own.

    Specifications

    • Screen size: 6.8 inches
    • Screen format: Portrait
    • Native resolution: 480x1280 pixels
    • Native pixel matrix aspect: 3:8
    • Panel: TFT LCD
    • Touch: Non-Touch
    • Display colors: 16.7 million
    • Video connection: HDMI video input through the included controller board
    • Power input: 5 V DC, 1 A
    • LCD active area: 60.19 x 160.51 mm

    Included hardware

    1 LCD screen, 1 controller board, 1 signal cable and 1 power cable.

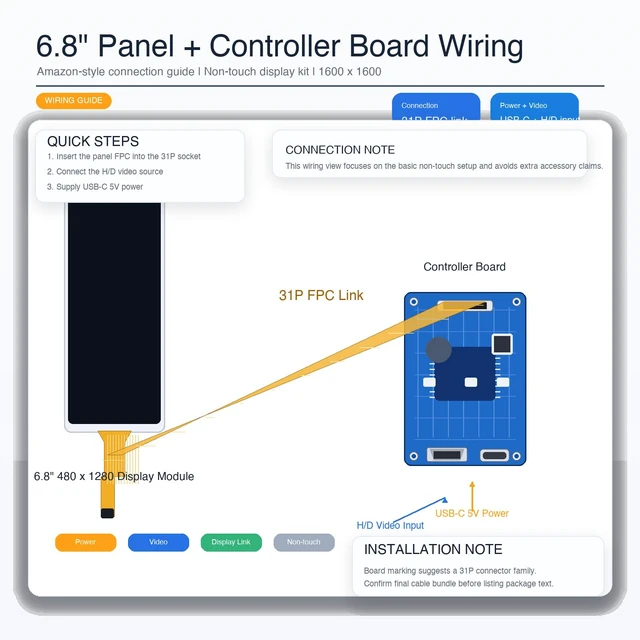

    Connection and setup

    Connect the LCD to the controller with power disconnected. Then connect video and the correct power source. Set the host to 480x1280. Set orientation and scaling in the host as required. Secure the electronics in an insulated mount and leave the flex cable free of strain.
