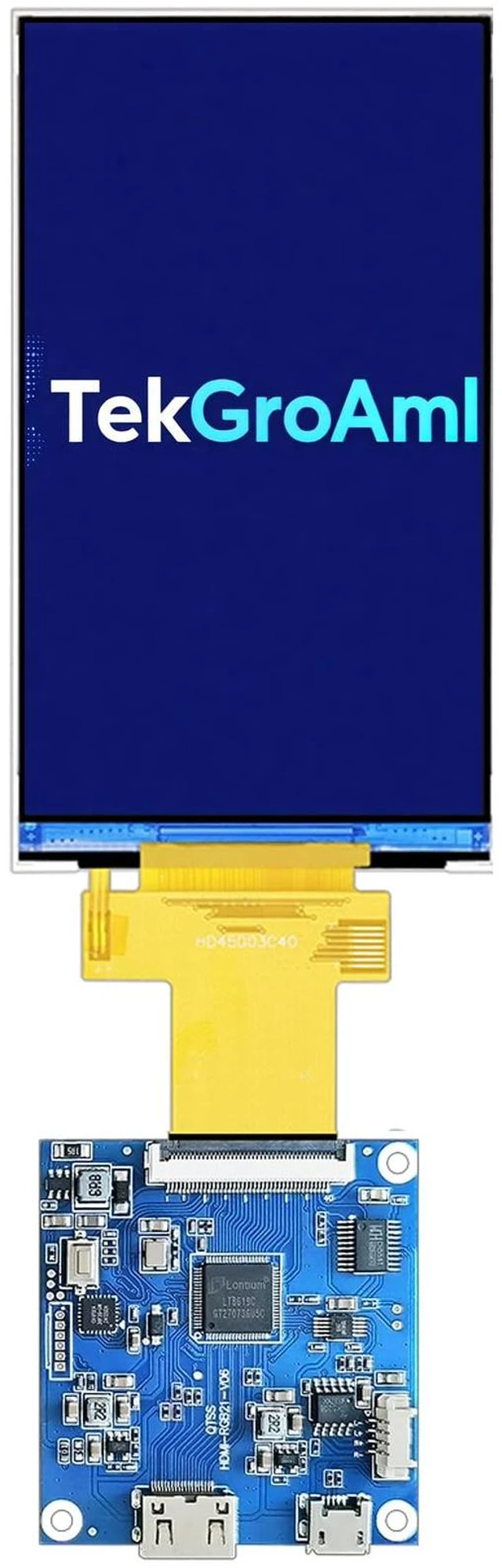

TekGroAml 4.5 inch 480x854 TFT LCD Display Module, SPI & RGB18bit Dual Interface, 16.7M Color, Wide View Angle, for DIY & Embedded Projects

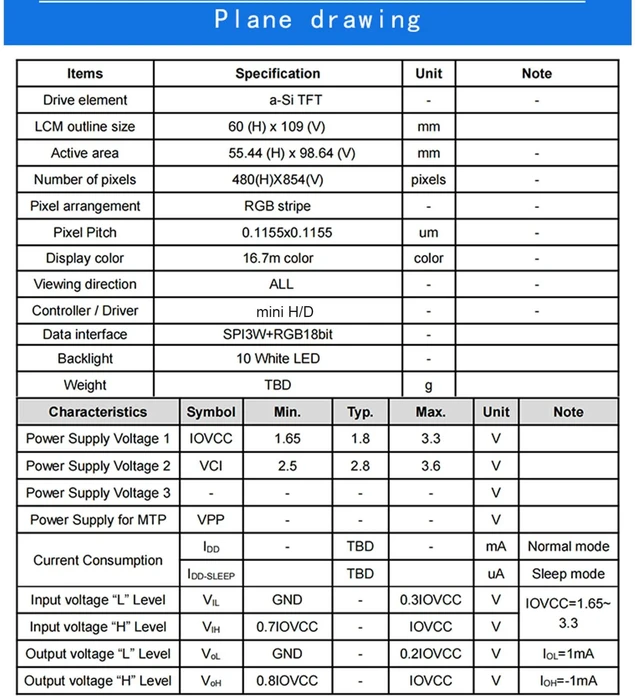

- Screen Specifications: This is a 4.5-inch diagonal TFT display module with a 480(H) x 854(V) pixel resolution (FWVGA). The panel supports a 16.7 million color depth, providing detailed and color-rich images suitable for graphical user interfaces in portrait orientation.

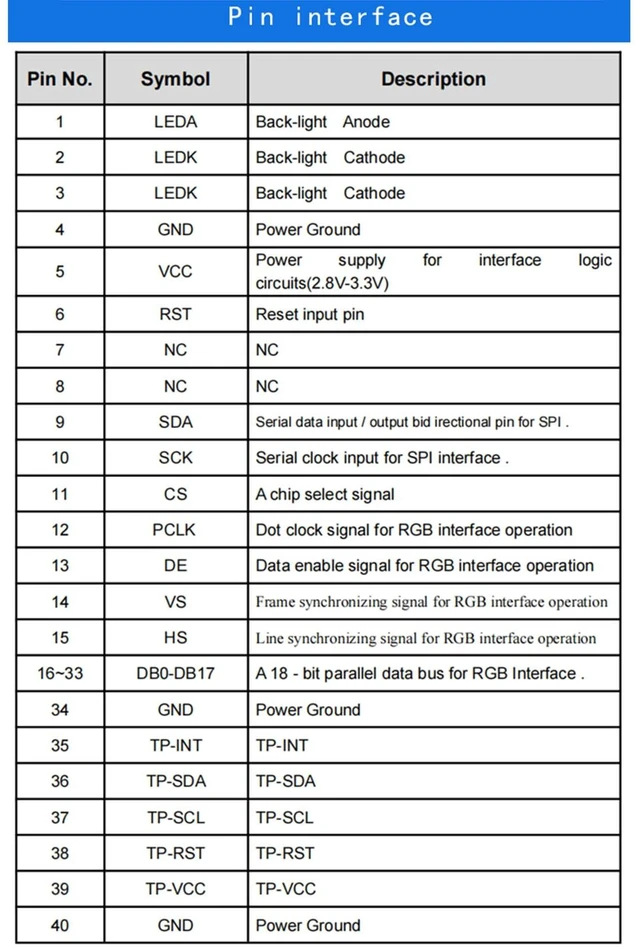

- Dual-Mode Interface: The module offers a flexible data interface that supports both a 3-wire SPI mode for simple, low-pin-count control, and an 18-bit parallel RGB mode for high-speed data transfer and fast refresh rates. This dual capability accommodates a wide range of microcontrollers and project requirements.

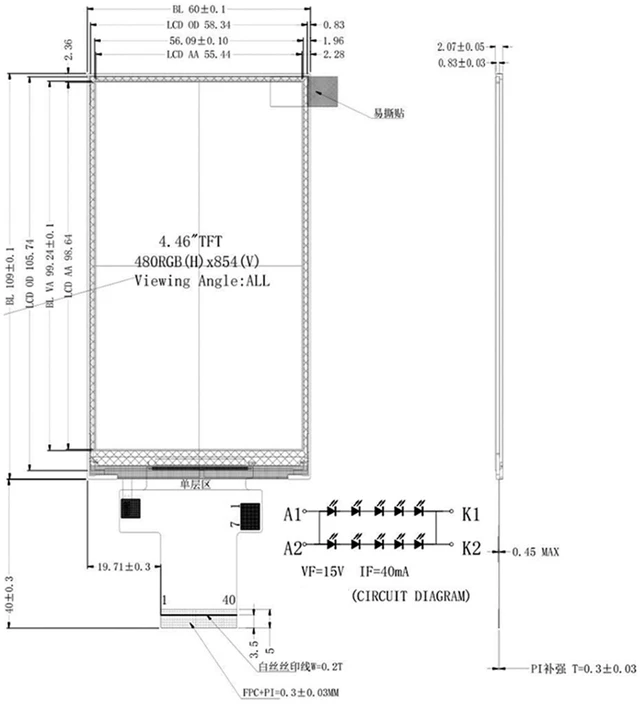

- Physical Dimensions & Viewing Angle: The overall module outline is 60(H) x 109(V) mm, with an active display area of 55.44(H) x 98.64(V) mm. It features an "ALL" direction viewing angle, ensuring consistent image quality and color fidelity from multiple perspectives, making it suitable for handheld or mounted applications.
- Input Power : 5A 1A ,Pls prepare it by yourself.
- Applications and Safety Notice...
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
- Screen Specifications: This is a 4.5-inch diagonal TFT display module with a 480(H) x 854(V) pixel resolution (FWVGA). The panel supports a 16.7 million color depth, providing detailed and color-rich images suitable for graphical user interfaces in portrait orientation.
- Dual-Mode Interface: The module offers a flexible data interface that supports both a 3-wire SPI mode for simple, low-pin-count control, and an 18-bit parallel RGB mode for high-speed data transfer and fast refresh rates. This dual capability accommodates a wide range of microcontrollers and project requirements.
- Physical Dimensions & Viewing Angle: The overall module outline is 60(H) x 109(V) mm, with an active display area of 55.44(H) x 98.64(V) mm. It features an "ALL" direction viewing angle, ensuring consistent image quality and color fidelity from multiple perspectives, making it suitable for handheld or mounted applications.
- Input Power : 5A 1A ,Pls prepare it by yourself.
- Applications and Safety Notice: Suitable for applications such as handheld instruments, DIY electronics, IoT device interfaces, and compact control panels. Safety Notice: This is an electronic component that must be operated in an insulated environment to prevent short circuits. ESD (Electrostatic Discharge) precautions are required during handling and assembly.
